Victron Fuse holder 6-way for MEGA-fuse
Victron Fuse holder 6-way for MEGA-fuse

DESCRIPTION

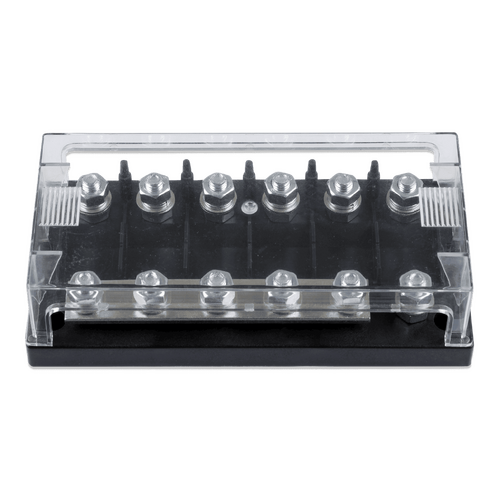

Victron Fuse holder 6-way for MEGA-fuse
Streamline your high-current applications with our robust 6-way MEGA fuse holder, designed to handle up to 250 A continuous current with a maximum voltage of 70 VDC. Engineered for reliability, this fuse holder boasts a sturdy construction with terminals and hex nuts made from galvanized steel to ensure a solid connection and durability. With a terminal diameter of 5/16 inch and a height of 0.67 inch, it's built to accommodate substantial wiring with ease.
Precision installation is guaranteed with a recommended torque setting of 60 lbf-inch / 7 N⋅m, ensuring a secure and stable assembly. The busbar strip is crafted from tin-plated copper, providing excellent conductivity and corrosion resistance. The base material is made from black ABS with a UL 94 V-0 rating, indicating a high standard of safety and flammability resistance.
The cover is made from clear Polycarbonate with a UL 94 HB rating, combining strength with visibility, so you can easily inspect fuse conditions. Weighing in at a light 1 lb, this fuse holder is easy to handle and install. Its compact dimensions of 2.0 x 7.2 x 3.5 inches ensure it won't take up unnecessary space in your setup. This fuse holder is an essential component for managing your power distribution safely and effectively.
SPECIFICATIONS
Specifications
- Max. current: 250 A
- Max. Voltage: 70 VDC
- Terminal diameter: 5/16 inch / 8 mm
- Terminal height: 0.67 inch / 14 mm
- Terminal material: Galvanised steel
- Hex nut material: Galvanised steel
- Recommended torque: 60 lbf-inch / 7 N⋅m
- Busbar strip material: Tin-plated copper (3 x 18 mm)
- Base material: ABS, black, UL 94 V-0
- Cover material: Clear Polycarbonate, UL 94 HB
- Weight: 1 lb / 0.45 kg
- Dimensions (hxwxd): 2.0 x 7.2 x 3.5 inch / 50.9 x 181.5 x 88 mm
| SKU: | VIC-CIP050060000 |
| Barcode: | 8719076051350 |
| Model #: | CIP050060000 |
| MPN: | CIP050060000 |
