Victron Battery Protect 12/24V-65A Low Voltage Disconnect

Low voltage battery protection


Front profile of Victron Battery Protect 65A showing M6 power studs and terminal interfaceHighlights:Input Terminal: M6 input stud for connection to the battery positive terminal,Output Terminal: M6 output stud for connecting to DC loads,Remote Connector: Removable green terminal block for remote on-off switching,Interface Pins: Connection points for programming, ground, and external alarm output,Mounting Flange: Integrated side flange for secure mounting to a flat surface.Warning sign stating this Battery Protect unit does not have Bluetooth functionalityAngled view of Battery Protect showing status display and blue potted housingKey features: 7-segment LED display for status and easy programming, IP67 rated potted electronics for maximum moisture protection, Automatic detection of 12V and 24V battery systems, Overvoltage and reverse current protection for electronics.Included green connector with preassembled black DC minus cable and ring terminalThis accessory includes a 3-pin green terminal block preassembled with a black DC minus cable and a 6mm ring terminal for grounding the unit.Specification comparison table for Victron Battery Protect 65A, 100A and 220A modelsWiring diagram for Battery Protect showing battery, remote switch and external alarm connectionsTechnical dimension drawing of Battery Protect 65A with measurements in millimetres
Front profile of Victron Battery Protect 65A showing M6 power studs and terminal interface
Warning sign stating this Battery Protect unit does not have Bluetooth functionality
Angled view of Battery Protect showing status display and blue potted housing
Included green connector with preassembled black DC minus cable and ring terminal
Specification comparison table for Victron Battery Protect 65A, 100A and 220A models

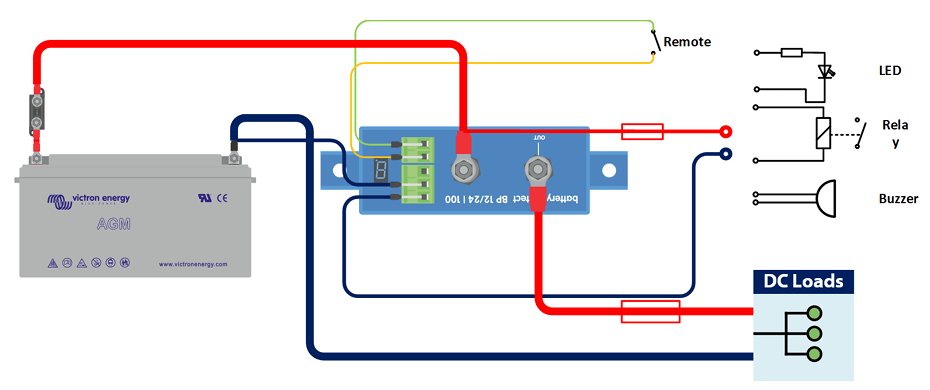

Wiring diagram for Battery Protect showing battery, remote switch and external alarm connections
Technical dimension drawing of Battery Protect 65A with measurements in millimetres
Regular price $51.89
$68.20
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

27
Front profile of Victron Battery Protect 65A showing M6 power studs and terminal interface

Victron Battery Protect 12/24V-65A Low Voltage Disconnect

DESCRIPTION

Victron Battery Protect 12/24V-65A: Optimal Power Management for Vehicle and Marine Systems

Note: "Victron Battery Protect" units are NOT Bluetooth. See "Victron Smart Battery Protect" units if Bluetooth is required.

Preserve Your Battery's Lifespan

The Victron Battery Protect is an essential device for safeguarding your vehicle's battery from complete discharge, thereby extending its lifespan. It efficiently disconnects the battery from non-essential loads, like lights or a refrigerator, before they fully drain the battery or when the power is too low for engine cranking.

Uni-Directional Current Flow and Voltage Protection

Uniquely designed as a uni-directional device, the BatteryProtect handles current in one direction – either to a load or from a charger, but not both simultaneously. This function is ideal for ensuring the safe flow of current and protecting sensitive onboard equipment from over-voltage.

Auto-Detecting 12/24V System and Simple Programming

This device intelligently auto-detects system voltage, whether 12V or 24V, for seamless integration into various setups. The user-friendly programming allows you to set engagement and disengagement at different voltages, indicated by a clear display.

Special Mode for Li-ion Batteries

Incorporating a specific setting for Li-ion batteries, the BatteryProtect can be controlled by the VE.Bus BMS. It's also ideal as a charge interrupter between a battery charger and a Li-ion battery, as detailed in the connection diagram in the manual.

Ultra-Low Current Consumption

With its low current consumption, the BatteryProtect is crucial for Li-ion batteries, especially after a low voltage shutdown, to minimize energy loss and enhance battery protection.

Reliable Over Voltage and Ignition Protection

Equipped with over-voltage protection, the BatteryProtect disconnects loads when the DC voltage exceeds safe levels. MOSFET switches ensure ignition-proof operation, removing the risk of sparks.

Flexible Use as a Remote Switch

The BatteryProtect can also function as a remote switch, allowing you to turn on and off various devices remotely. This flexibility is particularly useful in situations where manual control of devices like external lighting or electronic gadgets is needed.

Delayed Alarm and Load Management

Featuring a delayed alarm output, the BatteryProtect ensures that starting the engine won't trigger a false alarm. It also offers intelligent load disconnect and reconnect, managing power effectively to maintain continuity.

Choose the Victron Battery Protect for efficient and reliable battery management, enhancing the performance and lifespan of your battery system in a variety of scenarios.

SPECIFICATIONS

Specifications

BatteryProtect BP-65
Max. continuous load current* 65A
Peak current (during 30 seconds) 250A
Operating voltage range 6 –35V
Current consumption When on: 1.5 mA When off or low voltage shutdown: 0.6 mA
Alarm output delay 12 seconds
Maximum load on alarm output 50 mA (short circuit proof)
Load disconnect delay 90 seconds (immediate if triggered by the VE.Bus BMS)
Load reconnect delay 30 seconds
Default thresholds Disengage: 10.5V or 21V Engage: 12V or 24V
Operating temperature range Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
IP rating Electronics: IP67 (potted) Connections: IP00
Connection M6
Mounting Torque 5 Nm
Weight 0.2 kg 0.5 lbs
Dimensions (hxwxd) 40 x 48 x 106 mm 1.6 x 1.9 x 4.2 inch

* The BatteryProtect is not designed for reverse currents from charging sources


SKU: Vic-BPR000065400
Barcode: 8719076034193
Model #: BPR000065400
MPN: BPR000065400
