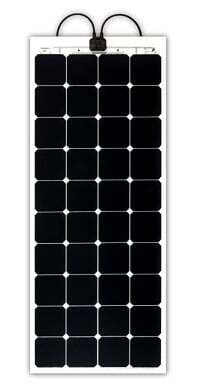

Solbian SunPower 130W - Flexible Solar Panel
1363 x 546 x 2mm 1.7kg - Maxeon 3 Cells - 22.8Vmp
Solbian SunPower 130W - Flexible Solar Panel1363 x 546 x 2mm 1.7kg - Maxeon 3 Cells - 22.8Vmp
Free Fastway shipping for orders over $500 on most items to capital cities. Calculate shipping in cart for more details.

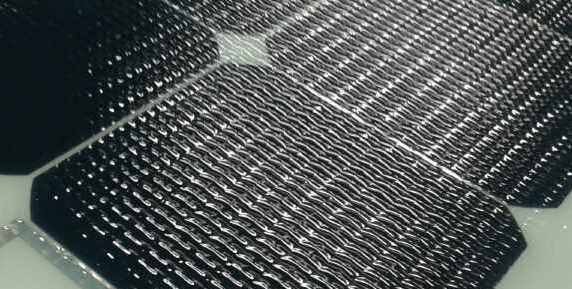

Solbian SP series panels are made in Italy and use SunPower patented back-contact monocrystalline silicon cells which eliminates conductors on the top surface which reduces the efficiency of other cells in comparison. The cell efficiency of 24% enable the SP range to provide the highest output power from the smallest surface area of any panel available today and hence are recommended for installations on yachts where maximum power is required from limited surface area. The SunPower cells also achieve the lowest loss in partial shading and high temperature situations compared with other cells.
- Most efficient flexible module on the market (highest output power from the smallest surface area)
- Flexible and lightweight (2.2 kg/m2)
- Completely waterproof and resistant to salt water
- Thin (less than 2 mm)
- 5 year Solbian warranty against manufacturing defects
- Integrated bypass diodes to minimise output losses associated with partial shading
- Charge 12V, 24V, 36V or 48V batteries, lead-acid or lithium, using a Genasun boost charge controller
- Designed and manufactured in Italy
- Special Order Options:
- Non-standard panel configurations are possible, e.g. 3-cell wide
- Smooth or textured top sheet
- Electrical connections may be junction box on top or underneath, "Wires under", or tabbing wire only
- White, black or transparent backsheet
- Zippers (many colours available from Sunbrella range - please contact Solar 4 RVs to confirm availability)
- Point of sale options:
- 316 stainless steel eyelets
- Bi-adhesive backsheet (peel and stick) - Required to walk on the panel
Click the "Download Manual" icon underneath the main image.
Photovoltaic Module Limited Warranty – CP, SP, SL, SX, SXp, SR Series
1. Limited Product Warranty ‐ Five Years Repair, Replacement or Refund Remedy
SOLBIAN warrants its Photovoltaic Solar Modules limited to series CP,SP,SL,SX,SXp,SR (MODULES), including factory‐assembled DC connectors and cables, if any, to be free from defect in materials and workmanship under normal application, installation, use and service conditions. If MODULES fail to conform to this warranty, during the period ending Sixty (60) months from the date of sale to the customer of the SOLBIAN product (CUSTOMER), SOLBIAN will, at its option, either repair or deliver a new product, or refund the purchase price as paid by the CUSTOMER (SALES DATE). The repair or deliver or refund remedy shall be the sole and exclusive remedy provided under the “Limited Product Warranty” and shall not extend beyond the Sixty (60) months period set forth herein. This ‐Limited Product Warranty‐ does not warrant a specific power output, which shall be exclusively covered under clause 2 hereinafter (Limited Peak Power Warranty).
2. Limited Peak Power Warranty ‐ Limited Remedy 5 years
If, within a period of (5) five years from the Sales Date any MODULE(s) exhibits a power output less than 85 % of the minimum‐ Peak Power at STC ‐ as specified as of the Sales Date in SOLBIAN Flash Report, provided that such loss in power is determined by SOLBIAN ( at its sole and absolute discretion ) to be due to defects in material or workmanship, SOLBIAN will, at its sole option, either (1) replace such loss in power by either (a) providing additional MODULES to the CUSTOMER to make up for such loss in power or (b) replacing the defective MODULE(s) at the option of SOLBIAN or (2) refund the percentage of the cost of the MODULE (as measured by the then prevailing market price for similar MODULES) to the CUSTOMER representing the percentage of the power output less than 85% of the minimum ‐Peak Power at STC ‐ as specified as of the Sales Date in SOLBIAN Flash Report. The remedies set forth in this clause 2 shall be the sole and exclusive remedies provided under the –Limited Peak Power Warranty‐.
3. Exclusions and Limitations
(1) In any event, all warranty claims must be received within the applicable warranty period for this warranty to be effective. The warranty do not cover any handling or labour cost.
(2) The ‐Limited Product Warranties ‐ and the ‐Limited Peak Power Warranties ‐ do not apply to any MODULES which have been subjected to:
. Misuse, abuse, neglect or accident;
. Alteration, improper installation or application;
. Non‐observance of SOLBIAN’s installation and maintenance instructions; and in particular, the ban of punching, cutting, hammering and bending the modules with a bending radius smaller than 1500 mm;
. Repair or modifications by someone other than an approved service technician of SOLBIAN;
. Power failure surges, lighting, flood, fire, accidental breakage or other events outside SOLBIAN’ s control.
. Usage outside of the functioning temperature range: ‐40°C +85°C
(3) Both the ‐Limited Product Warranties – and ‐Limited Peak Power Warranties ‐ do not cover any costs associated with installation, removal or re‐installation of the PV‐modules and (except as explicitly set forth in the final paragraph of Section 5) customs clearance or any other costs for return of the MODULES.
(4) Warranty claims will not be honored if the type or serial number of the MODULES have been altered, removed or made illegible.
(5) This ‐Limited Warranty for PV Modules ‐ does not apply to MODULES marked as “Grade B” .
4. Limitation of Warranty Scope
These ‐Limited Warranties for PV Modules‐ as set forth herein are expressly in lieu of and exclude all other express or implied warranties, including but not limited to warranties of merchantability and of fitness for particular purpose, use, or application, and all other obligations or liabilities on the part of SOLBIAN, unless such other obligations or liabilities are expressly agreed to in writing signed and approved by SOLBIAN. SOLBIAN shall have no responsibility or liability whatsoever for damage or injury to persons or property, or for other loss or injury resulting from any cause whatsoever arising out of or related to the MODULES, including, without limitation, any defectsin the MODULE, or from use or installation. Under no circumstances shall SOLBIAN be liable for incidental, consequential or special damages, howsoever caused. Loss of use, loss of profits, loss of production, and loss of revenues are specifically and without limitation excluded. SOLBIAN aggregate liability, if any, in damages or otherwise, shall not exceed the invoice value as paid by the
CUSTOMER, for the single unit of MODULE. Simply Aestethic alterations that do not reduce the power of the Modules remain expressly excluded liabilities.
5. Obtaining Warranty Performance
If the CUSTOMER has a justified claim covered by this ‐Limited Warranties for PV Modules‐ an immediate notification directly to SOLBIAN shall be filed by mailing a registered letter in writing to the address of SOLBIAN listed hereunder, or, sending an email letter to the email account of SOLBIAN listed hereunder. Together with the notification, the CUSTOMER should enclose the evidence of the claim with the corresponding serial number of the MODULE(s) and the date on which the MODULE(s) have been purchased. The return of any PV‐modules will not be accepted unless prior written authorization has been given by SOLBIAN. In connection with both the ‐Limited Product Warranties ‐ and ‐Limited Peak Power Warranties ‐ SOLBIAN shall reimburse CUSTOMER for reasonable, customary and documented transportation charges by sea freight for both the return of the MODULES and reshipment of any repaired or replaced MODULES, only if this cost is authorized by SOLBIAN customer service department.
If a part, provision or clause of this ‐Limited Warranty for PV Modules‐, or the application thereof to any person or circumstance, is held invalid, void or unenforceable, such holding shall not affect and shall leave all other parts, provisions, clauses or applications of this ‐Limited Warranty for PV Modules‐, and to this end such other parts, provisions, clauses or applications of this ‐Limited Warranty for PV Modules‐ shall be treated as severable.
In case of any discrepancy in a warranty‐claim, a first‐class international test‐institute such as Fraunhofer ISE in Freiburg/ Germany or TuV Rheinland in Cologne/ Germany shall be involved to judge the claim finally. All fees and expenses shall be born by the losing party, unless otherwise awarded. The final explanation right shall be borne by SOLBIAN.
YOU MAY HAVE SPECIFIC LEGAL RIGHTS OUTSIDE THIS WARRANTY, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. THIS LIMITED WARRANTY DOES NOT AFFECT ANY ADDITIONAL RIGHTS YOU HAVE UNDER LAWS IN YOUR JURISDICTION GOVERNING THE SALE OF CONSUMER GOODS,INCLUDING, WITHOUT LIMITATION, NATIONAL LAWS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE LIMITATIONS OR EXCLUSIONS IN THIS LIMITED WARRANTY STATEMENT MAY NOT APPLY TO YOU.
The repair or replacement of the MODULES or the supply of additional MODULES, does not cause the beginning of new warranty terms, nor shall the original terms of this “Limited Warranty for PV‐Modules” be extended. Any replaced MODULES shall become the property of SOLBIAN made for their disposal. SOLBIAN has the right to deliver another type ( different in size, color, shape and/or power ) in case SOLBIAN discontinued producing the replaced MODULES at the time of the claim.
9. Warranty Transfer
This warranty is transferable when the product remains installed in its original location at the warranty registration.
10. Force Majeure
SOLBIAN shall not be responsible or liable in any way to the customer or any third‐party arising from any non‐performance or delay in performance of any terms and conditions of sale, including this "Limited Warranty for PV Modules", due to acts God, war, riots,strikes, warlike conditions, plague or other epidemics, fire, flood, or any other similar cause or circumstance beyond the reasonable control of such SOLBIAN. In such cases, performance by SOLBIAN of this Limited Warranty shall be suspended without liability for the period of delay reasonably attributable to such causes.
This Limited Power Warranty for PV Modules is valid for all MODULES Series CP, SP, SL, SX , SXp and SR dispatched between 1st January 2017 and 31st December 2017. Peak Power at STC is the power in Watt peak that a PV‐ module generates in its Maximum Power Point. STC are as follows:
(a) light spectrum of AM 1.5, (b) an irradiation of 1000 W per m2 and (c) a cell temperature of 25 degree centigrade at right angle irradiation. The measurements are carried out in accordance with IEC 61215 as tested at the connectors or junction box terminals ¨”as applicable” per calibration and testing standards of SOLBIAN valid at the date of manufacture of the PV‐modules. This Limited Power Warranty for PV Modules will become null and void if the MODULE is transferred from the original continent of destination (e.g. North America). All customers, direct and indirect, are hereby notified of such potential nullification.
SOLBIAN ENERGIE ALTERNATIVE Srl
