Enerdrive Tank Level Sender Sensor 100mm 1-1/4" BSP 240-33 ohms


$52.00
In Stock
Enerdrive logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Enerdrive Tank Level Sender Sensor 100mm 1-1/4" BSP 240-33 ohms, to the majority of areas. Check your shipping details on the cart page for more information.

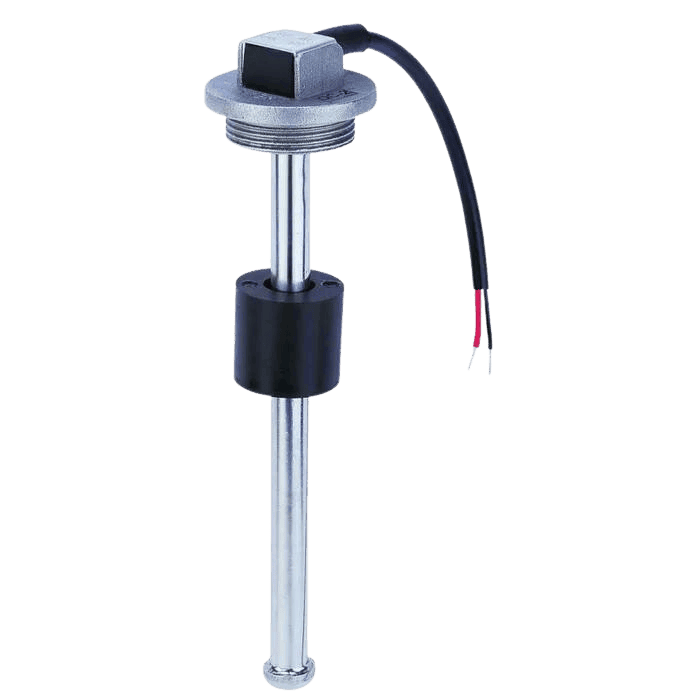

The Enerdrive fuel & liquid gauge sender is designed to work with gauges using the 240-33Ohm resistance system. The sender uses a magnetic reed switch, which guarantees a steady output signal. The small number of moving parts, and the solid stainless construction gives this sender a long working life, as well as making this fuel gauge sender anti-resistant and anti-explosion. This sender is rated for IP67, and is suitable for all applications. Mounts via a 1 1/4? BSP pipe fitting and can be simply screwed into the top of a matching tank. The connection cable has a sealed entry into the top of the sender for water resistance. A 5 hole mounting flange adapter is available for thin wall tanks that are not suitable for screw threads.


Manufacturer's Website


(EN-TS100)

EN-TS-# Rod Style Senders Description
Lengths 150 - 500mm (25mm Increments)
Output 240-33 Ohms
Wire Connection Blue: Input/Common Negative
Black: Signal Output
Housing Material Stainless Steel 316
Ingress Protection IP67
Mounting Position Mounted in top of the Tank.
Mounting Type 1-1/4 BSP Thread.
Mounting Adapter Accessory (Sold Separately) 1 ¼" BSP thread to Dual 5 Hole Pattern Adapter.
Converts to SAE 5 hole or VDO 5 hole pattern for retro-fitting
SKU EN-TS100
MPN # EN-TS100
