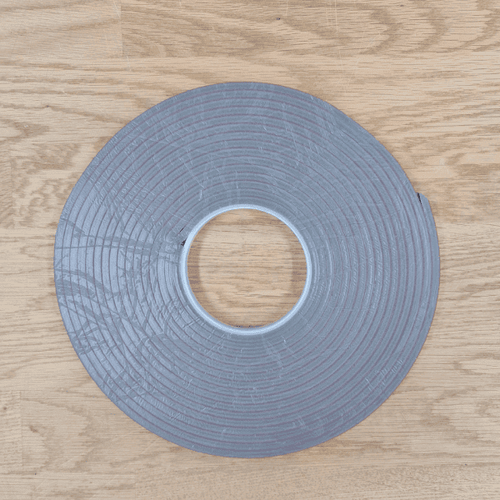

Roll of Acrylic VHB Double-sided Foam Tape 4.6mmH x 12mmW x 8.25m

VHB (Very High Bond)

Guaranteed Safe and Secure Checkout

10+ Years Experience
Solar Specialists

Fast Shipping
From Victoria

Free Returns*
Within 30 days

This very high bond acrylic foam tape is strong and conformable.

The strength of this tape has been tested in-house under a variety of conditions including extreme cold and heat.

We recommend using very high bond tape to ensure the thermal expansion between the panels and the substrate is accommodated.

Features

• Fast and easy

• High adhesion and shear properties

• Great conformability and stretching

• Good performance in dynamic shear

• Good moisture and chemical resistance, ideal for exterior use

• Creates an environment-friendly seal when bonding

• Resists UV light for long term outdoor durability

(RP-PK-Tape4.6)

Specifications

TECHNICAL PRODUCT INFORMATION PRODUCT PART NO.: BG734F

Features

• Fast and easy

• High adhesion and shear properties

• Great conformability and stretching

• Good performance in dynamic shear

• Good moisture and chemical resistance, ideal for exterior use

• Creates an environment-friendly seal when bonding

• Resists UV light for long term outdoor durability

Carrier

Acrylic foam (grey)

Adhesive

Acrylic

Liner

Red PE release film

Applications

Automobile industry: weather strip, side strip, nameplates, sun visor, cushioning protector, roof rubber

Electronics: LCD, laptop, mobile phone, PDA, fixation of backlight frame and shading

Others: nameplates, radiator, flexible solar panel, silk-screen and free industry

Technical Details

Thickness ---------------------------------------------------------------------------------------------------------------------1.0mm±0.050 mic

Tensile strength (aluminum T-block, ASTM D-897) --------------------------------------------------------------≥5,500 gf/cm2

180℃ Peel adhesion(stainless steel, ASTM D-3330) ------------------------------------------------------------≥4500 gf/25mm

Holding power (stainless steel, ASTM D-3654,80℃，1000g) ------------------------------------------------- > 24 Hr

Dynamic shear strength ----------------------------------------------------------------------------------------------- ≥3,000 gf/cm2

(Room temperature after 20 minutes)

Dynamic shear strength ----------------------------------------------------------------------------------------------- ≥5300 gf/cm2

(Room temperature after 24 Hrs)

Static Shear(250g)-------------------------------------------------------------------------------------------------------10000minutes

Temperature resistance ------------------------------------------------------------------------------------------------ 160 ℃

(Short term, 100g, 4hours)

Temperature resistance ------------------------------------------------------------------------------------------------- 120℃

(Long term, 250g,10000minutes)

Application

Temperature: between 0°C and + 35°C during application. Surface must be clean and free from dust and grease, clean all surfaces with iso-propyl alchohol and allow to dry. Avoid touching the tapes exposed adhesive surface in order to keep full adhesive performance. Pressure sensitive adhesive must be applied with a maximum of pressure in order to achieve maximum pressure level. The indicated level of performance will be reached after a bonding period of 24 HRS at 23 °C.

Storage and shelf life

Clean and dry in a well ventilated area, preferably at a temperature between 10°C and 30°C. Stored under these conditions shelf life will be a minimum of 6 months.

The above information is given in good faith, but the user should assure themselves that the performance of the product is sufficient for his application. The quoted values are average and should not be taken as maximum or minimum values for specific purposes. Solar 4 RVs cannot be held responsible for product failure unless full testing has been carried out. The client has to decide on the tapes suitability for their own applications.
