Power Up Your Ride: The Ultimate Guide to Victron EV Chargers in Australia

1. Introduction: Embracing the Electric Revolution with Victron Energy

The shift towards Electric Vehicles (EVs) in Australia is not just a trend; it's a transformation in motion. Market analyses project significant growth, with the Australian EV charging market expected to expand at a compound annual growth rate (CAGR) of 24.32% between 2025 and 2033. This surge in EV adoption naturally fuels a demand for sophisticated, reliable, and intelligent home charging solutions. EV owners are increasingly seeking ways to power their vehicles efficiently, cost-effectively, and, where possible, with renewable energy.

Enter Victron Energy, a name globally recognized for its exceptionally robust and high-quality power solutions. For decades, Victron has been the backbone of power systems in some of the most demanding environments, including off-grid properties, marine applications, and industrial settings. This legacy of engineering excellence and reliability is now channelled into their advanced EV charging stations. For Australians familiar with Victron's prowess in ensuring energy independence for RVs and remote locations, this extension into EV charging signifies a trusted solution built on proven technology.

This guide provides a comprehensive overview for Australians considering Victron EV chargers. It delves into crucial aspects such as understanding EV connector types, the features of Victron's charging stations, the benefits of solar integration, compatibility with popular EV models, and the importance of compliant installation according to Australian standards.

2. Decoding EV Connectors: Type 2 – The Australian Standard for Your Victron Charger

Navigating the world of EV connectors can seem daunting at first, but the landscape in Australia has largely standardized, simplifying choices for consumers. Victron EV chargers align with this standard, ensuring broad compatibility.

The primary AC (Alternating Current) connector types relevant to Australian EV owners are:

• Type 1 (J1772): This connector is predominantly found on older EV models or vehicles imported from regions like the USA and Japan. While functional, Type 1 connectors are limited to single-phase charging and are becoming less common in Australia for new vehicles.
• Type 2 (Mennekes / IEC 62196): This is the undisputed AC charging standard for all new electric vehicles manufactured for the Australian and New Zealand markets since 2019, and this trend is set to continue. Victron EV Charging Stations are equipped with a Type 2 socket. A key advantage of the Type 2 connector is its ability to support both single-phase and more powerful three-phase AC charging, offering greater flexibility and faster charging speeds where available.
• CCS2 (Combined Charging System): This connector is an extension of the Type 2 plug, incorporating two additional large pins below for DC (Direct Current) fast charging. CCS2 is the standard for public DC fast charging in Australia. When using an AC charger like a Victron station, an EV with a CCS2 port will utilize the upper Type 2 portion of its inlet for charging.

The clear move towards Type 2 as the dominant AC charging standard in Australia means that selecting a Victron EV charger provides owners with a solution that is compatible with the vast majority of current and future EVs on Australian roads. This standardization eliminates much of the earlier confusion surrounding connector types, offering peace of mind and a future-proof investment. The decline of older standards like Type 1 and CHAdeMO for new vehicles further solidifies Type 2's position.

EV Connector Snapshot for Australian EV Owners

Connector Type	Common Names	Primary Use	Phases Supported (AC)	Australian Prevalence	Victron EV Charger Compatibility
Type 1	J1772, SAE J1772	AC Charging	Single-phase	Older/imported EVs, declining	Not directly; Victron uses Type 2 socket. Adapter may be needed for car.
Type 2	Mennekes, IEC 62196-2	AC Charging	Single-phase & Three-phase	Standard for new EVs in Australia	Yes (charger has Type 2 socket)
CCS2	Combined Charging System Type 2	DC Fast Charging (also supports AC via Type 2 portion)	N/A for DC; Type 2 portion supports Single & Three-phase AC	Standard for DC fast charging in new EVs	Yes (for AC charging via Type 2 portion of vehicle's CCS2 inlet)

The Victron EV Charging Station provides AC power. Vehicles with a CCS2 port use the Type 2 section of that port for AC charging.

3. Meet the Victron EV Charging Station: Intelligent Charging Tailored for You

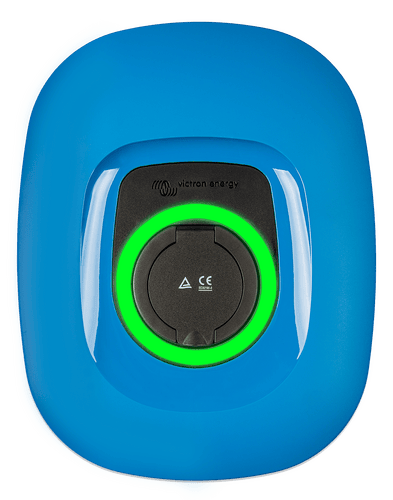

Victron Energy offers sophisticated EV charging solutions, with the Victron EV Charging Station NS (model EVC200300200) being a prominent offering, particularly noted for its modern design and smart features. While there is also an original Victron EV Charging Station model that includes an LCD touchscreen , the NS model opts for a sleeker, screen-less aesthetic, relying on app-based and web-interface control for a more minimalist appearance.

Key Features of the Victron EV Charging Station NS:

• Power Output: It delivers a robust maximum of 22 kW AC in three-phase mode or 7.3 kW AC in single-phase mode, catering to various installation types and vehicle capabilities.
• Connectivity and Control:
  • Built-in Wi-Fi (802.11 b/g/n, 2.4 GHz only) enables configuration, monitoring, and control via a web interface. It supports both Access Point and Station modes for flexible network integration.
  • Bluetooth connectivity allows for easy setup and management through the VictronConnect App, where users can monitor session statistics, adjust settings, and manage parameters from a mobile device.
• Smart Charging Modes:
  • Manual Mode: Users can precisely adjust the charging output current between 6-32 Amps via the integrated web interface, a connected Victron GX device, or the VictronConnect App. This allows for manual starting and stopping of the charging process.
  • Automatic Mode: This intelligent mode is designed to detect and utilize only excess power from a solar PV system (within a Victron ecosystem). The vehicle charges only when surplus solar energy is available, optimizing self-consumption. This is a standout feature for solar owners.
  • Scheduled Mode: A fully programmable scheduler allows users to set charging to occur during specific time intervals, such as off-peak electricity tariff periods, to help reduce charging costs.
• Full System Integration: The EV Charging Station NS seamlessly integrates with Victron GX devices (like the Cerbo GX) and the Victron Remote Management (VRM) Portal. This allows for comprehensive real-time monitoring, generation of custom reports, and remote control of the charging station from anywhere with an internet connection. This level of integration is particularly beneficial for users with existing Victron energy systems, transforming the EV charger into a cohesive part of a managed energy ecosystem.
• User Interface & Status Indication: A programmable RGB Light Ring around the Type 2 charging port provides immediate visual feedback on the charger's status (e.g., disconnected, charging, charged). It can be programmed with up to 55 different light effects to clearly indicate the operational state from a distance.
• Aesthetics and Customization: The EV Charging Station NS typically comes with a stylish light blue (RAL 5012) front cover. For users wishing to match their charger to their home or garage aesthetics, optional front covers in matte Traffic Black (RAL 9017) or matte Traffic White (RAL 9016) are available. These covers are designed for easy installation and are made from durable, weather-resistant materials.
• Connector Type: It features an IEC 62196 Type 2 socket, ensuring compatibility with the Australian standard.

The original Victron EV Charging Station shares the same core electrical specifications and smart functionalities but includes a 4.3-inch LCD Touch Screen for direct on-device monitoring and control. The EV Charging Station NS, by forgoing the screen, offers a more streamlined design favored by those who prefer app-based interaction or have a GX device for system overview.

Explore the Victron EV Charging Station NS on Solar4RVs for detailed specifications and purchasing options.

4. Key Advantages of Charging with Victron: Beyond Just Powering Up

Victron EV chargers offer more than just a way to replenish an EV's battery; they bring a suite of intelligent features designed for efficiency, cost savings, and integration, especially for those with renewable energy systems.

4.1. Harnessing Solar Power: Charge Your EV with Sunshine

One of the most compelling advantages of the Victron EV Charging Station is its "Automatic Mode," specifically designed for homes with solar photovoltaic (PV) systems integrated within the Victron ecosystem. This mode intelligently detects when there is surplus solar energy being generated – that is, power produced by the solar panels that exceeds the household's immediate consumption and would otherwise be exported to the grid (often for minimal feed-in tariffs) or curtailed.

When surplus solar is available, the Victron EV charger automatically diverts this excess clean energy to charge the connected electric vehicle. The charging power dynamically adjusts based on the solar production and household load, ensuring that, in this mode, only free solar energy is used.

The benefits are manifold:

• Maximized Solar Self-Consumption: It ensures that the valuable solar energy generated on-site is used to its fullest potential, directly powering the vehicle instead of being sold cheaply to the grid.
• Reduced Electricity Bills: By charging with free solar energy, reliance on purchasing grid electricity for EV charging is significantly diminished, leading to lower energy costs. The VictronConnect app and VRM Portal can even show savings from using solar energy.
• Greener Charging: Powering an EV with solar energy dramatically reduces its carbon footprint, making for truly emission-free driving (at the point of use).
• Ideal for Off-Grid Applications: For RVs, tiny homes, and off-grid properties – a core specialty for suppliers like Solar4RVs – this feature is paramount. In an off-grid scenario, efficient energy management is critical. Victron's ability to prioritize solar for EV charging ensures that vehicle charging doesn't unduly deplete stored battery energy, enhancing energy independence and system stability. Standard chargers might draw power indiscriminately, which is not viable off-grid.

This intelligent solar integration transforms the EV charger from a simple appliance into an active component of a home's energy management strategy, aligning economic benefits with environmental responsibility.

4.2. The Power of Three-Phase: Supercharge Your Charging Speed

Victron EV Charging Stations are designed with flexibility in mind, supporting both single-phase and three-phase AC power installations. While many Australian homes have a single-phase electricity supply, which typically allows for EV charging speeds up to around 7.3 kW (as supported by Victron chargers in single-phase mode), properties with a three-phase supply can unlock significantly faster charging capabilities.

With a three-phase connection, Victron EV chargers can deliver up to 22 kW of power. This higher power output translates directly to reduced charging times for EVs that can accept this rate of charge.

The advantages of 22 kW three-phase charging include:

• Faster Charging: Significantly quicker top-ups compared to 7.3 kW, ideal for users who need a rapid recharge or have high daily mileage.
• Convenience for Multiple EVs: Households with more than one EV, or those anticipating a second EV in the future, can benefit from the ability to charge vehicles more rapidly in succession.
• Future-Proofing: As EV battery capacities continue to grow, faster home charging will become increasingly desirable. A 22 kW capable charger prepares a property for these future needs.
• Small Commercial Applications: The 22 kW capability also makes Victron chargers a viable option for small businesses, guesthouses, or workplaces looking to provide faster EV charging amenities for employees or customers, potentially broadening their utility beyond purely residential use.

It's important to note that accessing 22 kW charging requires both a three-phase electricity supply to the property and an EV with an onboard charger capable of accepting 22 kW AC. However, even if an EV can only accept single-phase power (e.g., 7 kW), it can still safely charge from a three-phase Victron charger, as the vehicle will only draw what it can handle. Installation of a three-phase charger should always be assessed and carried out by a qualified electrician.

4.3. Essential EV Charging Leads: Connecting Your Victron Charger

Victron EV Charging Stations, including both the NS model and the original version, are designed with a Type 2 socket outlet rather than a permanently attached (tethered) cable. This means that to connect an electric vehicle to the charger, a separate EV charging cable is required.

The necessary cable is a Type 2 to Type 2 EV charging cable. One end of this cable plugs into the Type 2 socket on the Victron charging station, and the other end plugs into the Type 2 (or CCS2, using the Type 2 portion) inlet on the electric vehicle.

These cables are widely available and come in various specifications:

• Length: Common lengths range from 5 metres to 10 metres or more, allowing flexibility depending on parking arrangements.
• Current Rating: Cables are rated for different maximum currents and phases. For instance, a cable might be rated for single-phase 32A (approximately 7.3 kW) or three-phase 32A (approximately 22 kW). It is advisable to choose a cable that matches or exceeds the charging capabilities of the EV and the charger to ensure optimal performance and safety. A higher-rated cable (e.g., 22 kW) can be safely used with a lower-power charger or vehicle.

The use of a socketed charger and separate cable offers certain advantages. It provides flexibility for the user to choose the cable length and type that best suits their needs. Furthermore, if the cable is damaged, only the cable needs to be replaced, not the entire charging unit, potentially offering better long-term durability and reduced maintenance concerns, similar to the rationale behind untethered public chargers. Users should ensure they purchase a high-quality, compliant charging cable from a reputable supplier.

5. Is Your EV Compatible? Charging Popular Australian EVs with Victron

A primary concern for any prospective EV charger buyer is compatibility with their vehicle. With Victron EV Charging Stations, this is straightforward for the vast majority of electric vehicles available in Australia.

As Victron chargers utilize the IEC 62196 Type 2 AC connector socket , they are inherently compatible with almost all new electric vehicles sold in Australia that support AC charging. The Type 2 connector is the established standard for AC charging in the Australian market.

This broad compatibility extends to many popular EV brands and models, including but not limited to:

• Tesla: Models such as the Model 3, Model Y, Model S, and Model X sold in Australia use a Type 2 inlet for AC charging.
• BYD: Popular models like the Atto 3 and Seal are equipped with a CCS2 socket, which means they use the Type 2 portion for AC charging.
• MG: Vehicles like the ZS EV and MG4 feature a Type 2 AC charging capability, often as part of a CCS2 socket.
• Hyundai: The Ioniq series, Kona Electric, and Ioniq 5 all utilize Type 2 (or CCS2 for DC, which includes Type 2 for AC) charging ports.
• Kia: Models such as the EV6, Niro EV, and the newer EV5 are compatible with Type 2 AC charging via their CCS2 inlets.
• Polestar: The Polestar 2, for example, uses a Type 2 AC socket as part of its CCS2 charge port system.

While some very old EV models or specific parallel imports might utilize a Type 1 connector, mainstream EVs currently sold new in Australia are overwhelmingly Type 2 for AC charging. This widespread adoption by manufacturers ensures that a Victron EV charger is a versatile and suitable option for a broad spectrum of Australian EV owners.

It is important to remember that Victron EV chargers provide AC power (classified as Level 2 charging). While many vehicles have CCS2 ports designed for both AC and DC charging, the Victron unit connects to the AC Type 2 part of this system. This provides convenient and efficient home charging, distinct from the high-power DC fast charging found at some public stations.

Popular Australian EV Models & Victron Charger Compatibility

EV Brand	Popular Models in Australia	AC Charging Port Type on Vehicle	Compatible with Victron Type 2 Chargers?
Tesla	Model 3, Model Y, Model S, Model X	Type 2 (Mennekes)	Yes
BYD	Atto 3, Seal, Dolphin	Type 2 (part of CCS2)	Yes
MG	ZS EV, MG4, HS Plus EV	Type 2 (part of CCS2)	Yes
Hyundai	Kona Electric, Ioniq 5, Ioniq Electric	Type 2 (part of CCS2)	Yes
Kia	Niro EV, EV6, EV9, EV5	Type 2 (part of CCS2)	Yes
Polestar	Polestar 2, Polestar 3	Type 2 (part of CCS2)	Yes
BMW	iX1, iX3, i4, iX, i7	Type 2 (part of CCS2)	Yes
Mercedes-Benz	EQA, EQB, EQC, EQE, EQS	Type 2 (part of CCS2)	Yes
Nissan	Leaf (newer models), Ariya	Type 2 (part of CCS2 for Ariya; Leaf may vary by year but new ones trend to Type 2)	Yes (for Type 2 compatible versions)

6. Safe and Compliant Installation: Adhering to Australian Standards

The installation of any EV charging station, including Victron models, is a task that handles significant electrical power and therefore must be performed by a licensed and qualified electrician in Australia. This is not only a recommendation for safety but a legal requirement. Attempting a DIY installation can be dangerous and may void warranties and insurance.

Several Australian Standards govern the installation of EV chargers to ensure safety and operational integrity:

• AS/NZS 3000:2018 (The Wiring Rules): This is the foundational standard for all electrical installations in Australia and New Zealand. Key requirements relevant to EV chargers include the mandatory installation on a dedicated electrical circuit (no other appliances can share this circuit) and the provision of an appropriately sized overcurrent protective device, typically a circuit breaker. Victron's own manual suggests a 40A rated circuit breaker for its chargers when aiming for full power output.
• AS/NZS IEC 61851 series (Electric vehicle conductive charging system): This series of standards specifically addresses EV charging equipment and installations. Victron EV Charging Stations comply with relevant parts of this standard, such as IEC 61851-1 and IEC 61851-22, as indicated in their product specifications.
• AS/NZS 3008.1.1:2017 (Electrical installations—Selection of cables): This standard dictates the correct sizing of electrical cables based on factors like current load, distance, and installation environment to prevent overheating and ensure safety. Victron recommends a cable cross-section of 6mm² (AWG 10) for their EV chargers.

A critical safety component for any EV charger installation is a Residual Current Device (RCD). An external RCD is mandatory and provides protection against electric shock by detecting imbalances in current flow that could indicate a fault. For EV chargers, it is highly recommended, and often required by local regulations, to use an RCD Type B. This specific type of RCD is designed to operate correctly even in the presence of smooth DC fault currents, which can be produced by EV inverters and may render standard Type A or Type AC RCDs ineffective.

Other installation considerations include:

• Minimum Height: Chargers should typically be installed at a minimum height of 800mm from the ground or floor level.
• Location: The chosen location should be suitable for the charger's IP rating (Victron EV chargers are IP44 rated, suitable for many outdoor installations but should be protected from direct, heavy water exposure).
• System Assessment: A qualified electrician will assess the existing electrical switchboard's capacity and the overall suitability of the property's electrical system for an EV charger installation.

For further information on standards and safety, property owners can refer to resources from Standards Australia and relevant state-based safety authorities like SafeWork NSW. Official Victron Energy product manuals, available from the Victron Energy website, also provide detailed installation instructions that must be followed by the installing electrician. Government resources such as energy.gov.au and transport authority sites like transport.nsw.gov.au also offer general guidance on EV charging.

The emphasis on professional installation and adherence to standards is paramount. It ensures the safety of the users, the protection of the equipment, and compliance with Australian law. This holistic approach to installation considers the entire electrical system, safeguarding against potential hazards.

7. Why Solar4RVs Recommends Victron for Your EV Charging Solution

Solar4RVs endorses Victron EV Charging Stations due to their alignment with the core values of quality, intelligence, and robust performance that characterize the broader Victron Energy product range, which Solar4RVs has long specialized in. The decision to recommend these chargers stems from a combination of their advanced features and their suitability for the diverse needs of Australian EV owners, particularly those interested in solar integration and off-grid capabilities.

The key strengths of Victron EV chargers that resonate with Solar4RVs' philosophy include:

• Intelligent Solar Integration: The ability to seamlessly use surplus solar power for EV charging is a standout feature, maximizing the value of solar investments and promoting greener energy use. This aligns perfectly with Solar4RVs' expertise in solar solutions for mobile and stationary applications.
• Robust Performance and Flexibility: Offering both single-phase (7.3 kW) and three-phase (22 kW) charging capabilities, Victron chargers cater to a wide range of installation scenarios and user needs, from standard home charging to faster top-ups where three-phase power is available.
• Advanced Control and Monitoring: Through the VictronConnect app and the comprehensive VRM Portal (when used with a GX device), users gain unparalleled insight and control over their EV charging and overall energy system. This level of control is crucial for optimizing energy use, especially in off-grid or solar-priority setups.
• Build Quality and Reliability: Victron Energy has a formidable reputation for building durable and reliable power electronics designed to withstand demanding conditions. This heritage inspires confidence in the longevity and performance of their EV chargers.
• Standard Compatibility: The use of the Type 2 connector ensures broad compatibility with the vast majority of EVs in the Australian market, simplifying the choice for consumers.
• Suitability for Diverse Applications: Beyond typical grid-connected homes, Victron EV chargers, with their smart energy management, are exceptionally well-suited for properties with extensive solar arrays, RVs, tiny homes, and off-grid energy systems – areas where Solar4RVs possesses deep expertise.

This synergy between Victron's product capabilities and Solar4RVs' focus on "Securing Energy Independence" makes these chargers a natural fit. Solar4RVs is positioned not merely as a seller of equipment, but as a knowledgeable partner capable of providing expert advice on integrating Victron EV chargers into comprehensive energy solutions, whether for a home, RV, or a custom off-grid power system. This value-added expertise is particularly important for customers looking to create optimized and resilient energy setups.
