Cat5 vs Cat5e vs Cat6: Which Ethernet Cable Makes Sense for Your RV Setup?
A solid mobile‑network backbone starts with the right copper. Whether you are streaming the footy on a rainy night in the Snowy Mountains, uploading drone footage from the Nullarbor, or just running a Victron Cerbo GX dashboard over LAN, your Ethernet choice determines how fast and how reliably data moves around the van.
In this guide we unpack the key differences between Cat 5, Cat 5e and Cat 6 cabling, explain why those differences matter inside a motorhome or caravan, and point out a few practical product options, including our new Exotronic Cat6 UTP Ethernet Cable range and the ever‑popular Victron Cat5e leads, so you can wire once and enjoy the road for years.
What's the Difference Between Cat5 and Cat6?
| Category | Year introduced | Rated speed (up to) | Bandwidth | Typical use today |
|---|---|---|---|---|
| Cat5 | 1995 | 100 Mb s⁻¹ | 100 MHz | Legacy gear only |
| Cat5e | 1999 | 1 Gb s⁻¹ | 100 MHz | Cost-effective LAN links, Victron energy systems |
| Cat6 | 2002 | 10 Gb s⁻¹ to 55 m, 1 Gb s⁻¹ to 100 m | 250 MHz | Modern high-speed networks, IP cameras, 4K streaming |
Cat5e (the “e” stands for enhanced) tightened the electrical specs of the original Cat 5, slashing near‑end crosstalk, attenuation and return loss. Cat6 then doubled the usable frequency range and added stricter noise limits so that 10‑gigabit traffic could run on short hops, handy when the switch, router and smart TV all sit within a few metres in an RV.
Why Bandwidth and Speed Matter on the Road?
Most Australian campsites still top out well below gigabit internet, so why fuss about a 10 Gb s⁻¹‑rated cable?
- Local traffic can dwarf your WAN. Back‑up photos to a NAS, cast 4K movies from a media server, or feed multiple PoE security cameras – all without chewing through mobile data, and you will be glad for the headroom.
- Latency drops with better shielding. Less crosstalk means fewer retransmits, which shows up as snappier Victron VRM monitoring or smoother Zoom calls when you are working remote.
- Future‑proofing.Starlink, 5G mm‑wave and campground fibre are already bumping real‑world speeds. Installing Cat6 today avoids pulling new cable when the outside pipe catches up.
Crosstalk, Interference and the Mobile Environment
RVs bristle with noisy electronics: inverters, solar charge controllers, DC‑DC chargers, stereos and laptop bricks. Cat6, with tighter twists and optional shielding, provides
- Higher signal‑to‑noise ratio.
- Better PoE efficiency thanks to lower resistance.
- Cleaner Wi‑Fi backhaul because a wired gigabit feed frees radio channels for devices
Cat5e copes with basic traffic, but as soon as you stack 4K streaming, gaming and work calls, Cat6 pays for itself.
Distance Limits and Practical Layouts in a Van
- Cat5e vs Cat6 both hold 1 Gb s⁻¹ to 100 m, longer than any RV run.
- Cat6 hits 10 Gb s⁻¹ to 55 m and caravan looms rarely exceed ten metres, so you enjoy full speed.
Real World Scenarios in a Caravan or Motorhome
| Application | Cat5e performance | Cat6 performance | Recommendation |
|---|---|---|---|
| Stream HD on one TV | Smooth | Smooth | Either |
| 4K stream while backing up to NAS | May stutter | Smooth | Cat6 |
| Online gaming plus video calls | Latency spikes | Stable | Cat6 |
| Victron GX network (VE.Can) | Supported | Supported | Cat5e fine |
| PoE 1080p camera | Adequate under 70 m | More margin | Cat6 preferred |
| Future 10 Gb backbone | Not possible | Fully supported | Cat6 |
Recommended Cable Picks
If you plan to buy Cat6 cable online Australia, start here.

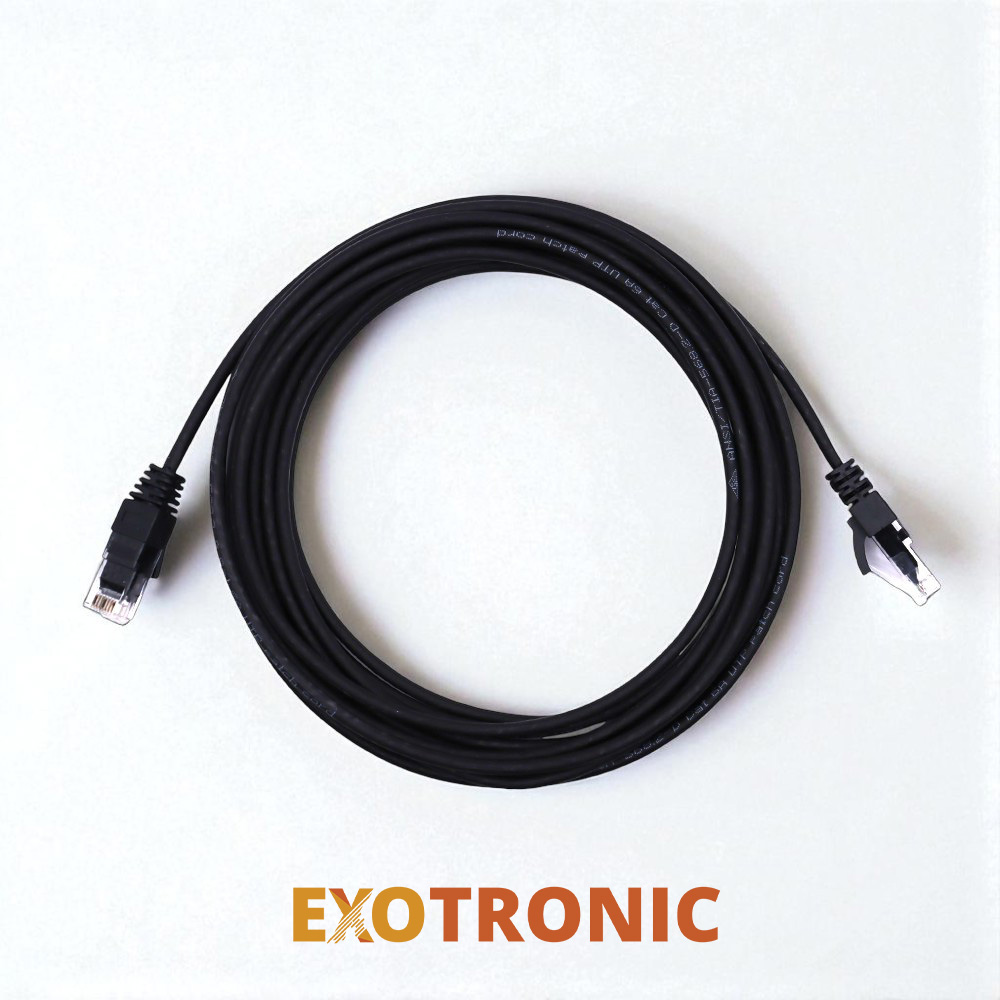

Exotronic Cat6 UTP Ethernet Cables
Exotronic Cat6 RJ45 UTP Ethernet Patch Cable 0.3m
Exotronic Cat6 RJ45 UTP Ethernet Patch Cable 1m
Exotronic Cat6 RJ45 UTP Ethernet Patch Cable 3m
Exotronic Cat6 RJ45 UTP Ethernet Patch Cable 5m
Exotronic Cat6 RJ45 UTP Ethernet Patch Cable 10m
Victron Cat5e Patch Lead
Victron Cat5e RJ45 UTP Ethernet Patch Cable 0.3m
Victron Cat5e RJ45 UTP Ethernet Patch Cable 0.9m
Victron Cat5e RJ45 UTP Ethernet Patch Cable 1.8m
Victron Cat5e RJ45 UTP Ethernet Patch Cable 3m
Victron Cat5e RJ45 UTP Ethernet Patch Cable 5m
Victron Cat5e RJ45 UTP Ethernet Patch Cable 10m
Victron Cat5e RJ45 UTP Ethernet Patch Cable 15m
Victron Cat5e RJ45 UTP Ethernet Patch Cable 30m
Frequently Asked Questions
Does Cat6 force me to upgrade every connector and switch?
No. The link defaults to the lowest category component. Pair Cat6 cable with Cat5e jacks and you still meet Cat5e spec. Upgrade hardware later to unlock full Cat6 performance.
Is solid‑core Cat6 too stiff for cupboard hinges?
Solid cable suits fixed runs. For tight bends or moving panels use a flexible Cat6 UTP patch lead such as Exotronic.
Will my 4G or 5G router reach a gigabit?
Probably not yet, but local traffic inside the van can saturate a gigabit link during backups or media streaming.
Do I still need Wi‑Fi if everything is cabled?
Metal frames block radio. By wiring key endpoints you leave Wi‑Fi free for phones and tablets and improve overall bandwidth.
Conclusion
For off‑grid adventurers who need reliable RV networking solutions, Cat6 is the sensible default. It handles interference from inverters, supports future 10 Gb upgrades and costs little more than Cat5e. Keep a few Victron Cat 5e patch leads for GX devices but choose Cat6 for new links, especially those running multimedia or PoE cameras. When you are ready, pick up an Exotronic Cat6 Ethernet cable and install it once. Your caravan network hardware will be ready for tomorrow’s bandwidth without another crawl behind the cupboards.
