Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter w/ Binding Posts

High Power


Blue Victron Orion 24/12-70 non-isolated DC-DC converter with binding post terminalsHighlights:Red Binding Posts: High current DC input and output connection points,Black Binding Post: Common negative ground terminal,Remote On-Off: Green terminal connector for remote switching capability,Cooling Vents: Ventilation for fan-assisted thermal management.Front terminal view of the Orion 24/12-70 DC-DC converter with red and black binding postsFront interface showing M6 binding post terminals for input, output, and common ground, plus a green remote on-off connector for system integration.Top view label of Victron Orion 24/12-70 listing voltage and current ratingsKey features: Input voltage range: 18-35V DC, Adjustable output voltage: 10-15V DC, Continuous output current: 70A, Maximum output current: 85A, Remote on/off capability, IP20 protection rating.Detailed specification comparison table for Orion non-isolated DC-DC convertersDimensional line drawing for Victron Orion 24/12-70 showing measurements in millimetres

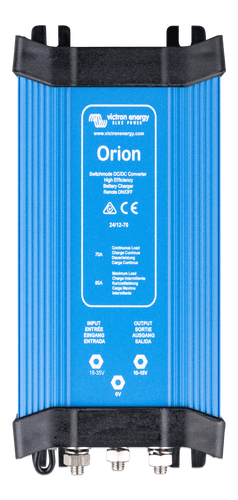

Blue Victron Orion 24/12-70 non-isolated DC-DC converter with binding post terminals

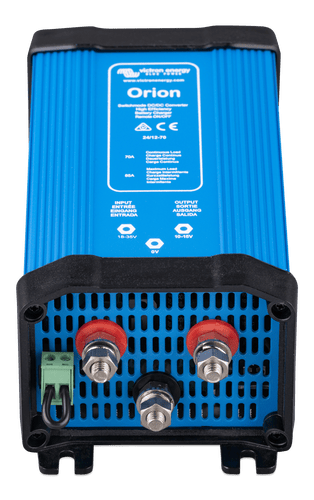

Front terminal view of the Orion 24/12-70 DC-DC converter with red and black binding posts

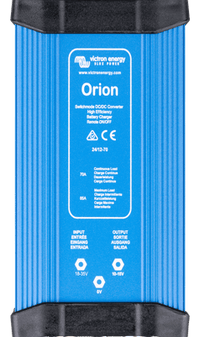

Top view label of Victron Orion 24/12-70 listing voltage and current ratings

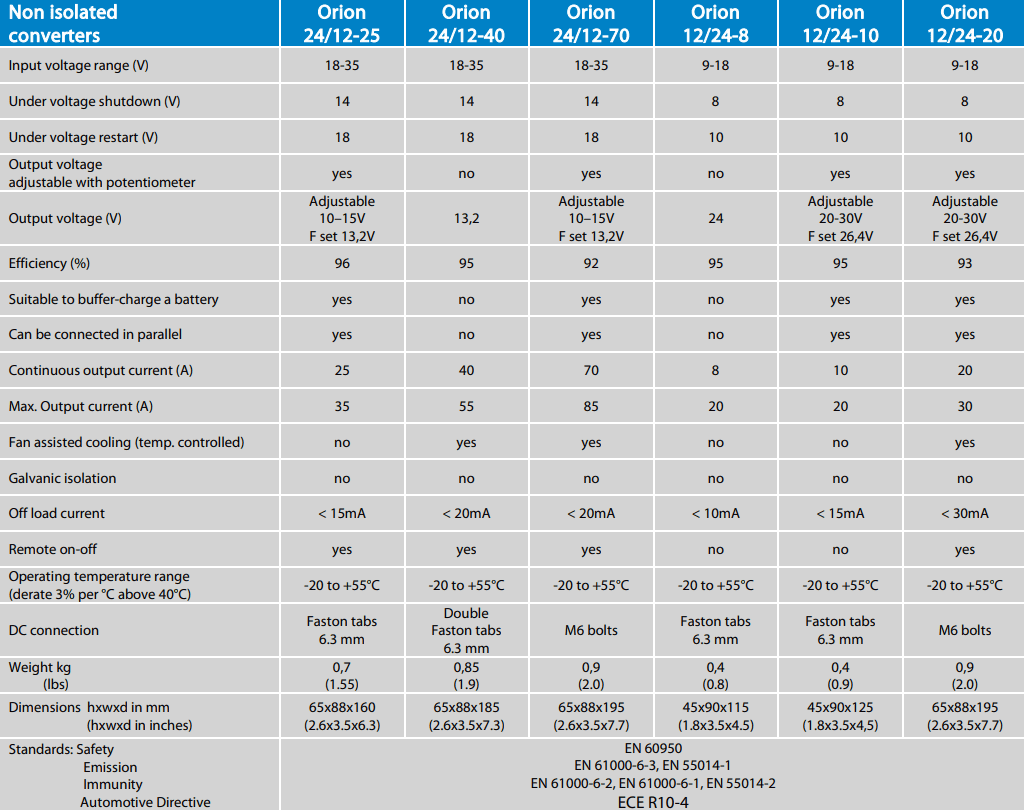

Detailed specification comparison table for Orion non-isolated DC-DC converters
Dimensional line drawing for Victron Orion 24/12-70 showing measurements in millimetres
Regular price $210.87
$201.30
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Blue Victron Orion 24/12-70 non-isolated DC-DC converter with binding post terminals

Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter w/ Binding Posts

DESCRIPTION

Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter with Binding Posts

Superior DC-DC Power Conversion for Heavy-Duty Applications

The Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter with Binding Posts is designed to deliver exceptional performance and reliability. Perfect for trucks, buses, and other heavy-duty applications, this converter ensures seamless power conversion to meet your diverse needs.

Key Features

Remote On-Off Connector

  • Enhanced Safety: The remote on-off feature eliminates the need for a high current switch in the input wiring.
  • Convenience: Operate with a low-power switch or the engine run/stop switch for ease of use (refer to the manual for details).

Versatile Battery Charger

  • Dual Functionality: Use the converter as a battery charger to charge a 12V starter or accessory battery in a 24V system, ensuring your batteries are always ready.

Adjustable Output and Fan-Assisted Cooling

  • Customizable Voltage: The adjustable output allows fine-tuning of the voltage to match your specific requirements.
  • Temperature-Controlled Cooling: The fan-assisted cooling system ensures optimal performance and extends the life of the unit.

Parallel Connection Capability

  • Scalable Power: Connect up to five units in parallel to increase output current, accommodating higher power demands without compromising efficiency.

Binding Posts for Quick Connection

  • Easy Installation: The binding posts offer a quick and secure connection, simplifying the installation process and reducing downtime.

Ideal for Trucks and Buses

  • Heavy-Duty Use: Designed to meet the power conversion needs of trucks, buses, and other large vehicles, ensuring reliable performance on the go.

Applications

  • Trucks and Buses: Reliable 24V to 12V conversion for powering accessories and charging batteries.
  • Caravan and RV: Power 12V systems from a 24V source efficiently.
  • Marine: Maintain reliable power for onboard 12V systems.
  • Off-Grid: Manage power needs effectively in alternative living setups.
  • Industrial: Provide stable 12V power for industrial equipment from a 24V source.

Why Choose the Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter?

  • Enhanced Safety and Convenience: Remote on-off feature for safer operation.
  • Dual-Functionality: Acts as both a DC-DC converter and a battery charger.
  • Scalable: Parallel connection capability for higher power needs.
  • Robust Performance: Temperature-controlled fan-assisted cooling for reliable operation.
  • Easy Installation: Binding posts for quick and secure connections.

Upgrade Your Power System Today

Optimize your power conversion and battery charging with the Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter with Binding Posts. Perfect for trucks, buses, caravans, RVs, marine, off-grid, and industrial applications, this converter ensures reliable and efficient power management. Upgrade your power system now to experience superior performance and reliability.

SPECIFICATIONS

Specifications

Model Orion 24/12-70
Input voltage range (V) 18-35
Under voltage shutdown (V) 14
Under voltage restart (V) 18
Output voltage adjustable with potentiometer yes
Output voltage (V) Adjustable 10-15V F set 13.2V
Efficiency (%) 92
Suitable to buffer-charge a battery yes
Can be connected in parallel yes
Continuous output current (A) 70
Max. Output current (A) 85
Fan assisted cooling (temp. controlled) yes
Galvanic isolation no
Off load current < 20mA
Remote on-off yes
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection M6 bolts
Weight kg (lbs) 0.9 (2.0)
Dimensions hxwxd in mm (hxwxd in inches) 65x88x195 (2.6x3.5x7.7)
Standards: Safety Emission Immunity Automotive Directive EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4

SKU: Vic-ORI241270030
Barcode: 8719076023050
Model #: ORI241270030
MPN: ORI241270030

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
