Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter

High Power


Victron Orion 24V to 12V 70A non-isolated DC-DC converter top viewKey features: 70A continuous output current, Adjustable output voltage 10-15V, High efficiency of 92%, Remote on-off functionality, IP20 rated aluminium enclosure.Terminal panel of Victron Orion converter with M6 bolt connections and remote blockHighlights:Input terminal: M6 bolt for 18-35V DC input connection,Output terminal: M6 bolt for adjustable 10-15V DC output,Negative terminal: Common 0V M6 bolt connection,Remote terminal: Green terminal block for remote on-off control.Angled perspective view of the blue Orion 24/12-70 DC-DC converter housingRear view of Victron Orion converter showing temperature-controlled cooling fanDetailed view of the rear panel featuring a temperature-controlled cooling fan designed to maintain optimal operating temperatures during high 70A continuous loads.Technical specifications table for Victron Orion non-isolated DC-DC convertersTechnical specification table for the Orion 24/12-70, detailing 92% efficiency, 70A continuous output, and adjustable 10-15V output voltage capabilities.Dimensional drawing of the Victron Orion 24/12-70 DC-DC converter in millimetresDimensional drawing for the Orion 24/12-70 model, indicating a height of 65mm, total length of 195mm, and width of 88mm with mounting slot positions for secure installation.

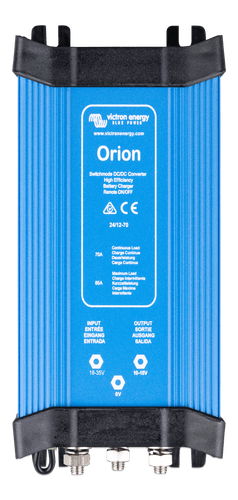

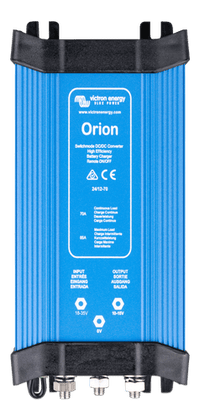

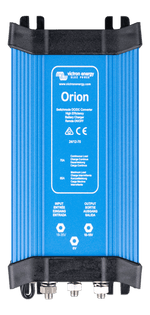

Victron Orion 24V to 12V 70A non-isolated DC-DC converter top view

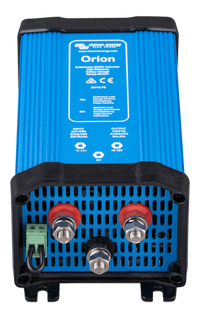

Terminal panel of Victron Orion converter with M6 bolt connections and remote block

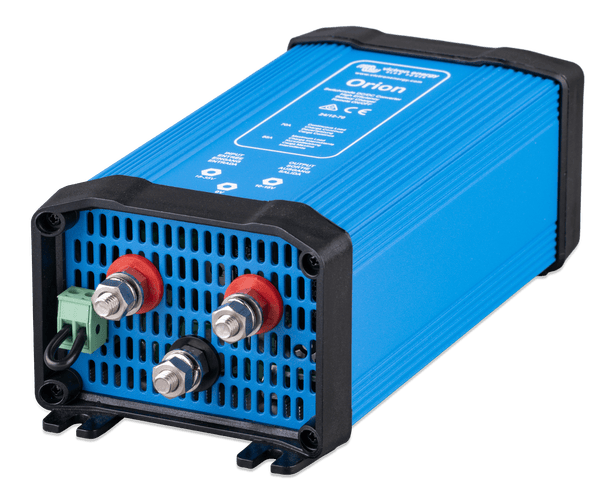

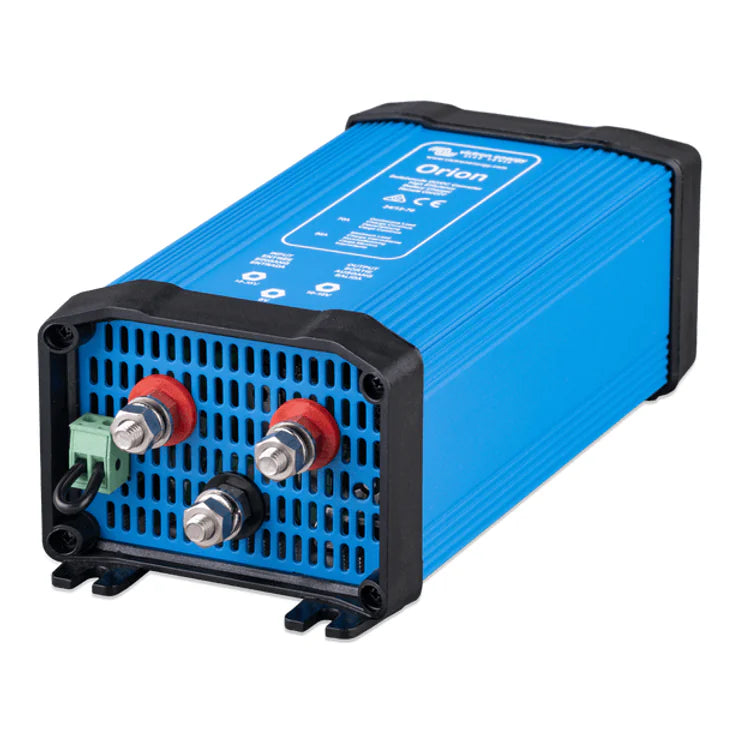

Angled perspective view of the blue Orion 24/12-70 DC-DC converter housing

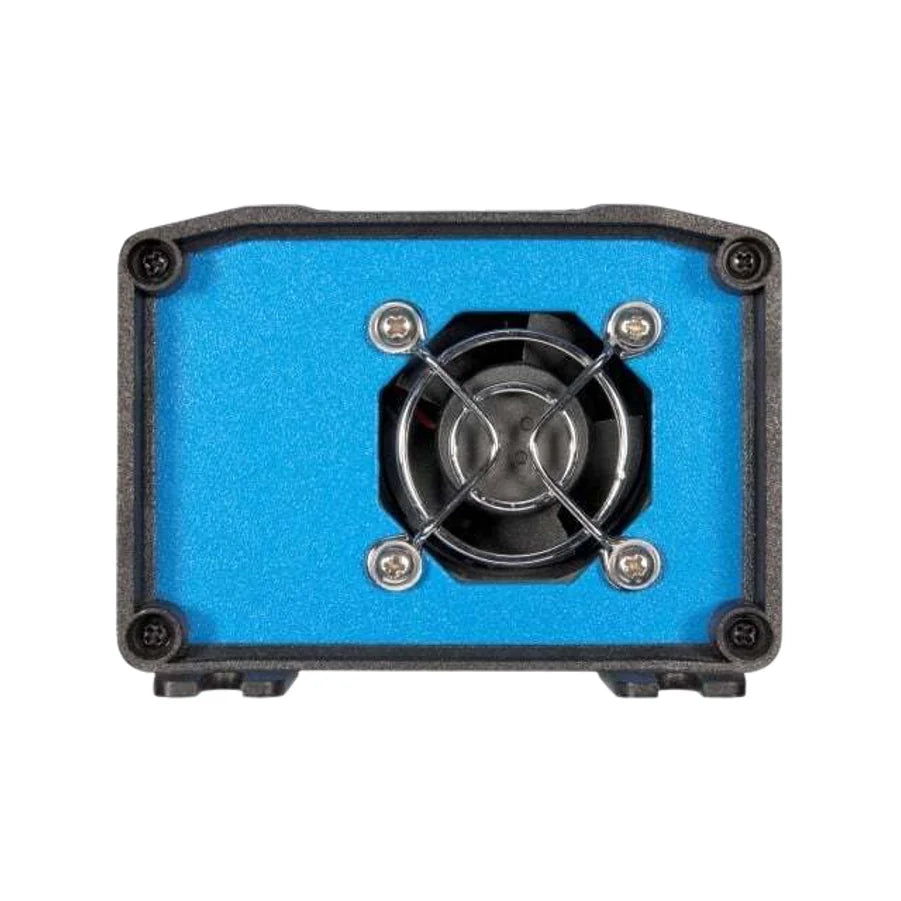

Rear view of Victron Orion converter showing temperature-controlled cooling fan
Technical specifications table for Victron Orion non-isolated DC-DC converters
Dimensional drawing of the Victron Orion 24/12-70 DC-DC converter in millimetres
Regular price $186.15
$201.30
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

4
Victron Orion 24V to 12V 70A non-isolated DC-DC converter top view

Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter

DESCRIPTION

Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter

Reliable DC-DC Power Conversion for Diverse Applications

The Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter is engineered for high performance and versatility, making it an ideal solution for various power conversion needs. Whether you're looking to power 12V accessories from a 24V system or require efficient battery charging, this DC-DC converter provides the reliability and functionality you need.

Key Features

Remote On-Off Connector

The remote on-off feature eliminates the necessity for a high current switch in the input wiring. It can be operated using a low-power switch or the engine run/stop switch, offering convenience and safety (see manual for details).

Versatile Battery Charging

This DC-DC converter can also serve as a battery charger, perfect for charging a 12V starter or accessory battery within a 24V system. This feature ensures that your batteries are always ready to go, enhancing the overall reliability of your power system.

Adjustable Output and Fan-Assisted Cooling

With an adjustable output, you can fine-tune the voltage to match your specific needs. The fan-assisted cooling system is temperature controlled, ensuring optimal performance and longevity of the unit even under heavy loads.

Parallel Connection Capability

For applications requiring higher output currents, the Orion 24/12-70A can be paralleled with up to five units. This scalability ensures that you can meet the power demands of your system without compromising on efficiency or reliability.

Applications

  • Caravan, Trucks & Buses: Perfect for converting 24V to 12V to power accessories and charge batteries.
  • Marine: Reliable power conversion for onboard 12V systems.
  • Off-Grid and: Efficiently manage power needs in alternative living setups.
  • Industrial: Ideal for industrial equipment requiring stable 12V power from a 24V source.

Why Choose the Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter?

  • Enhanced Safety: Remote on-off capability reduces the need for high current switches.
  • Multi-Functional: Use as a DC-DC converter and a battery charger.
  • Scalable Power: Parallel connection of up to five units to increase output.
  • Robust Performance: Temperature-controlled fan-assisted cooling for reliable operation.

Upgrade Your Power System Today

Don't compromise on power conversion and battery charging efficiency. The Victron 24V to 12V Orion 24/12-70A Non-Isolated IP20 DC-DC Converter is your reliable solution for various applications, from caravans and RVs to marine and industrial setups. Upgrade your power system now to experience seamless and efficient power management.

SPECIFICATIONS

Specifications

Model Orion 24/12-70
Input voltage range (V) 18-35
Under voltage shutdown (V) 14
Under voltage restart (V) 18
Output voltage adjustable with potentiometer yes
Output voltage (V) Adjustable 10-15V F set 13.2V
Efficiency (%) 92
Suitable to buffer-charge a battery yes
Can be connected in parallel yes
Continuous output current (A) 70
Max. Output current (A) 85
Fan assisted cooling (temp. controlled) yes
Galvanic isolation no
Off load current < 20mA
Remote on-off yes
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection M6 bolts
Weight kg (lbs) 0.9 (2.0)
Dimensions hxwxd in mm (hxwxd in inches) 65x88x195 (2.6x3.5x7.7)
Standards: Safety Emission Immunity Automotive Directive EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4

SKU: VIC-ORI241270020
Barcode: 8719076023043
Model #: ORI241270020
MPN: ORI241270020
