Victron Solar Panel 305W-20V Mono

1658x1002x35mm series 4b

RRP $391.60
$352.46
SAVE $39.14 (10%)
In stock at Victron Warehouse Victoria
Please allow 3 business days before dispatch
Victron logo

Free Fastway shipping for orders over $500 on items this size to capital cities. Calculate shipping in cart for more details.
Minimum Order Quantity 4

You may also need:


Victron Solar Panel 305W-20V Mono - Series 4b

Premium Monocrystalline Solar Panel from Victron Energy

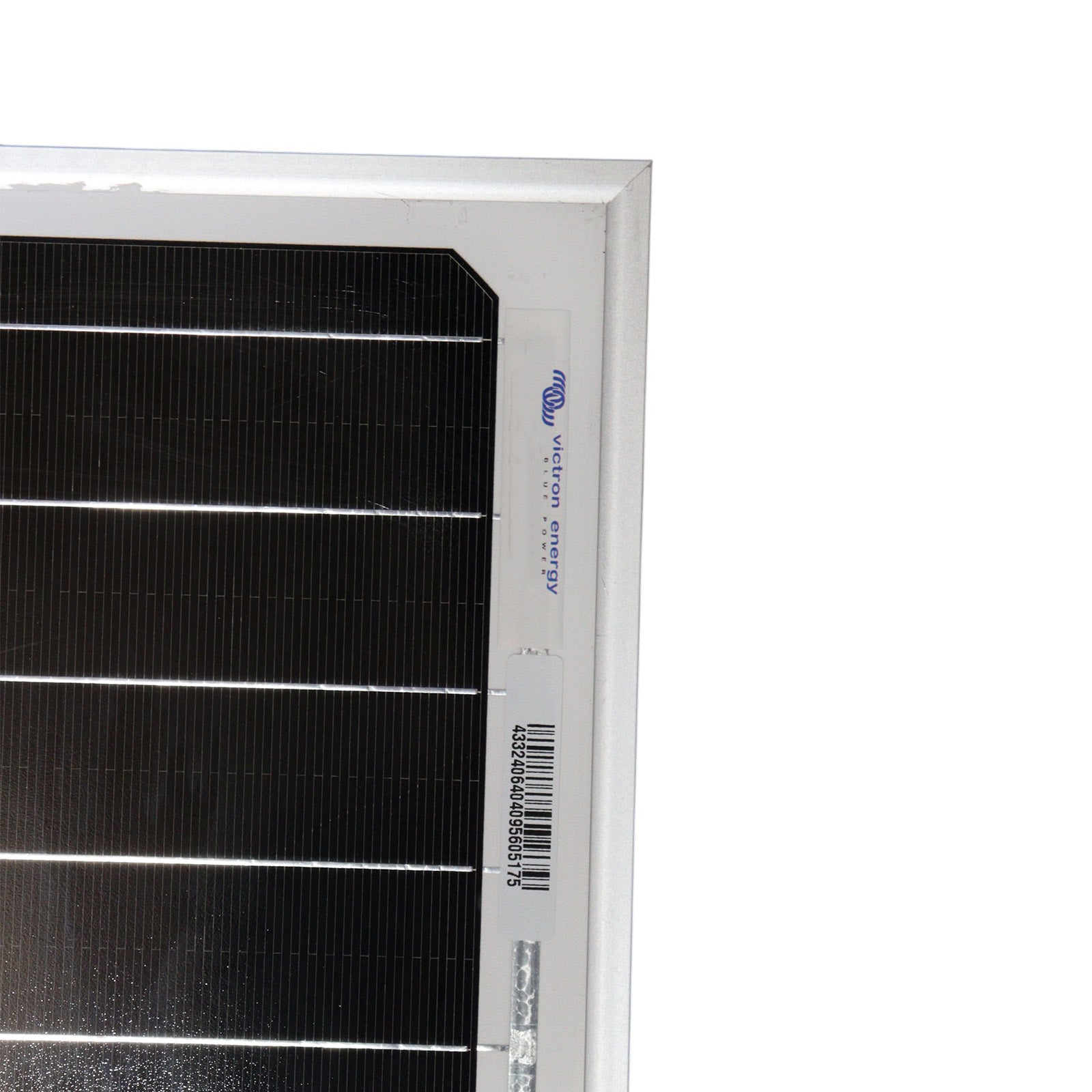

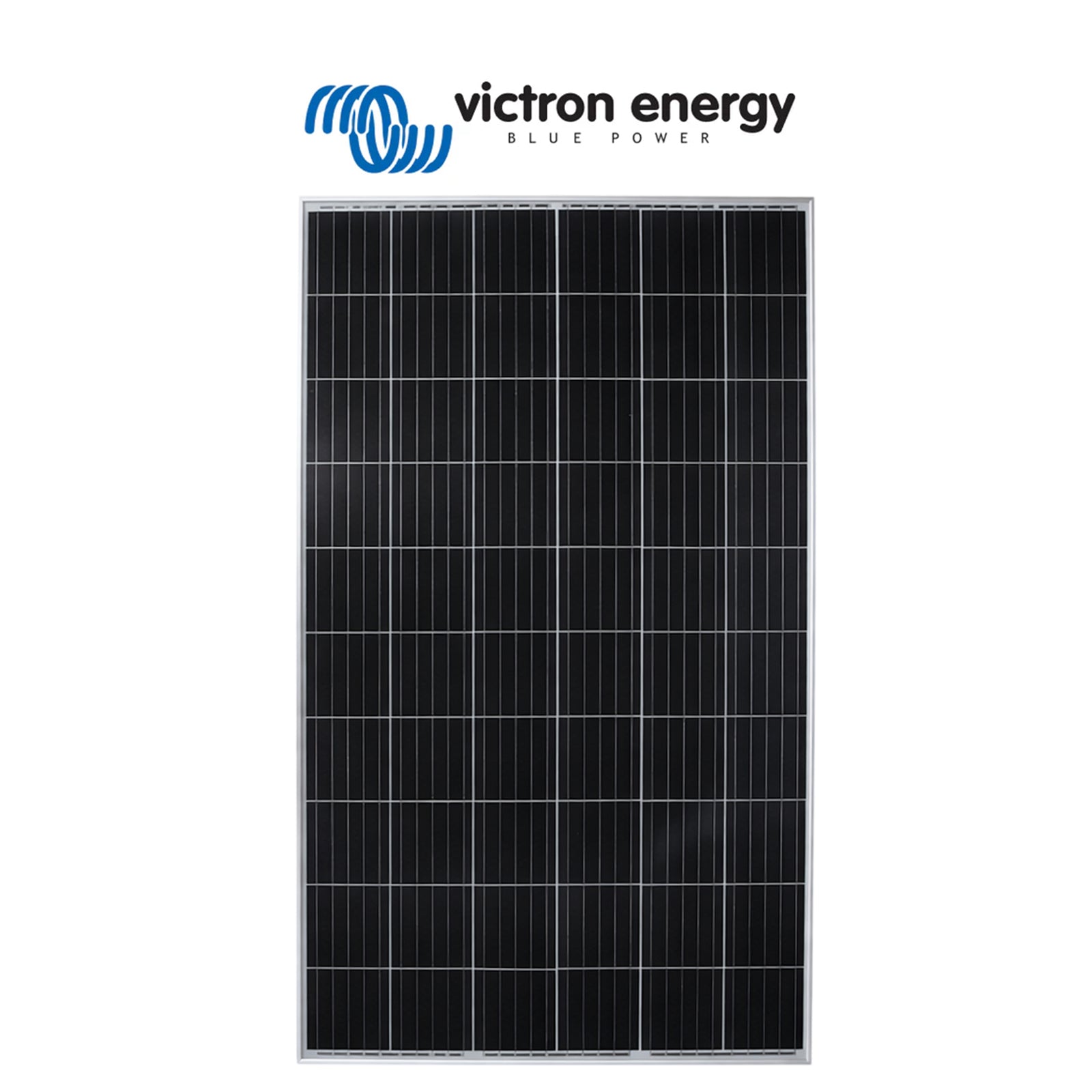

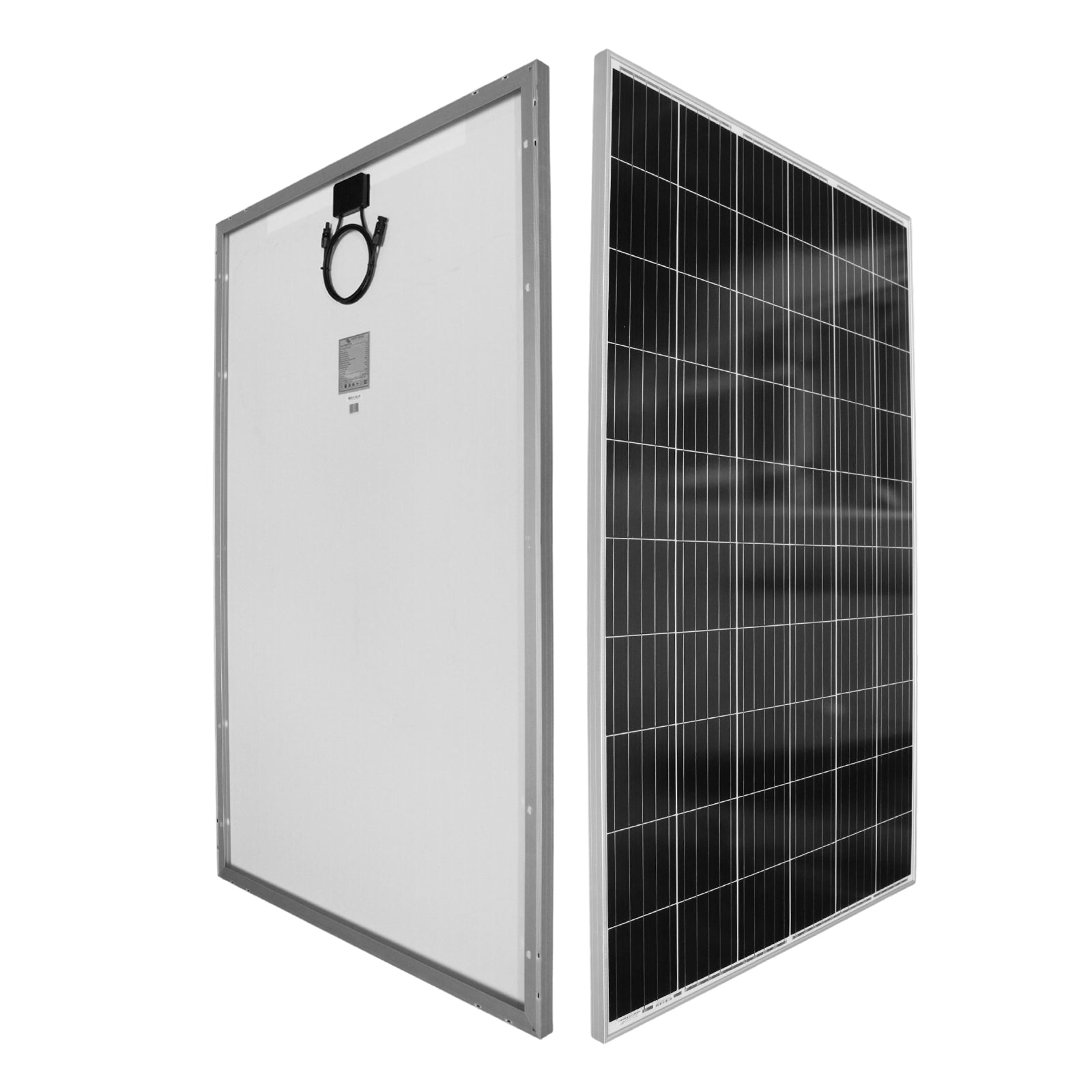

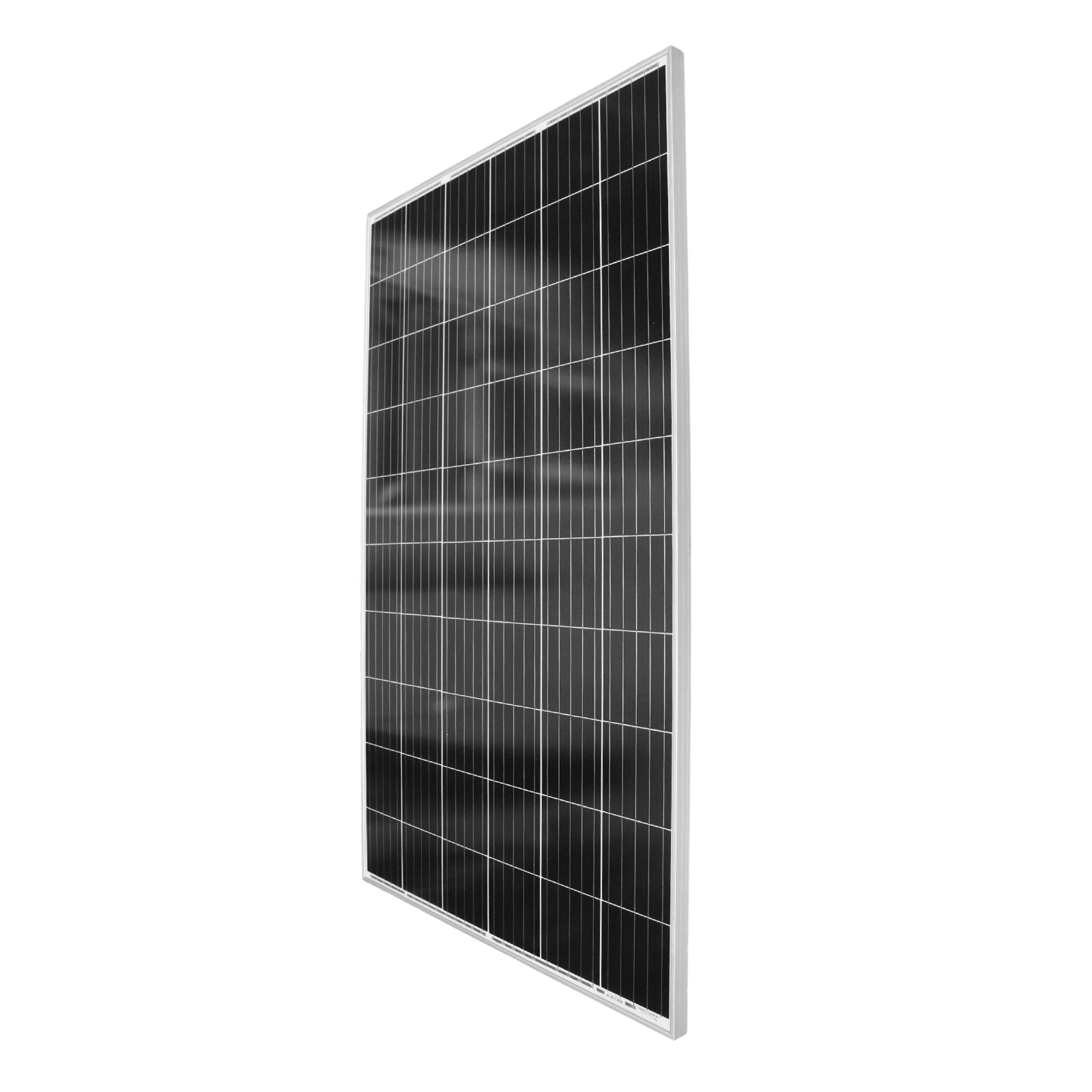

This Victron Solar Panel 305W-20V Series 4b Monocrystalline Solar Panel delivers industry-leading technology and reliability for sustainable power generation.

Key Features:

  • Premium monocrystalline solar cells with exceptional low-light performance
  • Robust silver anodized aluminum frame for easy roof mounting
  • High-transmission tempered glass for enhanced durability
  • Advanced EVA encapsulation with triple-layer backsheet
  • Sealed, waterproof junction box with integrated bypass diodes
  • Dimensions: 1658 x 1002 x 35 mm
  • Power output: 20V 305W

Performance Benefits:

  • Superior temperature performance with low voltage-temperature coefficient
  • High sensitivity across the entire solar spectrum
  • Bypass diodes minimize power loss from partial shading
  • Ideal for charging 24V battery systems with PWM or MPPT Controller

Applications:

  • Victron Energy solar panels are engineered for:
  • Charging deep cycle batteries in:
  • Vehicles and boats
  • Motor homes and caravans
  • Camping and marine systems
  • Any 24V battery or battery bank setup

Technical Considerations:

Solar array oversizing is recommended where space permits to ensure optimal battery charging and continuous power supply. System performance varies based on seasonal changes, weather conditions, battery capacity, and power consumption.

Quality Assurance:

Each Victron solar panel includes:

  • 25-year limited warranty on power output and performance
  • 5-year limited warranty on materials and workmanship

Available now for sustainable energy solutions and off-grid power generation requirements.



Buy Victron monocrystalline solar panels now - with fast shipping Australia-wide.


Manufacturer's Website


(SPM043052002)

Need help choosing a solar panel? Click this link to check our solar panel selector table!
Specification Value
Article Number SPM043052000
Description 305W-26V Mono 1640 x 992 x 35mm series 4a
Net Weight (Kg) 18
Nominal Power PMPP (W) 305
Max-Power Voltage VMPP (V) 32.5
Max-Power Current (A) 9.38
Open-Circuit Voltage VOC (V) 39.7
Short-Circuit Current ISC (A) 10.27
Cell type Monocrystalline
Number of cells in series 72
Maximum system voltage 1000V
Temperature coefficient of MPP -0.45/°C
Temperature coefficient of Voc -0.35/°C
Temperature coefficient of Isc +0.04/°C
Temperature Range -40°C to +85°C
Surface Maximum Load Capacity 200 kg/m²
Allowable Hail Load 23 m/s, 7.53 g
Junction Box Type PV-LH0701
Length of Cables / Connector Type 900 mm MC4
Output tolerance +/-3%
Frame Aluminium
Product warranty 5 years
Warranty on electrical performance 10 years 90% + 25 years 80% of power output
SKU VIC-SPM043052002
Barcode # 8719076057772
MPN # SPM043052002
