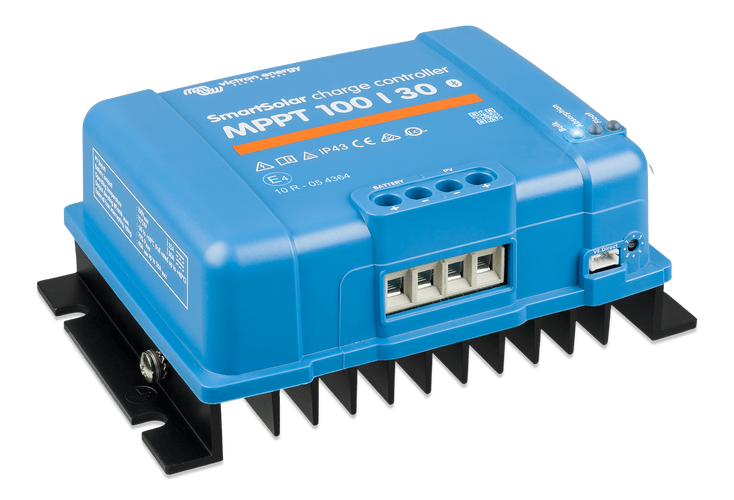

Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller

Bluetooth built-in for remote monitoring and control


Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller Main Image
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 1Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 2Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 3Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 4Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 5Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 6Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 7Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 8Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 9Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 10
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller Main Image
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 1
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 2
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 3
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 4
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 5
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 6
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 7
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 8
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 9
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller 10
Regular price $166.47 $243.10
/
Availability: In Stock
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

43
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller Main Image

Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller

DESCRIPTION

Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller

Elevate your solar energy management with the Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller. This state-of-the-art device from Victron Energy, a leading name in solar energy systems, delivers unmatched performance and efficiency, making it an essential component for any solar power setup.

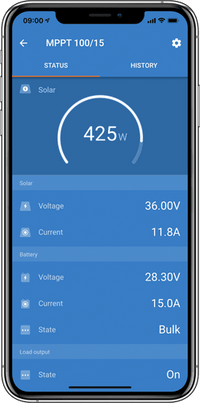

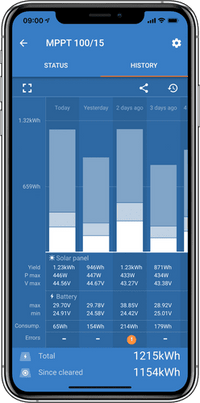

Integrated Bluetooth Smart Technology

Experience the convenience of managing your SmartSolar Charge Controllers wirelessly. The integrated Bluetooth Smart technology streamlines device setup, monitoring, updates, and synchronization, significantly enhancing your solar energy management capabilities.

VE.Direct Wired Data Connection

Benefit from a reliable wired data connection to Cerbo GX and other GX products, and PCs with the VE.Direct feature. This facilitates efficient data sharing and device integration, boosting your system's overall performance.

Ultra-fast MPPT for Superior Energy Harvest

Leverage Victron Energy's ultra-fast Maximum Power Point Tracking (MPPT) technology to improve your energy harvest by up to 30% over PWM charge controllers and by 10% over slower MPPT controllers. This technology is particularly beneficial in variable lighting conditions, ensuring optimal energy capture even on cloudy days.

Innovative Maximum Power Point Detection

Overcome partial shading challenges with our advanced BlueSolar algorithm, which secures the maximum possible energy harvest by targeting the optimum MPP. This approach avoids the inefficiencies of conventional MPPTs that might settle for less optimal MPPs.

Exceptional Conversion Efficiency

With a remarkable efficiency rate exceeding 98% and sustained full output current up to 40°C (104°F), our fanless Solar Charge Controller stands out for its exceptional conversion efficiency. This simplifies your system design without compromising on performance.

Versatile Charge Algorithm

Customize your solar charging experience with a fully programmable charge algorithm and eight pre-programmed algorithms, easily selected via a rotary switch. This flexibility ensures a tailored charging process that caters to your specific needs and preferences.

Robust Electronic Protection

Our Solar Charge Controller is equipped with comprehensive protective measures, including over-temperature protection, power derating at high temperatures, and protection against PV short circuits, reverse polarity, and reverse current, safeguarding your system against potential damage.

Accurate Internal Temperature Sensor

The built-in internal temperature sensor precisely adjusts absorption and float charge voltages based on temperature changes, promoting efficient and accurate charging across different conditions.

Bluetooth-enabled External Battery Voltage and Temperature Sensing

Expand your monitoring and control capabilities with optional devices like Smart Battery Sense or a BMV-712 Smart Battery Monitor. These accessories provide vital battery voltage and temperature information to your SmartSolar Charge Controllers, enhancing your system's efficiency and reliability.

Advanced Charging Features

Adaptive 3-Stage Battery Charging

This sophisticated 3-stage charging process, consisting of Bulk, Absorption, and Float stages, ensures efficient and thorough battery charging. The adaptive nature of the Absorption stage, based on the battery's discharge level, alongside a flexible charge algorithm and the possibility of equalization charging, maximizes battery health and longevity.

Optimize your solar energy system with the Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller for a high-efficiency, user-friendly, and robust solar charging solution.

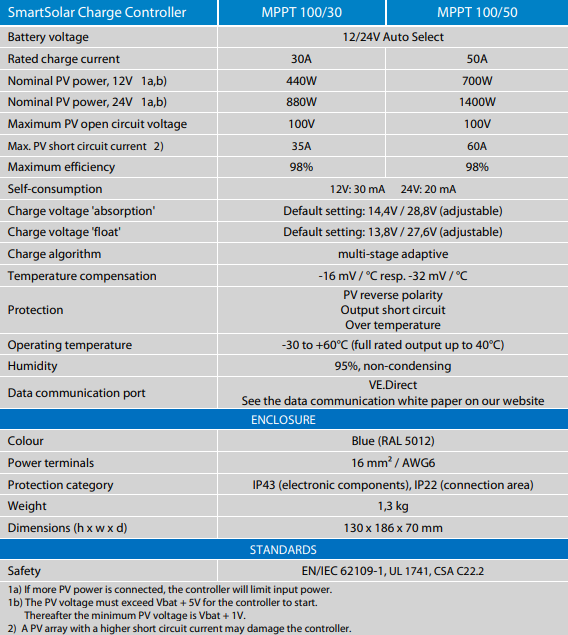

SPECIFICATIONS

Specifications

SmartSolar Charge Controller MPPT 100/30
Battery voltage 12/24V Auto Select
Rated charge current 30A
Nominal PV power, 12V 440W
Nominal PV power, 24V 880W
Maximum PV open circuit voltage 100V
Max. PV short circuit current 35A
Maximum efficiency 98%
Self-consumption 12V: 30 mA 24V: 20 mA
Charge voltage 'absorption' Default setting: 14.4V / 28.8V (adjustable)
Charge voltage 'float' Default setting: 13.8V / 27.6V (adjustable)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV/°C resp. -32 mV/°C
Protection PV reverse polarity Output short circuit Over temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Enclosure
Colour Blue (RAL 5012)
Power terminals 16 mm² / AWG6
Protection category IP43 (electronic components), IP22 (connection area)
Weight 1.3 kg
Dimensions (h x w x d) 130 x 186 x 70 mm
Standards
Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.

1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.

2) A PV array with a higher short circuit current may damage the controller.


SKU: VIC-SCC110030210
Barcode: 8719076040170
Model #: SCC110030210
MPN: SCC110030210

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
