SmartShunt 500A: The Advanced Battery Monitor Without the Display

Revolutionize your battery monitoring with the SmartShunt 500A, an innovative all-in-one solution that leverages your smartphone as the display. This compact, high-precision battery monitor is perfect for anyone looking to streamline their setup and enjoy the convenience of mobile connectivity.

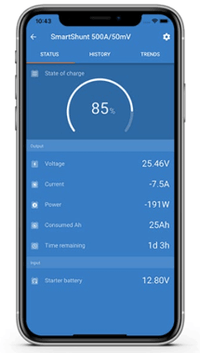

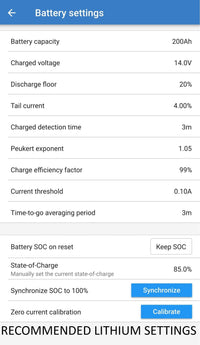

With the free VictronConnect App, the SmartShunt offers detailed, real-time battery parameter readings such as state of charge and time to go, directly on your phone or tablet via Bluetooth. For those who prefer a fixed installation, the SmartShunt can also be integrated with a GX device through a VE.Direct cable. The SmartShunt is an excellent alternative to traditional BMV battery monitors, ideal for setups where space savings and minimal wiring are paramount.

Key Features of the SmartShunt 500A

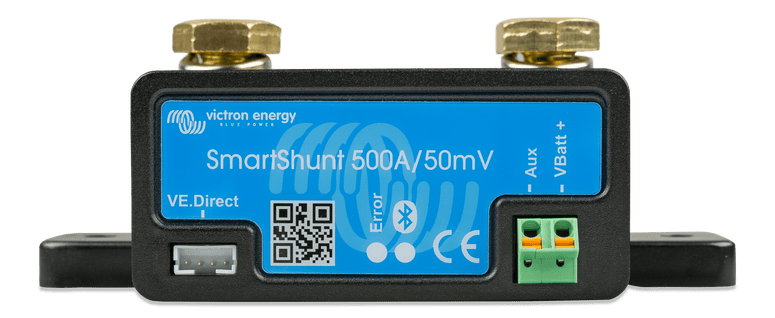

The SmartShunt isn't just a battery monitor—it's a leap forward in battery system management. It's equipped with Bluetooth for wireless communication, a VE.Direct port for wired data transfer, and additional connections for monitoring a secondary battery or connecting a temperature sensor. Whether it's for midpoint monitoring or simply keeping your system's footprint small, the SmartShunt has you covered.

SmartShunt vs. BMV712 Battery Monitor: What's Different?

The SmartShunt 500A offers a streamlined approach to battery monitoring with some distinctions from the BMV712:

  • No programmable visual and audible alarms to alert you to battery conditions.
  • It lacks a programmable relay for automated system control.

Opt for the SmartShunt 500A for its innovative features, ease of use, and clean installation. It's the smart choice for efficient battery management in a variety of applications, from marine to off-grid solar systems.


Visit Victron Energy's Official SmartShunt Webpage for More Details
(SHU050150050)

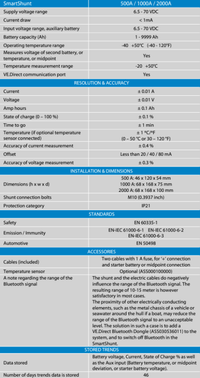

Specifications

SmartShunt

500A

Supply voltage range 6.5 - 70 VDC
Current draw <1mA
Input voltage range, auxiliary battery 6.5 - 70 VDC
Battery capacity (Ah) 1 - 999 Ah
Operating temperature range -40 - +50°C (-40 - 120°F)
Measures voltage of second battery, or temperature, or midpoint Yes
Temperature measurement range -20 - +50°C
VE.Direct communication port Yes

Resolution & Accuracy


Current ±0,1A
Voltage ±0,01V
Amp hours ±0,1 Ah
State of charge (0 – 100%) ±0,1%
Time to go ±1 min
Temperature (if optional temperature sensor connected) ±1°C/°F
Accuracy of current measurement ±0,4%
Offset Less than 20 / 40 / 80 mA
Accuracy of voltage measurement ±0,3%

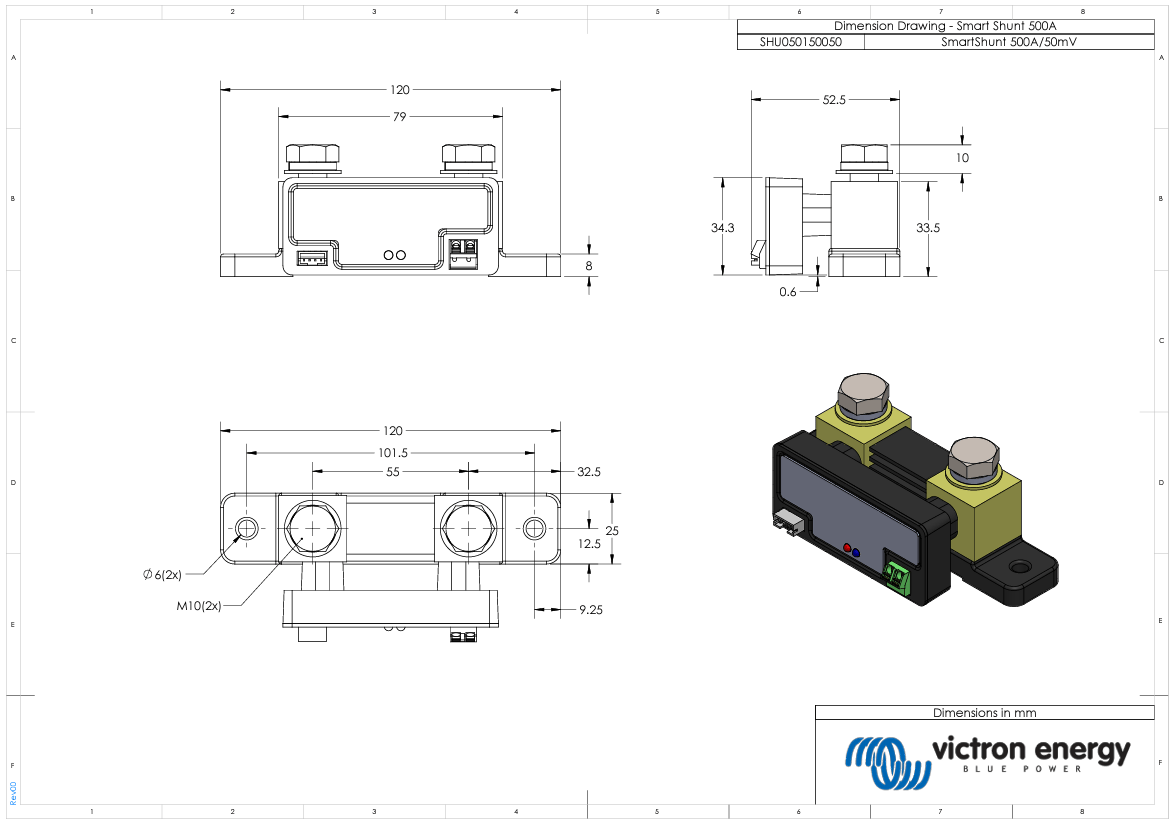

Installation & Dimensions


Dimensions (h x w x d) 46 x 120 x 54 mm
Protection category IP21

Standards


Safety EN 60335-1
Emission / Immunity EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive EN-IEC 61000-6-3, EN 50498

Accessories


Cables (included) Two cables with 1A fuse, for ‘+’ connection and starter battery or midpoint connection
Temperature sensor Optional Part No. (ASS000100000)
SKU VIC-SHU050150050
Model # SHU050150050
Barcode # 8719076044253
MPN # SHU050150050
