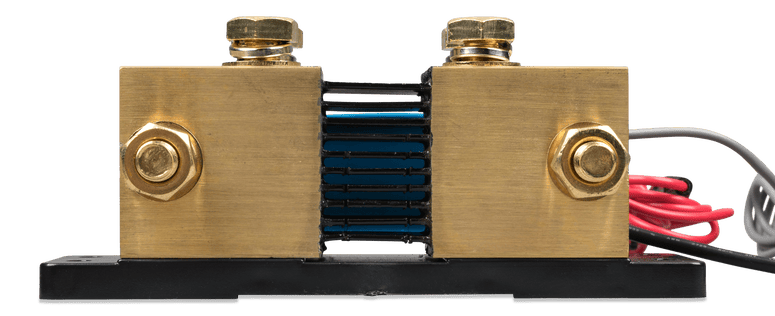

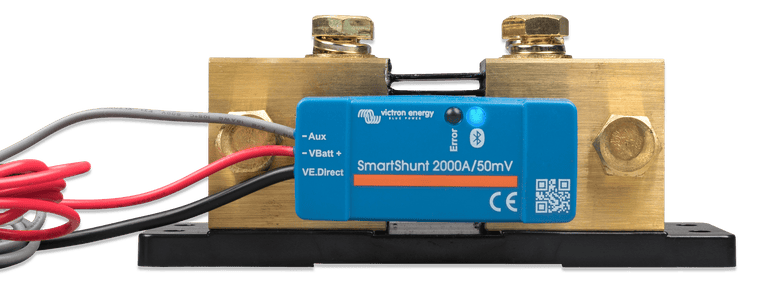

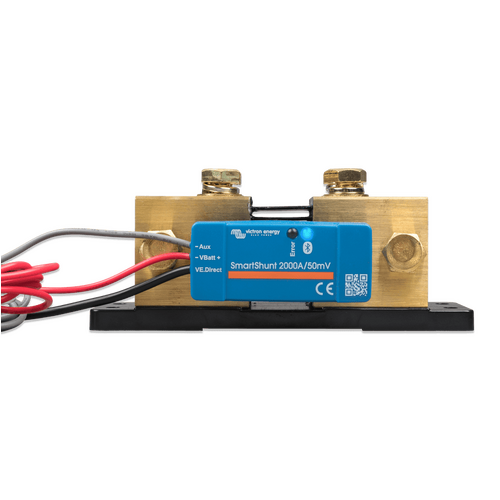

Victron 2000A Smart Shunt (SmartShunt) IP65 Bluetooth Battery Monitor

Bluetooth Battery Monitor - No Display

Click to open Victron 2000A Smart Shunt (SmartShunt) IP65 Bluetooth Battery Monitor Interactive 3D Model - Zoom, rotate, autospin and more!

View 3D Model

View PDF brochure for Victron 2000A Smart Shunt (SmartShunt) IP65 Bluetooth Battery Monitor
RRP $710.90
SAVE $262.41 (37%)
In stock at Victron Warehouse Victoria
Please allow 3 business days before dispatch
Victron logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Victron 2000A Smart Shunt (SmartShunt) IP65 Bluetooth Battery Monitor, to the majority of areas. Check your shipping details on the cart page for more information.

2000A SmartShunt IP65: Your Advanced, Display-Free Water Resistant Battery Monitor

The SmartShunt IP65 redefines battery monitoring by using your smartphone as a display, offering a sleek, all-in-one solution that's perfect for any setup requiring minimal wiring.

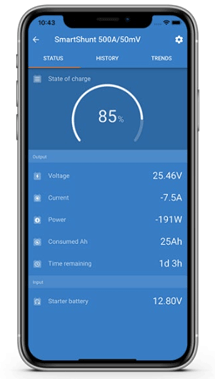

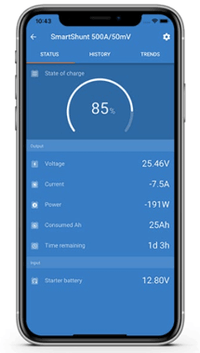

Connect effortlessly with the VictronConnect app via Bluetooth to access real-time battery parameters like state of charge and time to go, as well as historical insights. For a permanent installation, the SmartShunt IP65 can integrate with a GX device using a VE.Direct cable. This makes it an alternative to traditional BMV battery monitors when the BMV display is not needed, especially in streamlined systems.

Key Features of the SmartShunt IP65

The SmartShunt IP65 isn't just robust and user-friendly—it's a comprehensive battery management system that's water-resistant and versatile. It comes with built-in Bluetooth for wireless communication, a VE.Direct port for data transfer, and an auxiliary connection for secondary battery monitoring or temperature sensing.

Comparing SmartShunt IP65 and BMV712 Battery Monitor

While the SmartShunt IP65 shares many features with the BMV712, there are some key differences:

  • No visual or audible alarms; notifications are provided through the VictronConnect app or GX device.
  • Lacks a programmable relay for automated system controls.
  • Boasts a waterproof design, suitable for demanding environments.
  • The shunt is built into the battery monitoring unit for a simplified setup.

Choose the SmartShunt IP65 for its innovative design, ease of use, and seamless integration into a variety of applications, from marine settings to off-grid solar systems.

Visit Victron Energy's Official SmartShunt Webpage for More Details

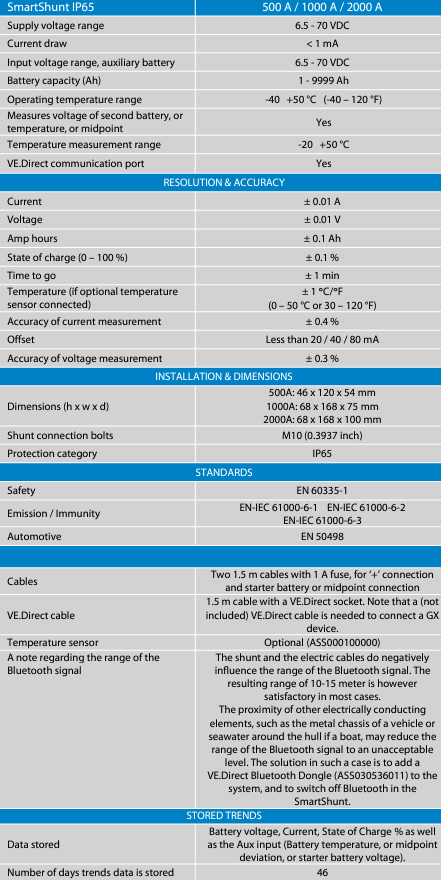

SmartShunt IP65 2000 A
Supply voltage range 6.5 - 70 VDC
Current draw < 1 mA
Input voltage range, auxiliary battery 6.5 - 70 VDC
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 to +50 °C (-40 – 120 °F)

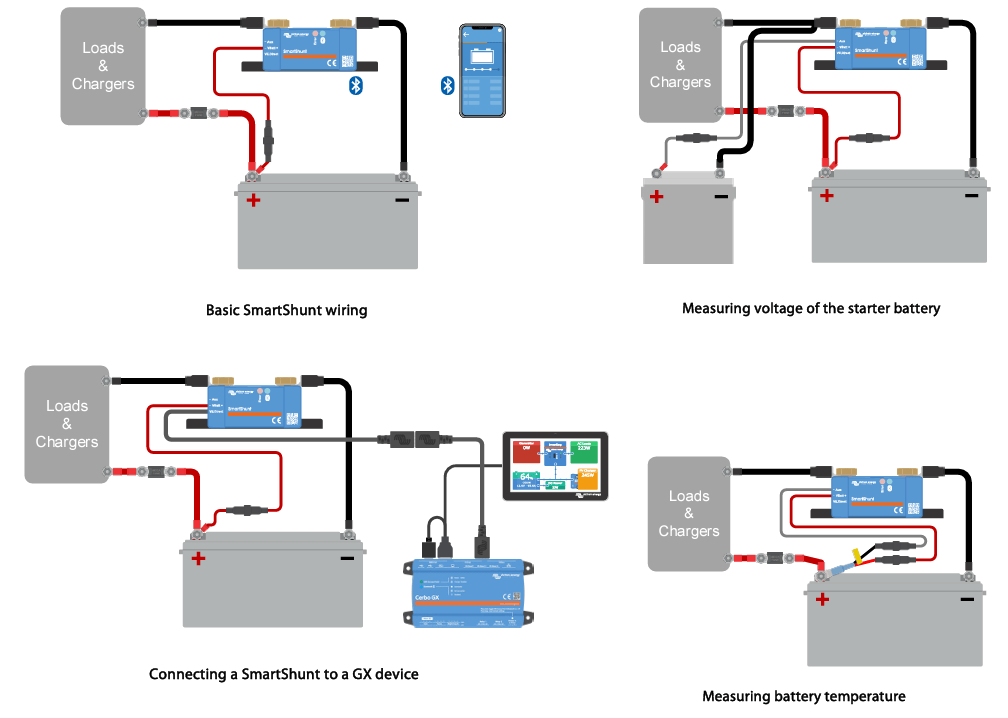

Measures voltage of second battery, or
temperature, or midpoint
Temperature measurement range -20 to +50 °C
VE.Direct communication port Yes
Resolution and Accuracy
Current ± 0.01 A
Voltage ± 0.01 V
Amp hours ± 0.1 Ah
State of charge (0 – 100 %) ± 0.1 %
Time to go ± 1 min
Temperature (if optional temperature
sensor connected)
± 1 °C/°F
  (0 – 50 °C or 30 – 120 °F)
Accuracy of current measurement ± 0.4 %
Offset Less than 80 mA
Accuracy of voltage measurement ± 0.3 %

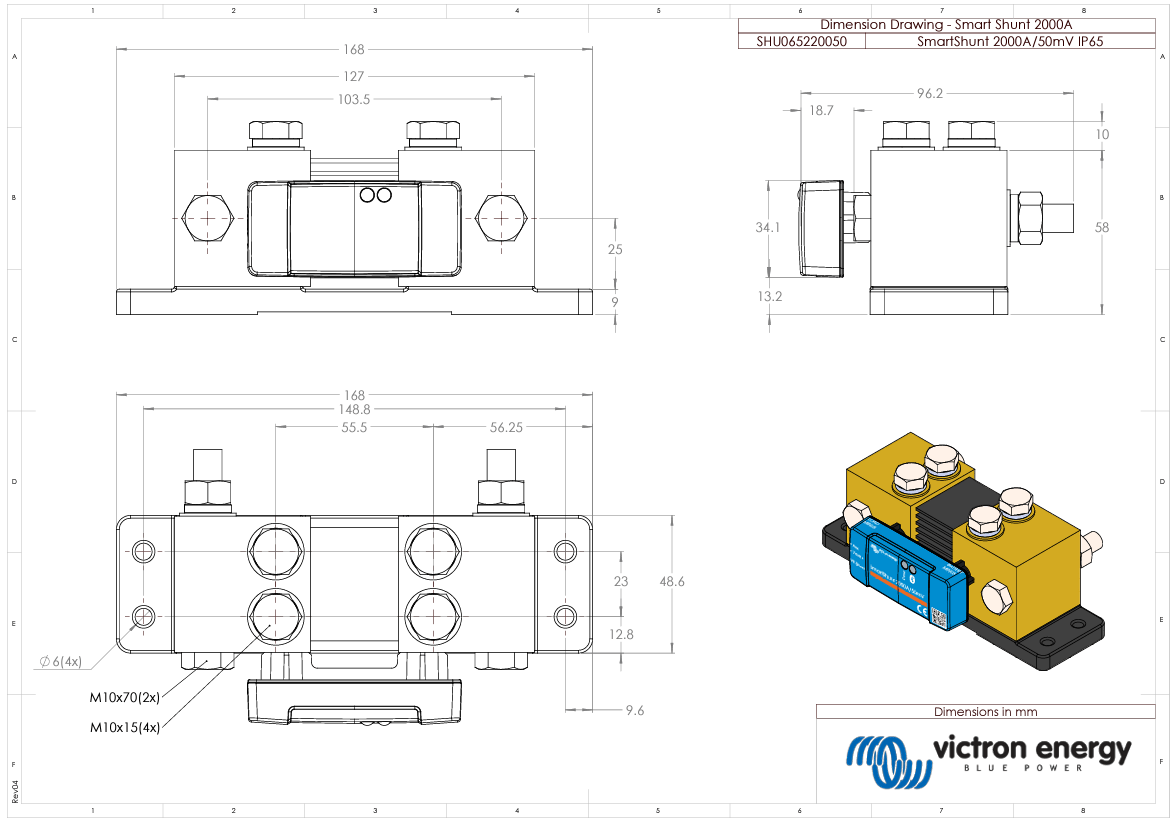

Installations and Dimensions
Dimensions (h x w x d) 68 x 168 x 100 mm
Shunt connection bolts M10 (0.3937 inch)
Protection category IP65
Safety EN 60335-1
Emission / Immunity EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive EN 50498

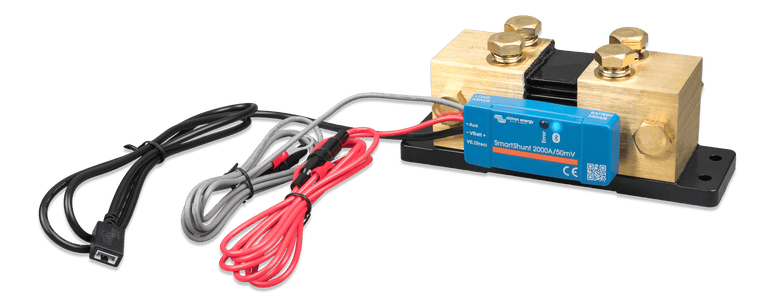

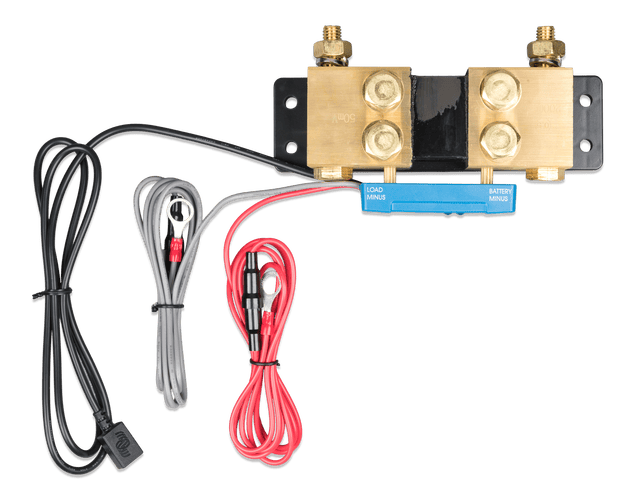

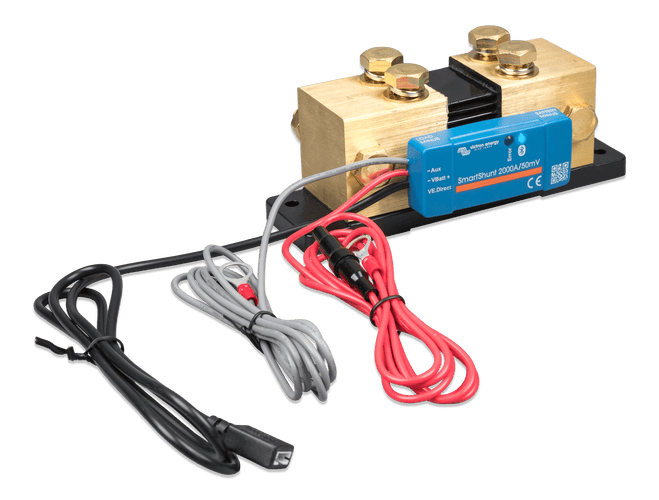

Cables Two 1.5 m cables with 1 A fuse, for ‘+’ connection
and starter battery or midpoint connection
VE.Direct cable 1.5 m cable with a VE.Direct socket. Note that a (not
included) VE.Direct cable is needed to connect a GX
Temperature sensor Optional (ASS000100000)
A note regarding the range of the
Bluetooth signal
The shunt and the electric cables do negatively
influence the range of the Bluetooth signal. The
resulting range of 10-15 meter is however
satisfactory in most cases.
The proximity of other electrically conducting
elements, such as the metal chassis of a vehicle or
seawater around the hull if a boat, may reduce the
range of the Bluetooth signal to an unacceptable
level. The solution in such a case is to add a
VE.Direct Bluetooth Dongle (ASS030536011) to the
system, and to switch off Bluetooth in the
Stored Trends
Data stored Battery voltage, Current, State of Charge % as well
as the Aux input (Battery temperature, or midpoint
deviation, or starter battery voltage).
Number of days trends data is stored 46
SKU VIC-SHU065220050
Barcode # 8719076057918
MPN # SHU065220050
