Victron 24V to 12V Orion 24/12-20A Non-Isolated IP67 DC-DC Converter

Waterproof


Top-down view of blue Victron Orion IP67 24/12-20 DC-DC converter with coiled cablesHighlights:Aluminium Heat Sink: Cast aluminium housing provides passive cooling for 95% efficiency without moving parts,Mounting Holes: Dual pre-drilled holes for secure surface mounting in automotive or marine applications,1.8m Pre-wired Cables: Comes with long input and output leads for flexible installation around battery banks,IP67 Protection: Fully resin encapsulated design makes the unit waterproof, shockproof and ignition protected.Side angle view of Victron Orion 24/12-20 converter showing technical label and cooling finsAngled view of the blue Orion 24/12-20 non-isolated DC-DC converter showing wiring sideFront profile of Victron Orion IP67 converter displaying product identification labelRear view of the Victron Orion converter showing the sealed cable entry pointThe heavy-duty wiring is securely sealed into the cast aluminium housing, ensuring a complete IP67 waterproof and vibration-resistant connection for harsh environmentsComparison specification table for the Victron Orion IP67 DC-DC converter rangeTechnical dimensional drawing for the Victron Orion IP67 24/12-20 converterKey features: Compact 74 x 74 mm footprint, Slim 32 mm profile height, Dual 5 mm mounting holes with 65 mm spacing.
Top-down view of blue Victron Orion IP67 24/12-20 DC-DC converter with coiled cables

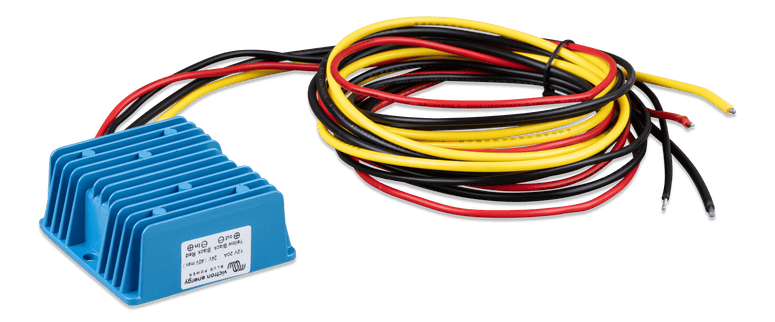

Side angle view of Victron Orion 24/12-20 converter showing technical label and cooling fins

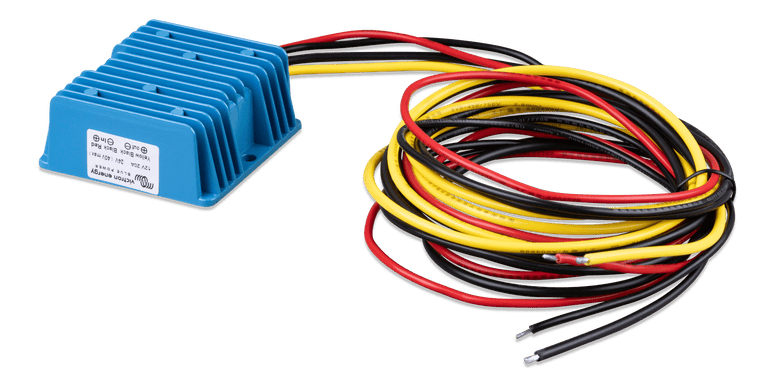

Angled view of the blue Orion 24/12-20 non-isolated DC-DC converter showing wiring side

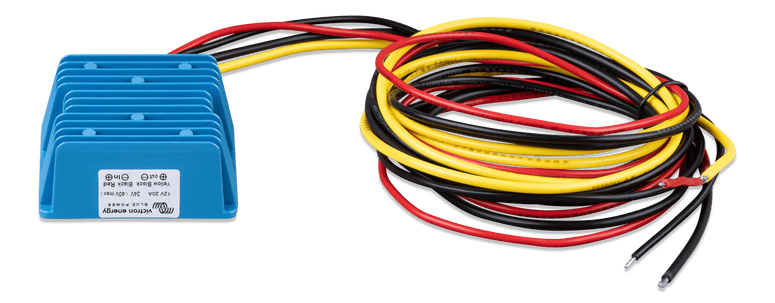

Front profile of Victron Orion IP67 converter displaying product identification label
Rear view of the Victron Orion converter showing the sealed cable entry point

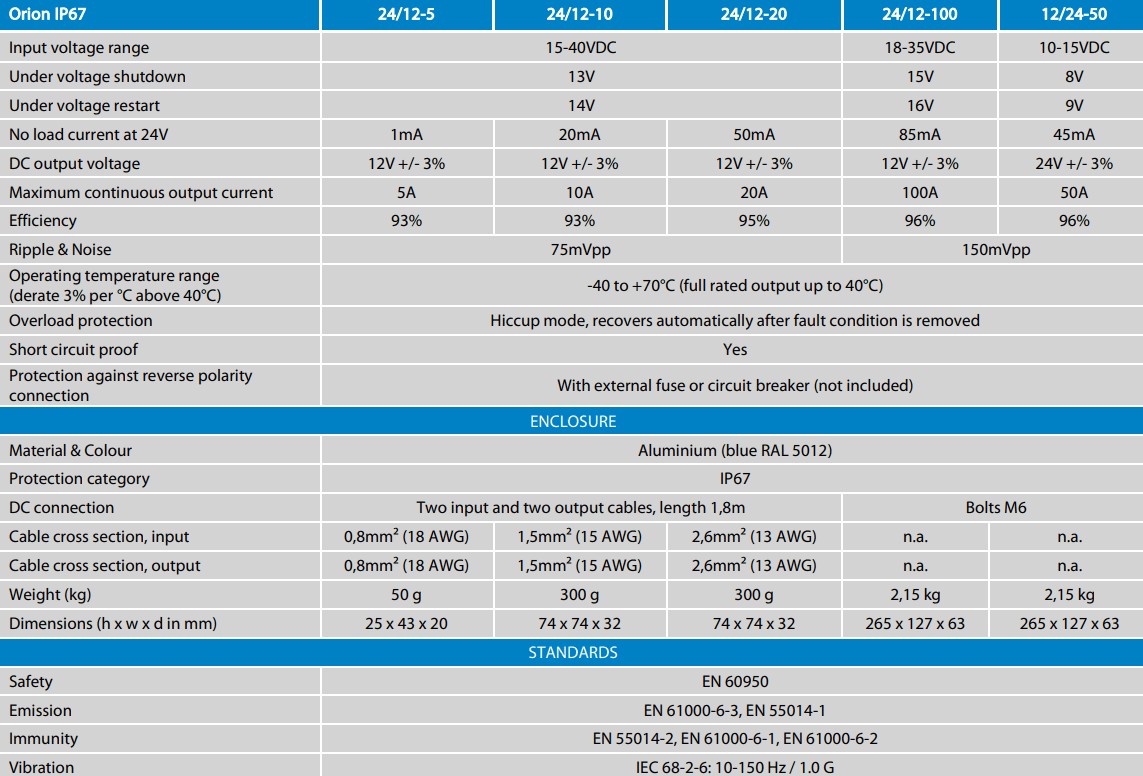

Comparison specification table for the Victron Orion IP67 DC-DC converter range
Technical dimensional drawing for the Victron Orion IP67 24/12-20 converter
Regular price $64.49
$84.70
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

49
Top-down view of blue Victron Orion IP67 24/12-20 DC-DC converter with coiled cables

Victron 24V to 12V Orion 24/12-20A Non-Isolated IP67 DC-DC Converter

DESCRIPTION

Victron 24V to 12V Orion 24/12-20A (240W) Non-Isolated IP67 DC-DC Converter

Superior Durability and Protection

The Victron 24V to 12V Orion 24/12-20A Non-Isolated IP67 DC-DC Converter is designed for the toughest conditions. Completely encapsulated, this converter is waterproof, shockproof, and ignition protected, ensuring that water, oil, or dirt won't damage it. The robust cast aluminium casing, combined with electronics moulded in resin, provides unparalleled durability for your critical applications.

Key Features

Fully Encapsulated Design

  • Waterproof: Safeguards against water intrusion, perfect for marine or off-grid setups.
  • Shockproof: Resilient against mechanical shocks and vibrations, ideal for industrial and mobile applications.
  • Ignition Protected: Ensures safety in volatile environments, making it suitable for various applications including RVs and caravans.

Long Input and Output Cables

  • 1.8 Meters Length: Extra-long cables minimize the need for additional interconnections, enhancing reliability.
  • Simplified Installation: Reduces complexity and potential points of failure in your setup, especially important in IP67 rated environments.

Wide Input Voltage Range

  • 15 to 40 Volts: Ensures stable output even during voltage surges or sags, providing consistent performance.
  • Versatile Compatibility: Supports a range of power sources, making it adaptable to various setups and battery conditions.

Overheating Protection

  • Heat Resistant: Operates efficiently in high-temperature environments like machine rooms.
  • Safety and Reliability: Protects against thermal overload, ensuring continuous operation without risk of overheating.

Ideal Applications

  • Caravans and RVs: Reliable power conversion for your mobile lifestyle.
  • Marine: Durable and waterproof for boating and marine applications.
  • Off-Grid Systems: Perfect for remote locations where reliable power conversion is crucial.
  • Industrial: Withstands harsh industrial environments, ensuring continuous operation.

Enhance Your Setup Today

Upgrade your power system with the Victron 24V to 12V Orion 24/12-20A Non-Isolated IP67 DC-DC Converter. Ensure your equipment is protected and operates reliably in any condition. Order now and experience the difference in durability and performance.

SPECIFICATIONS

Specifications

Orion IP67 24/12-20
Input voltage range 15-40VDC
Under voltage shutdown 13V
Under voltage restart 14V
No load current at 24V 50mA
DC output voltage 12V +/- 3%
Maximum continuous output current 20A
Efficiency 95%
Ripple & Noise 75mVpp
Operating temperature range -40 to +70°C (full rated output up to 40°C)
Overload protection Hiccup mode, recovers automatically after fault condition is removed
Short circuit proof Yes
Protection against reverse polarity connection With external fuse or circuit breaker (not included)
Material & Colour Aluminium (blue RAL 5012)
Protection category IP67
DC connection Two input and two output cables, length 1.8m
Cable cross section, input 2.6mm² (13 AWG)
Cable cross section, output 2.6mm² (13 AWG)
Weight (kg) 300 g
Dimensions (h x w x d in mm) 74 x 74 x 32
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2
Vibration IEC 68-2-6: 10-150 Hz / 1.0 G

SKU: VIC-ORI241220260
Barcode: 8719076048442
Model #: ORI241220260
MPN: ORI241220260

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
