Victron 24V to 12V Orion 24/12-100A Non-Isolated IP67 DC-DC Converter

Waterproof


Top-down view of blue finned aluminium DC-DC converter with terminal lugs at the baseKey features: IP67 waterproof and dustproof rating, High efficiency 96% conversion, Heavy-duty M6 bolt DC connections, Robust blue aluminium heatsink enclosure, Short circuit and overload protection.Product label for Victron Orion converter showing 1200W rating and connection diagramProduct label for the Victron Orion IP67 24/12-100A DC-DC converter, detailing the 1200W capacity, 24V input, and 12V 100A output specifications.Perspective view of blue finned DC-DC converter showing input and output terminals and status LEDHighlights:Status LED: Red LED indicator for operational status,Input Terminal: M6 bolt connection for 24V DC input,Ground Terminal: Common negative ground connection point,Output Terminal: M6 bolt connection for 12V 100A DC output,Aluminium Heatsink: Integrated fins for passive thermal management.Angled view of a blue Victron DC-DC converter with heavy duty M6 bolt terminalsTop perspective of a blue 100A DC-DC converter highlighting the cooling finsFront terminal view of DC-DC converter showing input, ground and output bolt connectionsComparison table of technical specifications for the Orion IP67 DC-DC converter rangeDimensional drawing of Orion IP67 24/12-100A converter with measurements in millimetresTechnical dimensional drawing for the Orion IP67 100A converter, showing total width of 127mm, height of 63mm, and mounting hole spacings.

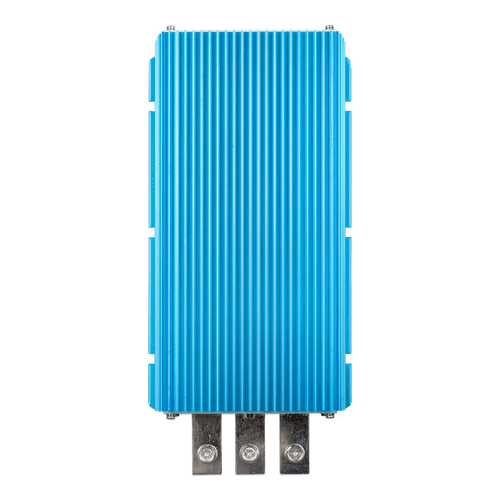

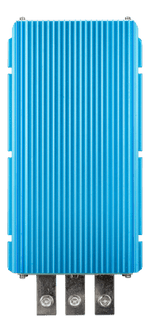

Top-down view of blue finned aluminium DC-DC converter with terminal lugs at the base
Product label for Victron Orion converter showing 1200W rating and connection diagram
Perspective view of blue finned DC-DC converter showing input and output terminals and status LED

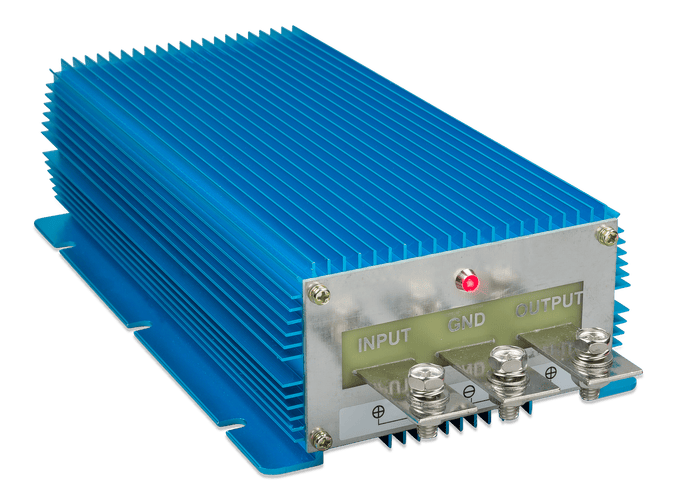

Angled view of a blue Victron DC-DC converter with heavy duty M6 bolt terminals

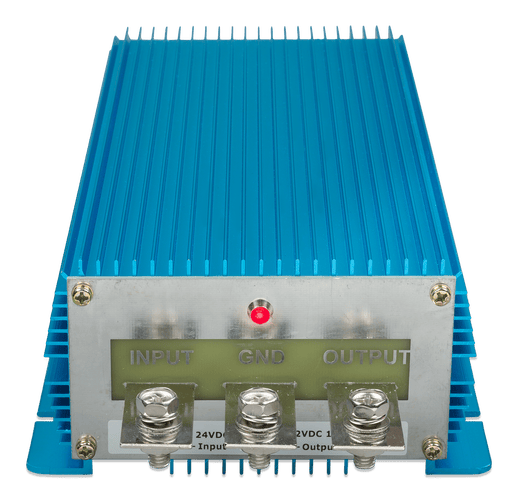

Top perspective of a blue 100A DC-DC converter highlighting the cooling fins

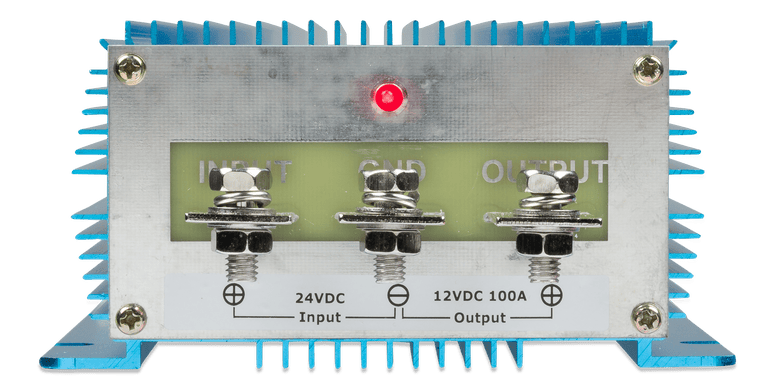

Front terminal view of DC-DC converter showing input, ground and output bolt connections

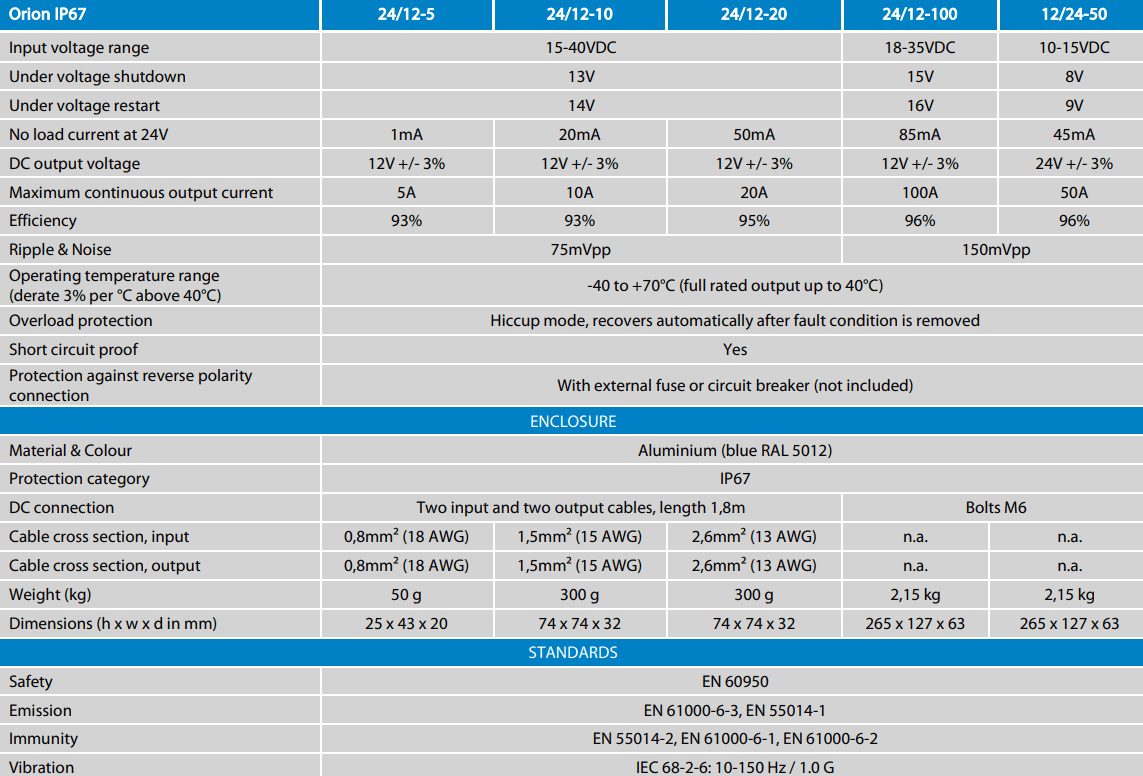

Comparison table of technical specifications for the Orion IP67 DC-DC converter range
Dimensional drawing of Orion IP67 24/12-100A converter with measurements in millimetres
Regular price $336.71
$429.00
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

4

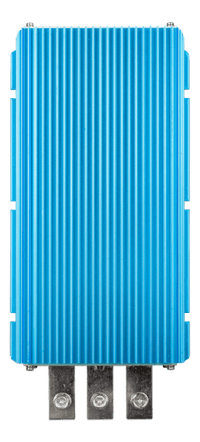

Top-down view of blue finned aluminium DC-DC converter with terminal lugs at the base

Victron 24V to 12V Orion 24/12-100A Non-Isolated IP67 DC-DC Converter

DESCRIPTION

Victron 24V to 12V Orion 24/12-100A (1200W) Non-Isolated IP67 DC-DC Converter

Ultimate Protection and Durability

The Victron 24V to 12V Orion 24/12-100A Non-Isolated IP67 DC-DC Converter is engineered to withstand the harshest environments. Completely encapsulated in a robust cast aluminium casing and resin-moulded electronics, this converter is waterproof, shockproof, and ignition protected. Whether exposed to water, oil, or dirt, the Orion IP67 DC-DC Converter continues to deliver reliable performance.

Key Features:

  • Wide Input Voltage Range: Operating within an 18 to 35 Volts input range, the Orion DC-DC converter ensures a stable output, even during voltage surges or drops caused by other connected equipment.
  • Overheat Protection: Designed to function efficiently in high-temperature environments, such as machine rooms, preventing overheating and ensuring consistent performance.

Versatile Applications

This DC-DC converter is ideal for various applications, including:

  • Caravans and RVs: Ensure your on-road electronics receive a stable 12V supply, no matter the conditions.
  • Marine Environments: Perfect for boats and yachts, offering waterproof protection and reliable performance.
  • Off-Grid and Industrial Settings: Robust enough for remote locations and demanding industrial applications.

Why Choose the Victron Orion IP67 DC-DC Converter?

  • Reliability: Engineered for longevity with protection against environmental hazards.
  • Versatility: Suitable for a wide range of applications from vehicles to industrial setups.
  • Performance: Delivers consistent output, maintaining the integrity of connected devices.

Upgrade your system with the Victron 24V to 12V Orion 24/12-100A Non-Isolated IP67 DC-DC Converter today and experience unparalleled durability and reliability in any environment!

SPECIFICATIONS

Specifications

Orion IP67 24/12-100
Input voltage range 18-35VDC
Under voltage shutdown 15V
Under voltage restart 16V
No load current at 24V 85mA
DC output voltage 12V +/- 3%
Maximum continuous output current 100A
Efficiency 96%
Ripple & Noise 150mVpp
Operating temperature range -40 to +70°C (full rated output up to 40°C)
Overload protection Hiccup mode, recovers automatically after fault condition is removed
Short circuit proof Yes
Protection against reverse polarity connection With external fuse or circuit breaker (not included)
Material & Colour Aluminium (blue RAL 5012)
Protection category IP67
DC connection Bolts M6
Cable cross section, input n.a.
Cable cross section, output n.a.
Weight (kg) 2.15 kg
Dimensions (h x w x d in mm) 265 x 127 x 63
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2
Vibration IEC 68-2-6: 10-150 Hz / 1.0 G

SKU: VIC-ORI241221226
Barcode: 8719076048541
Model #: ORI241221226
MPN: ORI241221226
