Victron 12V to 24V Orion 12/24-20A Non-Isolated IP20 DC-DC Converter
Victron 12V to 24V Orion 12/24-20A Non-Isolated IP20 DC-DC Converter
High Power

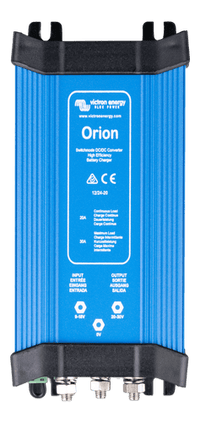

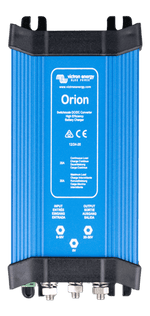

Highlights:Mounting Slots: Integrated slots for secure vertical or horizontal installation,Aluminium Enclosure: Finned blue aluminium body acting as a high-efficiency heat sink,High Efficiency Label: Branding for the high efficiency Orion switchmode DC/DC converter series,Connection Indicators: Clear markings for input, output, and common ground connections,Bolt Terminals: Heavy-duty M6 bolt terminal connections for high-current wiring.

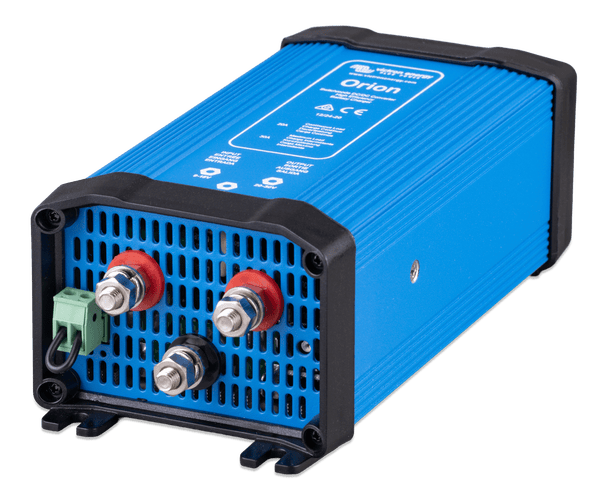

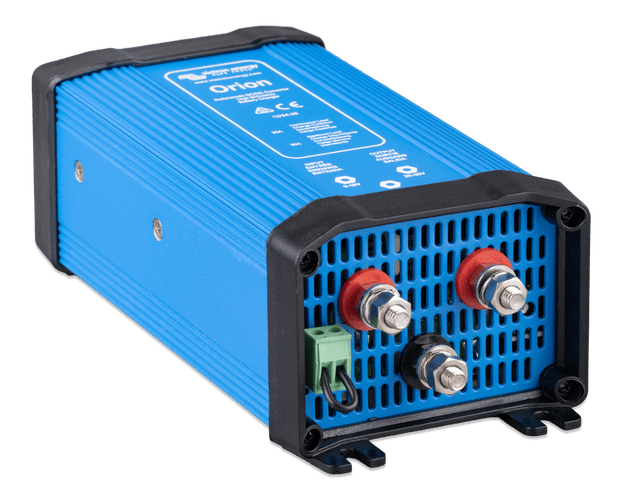

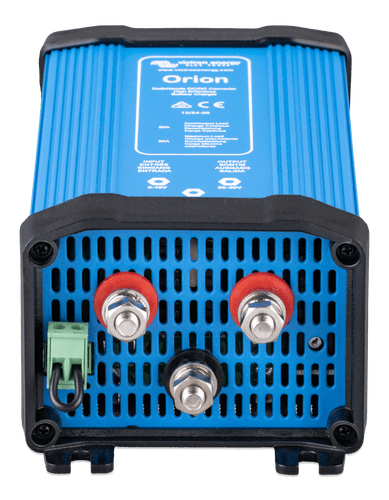

High-current interface featuring robust M6 bolt terminals for input and output, alongside a green pluggable terminal block for remote on-off control functionality.

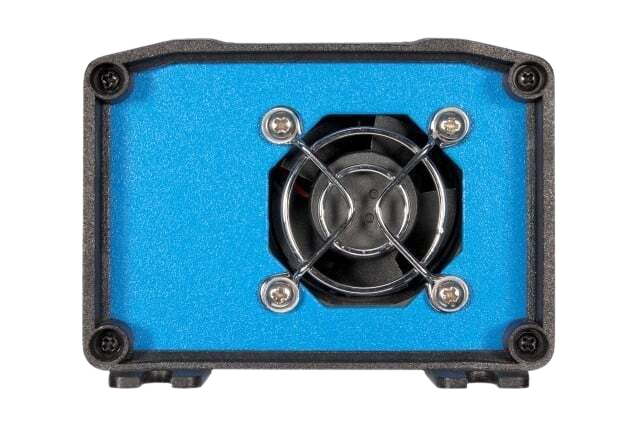

Thermal management system including a temperature-controlled cooling fan and protective grille to ensure peak performance under a continuous 20A load.
Key features: Broad 9-18V input voltage range, Adjustable output voltage from 20V to 30V, 20A continuous and 30A maximum output current, High-efficiency 93 percent conversion rate, Fan-assisted temperature-controlled cooling, Remote on-off switching capability.
DESCRIPTION
Victron 12V to 24V Orion 12/24-20A Non-Isolated IP20 DC-DC Converter
Versatile and Efficient Power Conversion
The Victron 12V to 24V Orion 12/24-20A Non-Isolated IP20 DC-DC Converter is designed to meet your power needs with exceptional efficiency and versatility. This high-performance converter is ideal for applications such as caravans, RVs, marine, off-grid, industrial, and tiny homes.
Key Features
Remote On-Off Connector
- Enhanced Convenience: The remote on-off connector eliminates the need for a high current switch in the input wiring. Operate with a low power switch or the engine run/stop switch, simplifying installation and usage.
Adjustable Output
- Dual Functionality: This converter doubles as a battery charger, perfect for charging a 12V starter or accessory battery within a 24V system. Adapt to your power needs with adjustable output capabilities.
Parallel Capability
- Scalable Power: Need more power? Up to five units can be connected in parallel to increase output current, providing scalable solutions for larger power requirements.
Easy Installation
- User-Friendly Design: Installation is straightforward with the included four Insulated Fastons Female Crimp 6.3mm connectors. Save time and effort with this easy-to-install solution.
Applications
- Caravan
- RV
- Marine
- Off-Grid Systems
- Industrial Use
Why Choose Victron?
Choosing the Victron 12V to 24V Orion 12/24-20A Non-Isolated IP20 DC-DC Converter means investing in reliable power conversion with the flexibility to meet various power needs. Whether you're powering up your off-grid setup, enhancing your marine electronics, or maintaining an industrial system, this converter delivers consistent performance.
Upgrade Your Power System Today
Ensure your power needs are met with efficiency and reliability. Upgrade your vehicle or off-grid setup now with the Victron 12V to 24V Orion 12/24-20A Non-Isolated IP20 DC-DC Converter. Experience the difference in power management and efficiency.
Order Now and Enhance Your Power Management!
Invest in the Victron 12V to 24V Orion 12/24-20A Non-Isolated IP20 DC-DC Converter for unmatched performance and versatility.
SPECIFICATIONS

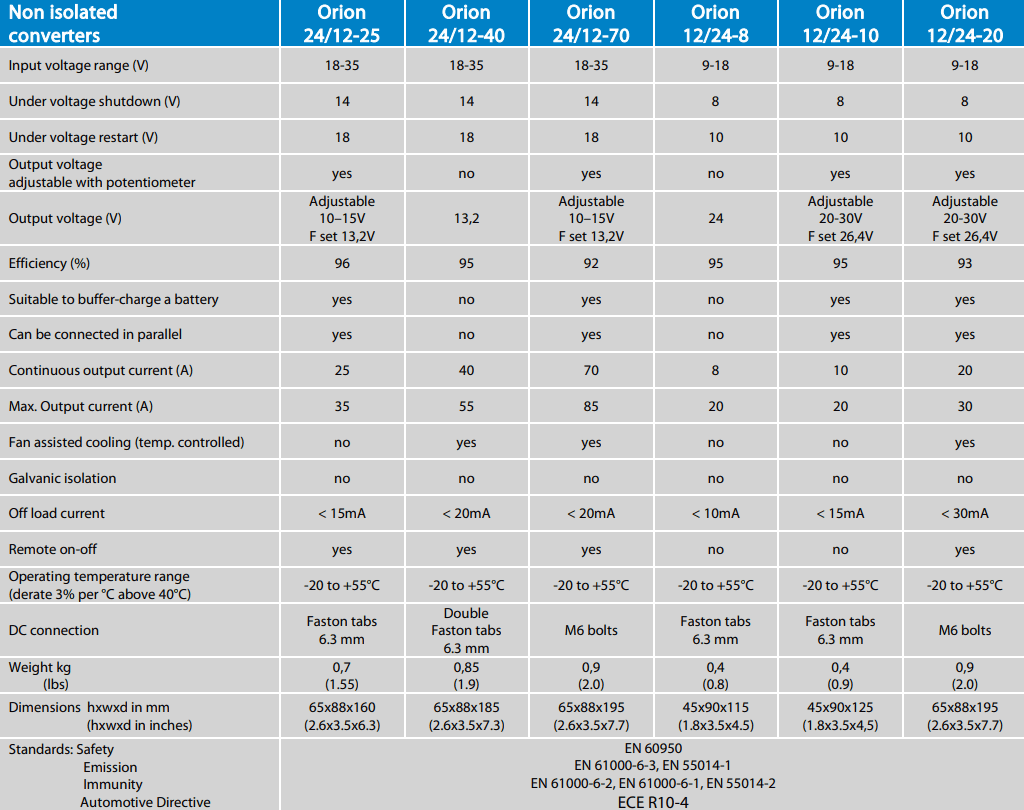

Specifications
| Model | Orion 12/24-20 |
| Input voltage range (V) | 9-18 |
| Under voltage shutdown (V) | 8 |
| Under voltage restart (V) | 10 |
| Output voltage adjustable with potentiometer | yes |
| Output voltage (V) | Adjustable 20-30V F set 26.4V |
| Efficiency (%) | 93 |
| Suitable to buffer-charge a battery | yes |
| Can be connected in parallel | yes |
| Continuous output current (A) | 20 |
| Max. Output current (A) | 30 |
| Fan assisted cooling (temp. controlled) | yes |
| Galvanic isolation | no |
| Off load current | < 30mA |
| Remote on-off | yes |
| Operating temperature range (derate 3% per °C above 40°C) | -20 to +55°C |
| DC connection | M6 bolts |
| Weight kg (lbs) | 0.85 (1.9) |
| Dimensions hxwxd in mm (hxwxd in inches) | 65x88x195 (2.6x3.5x7.7) |
| Standards: Safety Emission Immunity Automotive Directive | EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4 |
| SKU: | VIC-ORI122420020 |
| Barcode: | 8719076022763 |
| Model #: | ORI122420020 |
| MPN: | ORI122420020 |
