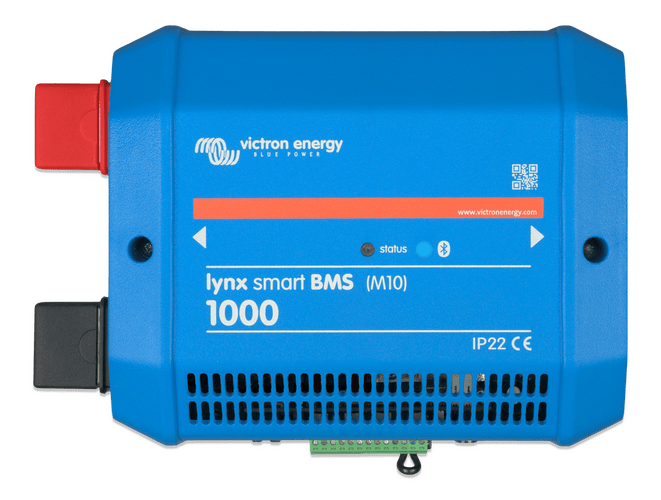

Victron Lynx Smart BMS 1000 M10


RRP $1,800.70
$1,590.44
Save $210.26
Sale Ends in
At 23:59 pm, 2 December 2024
Due in Soon
Victron logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Victron Lynx Smart BMS 1000 M10, to the majority of areas. Check your shipping details on the cart page for more information.

Optimize Your Energy Storage with Lynx Smart 1000A BMS M10 for Victron Lithium Batteries

Discover the pinnacle of battery management with the Lynx Smart BMS, designed exclusively for Victron Lithium Battery Smart series. These high-efficiency Lithium Iron Phosphate (LiFePO4) batteries come in 12.8V and 25.6V across various capacities, perfect for diverse energy needs.

Versatile Configuration for Maximum Power: Configure these batteries in series, parallel, or series/parallel combinations to build a robust battery bank for 12V, 24V, or 48V systems. With a capacity to integrate up to 20 batteries, achieve impressive energy storage of up to 84 kWh in a 12V system and up to 102 kWh in 24V and 48V systems.

Feature-Rich BMS Solution: The Lynx Smart BMS stands out as the most comprehensive and advanced BMS available, seamlessly integrating into the Lynx Distributor system.

Advanced Safety and Control Mechanisms:

  • Built-in Contactor: Acts as a secondary safety system, doubling as a remote-controllable main system switch.
  • Pre-Charge Circuit: Prevents high inrush currents, simplifying your setup by eliminating the need for external pre-charging.

Monitoring and control

Monitor and control the BMS via Bluetooth using the VictronConnect App or a GX device such as a Cerbo GX and the VRM Portal. A built-in battery monitor that operates in a similar fashion as the other Victron Energy battery monitors, provides data such as state of charge, voltage, current, historical data, status info and more in real time, and with Instant Readout even without the need to connect to the BMS, allowing diagnostic at a glance.

Intelligent System Integration:

Compatible Victron inverter/chargers and solar chargers are automatically controlled via a connected GX device and DVCC. The ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port.

Programmable relay

The relay can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable). In Alternator ATC mode, the relay will only activate when the contactor is closed. Alternator ATC contact of the alternator opens first and then with a delay of 2 seconds the contactor. These 2 seconds ensure that the alternator is switched off before the battery is disconnected from the system.

AUX Terminal

The advantage of the onboard auxiliary power supply (1.1 A @ system voltage) is to provide power to specific loads (i.e. a GX device) after the BMS has shut down the loads in the event of a low cell voltage event. If no charge voltage is detected within 5 minutes, the BMS including the AUX connection switches off.

VE.Can and NMEA 2000 data communication

VE.Can allows for easy connection (standard RJ45 network cable) and communication with a GX device. Since the CANbus protocol is based on NMEA 2000 (and J1939), it is easy to integrate into a marine network and feed your marine MFD with data (requires a VE.Can to NMEA 2000 micro-C male cable).

Lynx Distributor fuse monitoring

Read out fuse status and receive an alarm in case a fuse is blown. The Lynx Smart BMS monitors up to 4 connected Lynx Distributors and their fuses via VictronConnect or a GX device

1) To reduce required balancing time, we recommend to use a little different batteries in series as possible for the application. 24 V systems are best built using 24 V batteries. And 48 V systems are best built using two 24 V batteries in series. While the alternative, four 12 V batteries in series, will work, it will require more periodic balancing time.


Visit Victron's Official Lynx Smart BMS Webpage for More Details
(LYN034170210)

Specifications

Lynx Smart BMS 1000 A
Power
Battery voltage range 9 – 60 VDC
Maximum input voltage 75 VDC
Supported system voltages 12, 24 or 48 V
Reverse polarity protection No
Main safety contactor continuous current rating 1000 A continuous
Main safety contactor peak current rating 1200 A for 5 minutes
Power consumption OFF mode 0.3 mA for all system voltages
Power consumption in Standby mode Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode Approximately 4.2 W (350 mA at
12 V) depending on the state of
the relays
Minimum load resistance for pre-charging 10 Ω and above for 12 V systems
20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating 1.1 A continuous, protected by resettable fuse
Allow-to-charge port
Maximum current rating
0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port
Maximum current rating
0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT)
Maximum current rating
2 A at 60 VDC
Connections
Busbar M10 (Torque: 33 Nm)
(17 Nm for units with a serial
number before HQ2340XXXX)
VE.Can RJ45
I/O Removable multi-connector with screw terminals
Battery BTV cables Male and female circular 3-pole connector with M8 screw ring
Up to 20 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules) RJ10 (cable ships with each Lynx Distributor)
Physical
Enclosure material ABS
Enclosure dimensions (h x w x d) 230 x 180 x 100 mm
Unit weight 2.7 kg
Busbar material Tinned copper
Busbar dimensions (h x w) 8 x 30 mm
Environmental
Operating temperature range -40 °C to +60 °C
Storage temperature range -40 °C to +60 °C
Humidity Max. 95 % (non-condensing)
Protection class IP22
Standards
Safety EN-IEC 63000:2018
EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS NEN-EN-ISO 9001:2015
SKU VIC-LYN034170210
Barcode # 8719076057604
MPN # LYN034170210
