Victron 48V 5000VA Phoenix Smart Inverter 48/5000
Victron 48V 5000VA Phoenix Smart Inverter 48/5000: Powering Off-Grid, Marine, and Mobile Living Spaces
Embrace the ultimate power solution with the Victron 48V 5000VA Phoenix Smart Inverter. Expertly crafted for off-grid cabins, 48V marine environments, 48V bus and RV house battery systems, this inverter is the key to ensuring a stable and reliable power supply in various demanding settings.
- Optimized for 48V Systems: Specifically designed for 48V power setups, making it an ideal choice for off-grid cabins, marine applications, and 48V house battery systems in buses and RVs.
- Robust Power Output: Capable of delivering a powerful peak output, it effortlessly meets the high energy demands of your appliances and devices.

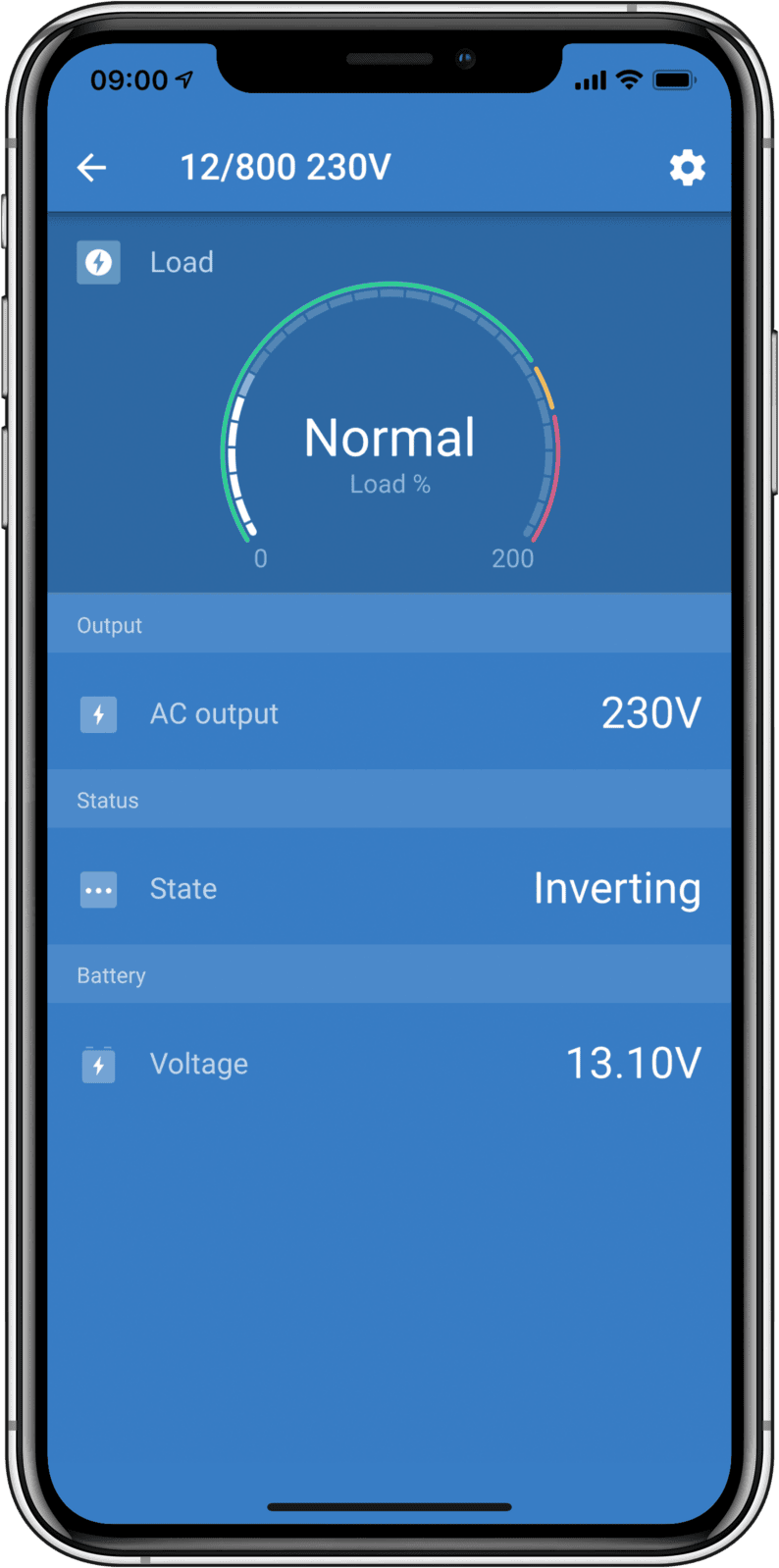

- Bluetooth Connectivity: Monitor and adjust settings easily with the built-in Bluetooth function, providing convenient remote access via your smartphone or tablet.
- Advanced Protection Mechanisms: Features like low battery voltage alarms and dynamic cut-off levels protect against potential overloads and overheating, ensuring the safety of your power system.
- Energy-Saving ECO Mode: Reduces power consumption when the load is low, making it an environmentally friendly and cost-effective solution for extended stays in remote locations.
- Durable and Reliable: Designed to endure the challenges of both off-grid and mobile environments, this inverter guarantees consistent performance under various conditions.
Perfect for Off-Grid Use
The Victron Phoenix Smart Inverter is not just powerful – it's also versatile. Whether you're in a remote cabin, sailing the seas, or traveling in your RV or bus, this inverter ensures that your power needs are always met with efficiency and reliability.
Seamless Integration and User-Friendly Operation
Integration with 48V systems is straightforward and hassle-free, making installation and usage a seamless experience. The inverter's capability to handle various loads makes it an indispensable component in your off-grid cabin, marine setup, or mobile living space.
|Phoenix Smart Inverter
|Parallel and 3-phase operation
|Input voltage range
|37.2 – 68 V
|Output voltage: 230 VAC ±2%
50 Hz or 60 Hz ± 0.1 % (1)
|Cont. output power at 25 ºC (1)
|Cont. output power at 25 ºC
|Cont. output power at 40 ºC
|Cont. output power at 65 ºC
|Dynamic (load dependent) DC low shut
down (fully configurable)
|Zero load power
|Zero load power in ECO mode
|Programmable relay (2)
|Stop & start power ECO-mode
|a - g
|Bluetooth wireless communication
|For remote monitoring and system integration
|VE.Direct communication port
|For remote monitoring and system integration
|Operating temperature range: -40 to +65 ºC (fan assisted cooling)
Humidity (non-condensing): max 95 %
|Material & Colour: steel (blue RAL 5012; and black RAL 9017)
Protection category: IP21

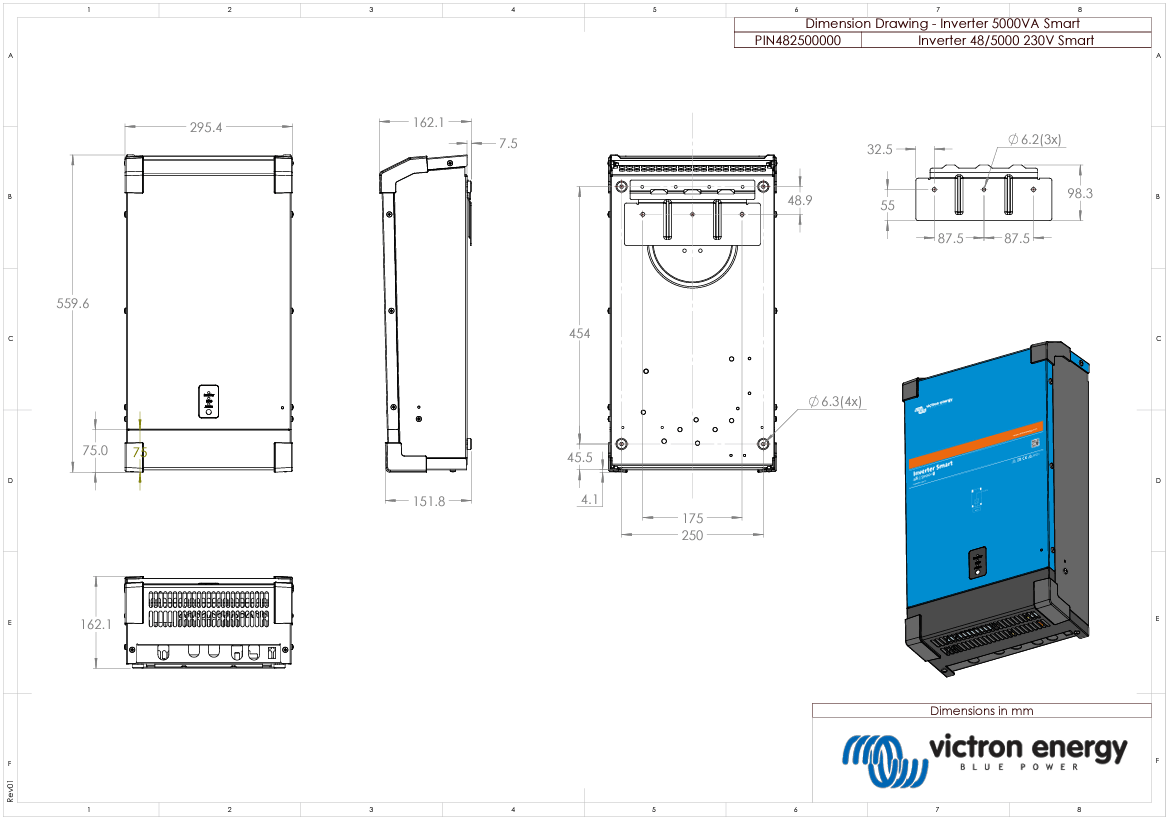

|555 x 295 x 160 mm
|EN 55014-1 / EN 55014-2/ EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / EN-IEC 61000-6-3
Non-linear Load, Crest Factor 3:1
- Can be set for:
- General alarm
- DC under voltage
- Genset start/stop function
- AC Rating: 230 V / 4 A
- DC Rating: 4 A / 35 VDC, 1 A / 60 VDC
- Can be set for:
- a) Output short circuit
- b) Overload
- c) Battery voltage too high
- d) Battery voltage too low
- e) Temperature too high
- f) 230 VAC on inverter output
- g) Input voltage ripple too high
