Victron 48V 3000VA Phoenix Smart Inverter 48/3000
Victron 48V 3000VA Phoenix Smart Inverter 48/3000

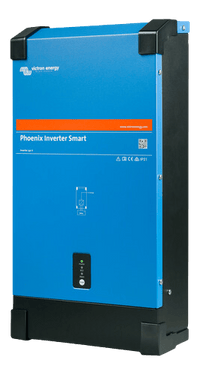

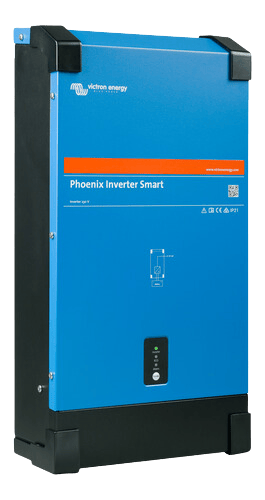

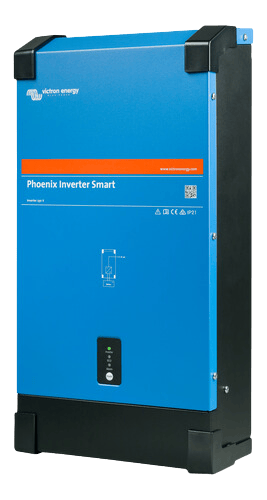

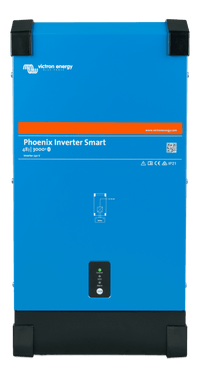

Key features: Bluetooth built-in for wireless monitoring and configuration, High peak power for high start-up loads, Configurable ECO mode to reduce power consumption, Durable IP21 steel and black enclosure.

Highlights:M8 Battery Terminals: Heavy-duty M8 bolts for secure high-current DC battery connections,AC Output Terminals: Secure screw terminals for 230V AC output to appliances,VE.Direct Port: Communication port for system monitoring via GX devices or wired connection,Programmable Relay: Configurable relay for alarms or generator start and stop functions,Remote On-Off: Terminal for external switch or battery management system control.

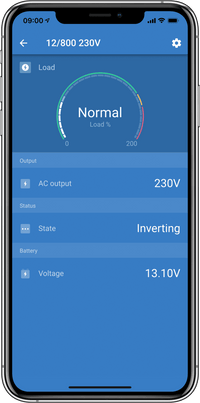

The VictronConnect mobile app provides real-time data including load percentage, AC output voltage, and battery status via Bluetooth connectivity.
Technical dimensional drawing showing the 3000VA inverter measures 485mm in height, 285mm in width, and 150mm in depth.
A system schematic demonstrating the inverter integrated with solar panels, batteries, and multiple AC loads for a complete power solution.
DESCRIPTION
Victron 48V 3000VA Phoenix Smart Inverter 48/3000: Powering Off-Grid, Marine, and Mobile Living Spaces
Embrace the ultimate power solution with the Victron 48V 3000VA Phoenix Smart Inverter. Expertly crafted for off-grid cabins, 48V marine environments, 48V bus and RV house battery systems, this inverter is the key to ensuring a stable and reliable power supply in various demanding settings.
Key Features:
- Optimized for 48V Systems: Specifically designed for 48V power setups, making it an ideal choice for off-grid cabins, marine applications, and 48V house battery systems in buses and RVs.
- Robust Power Output: Capable of delivering a powerful peak output, it effortlessly meets the high energy demands of your appliances and devices.
- Bluetooth Connectivity: Monitor and adjust settings easily with the built-in Bluetooth function, providing convenient remote access via your smartphone or tablet.
- Advanced Protection Mechanisms: Features like low battery voltage alarms and dynamic cut-off levels protect against potential overloads and overheating, ensuring the safety of your power system.
- Energy-Saving ECO Mode: Reduces power consumption when the load is low, making it an environmentally friendly and cost-effective solution for extended stays in remote locations.
- Durable and Reliable: Designed to endure the challenges of both off-grid and mobile environments, this inverter guarantees consistent performance under various conditions.
Perfect for Off-Grid Use
The Victron Phoenix Smart Inverter is not just powerful – it's also versatile. Whether you're in a remote cabin, sailing the seas, or traveling in your RV or bus, this inverter ensures that your power needs are always met with efficiency and reliability.
Seamless Integration and User-Friendly Operation
Integration with 48V systems is straightforward and hassle-free, making installation and usage a seamless experience. The inverter's capability to handle various loads makes it an indispensable component in your off-grid cabin, marine setup, or mobile living space.
SKU: VIC-PIN482300000
Visit Victron's Official Victron 48V 3000VA Phoenix Smart Inverter 48/3000 Webpage Here

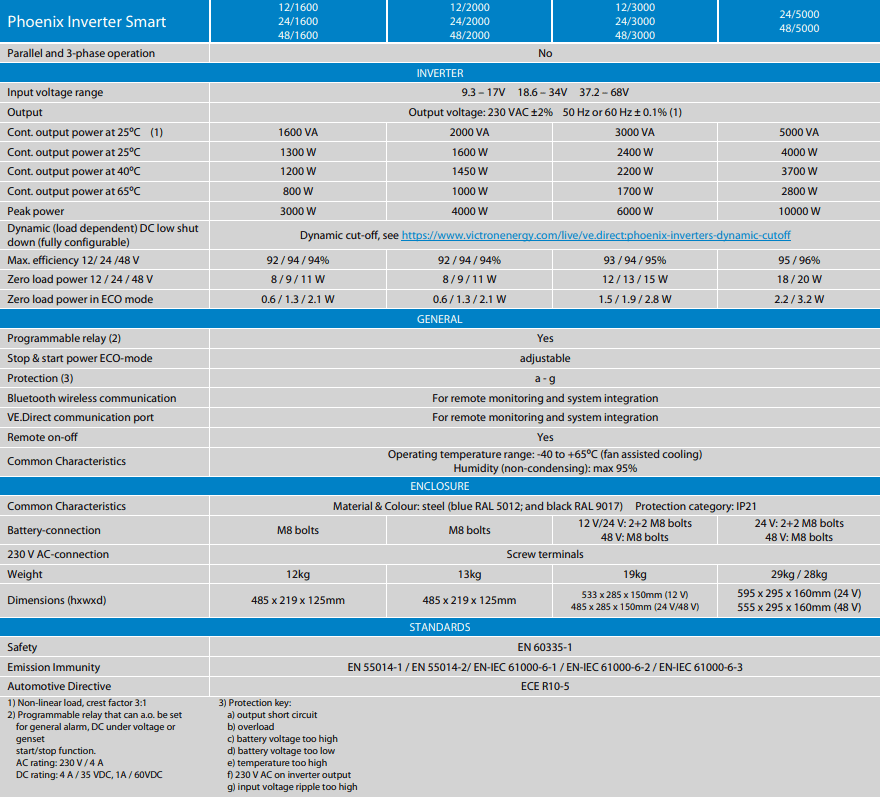

SPECIFICATIONS
Specifications
| Phoenix Smart Inverter | 48/3000 |
| Parallel and 3-phase operation | No |
| Inverter | |
| Input voltage range | 37.2 – 68 V |
| Output | Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ± 0.1 % (1) |
| Cont. output power at 25 ºC (1) | 3000 VA |
| Cont. output power at 25 ºC | 2400 W |
| Cont. output power at 40 ºC | 2200 W |
| Cont. output power at 65 ºC | 1700 W |
| Peak power | 6000 W |
| Dynamic (load dependent) DC low shut down (fully configurable) | Dynamic cut-off |
| Max. efficiency | 95 % |
| Zero load power | 15 W |
| Zero load power in ECO mode | 2.8 W |
| General | |
| Programmable relay (2) | Yes |
| Stop & start power ECO-mode | adjustable |
| Protection (3) | a - g |
| Bluetooth wireless communication | For remote monitoring and system integration |
| VE.Direct communication port | For remote monitoring and system integration |
| Remote on-off | Yes |
| Common Characteristics | Operating temperature range: -40 to +65 ºC (fan assisted cooling) Humidity (non-condensing): max 95 % |
| Enclosure | |
| Common Characteristics | Material & Colour: steel (blue RAL 5012; and black RAL 9017) Protection category: IP21 |
| Battery-connection | M8 bolts |
| 230 VAC-connection | Screw terminals |
| Weight | 19 kg |
| Dimensions (hxwxd) | 485 x 285 x 150 mm |
| Standards | |
| Safety | EN 60335-1 |
| Emission Immunity | EN 55014-1 / EN 55014-2/ EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / EN-IEC 61000-6-3 |
| Automotive Directive | ECE R10-5 |
-
Non-linear Load, Crest Factor 3:1
-
Programmable Relay:
- Can be set for:
- General alarm
- DC under voltage
- Genset start/stop function
- AC Rating: 230 V / 4 A
- DC Rating: 4 A / 35 VDC, 1 A / 60 VDC
- Can be set for:
-
Protection Key:
- a) Output short circuit
- b) Overload
- c) Battery voltage too high
- d) Battery voltage too low
- e) Temperature too high
- f) 230 VAC on inverter output
- g) Input voltage ripple too high
| SKU: | VIC-PIN482300000 |
| Barcode: | 8719076047384 |
| Model #: | PIN482300000 |
| MPN: | PIN482300000 |
