Victron 48V 200A SmartSolar MPPT RS 450/200-MC4 High Voltage Solar Charge Controller

Ideal for large series connected PV arrays


Perspective view of the blue steel Victron MPPT RS 450/200 showing side mounting pointsKey features: Robust steel enclosure in RAL 5012 blue, Integrated LCD display for live status monitoring, Four independent MPPT trackers for complex arrays, High-efficiency 48V solar charging up to 200A.Front view of the Victron SmartSolar MPPT RS 450/200 solar charge controller with integrated LCD screenInternal view of Victron MPPT RS 450/200 showing PV inputs and battery terminalsHighlights:Cooling Fans: Three integrated fans for high-temperature operating performance,Communication Ports: VE.Direct and VE.Can ports for system monitoring and networking,Battery Terminals: Heavy-duty M8 bolts for secure 48V battery connections,PV Input Terminals: Four independent MPPT trackers with dedicated screw terminals,Cable Glands: IP21 rated entry points for PV and battery cabling.Bottom panel view of the Victron MPPT RS 450/200 with cable glands and power switchThe bottom interface of the Victron MPPT RS 450/200 features multiple PV tracker inputs, a dedicated battery cable port, ventilation grilles, and a primary DC power isolation switch.Technical specifications table for Victron SmartSolar MPPT RS 450/100 and 450/200 modelsDimensional drawing of the Victron SmartSolar MPPT RS 450/200 controller in millimetresVictronConnect app screenshot displaying live solar yield and battery status monitoringVictronConnect app interface displaying real-time monitoring data including solar power yield, individual tracker voltages, battery charge state, and temperature.System wiring diagram of the MPPT RS connected to PV arrays, battery, and GX device
Perspective view of the blue steel Victron MPPT RS 450/200 showing side mounting points
Front view of the Victron SmartSolar MPPT RS 450/200 solar charge controller with integrated LCD screen
Internal view of Victron MPPT RS 450/200 showing PV inputs and battery terminals
Bottom panel view of the Victron MPPT RS 450/200 with cable glands and power switch
Technical specifications table for Victron SmartSolar MPPT RS 450/100 and 450/200 models
Dimensional drawing of the Victron SmartSolar MPPT RS 450/200 controller in millimetres
VictronConnect app screenshot displaying live solar yield and battery status monitoring

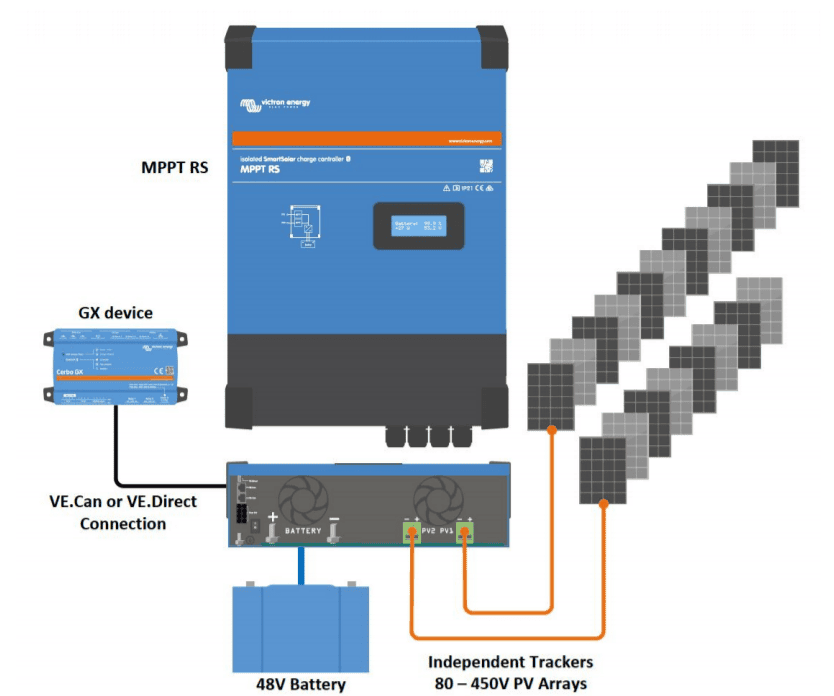

System wiring diagram of the MPPT RS connected to PV arrays, battery, and GX device
Regular price $3,323.07
$3,656.40
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron

We’re here to help you get it right! Give us a quick call to verify your installation and ensure a seamless setup.

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Perspective view of the blue steel Victron MPPT RS 450/200 showing side mounting points

Victron 48V 200A SmartSolar MPPT RS 450/200-MC4 High Voltage Solar Charge Controller

DESCRIPTION

Victron SmartSolar MPPT RS 450/200-MC4 High Voltage Solar Charge Controller

The Victron SmartSolar MPPT RS 450/200-MC4 is designed to optimize your solar power system, making it ideal for both on-grid and off-grid applications. This high-voltage solar charge controller integrates advanced technology, robust safety features, and a user-friendly design to deliver maximum performance.

Effortless Connectivity and Optimized Performance

The new MC4 version of the SmartSolar MPPT RS 450/200 simplifies the connection process with Staubli MC4 connectors, ensuring reliable and secure solar array connections. Its ultra-fast Maximum Power Point Tracking (MPPT) technology maximizes energy harvesting from your solar panels, ensuring that your system operates at peak efficiency. With multiple MPPT trackers, you can optimize the performance of your solar panel setup tailored to your specific location and needs.

Key Features

  • Staubli MC4 Connectors: Simplifies solar array connections, ensuring reliability and ease of installation.
  • Ultra-fast MPPT Technology: Maximizes power output from your solar panels.
  • Multiple MPPT Trackers: Allows for optimized performance tailored to your specific solar panel setup.
  • Isolated PV Connections: Provides superior system safety with full galvanic isolation between PV and battery connections.
  • Wide Voltage Range: Operates within an 80 – 450 VDC range, accommodating various solar panel configurations.
  • Lightweight and Quiet Operation: Advanced high-frequency technology results in a powerful yet lightweight charger that operates efficiently and quietly.
  • Bluetooth Connectivity: User-friendly setup and monitoring via the VictronConnect app.
  • VE.Can and VE.Direct Ports: Advanced system integration and remote updates.
  • PV Isolation Resistance Monitoring: Ensures safe operation even at higher voltages.

Safety and Reliability

The SmartSolar MPPT RS 450/200 features isolated PV connections, providing full galvanic isolation between PV and battery connections, enhancing overall system safety. It also continuously monitors PV isolation resistance, detecting any faults that could compromise the safety of your system at higher voltages.

User-Friendly Interface and Advanced Integration

This charge controller is designed with user convenience in mind. It includes an integrated display that shows essential battery and controller parameters. Additionally, Bluetooth connectivity allows for easy system setup and real-time monitoring via the VictronConnect app. VE.Can and VE.Direct ports enable seamless connection to a GX device for comprehensive system monitoring, data logging, and remote firmware updates.

Superior Efficiency and Durability

High Efficiency

With a maximum efficiency of 96%, the SmartSolar MPPT RS 450/200 ensures that almost all the energy harvested from your solar panels is utilized for charging your batteries, minimizing energy loss. Its wide MPPT voltage range (80 – 450 VDC) allows it to handle a variety of solar panel configurations, making it a versatile choice for different setups.

Robust Design

Constructed with a robust steel enclosure and high IP21 protection rating, this controller is built to withstand harsh environments. It operates reliably in extreme temperatures, from -40 to +60°C, ensuring consistent performance in diverse conditions. The lightweight and quiet operation, thanks to advanced high-frequency technology, makes it suitable for various installations.

Enhance your solar power system with the Victron SmartSolar MPPT RS 450/200-MC4. This high-efficiency, safe, and user-friendly solution is designed to maximize your solar energy harvest and provide peace of mind with its robust safety features.

SPECIFICATIONS

Specifications

Model SmartSolar MPPT RS 450/200
Charger
Battery Voltage 48 V
Rated Charge Current 200 A
Maximum Charge Power 11.5 kW at 57.6 V
Charge Voltage 'Absorption’ Default: 57.6 V (adjustable)
Charge Voltage 'Float' Default: 55.2 V (adjustable)
Programmable Voltage Range Min: 36 V, Max: 60 V (7)
Charge Algorithm Multi-stage adaptive (adjustable)
Battery Temperature Sensor Included
Maximum Efficiency 96 %
Self-Consumption 15 mA
Solar
Maximum DC PV Voltage 450 V
Start-up Voltage 120 V
MPPT Operating Voltage Range 80 – 450 V (1)
Number of Trackers 4
Max. PV Operational Input Current 18 A per tracker
Max. PV Short Circuit Current (2) 20 A per tracker
Max. DC Output Charging Power 4000 W per tracker, 11520 W total
Maximum PV Array Size per Tracker (3) 7200 Wp (450 V x 20 A) (3)
PV Isolation Fail Level (4) 100 kΩ
General
Synchronised Parallel Operation Yes, up to 25 units with VE.Can
Programmable Relay (5) Yes
Protections PV reverse polarity, Output short circuit, Over temperature
Data Communication VE.Direct port, VE.Can port & Bluetooth (6)
Bluetooth Frequency 2402 – 2480 MHz
Bluetooth Power 4dBm
General Purpose Analogue/Digital In Port Yes, 2x
Remote On-Off Yes
Operating Temperature Range -40 to +60 °C (fan assisted cooling)
Humidity (Non-Condensing) Max 95 %
Enclosure
Enclosure Material & Colour Steel, blue RAL 5012
Protection Category IP21
Battery-Connection M8 bolts
Power Terminals PV Input (-Tr version) 2 x 16 mm2
Power Terminals PV Input (MC4 version) 1 pair of male and female MC4 connectors per tracker
Weight 13.7 kg
Dimensions (h x w x d) in mm 487 x 434 x 146
Standards
Safety EN-IEC 62109-1, EN-IEC 62109-2
  1. MPPT Operating Voltage Range Constraints:

    • Battery voltage limits PV VOC.
    • PV VOC should not exceed 8 times the battery float voltage.
    • Example: A 52.8 V float voltage results in a maximum PV VOC of 422.4 V.
    • Refer to the product manual for more details.
  2. PV Array and Short Circuit Current:

    • A high short circuit current may damage the controller if PV array is connected in reverse polarity.
  3. Maximum PV Array Calculation:

    • Max. 450 VOC leads to approximately 360 Vmpp.
    • Therefore, the maximum PV array is around 360 V x 20 A = 7200 Wp.
  4. PV Isolation and MPPT RS Functionality:

    • MPPT RS tests for sufficient resistive isolation between PV+ and GND, and PV- and GND.
    • If resistance is below the threshold, the unit stops charging, displays an error, and sends an error signal to the GX device (if connected) for audible and email notification.
  5. Programmable Relay:

    • Can be set for general alarm, DC under voltage, or genset start/stop function.
    • DC rating: 4 A up to 35 VDC and 1 A up to 70 VDC.
  6. Compatibility with VE.Smart Networks:

    • The MPPT RS is currently not compatible with VE.Smart Networks.
  7. Charger Set-Point and Output Voltage:

    • Float and absorption set-point can be set to a maximum of 60 V.
    • Output voltage at the charger terminals can be higher due to temperature compensation and voltage drop over the battery cables.
    • Maximum output current reduces linearly from full current at 60 V to 5A at 62 V.
    • Equalization voltage can be set to a maximum of 62V.
    • Equalization current percentage can be set to a maximum of 6%.

SKU: VIC-SCC145120510
Barcode: 8719076062745
Model #: SCC145120510
MPN: SCC145120510

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
