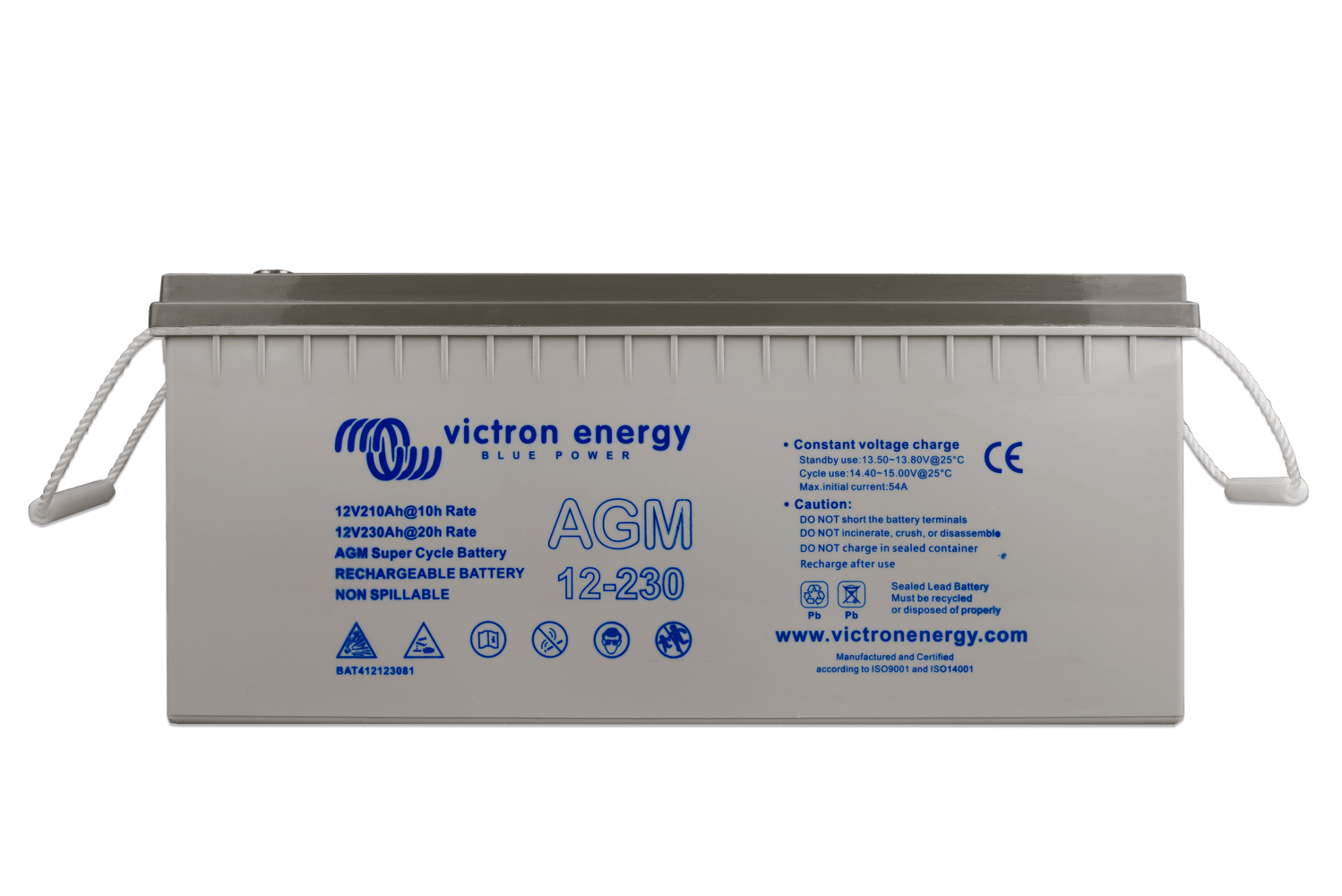

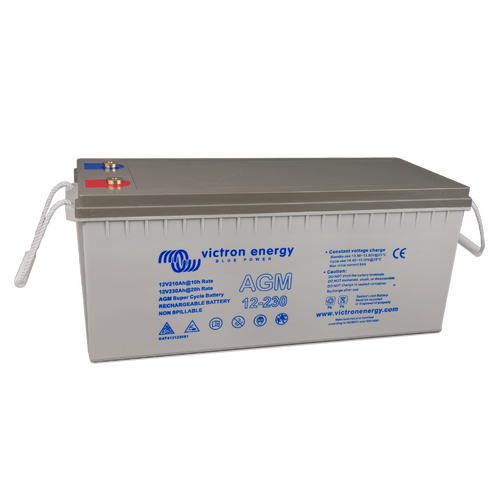

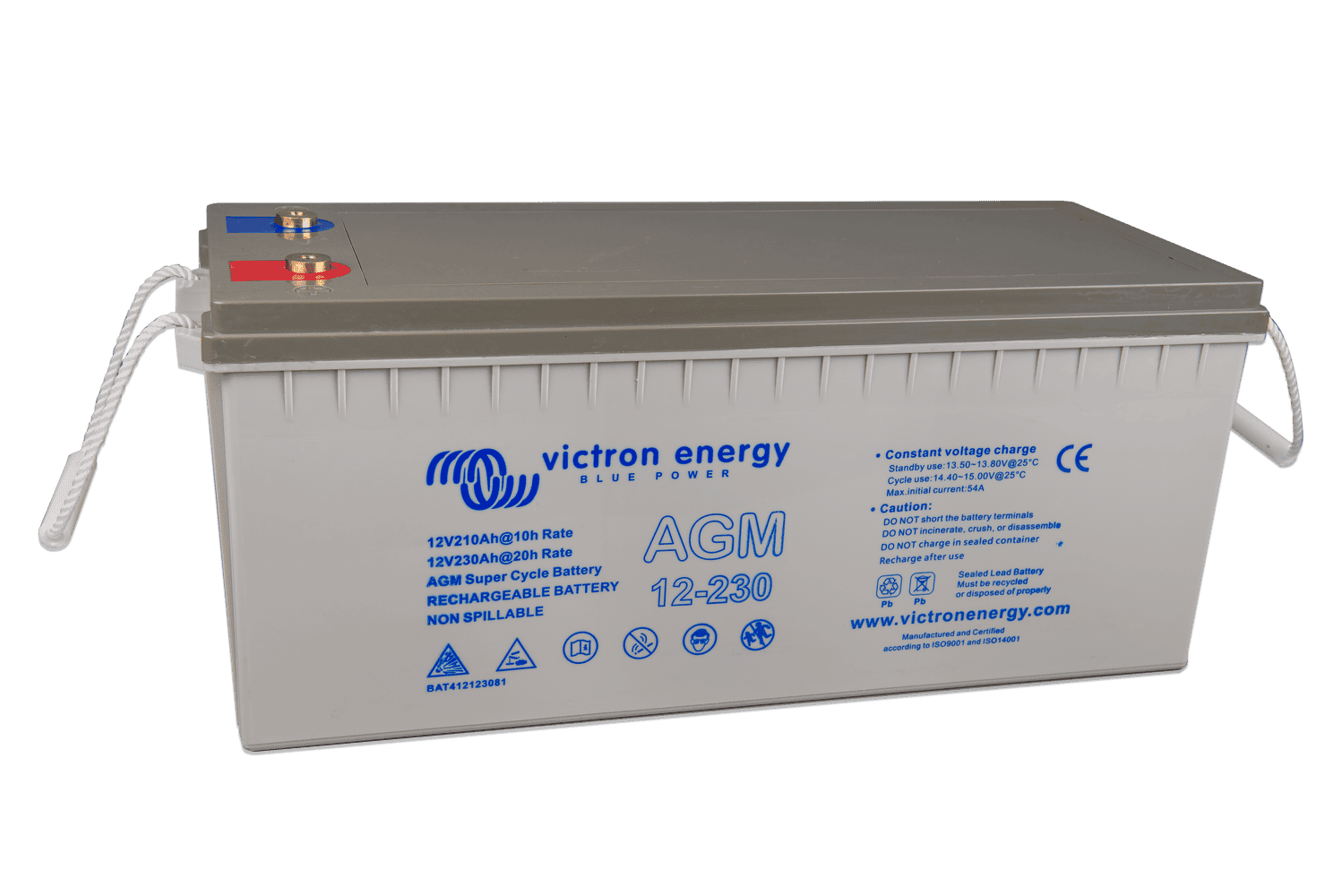

Victron 12V 230Ah AGM Super Cycle Deep Cycle Battery
Victron 12V 230Ah AGM Super Cycle Deep Cycle Battery
Highlights:M8 Terminals: High-conductivity M8 threaded insert terminals for secure electrical connections,Rope Handles: Heavy-duty rope carry handles for easier transport of the 57kg unit,AGM Technology: Absorbent Glass Mat technology providing a maintenance-free and non-spillable battery,Charging Data: Clearly printed recommended charge voltages for float and cycle use,Durable Casing: Robust grey battery housing designed for deep cycle applications.
Key features: 12V 230Ah capacity at 20-hour discharge rate, Deep cycle Super Cycle technology for enhanced durability, Maintenance-free and non-spillable AGM design, Clear technical labeling for charge and float voltages, Compliant with ISO 9001 and ISO 14001 standards.

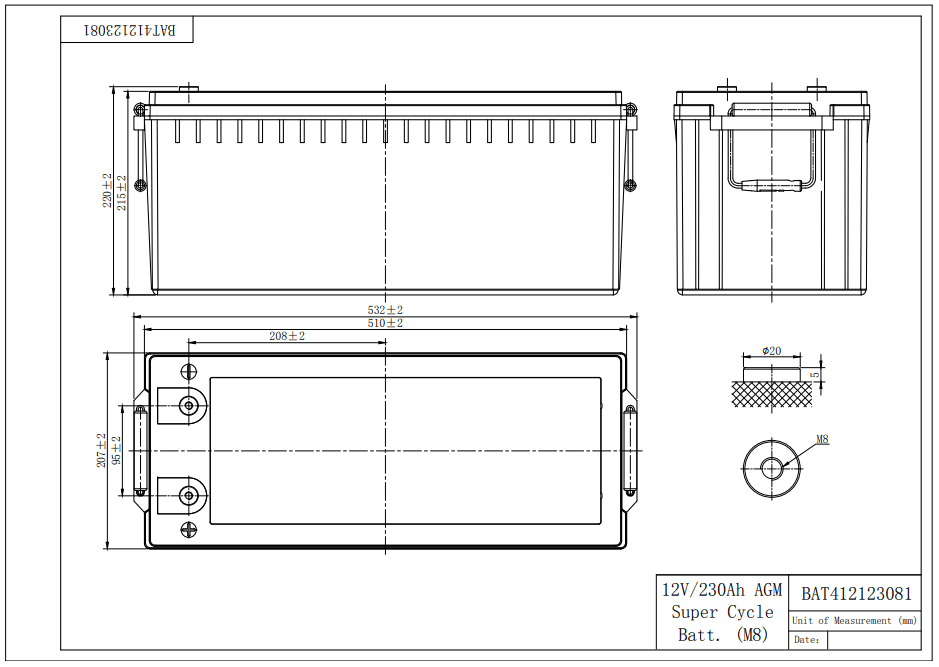

Detailed technical schematic illustrating the physical dimensions of the battery: 532mm length, 207mm width, and a total height of 226mm including the M8 terminals.

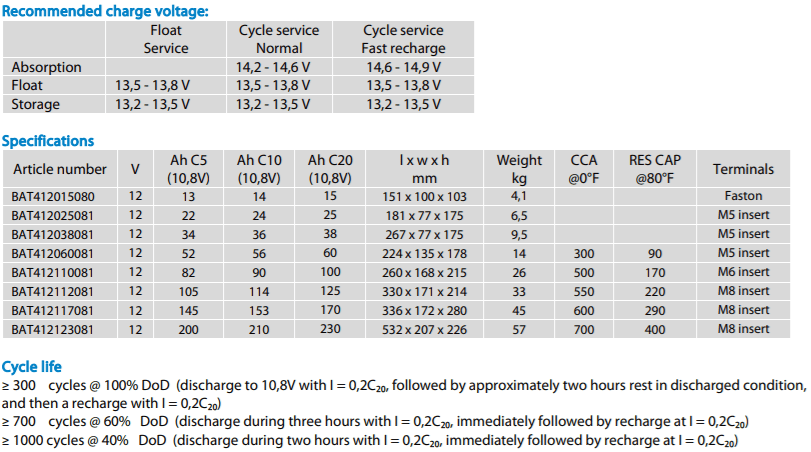

Key features: Provides 300 cycles at 100% Depth of Discharge, Provides 700 cycles at 60% Depth of Discharge, Weight of approximately 57kg for the 230Ah model, Standard M8 insert terminals for low resistance, Cycle service fast recharge voltage range of 14.6V to 14.9V.
DESCRIPTION
Victron 12V 230Ah AGM Super Cycle Deep Cycle Battery
Advanced AGM Battery Technology for Demanding Applications
The Victron 12V 230Ah AGM Super Cycle Deep Cycle Battery represents a major advancement in AGM battery electrochemistry, engineered for users who demand exceptional durability and reliable deep discharge performance. Designed with an innovative positive plate paste and advanced electrolyte additives, this battery significantly reduces sulfation and plate softening, even under repeated full discharge conditions.
Outstanding 100% Depth of Discharge Capability
Unlike conventional AGM batteries, the Victron Super Cycle battery is purpose-built to handle extreme operating conditions. Extensive testing confirms its ability to withstand at least 300 cycles at a true 100% depth of discharge, making it ideal for systems where full discharge events are unavoidable. This level of resilience ensures dependable power delivery in critical energy storage applications.
Proven Cycle Life Performance
- ≥ 300 cycles at 100% DoD for demanding off-grid and backup power use
- ≥ 700 cycles at 60% DoD for frequent cycling energy systems
- ≥ 1000 cycles at 40% DoD for extended service life in daily-use installations
Compact, Lightweight, and Efficient Design
Thanks to its new AGM chemistry, this 12V 230Ah deep cycle battery offers a slightly smaller footprint and reduced weight compared to standard AGM deep cycle batteries. Its low internal resistance improves charge acceptance and discharge efficiency, delivering consistent voltage stability for sensitive equipment and high-load systems.
Ideal for Mobile, Off-Grid, and Industrial Power Systems
The Victron AGM Super Cycle battery is recommended for applications where frequent 60 to 80 percent discharge or occasional 100 percent discharge is expected. It is perfectly suited for caravan, RV, marine, off-grid solar, industrial backup, and tiny home energy storage systems where reliability and long cycle life are essential.
Why Choose the Victron 12V 230Ah AGM Super Cycle Battery
If you are looking for a high-capacity AGM deep cycle battery with exceptional 100% DoD performance, low internal resistance, and long-term durability, this Victron battery delivers outstanding value. Its robust construction and proven cycle life make it a dependable choice for both mobile and stationary power solutions.
Power Your System with Confidence
Upgrade your energy storage today with the Victron 12V 230Ah AGM Super Cycle Deep Cycle Battery and experience reliable, long-lasting power for your caravan, RV, marine, off-grid, industrial, or tiny home setup. Invest in advanced AGM technology designed to perform when it matters most.
SPECIFICATIONS
| SKU: | VIC-BAT412123081 |
| Barcode: | 8719076039570 |
| Model #: | BAT412123081 |
| MPN: | BAT412123081 |
