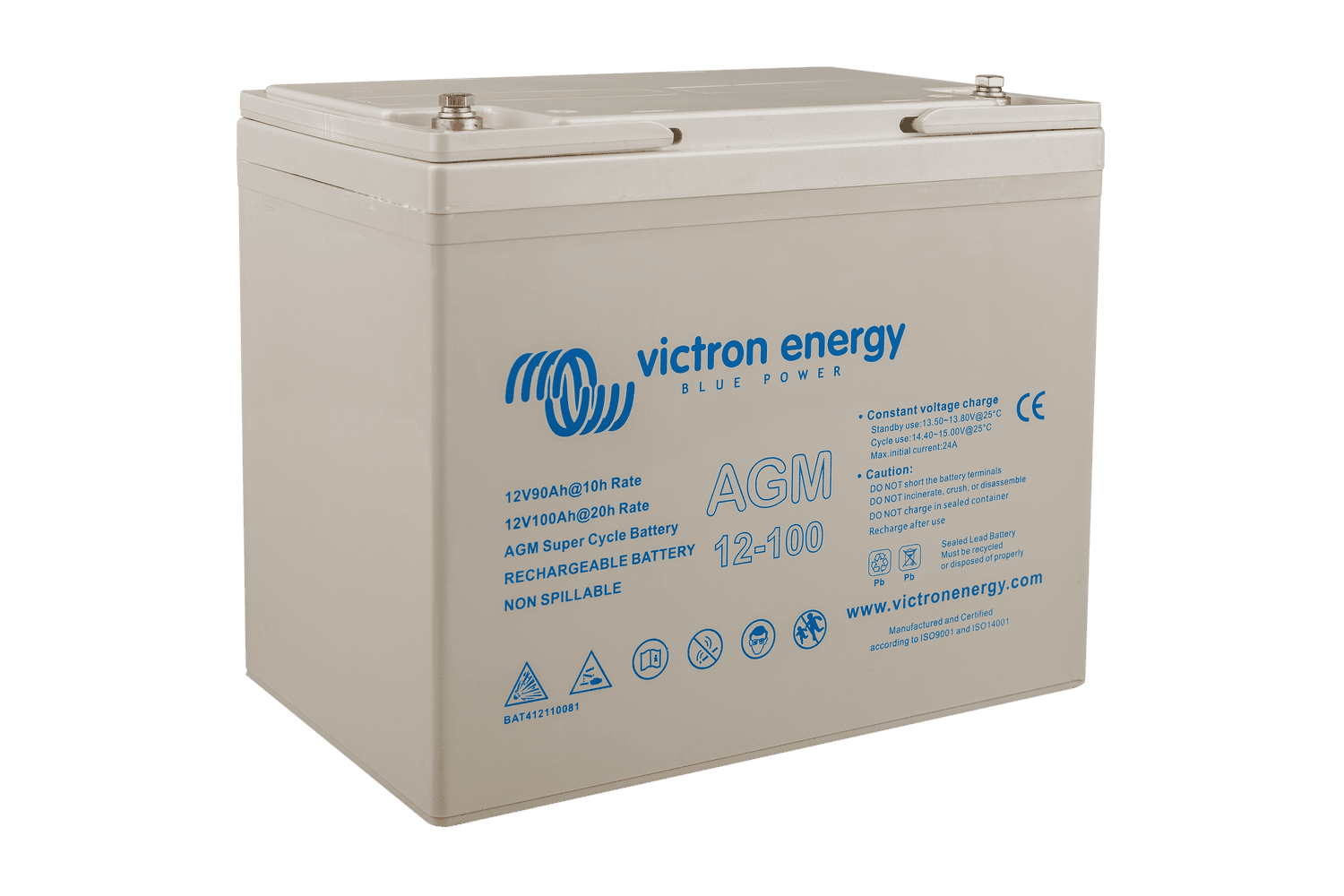

Victron 12V 100Ah AGM Super Cycle M6 Deep Cycle Battery
Victron 12V 100Ah AGM Super Cycle M6 Deep Cycle Battery
Highlights:M6 Insert Terminals: High-quality M6 threaded insert terminals for secure low-resistance electrical connections,100Ah Capacity: Rated at 100Ah over a 20-hour discharge period for consistent deep cycle power,AGM Super Cycle: Specialised AGM technology allowing deeper discharge and faster recovery than standard AGM,Non-Spillable Design: Maintenance-free design that can be safely mounted in various orientations without leakage,Safety & Regulatory: Compliant with ISO standards and clearly marked with safety warnings and recycling information.
Technical dimensional drawing highlighting the battery case footprint of 260mm by 168mm, total height of 215mm, and detailed M6 terminal bolt specification.
Performance data sheet showing recommended charging voltages and cycle life ratings, indicating over 300 cycles at 100% Depth of Discharge for the Super Cycle range.
DESCRIPTION
Victron 12V 100Ah AGM Super Cycle M6 Deep Cycle Battery
Advanced AGM Super Cycle Technology
The Victron 12V 100Ah AGM Super Cycle M6 Deep Cycle Battery is engineered using the latest developments in battery electrochemistry to deliver superior deep cycling performance. Its innovative positive plate paste is far less sensitive to softening, even under repeated full discharge conditions, while advanced electrolyte additives actively reduce sulfation during deep discharge cycles.
Exceptional 100% Depth of Discharge Performance
This AGM Super Cycle battery is purpose-built for applications where occasional full discharge or frequent deep cycling is unavoidable. Independent testing confirms the battery can withstand at least 300 cycles at a true 100% depth of discharge, even with extended rest periods in a discharged state. This makes it significantly more resilient than standard AGM deep cycle batteries.
Verified Cycle Life Ratings
- ≥ 300 cycles at 100% DoD for demanding off-grid and backup power systems
- ≥ 700 cycles at 60% DoD for frequent cycling solar and mobile energy setups
- ≥ 1000 cycles at 40% DoD for long-term daily-use installations
Compact, Lightweight, and Efficient Design
Thanks to its next-generation AGM chemistry, the Victron 100Ah Super Cycle battery is slightly smaller and lighter than conventional deep cycle AGM batteries. The low internal resistance improves charge acceptance, reduces energy losses, and provides stable voltage output for sensitive electronics and high-load devices.
Reliable Power for Mobile and Off-Grid Applications
This 12V 100Ah AGM deep cycle battery is highly recommended for systems that regularly operate at 60 to 80 percent depth of discharge or experience occasional 100 percent discharge. It is ideally suited for caravan, RV, marine, off-grid solar, industrial backup power, and tiny home energy storage applications where reliability and longevity are critical.
Secure Performance with M6 Terminal Design
The M6 terminal configuration ensures secure and reliable connections, making this battery an excellent choice for mobile and vibration-prone environments. Combined with Victron’s proven manufacturing quality, it delivers consistent performance across a wide range of operating conditions.
Upgrade Your Power System Today
Upgrade your vehicle or off-grid setup now with the Victron 12V 100Ah AGM Super Cycle M6 Deep Cycle Battery and enjoy dependable, long-lasting power for your caravan, RV, marine, off-grid, industrial, or tiny home energy system.
SPECIFICATIONS
| SKU: | VIC-BAT412110081 |
| Barcode: | 8719076039990 |
| Model #: | BAT412110081 |
| MPN: | BAT412110081 |
