Sunman eArc 200W Black Square Flexible Solar Panel w/ Eyelets - Junction Box Underneath


Front view of Sunman 200W black flexible solar panel with eyelets and high voltage warningHighlights:PERC Solar Cells: 40 high-efficiency monocrystalline solar cells in a 4x10 configuration,Stainless Steel Eyelets: Reinforced mounting holes for easy installation on caravans and boats,Caution Label: Safety warning for high voltage electricity generation,Junction Box Location: Junction box is positioned on the underside for a flush front finish,Patented Lamination: Durable, dirt-repellent ETFE protective top layer with Sunman's patented lamination technology similar to aircraft windows.Angled top view of the Sunman 200W flexible solar panel showing the textured black surfaceCurved Sunman 200W solar panel demonstrating flexibility with attached output cablesThis 200W panel is designed for curved surfaces like caravan roofs, featuring a bendable structure and pre-wired MC4 compatible connectors.Rear view of solar panel with three waterproof junction boxes and output cablesThe rear side features three IP68 rated junction boxes mounted underneath to maintain a slim aerodynamic profile.Dimensions of the Sunman solar panel showing 1159mm length and 1026mm widthMacro view of solar panel surface with water droplets highlighting IP68 waterproof ratingClose-up of the IP68 rated waterproof surface showing the textured protective layer over the solar cells.Feature graphic for 200W electricity output on Sunman flexible solar panelKey features: 200W maximum power output, High-efficiency PERC solar cells, Optimised for low-light performance.Thin 2mm profile of a flexible solar panel compared to an Australian one dollar coinExtremely low profile at only 2mm thick, providing an aerodynamic solution for vehicle mounting.Close-up detail of a high-efficiency PERC solar cell on a curved panelAdvanced PERC technology ensures higher energy density and efficiency compared to standard solar cells.A person holding a Sunman solar panel bent to demonstrate its 240 degree flexibilityTwo flexible solar panels mounted on the roof of a white campervan in a field

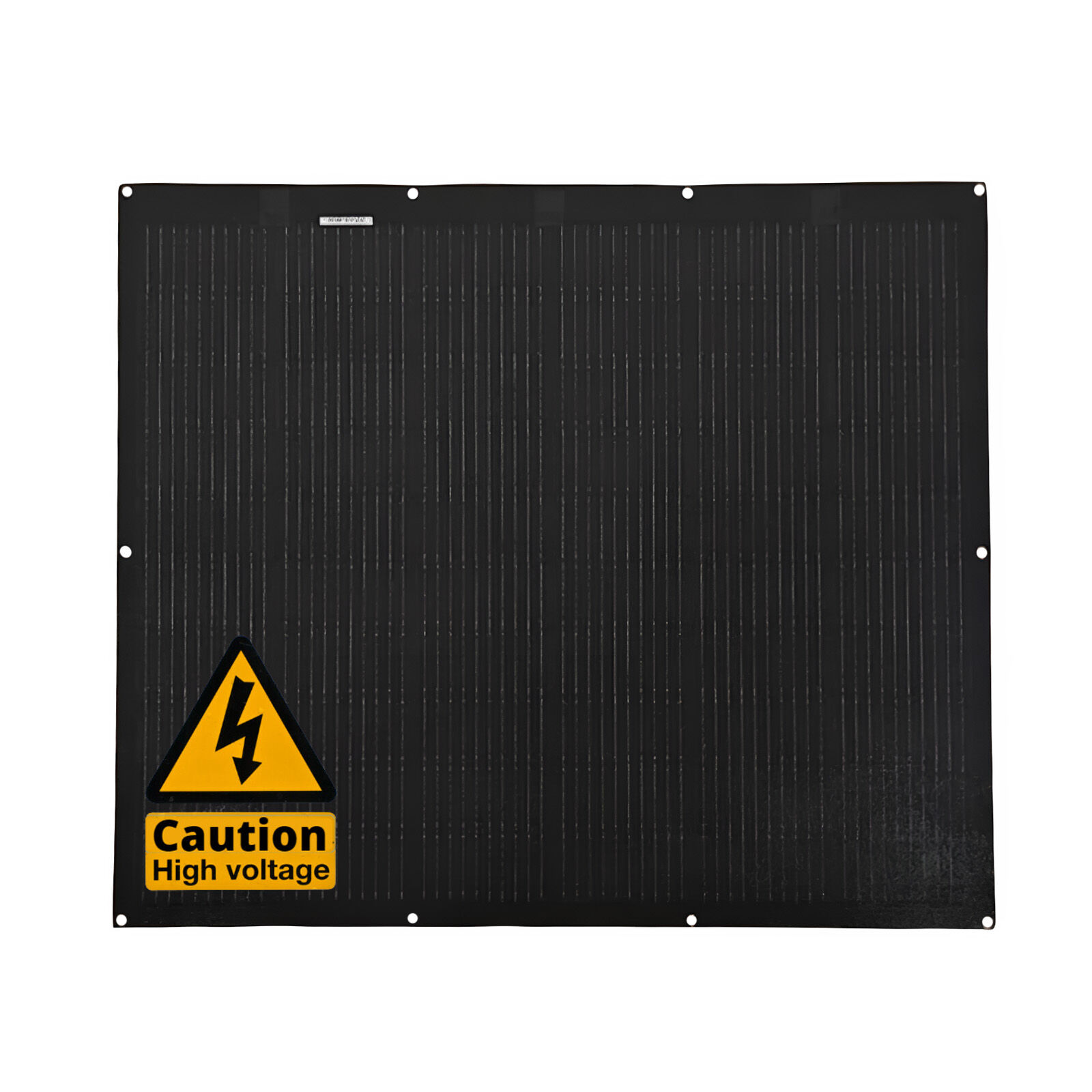

Front view of Sunman 200W black flexible solar panel with eyelets and high voltage warning

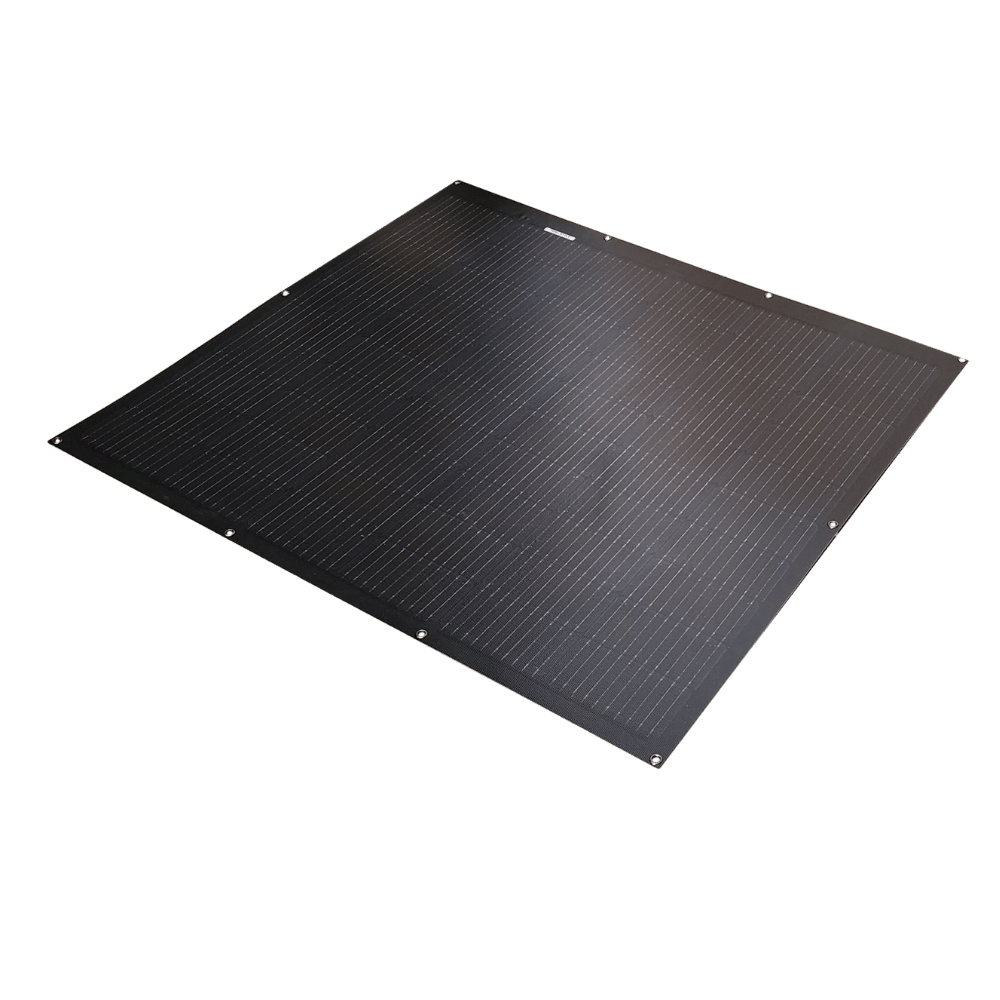

Angled top view of the Sunman 200W flexible solar panel showing the textured black surface
Curved Sunman 200W solar panel demonstrating flexibility with attached output cables
Rear view of solar panel with three waterproof junction boxes and output cables

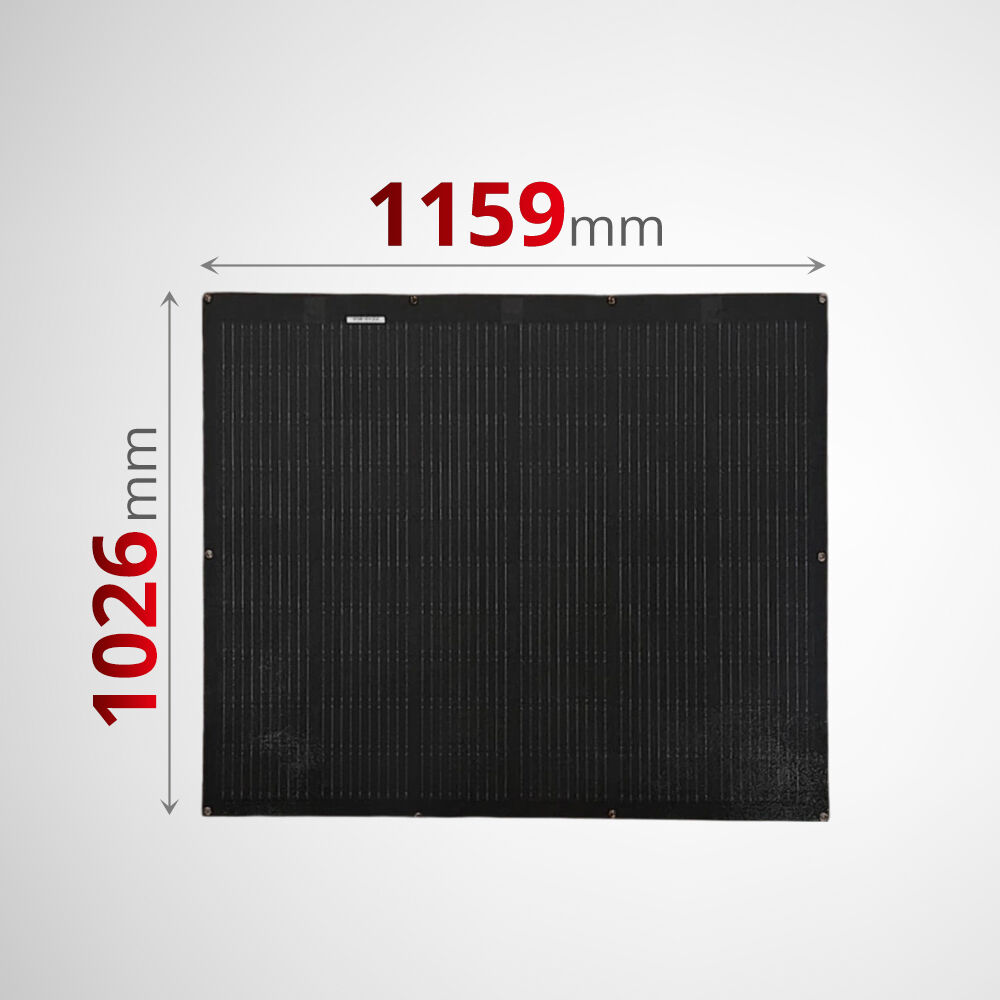

Dimensions of the Sunman solar panel showing 1159mm length and 1026mm width

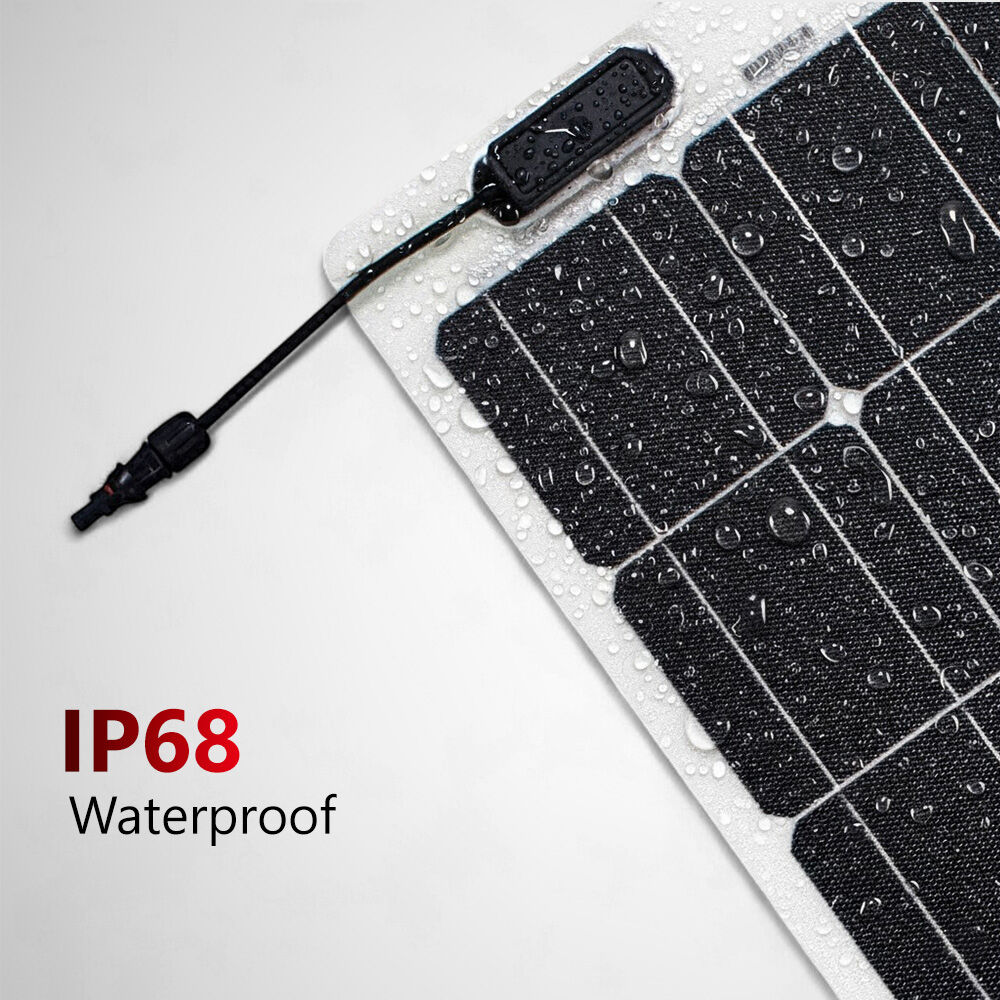

Macro view of solar panel surface with water droplets highlighting IP68 waterproof rating
Feature graphic for 200W electricity output on Sunman flexible solar panel
Thin 2mm profile of a flexible solar panel compared to an Australian one dollar coin
Close-up detail of a high-efficiency PERC solar cell on a curved panel

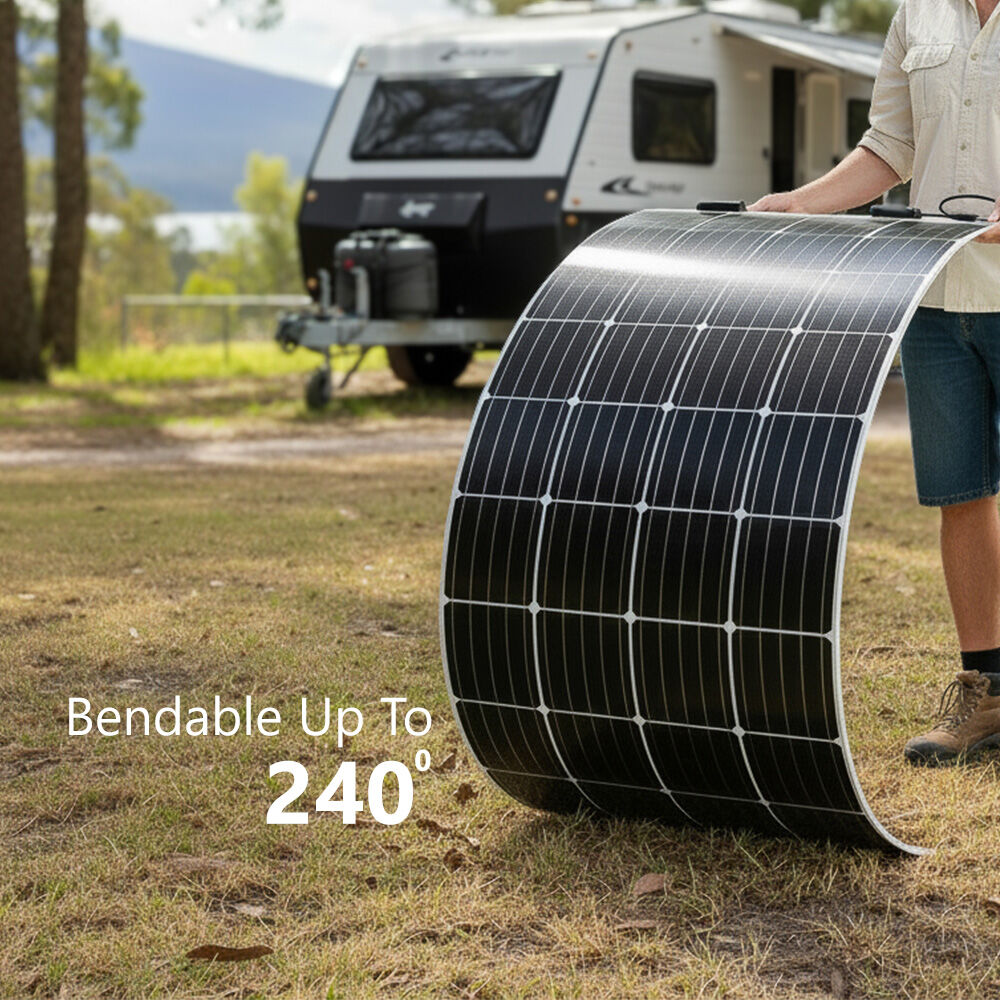

A person holding a Sunman solar panel bent to demonstrate its 240 degree flexibility
Two flexible solar panels mounted on the roof of a white campervan in a field
Regular price $379.00
/
Availability: Out of Stock
View all products from Sunman
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of Sunman 200W black flexible solar panel with eyelets and high voltage warning

Sunman eArc 200W Black Square Flexible Solar Panel w/ Eyelets - Junction Box Underneath

DESCRIPTION

Sunman eArc 200W Black Square Flexible Solar Panel - Compact and Efficient Mono-PERC Solar Panels with 10 Factory Fitted Eyelets - Junction Box Underneath

Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

Key Features:

  • Lightweight and durable construction with cutting-edge technology
  • Highly efficient monocrystalline cells for optimal energy production
  • Flexible design for easy installation on various surfaces
  • Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
  • CEC-approved for residential and commercial use
  • 10-year product warranty for buildings and 5 years for mobile applications

Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.

Optional Mounting Solutions

Multiple mounting options available, ensuring a secure and efficient installation that meets your specific needs. Please carefully follow the mounting instructions here which include the below:

  • Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
  • Eyelets: The panel can be secured using bolts or screws through eyelets

Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.

In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.

SPECIFICATIONS

Specifications

Model SMF200J-6X10DB-Se
Solar cells 40 (4x10)
Maximum Power (Pmax) 200
Maximum Power Voltage (Vmp) 34.7
Maximum Power Current (Imp) 5.78
Open-circuit Voltage (Voc) 41.1
Short-circuit Current (Isc) 6.66
Operating Temperature (°C) -40 °C to 85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Application Class Class A
Power Tolerance 0/+5 W
Backsheet White
Junction box IP 68 rated (each j-box has one by-pass diode)
Output Cables Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
Connector MC4 compatible
Dimensions (L x W x H) 1159 x 1026 x 2mm
Dimensions Incl JB (L x W x H) 1159 x 1026 x 22mm

SKU: eASMF200J-6X10DB-Se
Model #: SMF200J-6X10DB-Se
MPN: SMF200J-6X10DB-Se

WARRANTY

1. Limited Product Warranty for Mobile/Marine Applications Sunman (Zhenjiang) Company Limited (“SUNMAN”) warrants that its photovoltaic modules together with the DC connector cable assemblies are free from defects, if any, in materials and workmanship under normal application, use, installation and service conditions for a period of pending 60 months from the delivery (Incoterms 2010) of SUNMAN modules (“Modules”) to the original end customer (“Customer”), or 12 months after the date of production of the Modules as indicated in the serial number, whichever date is earlier. If Modules become malfunction or inoperative due to defect in material or workmanship during such pending 60 months period set forth above, SUNMAN will, at its own option, either repair or replace the Modules in problem, or refund a reasonable portion of the purchase price as paid by the Customer(“Purchase Price”). The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under this Limited Warranty.

2. Limited Peak Power Warranty and Limited Remedy SUNMAN warrants the percentage of nominal power output as below: A. A solar Module’s performance warranty will typically guarantee 90% of rated power output at 5 years B. SUNMAN warrants each Module against defects in materials and workmanship that result in the failure of the Modules to produce the warranted percentage specified above of the nominal power output for the Module set forth in SUNMAN 's product datasheet. If SUNMAN determines in its discretion that any Module is not providing the warranted percentage of the nominal power output due to Modules’ defects in material or workmanship attributed to SUNMAN , who will, at its sole option and discretion, either [1] make up such loss in power by providing to Customer additional Modules; or [2] repair or replace the defective Modules including free shipping to the place supplied by SUNMAN ; or [3] refund Customer such loss proportion arising from unqualified power output which less than the warranted percentage of the nominal power. The remedies set forth in Section 2 are the sole and exclusive remedies provided under the limited minimum Peak Power Warranty.

3. Exclusions and Limitations; A. Warranty claims, in any event, shall be filed in writing to SUNMAN or its authorized distributors within the applicable warranting period B. These Limited Warranties will not be applied to normal wear and tear, to the natural effects of exposure to weather conditions over time, or to the Modules which under SUNMAN's sole judgment have been subjected to:

  • Misuse, abuse, neglect, vandalism or accident;
  • Alteration, improper installation or application;
  • Repair or modifications that do not strictly follow the manufacturer’s instructions;
  • Non-observance of SUNMAN’s maintenance instructions;
  • Power failure, electrical spikes or surges, lighting, flood, fire, accidental breakage or other events outside the control of SUNMAN.

C. These Limited Warranties only cover the transportation costs for shipment of any repaired or replaced Modules to the place applied by SUNMAN. Any costs for returning the Modules to SUNMAN or its authorized agents and authorized distributors, or costs associated with installation, removal or reinstallation of the Modules, shall be borne by the end user Customers. D. Warranty claims will not be honored if the type or serial number of SUNMAN Modules have been altered, removed or made illegible without written authorization from SUNMAN.

4. Transferability This warranty is extended to the original end-user purchaser, and is also transferable to any subsequent owner of the location or holder of the product when Module(s) remain at their original installed location upon satisfactory proof of succession or assignment.

5. Obtaining Warranty Performance In order to obtain warranty service under the SUNMAN Limited Warranty, the end user Customer should promptly notify SUNMAN regional customer service center. Together with the notification, the complete serial number printed on the module label and the shipment date of its Modules shall be marked as well. If the Modules will be returned for inspection, repair or replacement by SUNMAN, SUNMAN will give the Customer a Return Merchandise Authorization (RMA). However, SUNMAN will not accept a return of any Modules without a RMA.

6. Disputes No action, regardless of form, arising out of or in any way connected with this Limited Warranty, may be brought by the end user Customer more than one (1) year from the date when causes of action occurred.

7. Various

The repair or replacement of the Modules or the supply of additional Modules does not lead to a new commencement of warranty terms, nor shall the original terms of this Limited Warranty be extended. Any replaced Modules shall become the property of SUNMAN. SUNMAN shall at its own options to deliver another type of PV Modules (different in size, color, shape, or power), either a new brand or the original one, in case of that SUNMAN has discontinued producing the module in question at the time of the claim.

8. Force Majeure SUNMAN shall not be in any way be responsible or liable to the end user Customer or any third-party arising out of any non-performance or delay in performance of any terms and conditions of sale, including this Limited Warranty, due to fire, flood, blizzard, hurricane, thunder, acts of God, changes of public policies, terrorism, war, riots, strikes, unavailability of suitable and sufficient labor or materials and other events which are out of control of SUNMAN.

NOTE: “Peak Power” is the power in watt peak that a PV-module generates in its maximum power point. SUNMAN measurements are as follows (a) light spectrum of AM 1.5, (b) an irradiation of 1,000W per m2 and (c) a cell temperature of 25 degree Centigrade. The measurements are carried out in accordance with IEC61215 as tested at the junction box terminals per the calibration and testing standards of SUNMAN valid at the date of manufacture of the PV-Modules. SUNMAN’s calibration standards shall be in compliance with the standards applied by international institutions accredited for this purpose.
