Votronic Tank Level Sensor FL 5530
Votronic Tank Level Sensor FL 5530
level measuring of fresh and grey water
Key features: External electronic sensor module for non-contact measurement, Flexible conductor and probe design suitable for various tank heights, Clear installation view inside a polyethene water tank.

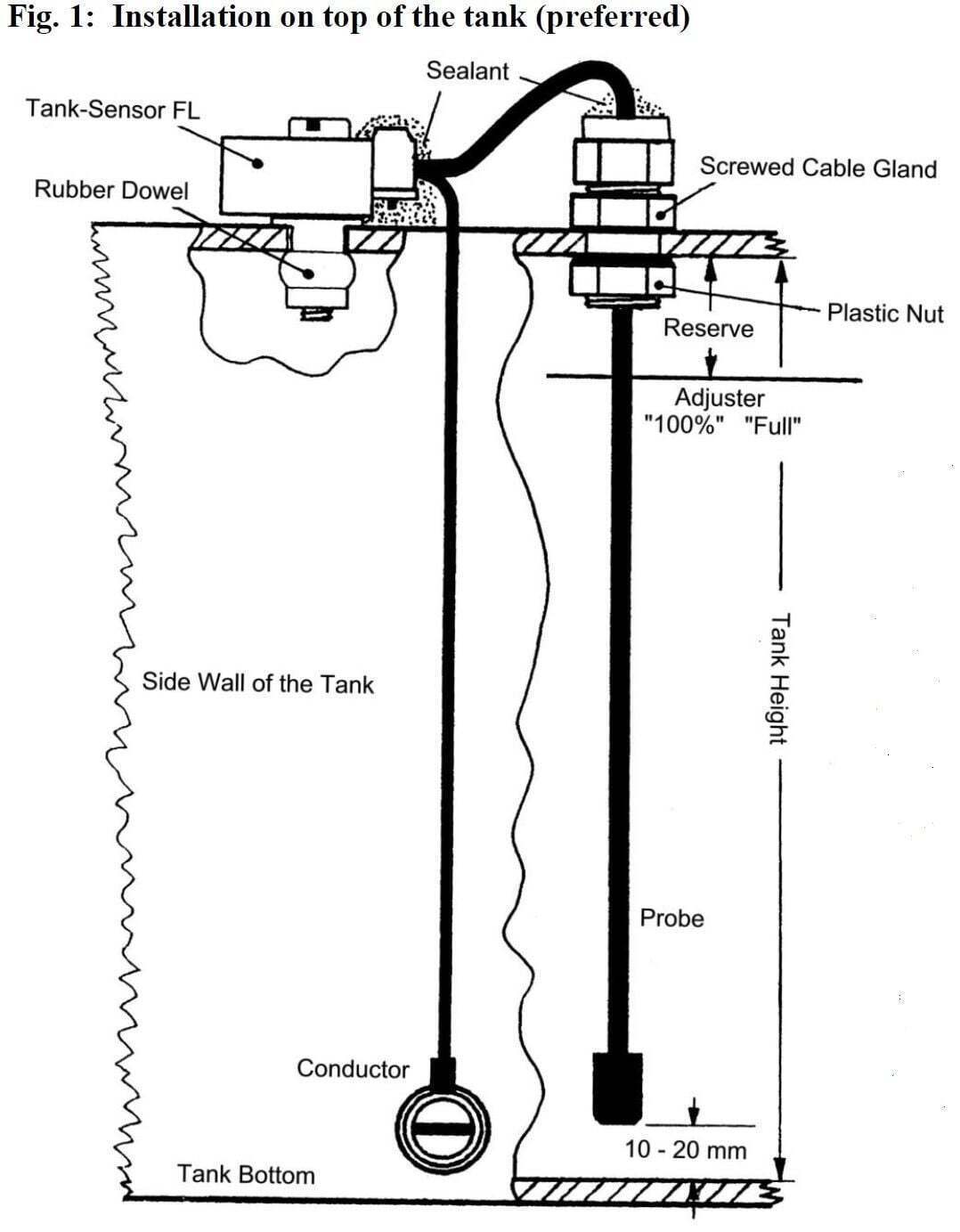

Highlights:Tank-Sensor FL: External electronic sensor module mounted on top,Screwed Cable Gland: Watertight entry for the probe cable,Conductor: Reference conductor aligned with the side wall,Probe: Sensing probe suspended 10-20 mm from the tank bottom,Rubber Dowel: Secure mounting hardware for the sensor module.

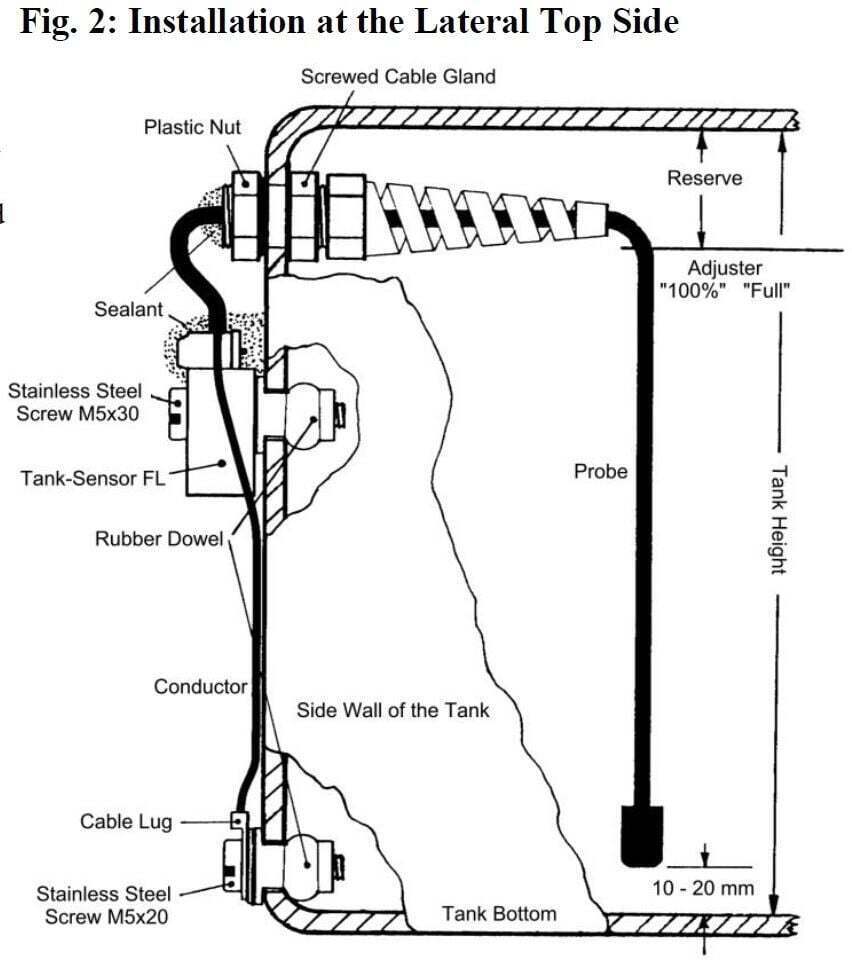

Detailed technical illustration showing the lateral top side installation method for the Votronic FL 5530 sensor, including the external module and internal probe arrangement for height measurement.
Regular price
$83.55
Availability:
In Stock
View all products from Votronic
Guaranteed Safe and Secure Checkout
1
DESCRIPTION
Combined with the display it provide precise level measurement information. Cord can be cut easily to the tank height. Top or side wall installation. Included: Flexible cord probe, tank wall bushing, stainless steel conductor, fastening screws, manual. The electronic system (IP 67) is sealed and frost-proof, so is suitable for problematic locations, such as at underfloor tanks. All Votronic measuring sensors work with the capacitive measuring method and independently of pressure. Therefore, a falsification of the measured values in case of overpressure in the tank, pressure filling etc. is avoided. They includes a protection against reverse battery, overvoltage, short-circuit and overload.
SKU: Vot-5530
SPECIFICATIONS
| SKU: | Vot-5530 |
| Barcode: | 4250683602695 |
WARRANTY
We are liable for material defects of all our products within 36 months from the purchase date against representation of the sales slip or of the invoice, proper handling, intended use and consideration of the installation and operating manual provided. If the buyer or third execute modification and repair tasks to the product (external intervention) or will the electronic or the entire product damaged by moisture, any claims for defects for these tasks and the results being involved will be void. Claims will also be void for any service being performed by third, which has not been ordered by us in writing. Service is exclusively allowed to be performed by Votronic GmbH & Co. KG Lauterbach.
