Votronic Tank Electrode 30-110 K-FL - 5551
Votronic Tank Electrode 30-110 K-FL - 5551
Flexible cord probe, easily cut to the tank height
Key features: Suitable for plastic water tanks, Flexible cable probe design, Top-down installation for easy access, External counter electrode included, Adjustable for tank heights 30-110cm.

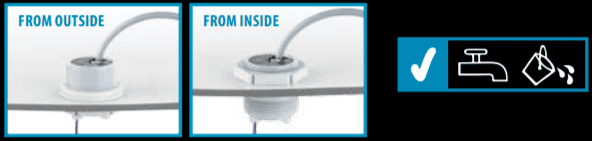

Detailed comparison of the tank electrode mounting assembly from both exterior and interior perspectives, showing the sealing washer, securing nut, and wire connection point.

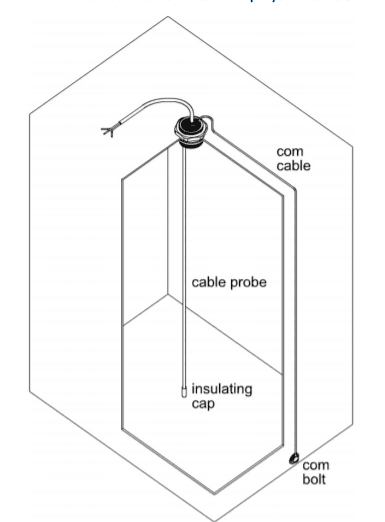

Highlights:Mounting Assembly: Top-mounted threaded connection with sealing nut,Cable Probe: Main sensing probe suspended inside the tank,Insulating Cap: Protective cap at the end of the internal probe,Com Cable: External communication cable running down the tank exterior,Com Bolt: Bottom connection point for the external counter electrode.
Regular price
$114.00
Availability:
In Stock
View all products from Votronic
Guaranteed Safe and Secure Checkout
1
DESCRIPTION
The Tank Electrode 30-110 K is the follow-up product of the Tank Electrode FL, which has been well-proven for years. It is a special design for high tanks with access from the top.
Such as all VOTRONIC Tank Transmitters, also the Tank Electrode 30-110 K-FL works according to the capacitive measuring method, it is suitable for plastic and metal tanks, and it is universally applicable. The flexible cable probe can be easily shortened to the corresponding tank height between 30 and 110 cm. Such as for the Tank-Sensor FL, the conductor is installed at the tank from outside.
The Tank electrode can be installed on the tank top via a bore hole 38 mm, from outside as well as from inside. The complete mounting material is included in the standard delivery.
SKU: Vot-5551
SPECIFICATIONS
| SKU: | Vot-5551 |
| Barcode: | 4250683613295 |
