Victron 90W Monocrystalline Solar Panel
Victron 90W Monocrystalline Solar Panel

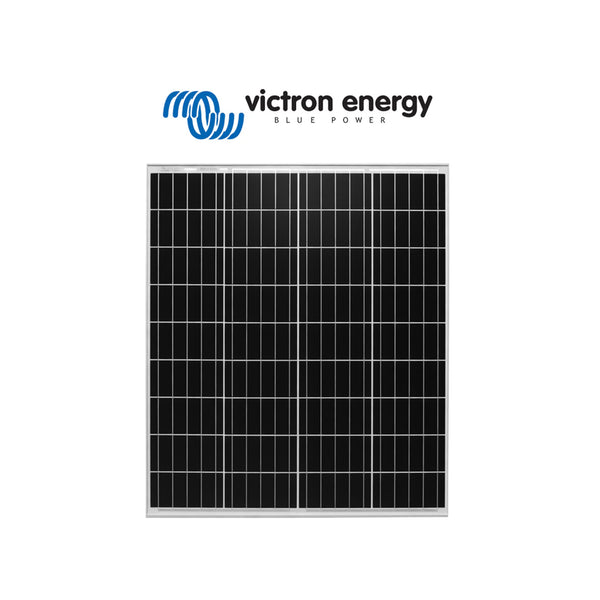

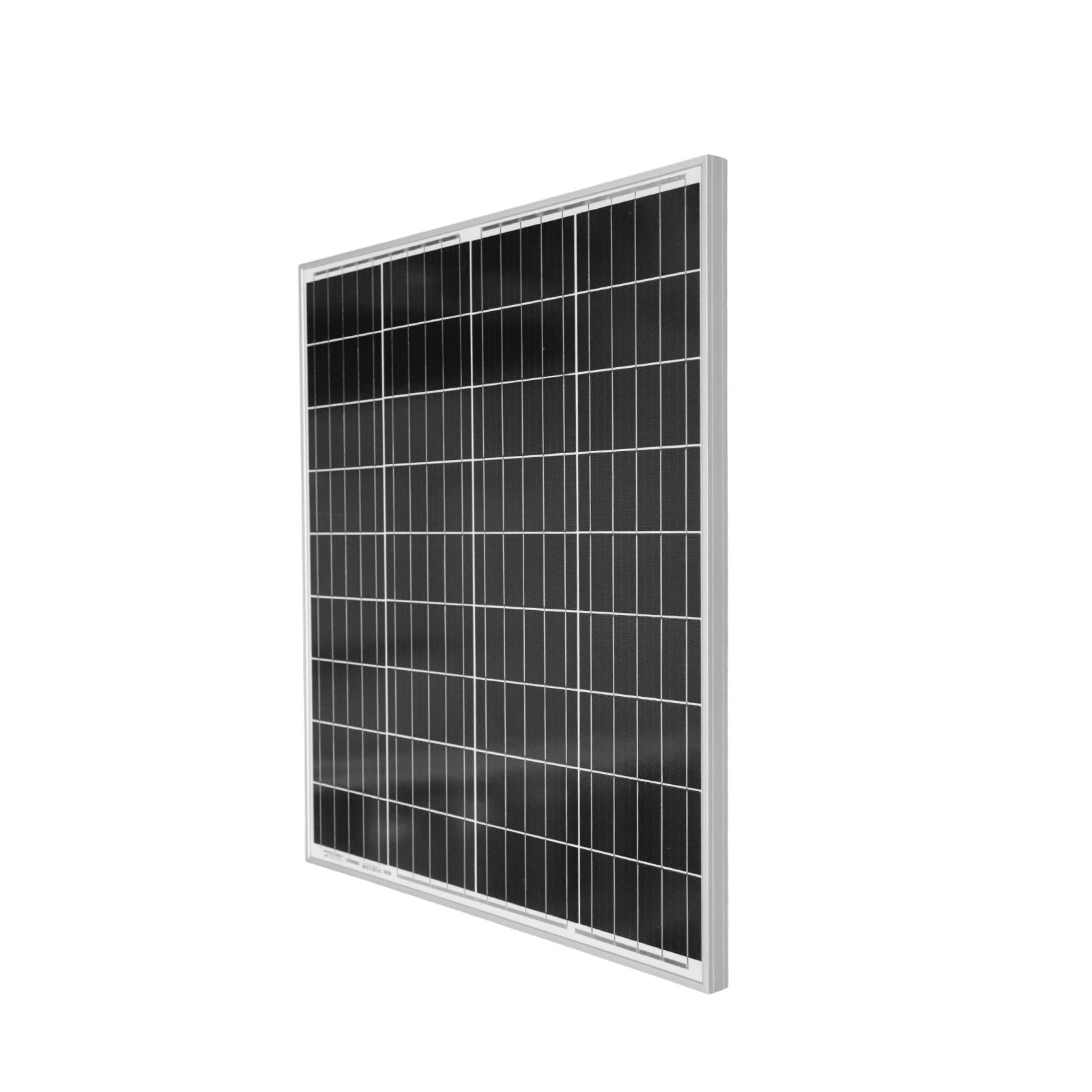

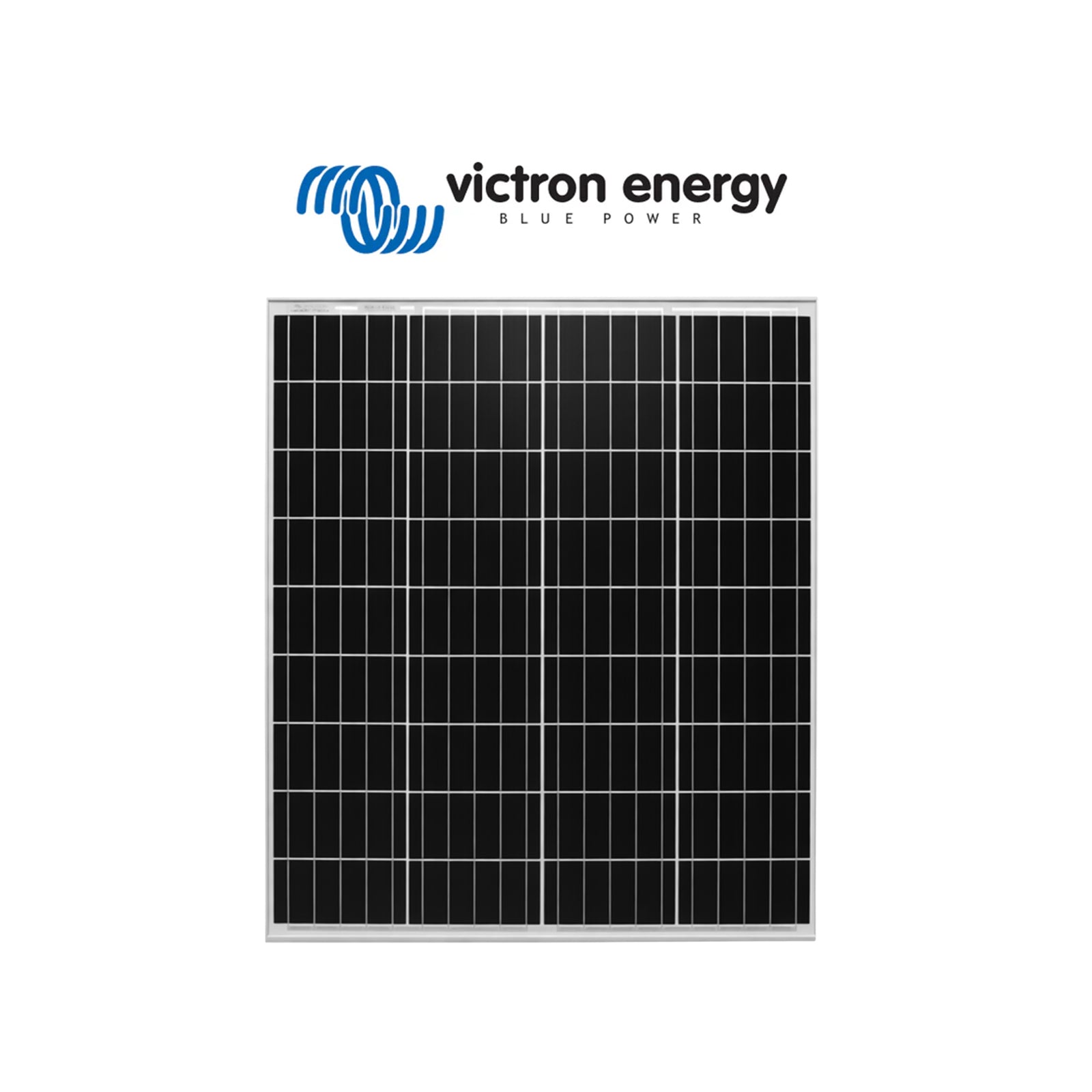

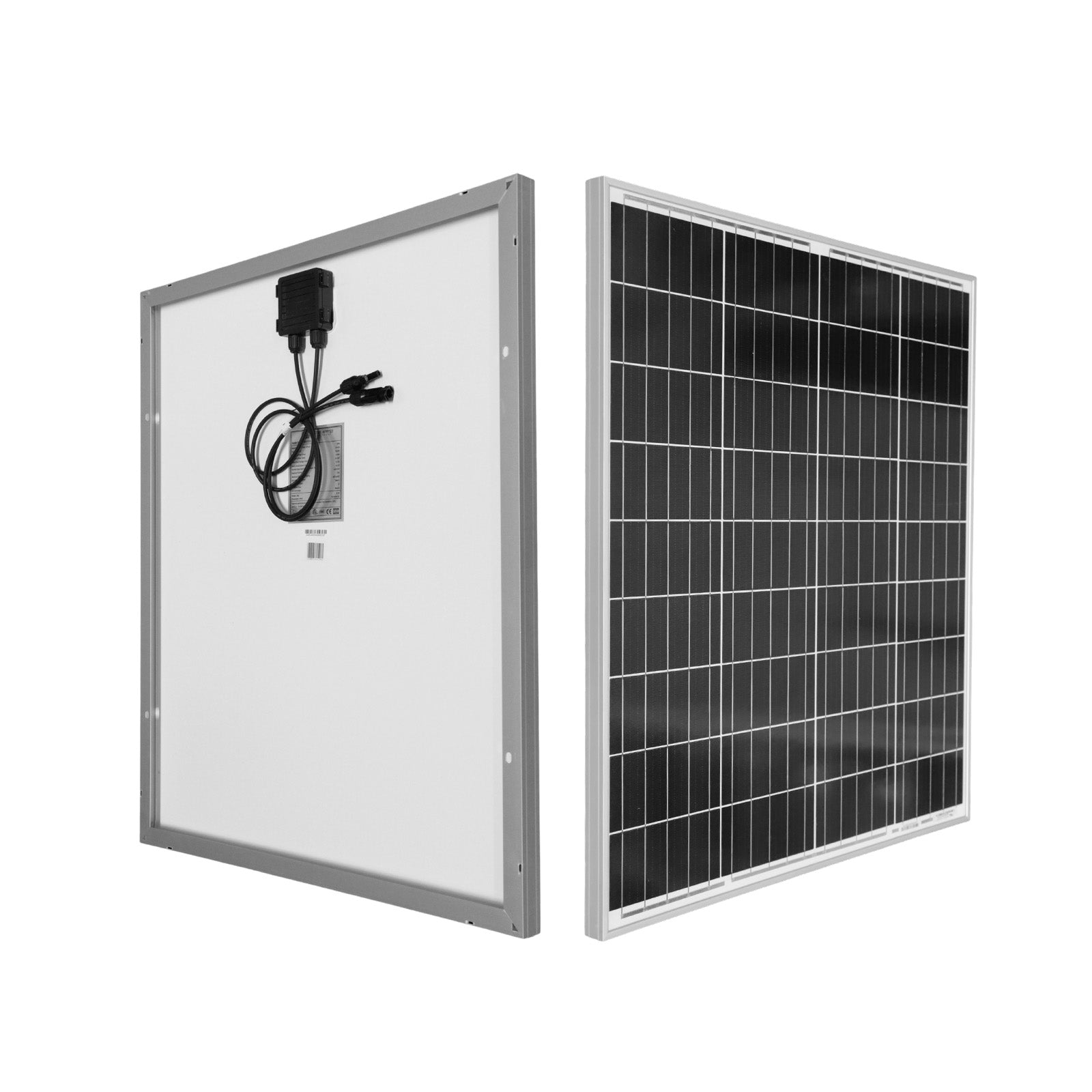

High-efficiency 90W monocrystalline panel built with a robust anodised aluminium frame for reliable off-grid power - 780 x 668 x 30mm
Key features: High-efficiency monocrystalline solar cells, Sturdy 30mm anodised aluminium frame, 36 cells in series for 12V battery charging, Low-iron tempered glass for high light transmission, 5-year product and 25-year performance warranty.

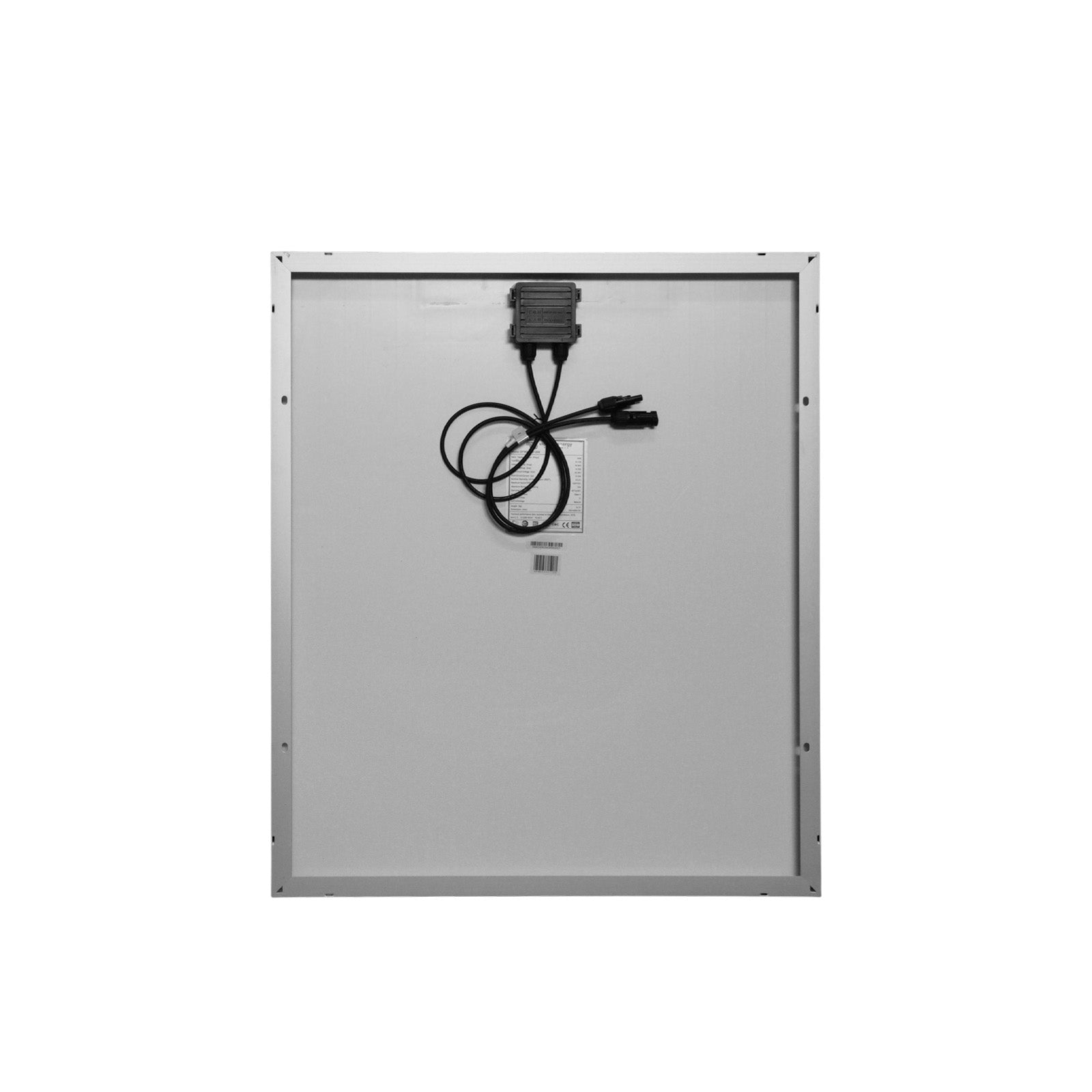

Highlights:Junction Box: IP65 rated junction box for weather protection,MC4 Connectors: Industry standard MC4 connectors on 900mm cables,Aluminium Frame: Pre-drilled mounting holes in an anodised frame,Specification Label: Label containing detailed electrical and manufacturer data.

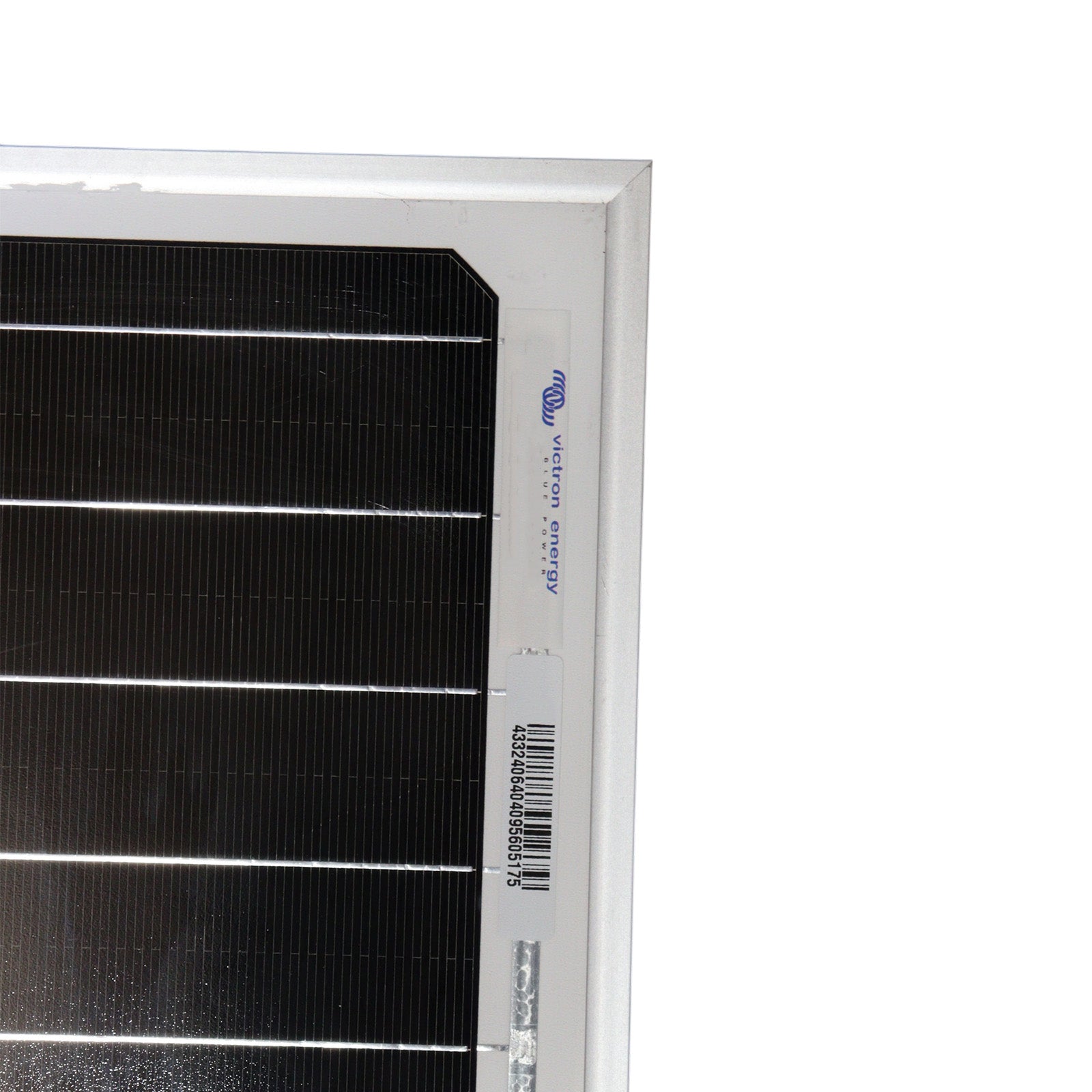

Detail of the anodised aluminium frame corner and protective tempered glass surface over high-performance monocrystalline solar cells.
Detailed electrical data and physical specifications for the range of Victron monocrystalline solar panels, including power, voltage, temperature coefficients, and physical dimensions.
DESCRIPTION
Victron 90W Monocrystalline Solar Panel: Superior Efficiency for Off-Grid Power
The Victron 90W Monocrystalline Solar Panel delivers premium energy harvesting technology, making it the perfect solution for off-grid living, mobile power setups, and marine adventures. Engineered by industry leaders, this 90W monocrystalline solar panel offers exceptional performance in a highly compact footprint. By utilizing high-purity silicon cells, it significantly outperforms generic-grade alternatives, providing a highly reliable power source for your 12V battery bank even when mounting space is limited.
With a peak power output of 90W, this solar panel is specifically designed to rapidly replenish your deep cycle batteries. This ensures your essential appliances, refrigeration, and lighting systems stay powered for longer, giving you complete energy independence during extended off-grid trips.
Advanced Performance in Harsh Climates
Australia's demanding environment requires robust energy solutions. One of the most significant advantages of this panel is its exceptionally low voltage-temperature coefficient. While traditional solar modules experience severe voltage drops as surface temperatures rise, this Victron monocrystalline panel maintains a higher voltage output. This means it continues to push maximum power into your solar charge controller during scorching midday heat, exactly when you need it most.
In addition to high-temperature stability, the panel features exceptional low-light sensitivity. Whether you are dealing with overcast skies, early morning light, or late afternoon shading, the highly responsive monocrystalline cells maintain an active charge. High-performance integrated bypass diodes further protect your daily energy yield by effectively routing current around partially shaded cells, minimizing power loss caused by overhanging trees or roof fixtures.
Built for Marine and Outback Durability
Durability is paramount for caravan solar panels and marine power setups. The Victron 90W Monocrystalline Solar Panel features a rugged, anodised aluminium frame that provides immense structural stability, making roof or bracket mounting simple and secure. The solar cells are protected by high-transmission, low-iron tempered glass. This specially engineered surface enhances light capture while offering superior stiffness and impact resistance against heavy hail, debris, and extreme wind loads.
To prevent the risk of moisture ingress and delamination, the internal circuitry is protected by an advanced EVA (Ethylene Vinyl Acetate) encapsulation system, finished with a rugged triple-layer backsheet. This eliminates the common failures seen in lower-grade alternatives and ensures stringent safety requirements for high-voltage operation are met. Combined with a fully sealed, waterproof junction box, the internal electrical components remain completely protected against heavy rain, salt spray, and harsh coastal environments.
For quick and secure installation, this panel comes pre-wired with high-quality 900mm cables and industry-standard MC4 connectors, allowing for a seamless, weather-tight connection to your broader solar array.
Key Features
- 90W peak power output optimized for efficient 12V battery charging
- High-efficiency monocrystalline solar cells with superior low-light sensitivity
- Low voltage-temperature coefficient maintains excellent performance in extremely hot environments
- Rigid anodised aluminium frame designed for secure vehicle and marine mounting
- High-transmission tempered glass provides exceptional stiffness and impact resistance
- Advanced EVA encapsulation with a triple-layer backsheet prevents delamination and moisture ingress
- Sealed, waterproof junction box protects against harsh weather conditions
- High-performance bypass diodes drastically reduce power loss from partial shading
- Supplied with pre-wired 900mm cables and reliable MC4 connectors for quick plug-and-play installation
Ready to Power Your Next Adventure
Whether you are building an off-grid cabin, upgrading a caravan solar setup, or fitting out a marine vessel, the Victron 90W Monocrystalline Solar Panel delivers long-lasting, highly efficient energy generation. Backed by industry-renowned engineering, it reduces the risk of unexpected power shortages and provides true peace of mind on the road or water.
Order the Victron 90W Monocrystalline Solar Panel today and secure a reliable, high-yield power solution for your off-grid applications.
SPECIFICATIONS
| Specification | Value |
|---|---|
| Article Number | SPM040901200 |
| Description | 90W-12V Mono 780 x 668 x 30mm series 4a |
| Net Weight (Kg) | 6.1 |
| Nominal Power PMPP (W) | 90 |
| Max-Power Voltage VMPP (V) | 19.6 |
| Max-Power Current (A) | 4.59 |
| Open-Circuit Voltage VOC (V) | 24.06 |
| Short-Circuit Current ISC (A) | 5.03 |
| Cell type | Monocrystalline |
| Number of cells in series | 36 |
| Maximum system voltage | 1000V |
| Temperature coefficient of MPP | -0.45/°C |
| Temperature coefficient of Voc | -0.35/°C |
| Temperature coefficient of Isc | +0.04/°C |
| Temperature Range | -40°C to +85°C |
| Surface Maximum Load Capacity | 200 kg/m² |
| Allowable Hail Load | 23 m/s, 7.53 g |
| Junction Box Type | PV-LH0701 |
| Length of Cables / Connector Type | 900 mm MC4 |
| Output tolerance | +/-3% |
| Frame | Aluminium |
| Product warranty | 5 years |
| Warranty on electrical performance | 10 years 90% + 25 years 80% of power output |
| SKU: | VIC-SPM040901200 |
| Barcode: | 8719076040347 |
| Model #: | VIC-SPM040901200 |
| MPN: | VIC-SPM040901200 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
