Victron 24V to 12V Orion 24/12-40A Non-Isolated IP20 DC-DC Converter

High Power


Top-down view of Victron Orion 24/12-40 DC-DC converter with blue aluminium housing and black mounting endsHighlights:Remote On/Off: Allows for low-power control of the converter, removing the need for high-current switches,40A Continuous Load: High current output rating suitable for heavy 12V DC loads and appliances,Wide Input Range: Operating range of 18V to 35V makes it compatible with varying 24V battery states,13.2V Stable Output: Provides a consistent 13.2V output to safely power sensitive 12V electronics,Thermal Management: Extruded aluminium fins facilitate efficient heat dissipation during operation.
Angled view of Victron Orion DC-DC converter showing Faston connection tabs and included yellow terminalsKey features: Double 6.3mm Faston tab terminals for secure high-current connections, High conversion efficiency of 95 percent for minimal energy loss, Robust IP20 rated non-isolated construction for reliable power conversion, Includes six insulated yellow crimp-on female spade terminals.Side angled view of blue Victron DC-DC converter showing the casing and mounting feetPerspective view of Orion 24/12-40 converter showing ventilated end panel and wiring terminalsClose-up view of the temperature-controlled cooling fan on the Victron Orion DC-DC converterIntegrated temperature-controlled cooling fan and protective grille manage internal heat to ensure reliable 40A performance in demanding conditions.Technical specification table for Victron Orion DC-DC converters including the 24/12-40 modelKey features: 40A continuous output current, 95% high efficiency rating, 18-35V DC input voltage range, Temperature controlled fan assisted cooling, Remote on-off control functionality, Double Faston 6.3mm DC terminals.Dimensional drawing of Orion 24/12-40 showing length, width, and height measurements in millimetres

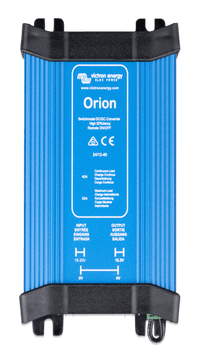

Top-down view of Victron Orion 24/12-40 DC-DC converter with blue aluminium housing and black mounting ends
Victron 24V to 12V Orion 24/12-40A Non-Isolated IP20 DC-DC Converter

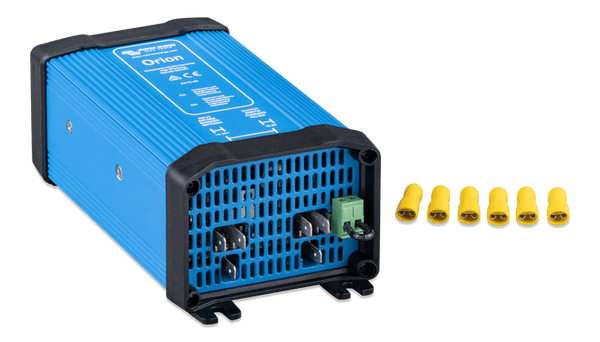

Angled view of Victron Orion DC-DC converter showing Faston connection tabs and included yellow terminals
Side angled view of blue Victron DC-DC converter showing the casing and mounting feet

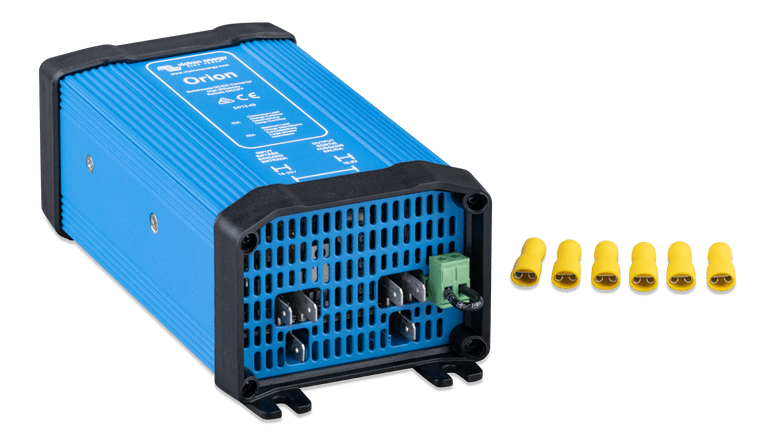

Perspective view of Orion 24/12-40 converter showing ventilated end panel and wiring terminals

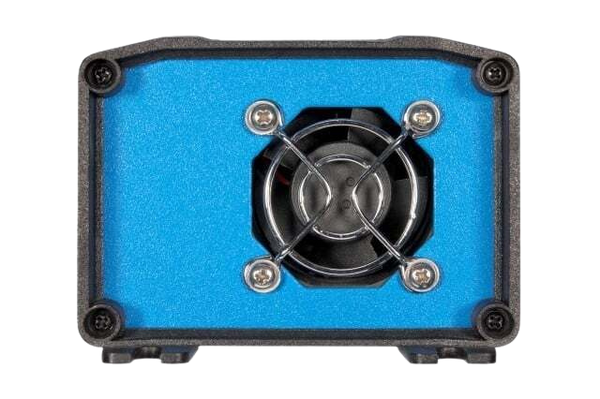

Close-up view of the temperature-controlled cooling fan on the Victron Orion DC-DC converter
Technical specification table for Victron Orion DC-DC converters including the 24/12-40 model

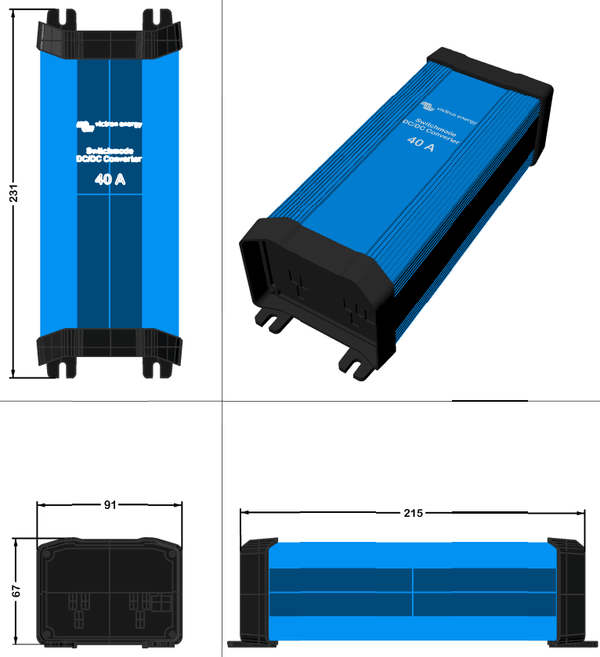

Dimensional drawing of Orion 24/12-40 showing length, width, and height measurements in millimetres
Regular price $158.41
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

2
Top-down view of Victron Orion 24/12-40 DC-DC converter with blue aluminium housing and black mounting ends

Victron 24V to 12V Orion 24/12-40A Non-Isolated IP20 DC-DC Converter

DESCRIPTION

Victron 24V to 12V Orion 24/12-40A Non-Isolated IP20 DC-DC Converter

Optimize Your Power Conversion with the Victron Orion 24/12-40A DC-DC Converter

The Victron 24V to 12V Orion 24/12-40A Non-Isolated IP20 DC-DC Converter is a robust and efficient solution for converting power in various applications. This versatile converter ensures that your 24V systems can seamlessly integrate with 12V accessories, providing a reliable and stable power source for all your needs.

Key Features

Remote On-Off Connector

  • Simplified Wiring: The remote on-off connector eliminates the necessity for a high-current switch in the input wiring. This feature allows for easy operation using a low power switch or directly through the engine run/stop switch.

Dual Functionality as a Battery Charger

  • Battery Charging Capability: This converter is not just limited to power conversion. It can also be used as a battery charger, making it ideal for charging a 12V starter or accessory battery within a 24V system.

Adjustable Output

  • Customized Voltage: With an adjustable output, the Victron Orion 24/12-40A DC-DC Converter offers flexibility to meet specific voltage requirements of different devices and applications.

Parallel Operation for Increased Output

  • Scalable Power: For applications requiring higher current, up to five units can be connected in parallel, significantly increasing the output current to meet demanding power needs.

Easy Installation

  • User-Friendly Setup: The Victron Orion 24/12-40A comes with eight Insulated Fastons Female Crimp 6.3mm connectors, ensuring a straightforward and secure installation process.

Applications

This converter is perfect for a wide range of applications, including but not limited to:

  • Caravans
  • RVs
  • Marine
  • Off-Grid Systems
  • Industrial Uses

Why Choose the Victron Orion 24/12-40A DC-DC Converter?

Investing in the Victron Orion 24/12-40A ensures a high level of efficiency, reliability, and flexibility for your power conversion needs. Its advanced features, ease of installation, and dual functionality make it an essential component for any 24V system requiring 12V power.

Upgrade Your Power System Today

Enhance your power system's versatility and reliability with the Victron Orion 24/12-40A DC-DC Converter. Order now to experience seamless power conversion and efficient battery charging for your caravan, RV, marine, off-grid, industrial, or tiny home applications.

SPECIFICATIONS

Specifications

Model Orion 24/12-40
Input voltage range (V) 18-35
Under voltage shutdown (V) 14
Under voltage restart (V) 18
Output voltage adjustable with potentiometer bo
Output voltage (V) 13.2
Efficiency (%) 95
Suitable to buffer-charge a battery no
Can be connected in parallel no
Continuous output current (A) 40
Max. Output current (A) 55
Fan assisted cooling (temp. controlled) yes
Galvanic isolation no
Off load current < 20mA
Remote on-off yes
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection Double Faston tabs 6.3 mm
Weight kg (lbs) 0.9 (2.0)
Dimensions hxwxd in mm (hxwxd in inches) 65x88x185 (2.6x3.5x7.3)
Standards: Safety Emission Immunity Automotive Directive EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4

SKU: VIC-ORI241240021
Barcode: 8719076038726
Model #: ORI241240021
MPN: ORI241240021

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
