Victron 12/24/48V 100A BlueSolar MPPT 250/100-Tr VE.CAN Non-Bluetooth Solar Charge Controller

Smart programmable high efficiency ultra-fast MPPT


Regular price $1,034.60
$1,149.50
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

1

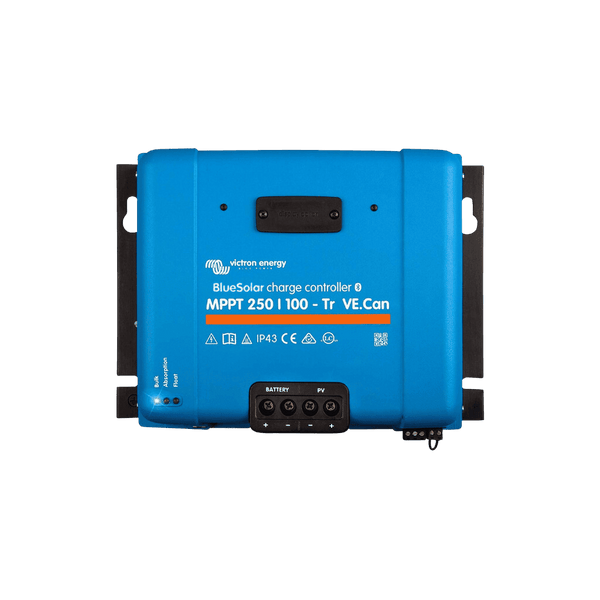

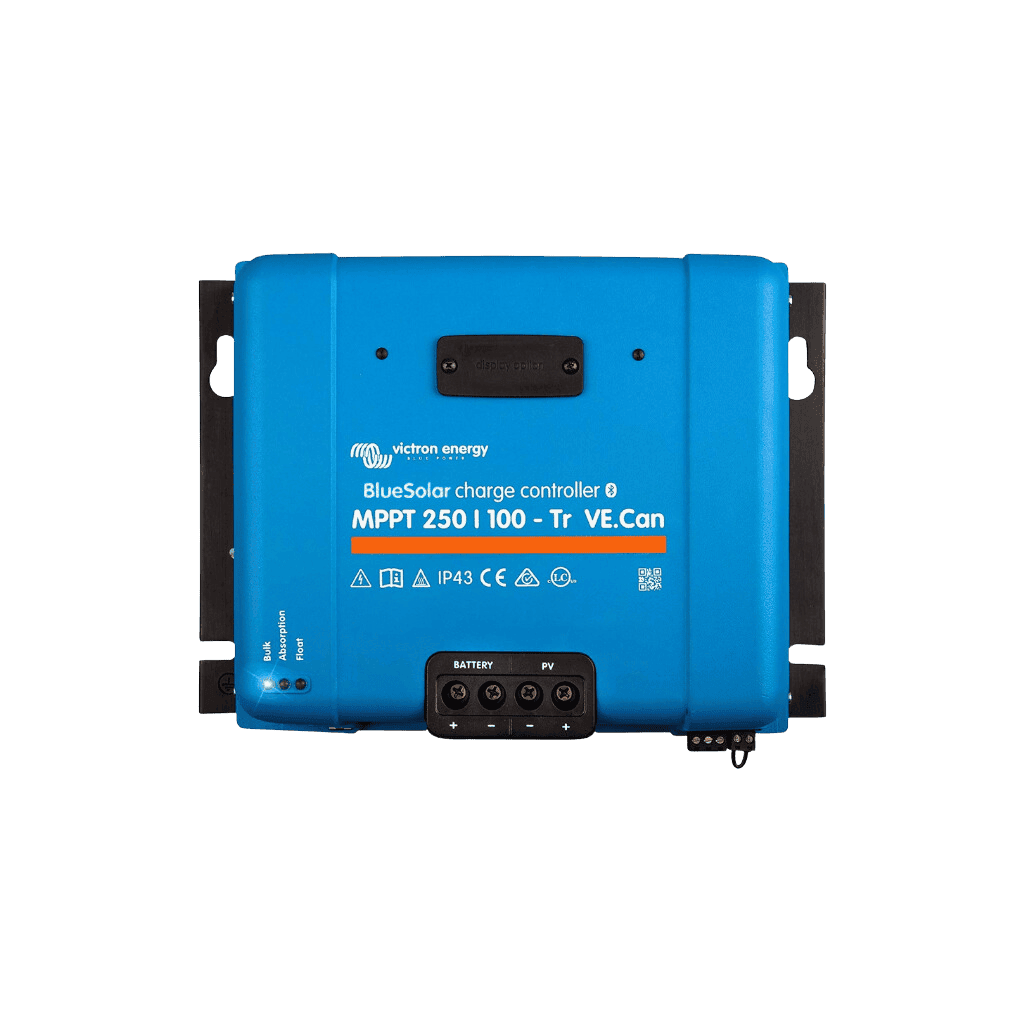

Front view of Victron BlueSolar MPPT 250/100 solar charge controller with terminal covers

Victron 12/24/48V 100A BlueSolar MPPT 250/100-Tr VE.CAN Non-Bluetooth Solar Charge Controller

DESCRIPTION

Victron BlueSolar MPPT 250/100-Tr VE.CAN Solar Charge Controller (12V / 24V / 48V, 100A)

Professional-Grade MPPT Solar Charging Without Bluetooth

The Victron BlueSolar MPPT 250/100-Tr VE.CAN is a high-end, non-Bluetooth solar charge controller designed for advanced energy systems where wired communication, maximum efficiency, and long-term reliability are the priority. Supporting 12V, 24V, and 48V battery banks with a powerful 100A charging capacity, this controller is ideal for caravan, RV, marine, off-grid, industrial, and tiny home solar installations that rely on centralized monitoring via GX devices.

Ultra-Fast Maximum Power Point Tracking (MPPT)

Equipped with Victron’s proven ultra-fast MPPT technology, the BlueSolar MPPT 250/100-Tr continuously tracks the optimal power point of your solar array. In dynamic conditions such as passing clouds or fluctuating irradiance, this controller can increase energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT designs. This makes it a dependable solution for high-voltage PV arrays up to 250V open circuit.

Advanced MPPT Performance Under Partial Shading

In real-world solar environments, partial shading often creates multiple maximum power points on the PV curve. Conventional MPPT controllers may lock onto a local MPP, reducing overall output. The BlueSolar MPPT 250/100-Tr uses an advanced MPPT detection algorithm to consistently identify and lock onto the true optimal MPP, maximizing solar yield across complex array layouts common in marine decks, RV rooftops, and industrial installations.

Exceptional Efficiency with Fanless Cooling Design

Delivering a peak efficiency exceeding 99%, this controller operates without a cooling fan, reducing noise, dust ingress, and mechanical failure points. Integrated over-temperature protection ensures safe operation by automatically reducing output under high thermal loads, making it well-suited for enclosed electrical compartments and harsh operating environments.

Flexible Charging Algorithms & Battery Compatibility

The BlueSolar MPPT 250/100-Tr features a fully programmable charge algorithm and includes eight pre-configured battery profiles selectable via a rotary switch. It supports lithium-ion, AGM, GEL, and lead-acid batteries, ensuring compatibility with modern energy storage systems. The fully discharged battery recovery function allows charging to begin even when the battery voltage has dropped to zero, a critical feature for remote and unattended off-grid systems.

  • Supports external battery voltage and temperature sensing via VE.Can
  • Compatible with BMV battery monitors and SmartShunt (via GX devices)
  • Internal temperature sensor for accurate charge regulation

VE.Can Communication for Scalable Solar Systems

Designed for installations that rely on wired data communication, the VE.Can interface enables seamless integration with Victron GX devices, Color Control GX, and industrial monitoring systems. Up to 25 BlueSolar MPPT controllers can be synchronized on a single VE.Can network, making this model ideal for large solar arrays and professional multi-controller setups.

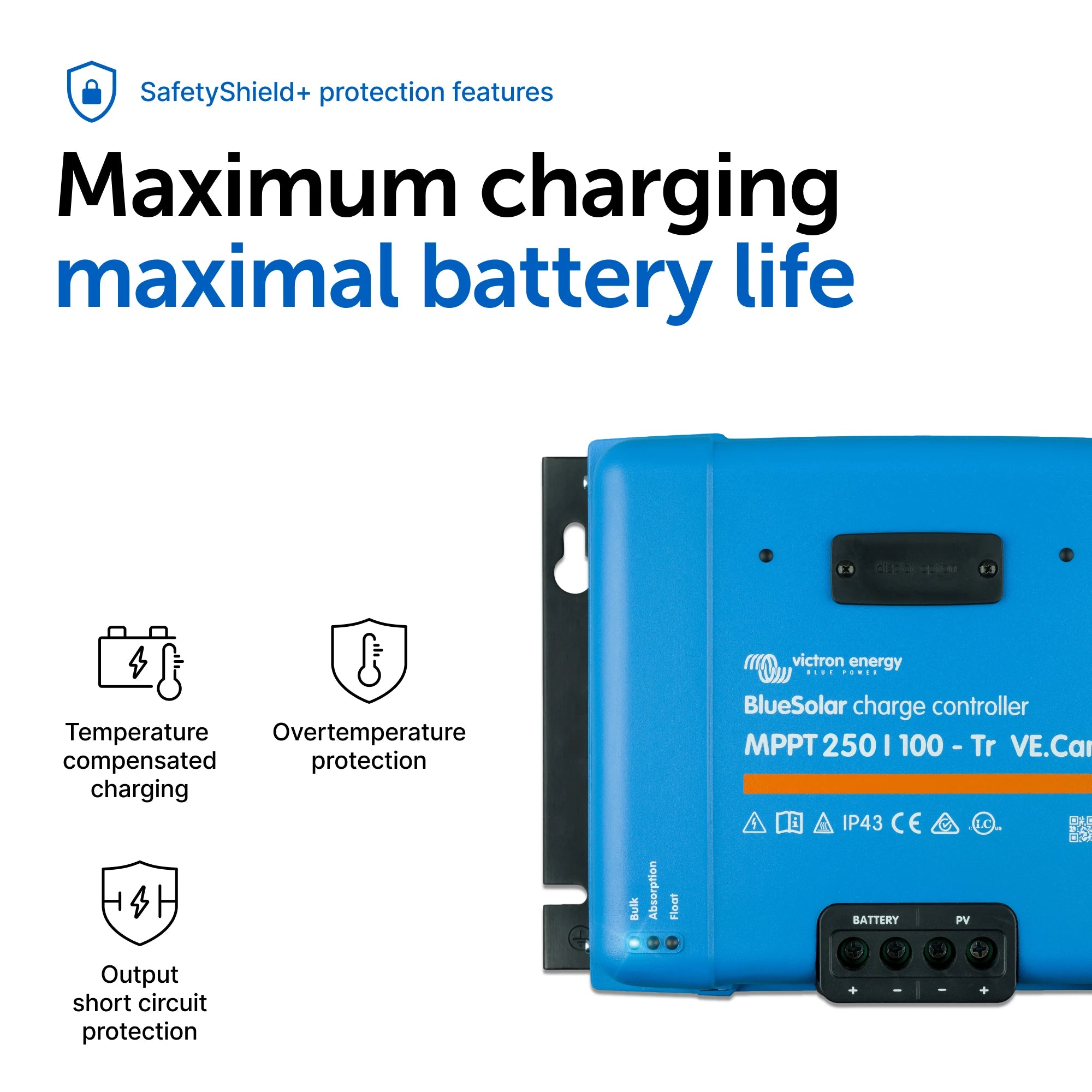

Advanced Protection & System Control

Extensive electronic protection includes PV short-circuit protection, PV reverse polarity protection, reverse current protection, and thermal derating. A remote on/off input allows direct connection to a VE.Bus BMS, while the programmable relay can be configured for alarms, generator start signals, or other automation events. An optional SmartSolar/BlueSolar pluggable LCD display provides local system visibility when required.

Why Choose the Victron BlueSolar MPPT 250/100-Tr?

This controller is purpose-built for users who prefer hard-wired monitoring, system scalability, and industrial-grade reliability over wireless control. It is an excellent choice for commercial off-grid systems, marine power management, RV solar upgrades, and industrial energy storage solutions where long-term performance and deterministic communication are essential.

Upgrade Your Solar Infrastructure Today

Upgrade your vehicle, vessel, or off-grid power system now with the Victron BlueSolar MPPT 250/100-Tr VE.CAN to achieve higher energy yield, precise battery charging, and professional-grade system integration built for demanding environments.

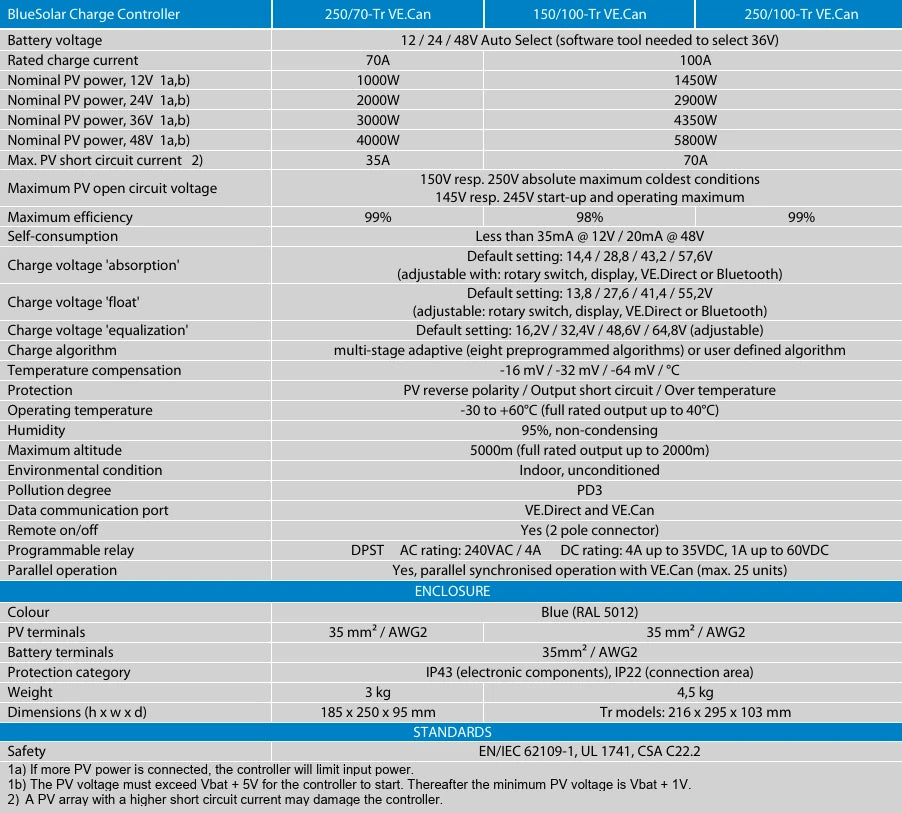

SPECIFICATIONS

BlueSolar Charge Controller 250/100-Tr VE.Can
Battery voltage 12 / 24 / 48V Auto Select (software tool needed to select 36V)
Rated charge current 100A
Nominal PV power, 12V 1a,b) 1450W
Nominal PV power, 24V 1a,b) 2900W
Nominal PV power, 36V 1a,b) 4350W
Nominal PV power, 48V 1a,b) 5800W
Max. PV short circuit current  2) 70A
Maximum PV open circuit voltage 250V absolute maximum coldest conditions
245V start-up and operating maximum
Maximum efficiency 99%
Self-consumption Less than 35mA @ 12V / 20mA @ 48V
Charge voltage 'absorption' Default setting: 14.4 / 28.8 / 43.2 / 57.6V
(adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float' Default setting: 13.8 / 27.6 / 41.4 / 55.2V
(adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'equalisation' Default setting: 16.2V / 32.4V / 48.6V / 64.8V (adjustable)
Charge algorithm Multi-stage adaptive (eight preprogrammed algorithms) or user-defined algorithm
Temperature compensation -16 mV / -32 mV / -64 mV / °C
Protection PV reverse polarity / Output short circuit / Over temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Maximum altitude 5000 m (full rated output up to 2000 m)
Environmental condition Indoor, unconditioned
Pollution degree PD3
Data communication port VE.Direct and VE.Can
Remote on/off Yes (2 pole connector)
Programmable relay DPST   AC rating: 240 VAC / 4 A   DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel operation Yes, parallel synchronised operation with VE.Can (max. 25 units)
ENCLOSURE
Colour Blue (RAL 5012)
PV terminals 35 mm² / AWG2
Battery terminals 35 mm² / AWG2
Protection category IP43 (electronic components), IP22 (connection area)
Weight 4.5 kg

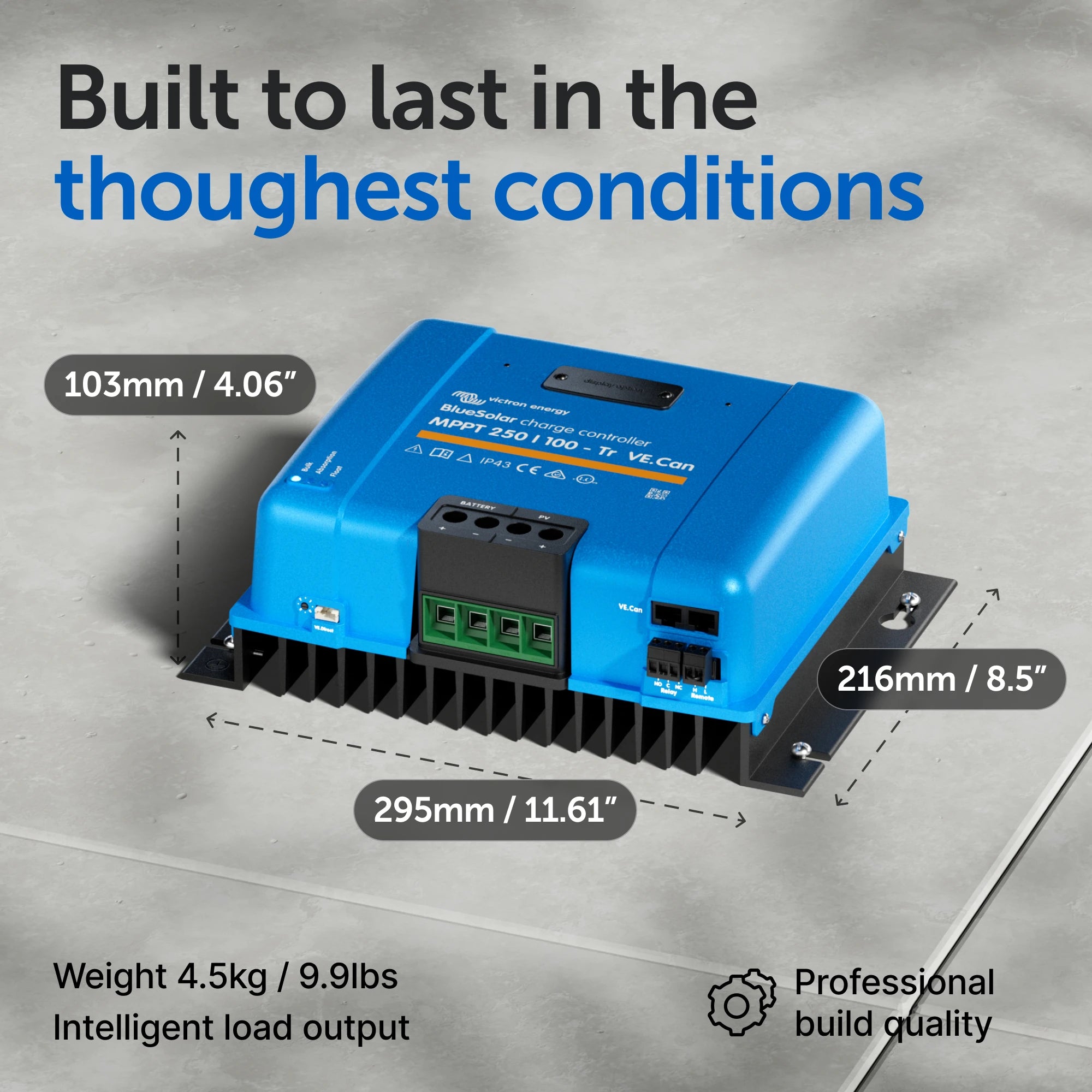

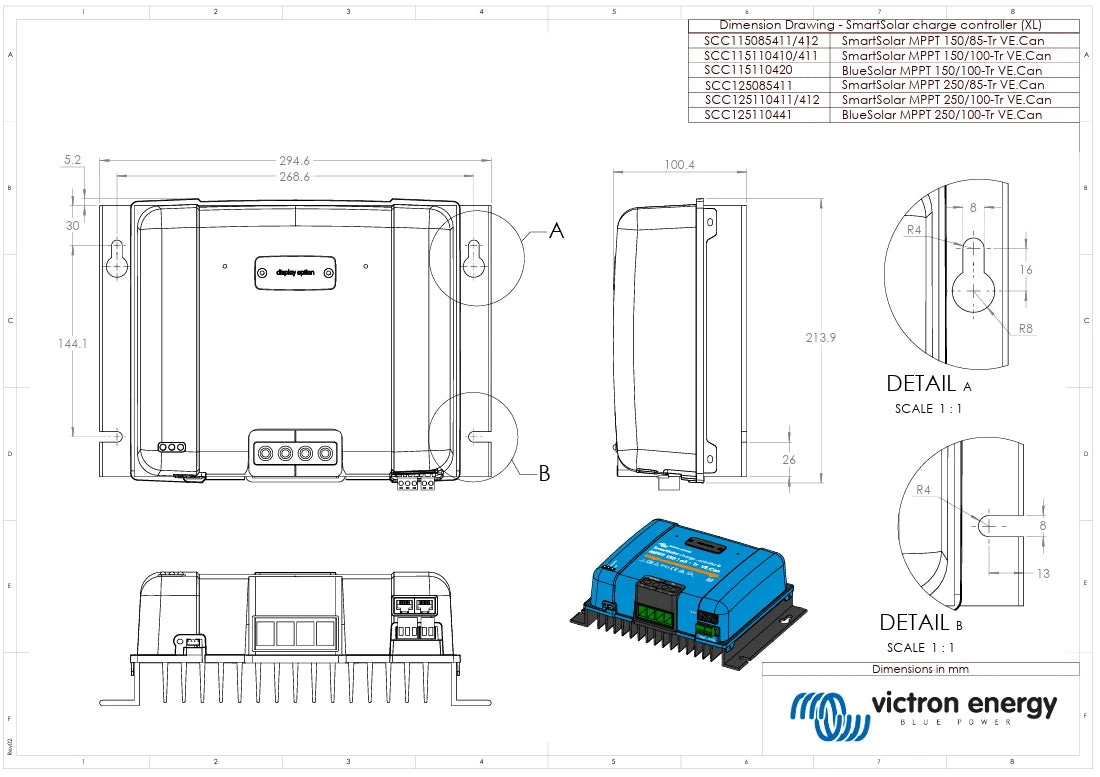

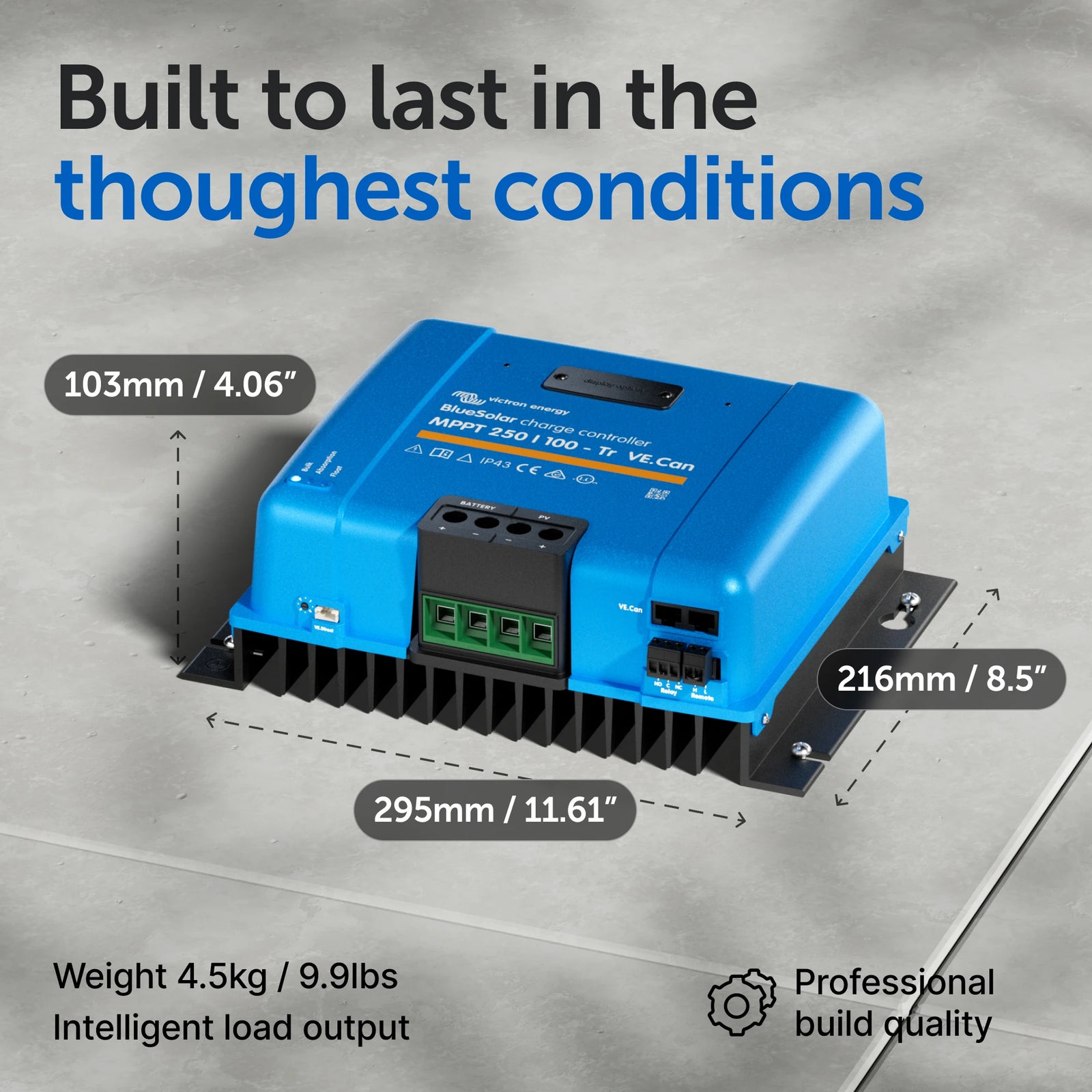

Dimensions (h × w × d) 216 × 295 × 103 mm
STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.

SKU: VIC-SCC125110441
Barcode: 8719076050926
Model #: SCC125110441
MPN: SCC125110441

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
