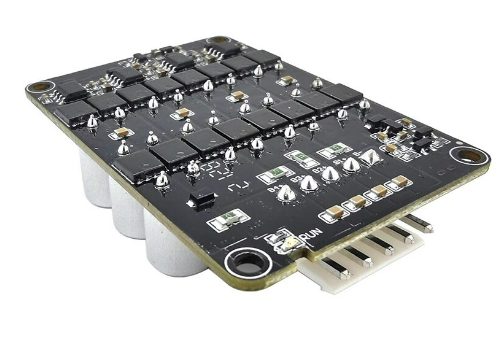

4S 5A Active Balancer - LiFePO4/Li-ion Cell Equaliser
4S 5A Active Balancer - LiFePO4/Li-ion Cell Equaliser
Regular price
$27.50
Availability:
In Stock
Guaranteed Safe and Secure Checkout
49
DESCRIPTION
High-Efficiency Battery Equalisation Module
- Working Voltage: 1.8V-4.5V, making it suitable for various lithium batteries including ternary lithium, lithium iron phosphate, and lithium titanate.
- Working Principle: Utilises capacitive fit to transfer charge efficiently. Simply connect the equalisation board to the battery to commence equalisation.
- Premium Construction: Features the original new ultra-low internal resistance MOS and a 2OZ copper thickness PCB for robust performance.
- Adaptive Equalisation Current: Provides a dynamic equalisation current ranging from 0-5.5A, adjusting based on the number of batteries connected and difference in voltage.
- Precision Balancing: Achieves balance voltage accuracy within 5mv, ensuring precise energy distribution.
- Quiescent Current: Approximately 12mA, ideal for battery capacities ranging from 60Ah+.
- Under-Voltage Sleep Protection: Automatically enters sleep state when voltage drops below 3.0V, with standby power consumption of less than 0.1 mA to preserve battery life.
Enhance the longevity and performance of your battery setup with our cutting-edge equalisation module, designed for meticulous energy balance and protection.
SKU: Li-4S-5A-Bal
SPECIFICATIONS
Specifications
| Product Model | 0855A |
|---|---|
| Balance Type | Capacitive Energy Transfer / Active Balancing |
| Applicable Number Of Strings | 3S-4S |
| Applicable Battery Type | Ternary Lithium / Lithium Iron Phosphate |
| Working Voltage Range | Ternary Lithium / Lithium Iron Phosphate: 2.7-4.2 V |
| Voltage Equalization Accuracy | 5 mV (Typical) |
| Balance Mode | The whole group of batteries participates in active balancing of energy conversion at the same time |
| Balance Current | When the voltage difference is 0.01 V, the equalizing current is 0.5 A. The larger the voltage difference, the larger the equalizing current. The maximum equalizing current is 5.5 A. |
| Under-Voltage Protection Sleep Voltage | Ternary Lithium / Lithium Iron Phosphate: 2.7 V |
| Static Working Current | 13 mA |
| Sleep Mode Current | <0.1 mA |
| Recommended Battery Capacity | 60-300 Ah |
| Working Temperature | -10°C to 60°C |
| External Power | No external power supply is required, relying on the energy transfer inside the battery to achieve the balance of the entire battery pack |
| Product Size | 66 × 46 × 16 mm |
| SKU: | Li-4S-5A-Bal |
| Model #: | Li-4S-5A-Bal |
| MPN: | Li-4S-5A-Bal |
