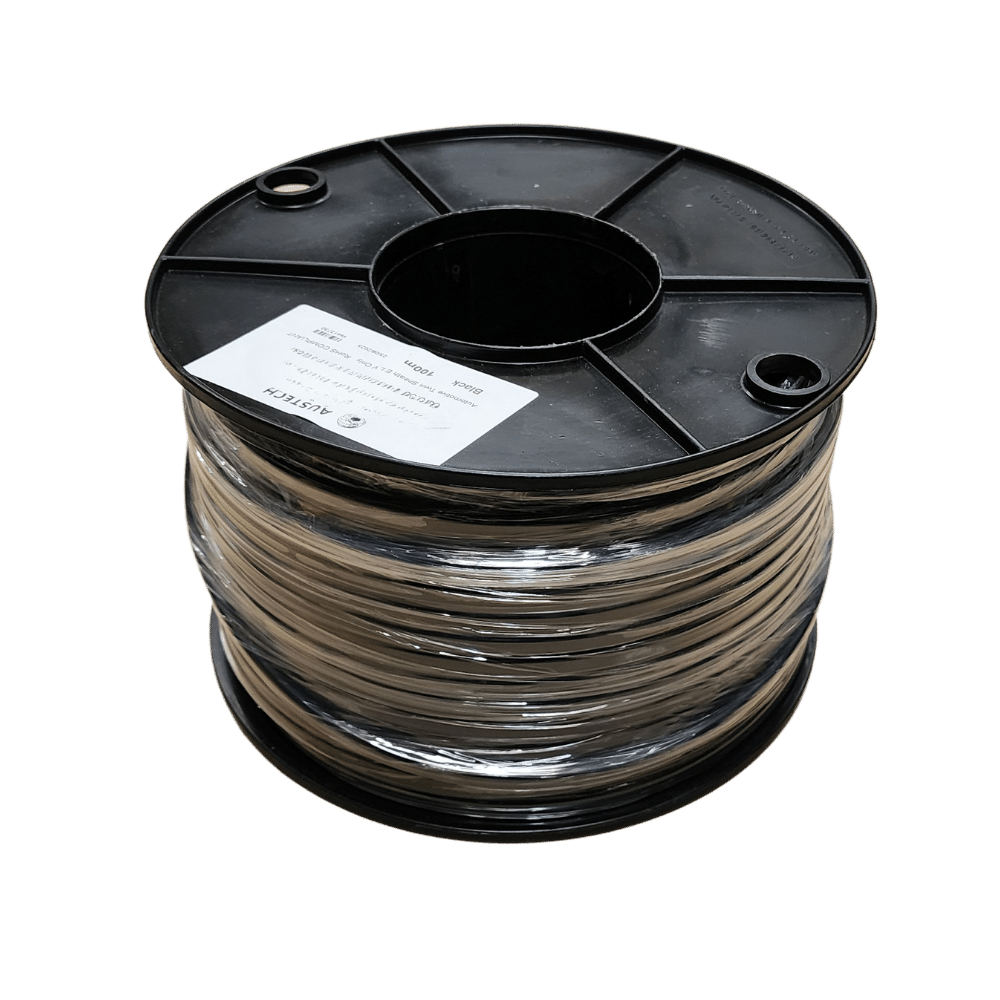

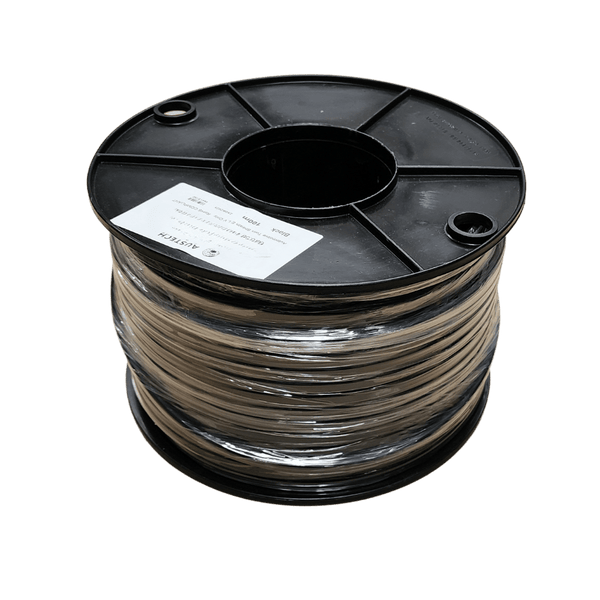

100m Roll of 3mm (1.13mm²) Twin Core Automotive Cable

Austech 3mm (1.13mm²) Twin Core Automotive Cable: Premium 16A Twin Core Wiring for Demanding DC Applications

The 3mm (1.13mm²) Twin Core Automotive Cable acts as the backbone of reliable low-voltage electrical systems. Engineered with 1.13mm² Oxygen Free High Conductivity (OFHC) copper conductors, this 100m roll delivers consistent power transmission for automotive, marine, and off-grid setups. Unlike standard general-purpose wires, this cable is built to resist vibration, temperature extremes, and environmental stress, ensuring your electrical accessories operate at peak performance.

Superior Conductivity with OFHC Copper

At the core of this cable is 99.9% oxygen-free copper. This high-purity material offers superior electrical conductivity compared to recycled or standard tough pitch copper, resulting in lower voltage drop over long cable runs—critical for maintaining the efficiency of fridges, pumps, and DC-DC chargers. Furthermore, OFHC copper resists embrittlement over time, maintaining flexibility and structural integrity even in high-vibration automotive environments.

Engineered for Heat and UV Resistance

Australia’s harsh climate demands insulation that can survive the elements. This cable features V90HT (High Temperature) PVC insulation, rated to 90°C, preventing the jacket from softening or melting in hot engine bays or enclosed canopies. The UV-stabilised black outer sheath provides a durable barrier against sun damage, oil, and grease, making it an excellent choice for external trailer wiring, solar interconnects, and exposed chassis runs.

Safe for 12V, 24V, and 48V Systems

While perfectly suited as 12V automotive cable, the high insulation breakdown voltage allows for safe operation up to 120V DC. This makes the cable highly versatile for 24V commercial vehicle wiring and 48V lithium battery systems found in modern caravans and off-grid homes. By handling higher voltages safely, it ensures future-proof installations for evolving energy needs.

Streamlined Installation

Professional installers and DIY enthusiasts alike value the easy-strip outer sheath and clearly colour-coded Red and Black cores, which minimize polarity errors and speed up termination. The twin-core construction provides a neat, single-cable run, eliminating the mess of taping separate wires together and offering additional mechanical protection against chaffing.

Key Features

• High-Purity OFHC Copper: 1.13mm² conductors ensure maximum conductivity and reduced resistance.
• High Current Capacity: Rated for 16A (subject to de-rating) to support heavy-duty accessories.
• V90HT Insulation: Withstands continuous operating temperatures up to 90°C.
• UV-Stabilised Sheath: Resists cracking and fading in direct sunlight.
• Wide Voltage Range: Suitable for 12V, 24V, and 48V DC applications (Max 120V).
• Compliance: Meets AS/NZS 1125 and AS 3808 standards; RoHS compliant.

*Typical de-rating factors apply based on ambient temperature, bundling, and run length; ensure cable sizing accounts for voltage drop in your specific installation.

Secure Your Electrical Connections

Don't compromise on your wiring infrastructure. Equip your workshop or project with the Austech 3mm (1.13mm²) Twin Core Automotive Cable for a professional, long-lasting finish. Whether outfitting a 4WD for touring or wiring a marine console, this cable delivers the durability and performance required for critical DC circuits.
