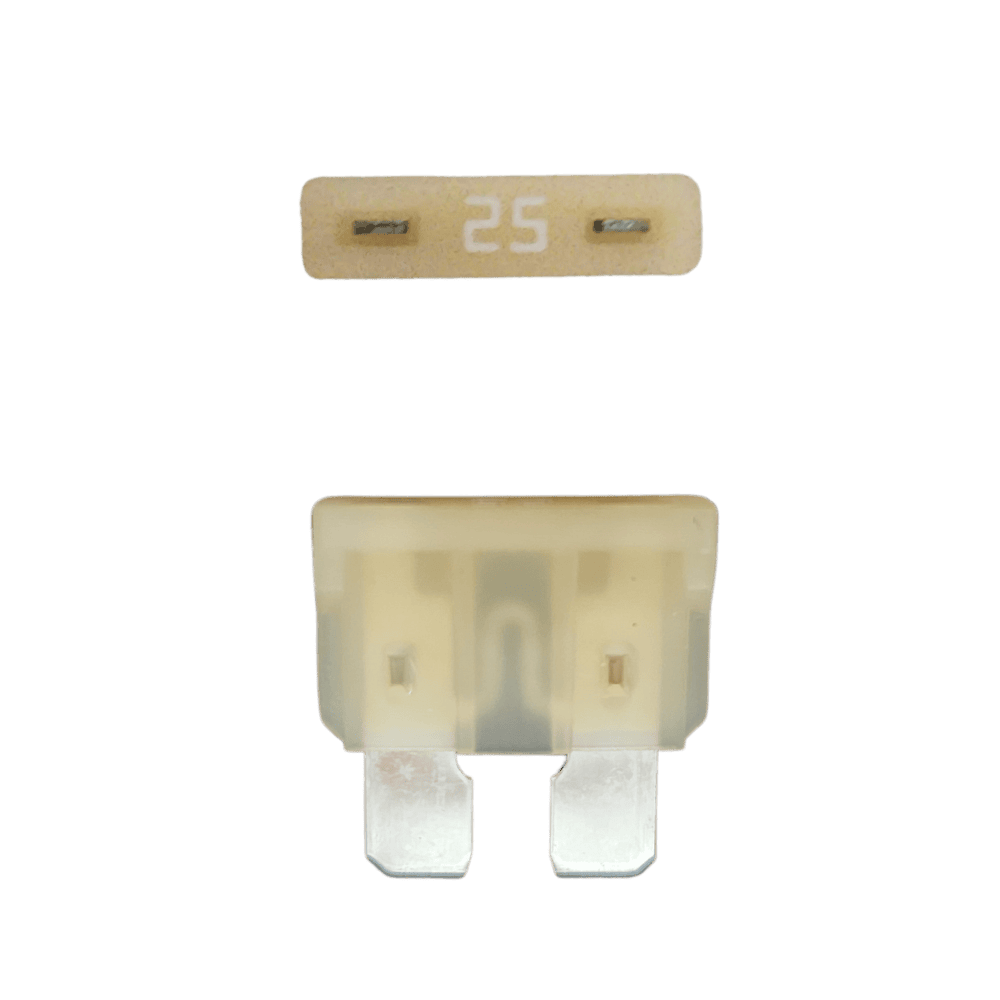

Exotronic ATO/ATC Standard Automotive Blade Fuse 25A


RRP $1.29
$0.80
SAVE $0.49 (38%)
In Stock
Exotronic logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Exotronic ATO/ATC Standard Automotive Blade Fuse 25A, to the majority of areas. Check your shipping details on the cart page for more information.
Volume Discounts:
Buy 10 or more: $0.69

You may also need:


Exotronic APR/ATO/ATC/ATS Standard Blade Fuse: The Optimal Automotive Fuse Choice

Ensure the safety and efficiency of your automotive electrical systems with our APR/ATO/ATC/ATS Standard Blade Fuses. Designed as a superior car fuse/auto fuse/caravan fuse, these standard auto fuses provide a reliable solution to protect your circuits from overcurrent, enhancing your vehicle's performance.

Fast and Reliable Operation for Safety

Our automotive blade fuses offer a rapid response to overcurrent scenarios, operating as quickly as 0.03 seconds for 600% of the rated current. Their ability to break at 1000A at 32VDC makes them a solid choice for maintaining the safety of your electrical system.

High-Quality Fuse Construction

Composed of Silver Plated Zinc Alloy terminals and sturdy Nylon housing, these fuses offer exceptional durability and corrosion resistance. Capable of operating within a wide temperature range of -32C to 200C, they ensure consistent performance across diverse conditions.

Nylon: The Preferred Material for Diverse Fuse Applications

Nylon's unique combination of properties makes it an ideal choice for the housing of fuses. Known for its exceptional chemical resistance, Nylon withstands exposure to a wide range of substances, thereby ensuring fuse longevity even in harsh conditions. It also boasts impressive dielectric strength, meaning it's highly resistant to electric stress, a crucial factor for high-voltage fuses.

In addition, Nylon's notable tensile strength and toughness provide robust mechanical protection, safeguarding the fuse from physical damages.

Convenient Test Points: Simplifying Diagnostics in Fuse Applications

Our fuses are designed with integrated test points, providing a practical and efficient solution for diagnostics. This feature allows for easy and direct testing of the circuit without the need to remove the fuse, simplifying maintenance routines and enhancing safety. By checking these test points with a multimeter, you can quickly assess if your fuse is functioning correctly or if it needs replacement, thereby ensuring the optimal performance and longevity of your electrical system.

Standards Compliance for Peace of Mind

Our blade fuses comply with SAEJ2077, ISO 8820, and UL248 Special Purpose Fuses standards. You can trust their quality and safety, knowing they meet these rigorous standards.

Fuse Range for Varied Needs

We offer a comprehensive range of blade fuses from 1A to 40A with different cold resistance values and distinct colours for easy identification. Whether you're replacing a car fuse, caravan fuse, or any other automotive fuse, choose the perfect fit for your specific requirements.

(Exo-Fu-Bl-25)

Specifications

Details

Breaking Force 1000A@32VDC
Voltage Rating 32VDC
Operating Temperature Range -32C to 200C
Terminals Silver Plated Zinc Alloy
Housing Material Nylon
Standards Compliance SAEJ2077
ISO 8820
UL248 Special Purpose Fuses

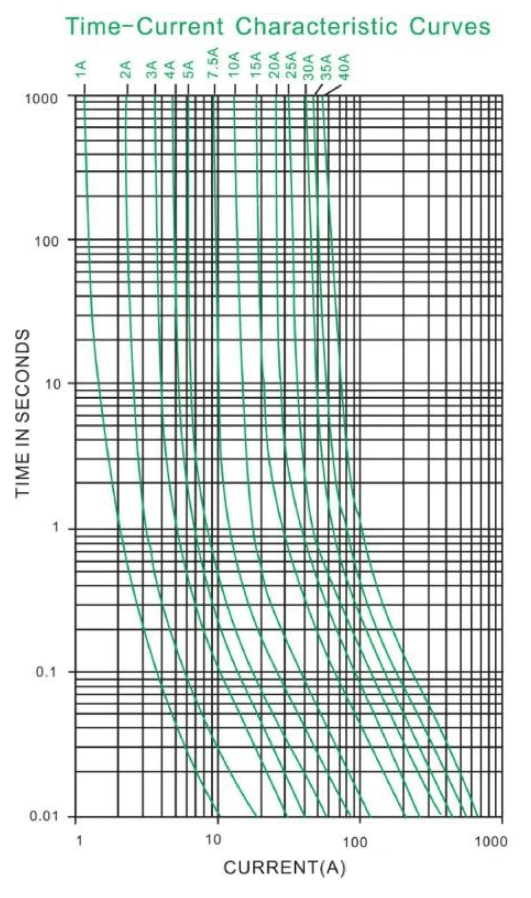

Operating Time

% of Rating Minimum Maximum
110 4hr
135 0.75s 10min
200 0.15s 5s
350 0.08s 2s
600 0.03s 0.1s

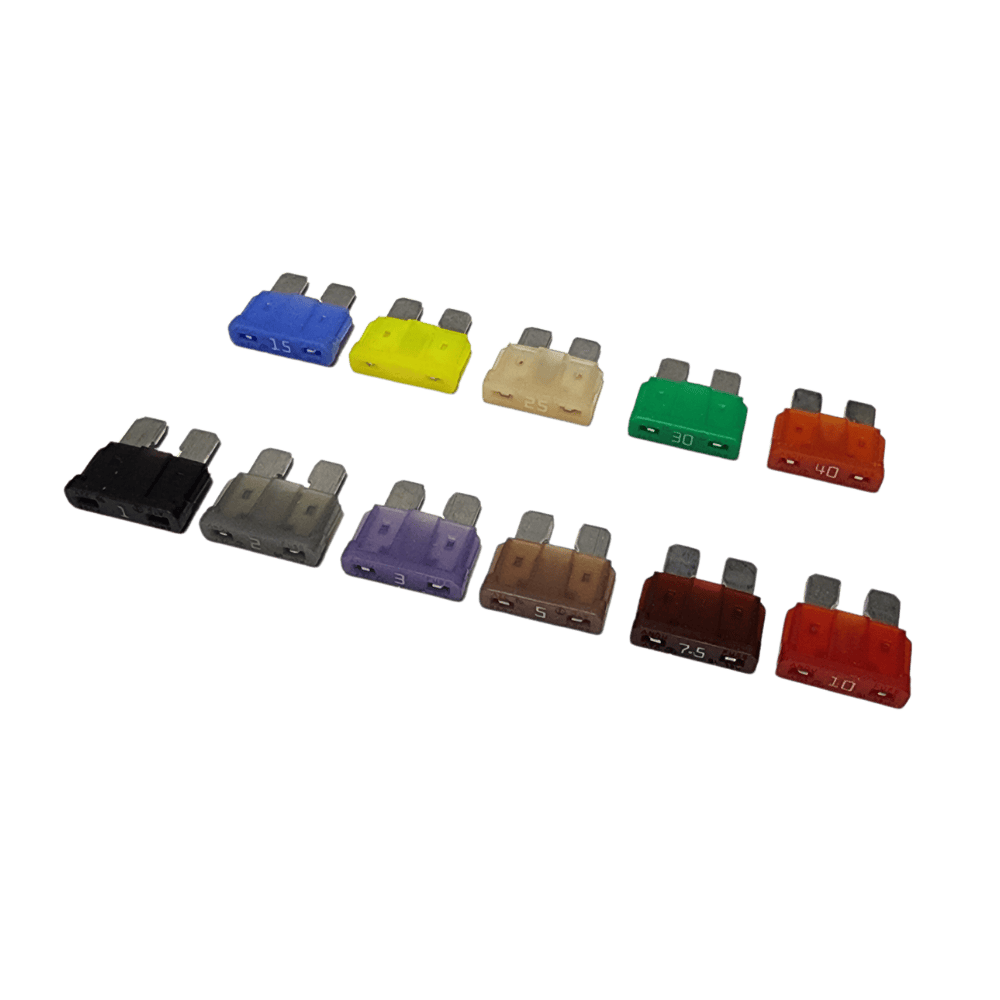

Fuse Range

Part Number Current Rating Cold Resistance (±10%) Colour
Exo-ATC-NL-01 1 60.9mΩ Black
Exo-ATC-NL-02 2 39.1mΩ Grey
Exo-ATC-NL-03 3 23.8mΩ Purple
Exo-ATC-NL-05 5 16.2mΩ Tan
Exo-ATC-NL-07.5 7.5 10.6mΩ Brown
Exo-ATC-NL-10 10 7.8mΩ Red
Exo-ATC-NL-15 15 5.0mΩ Blue
Exo-ATC-NL-20 20 3.2mΩ Yellow
Exo-ATC-NL-25 25 2.4mΩ Beige
Exo-ATC-NL-30 30 1.6mΩ Green
Exo-ATC-NL-40 40 1.4mΩ Orange
SKU Exo-Fu-Bl-25
MPN # Exo-Fu-Bl-25

Warranty Statement

Exotronic warrants its accessories, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
