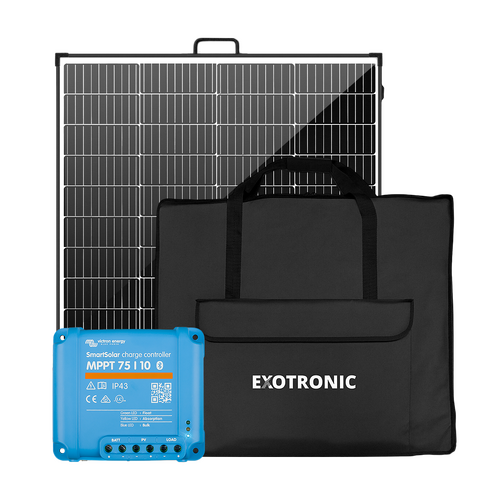

Exotronic 24V 200W Portable Folding Solar Panel + Victron SmartSolar 75/15
Exotronic Foldable 24V 200W Portable Solar Solution including a Victron SmartSolar MPPT 75/15

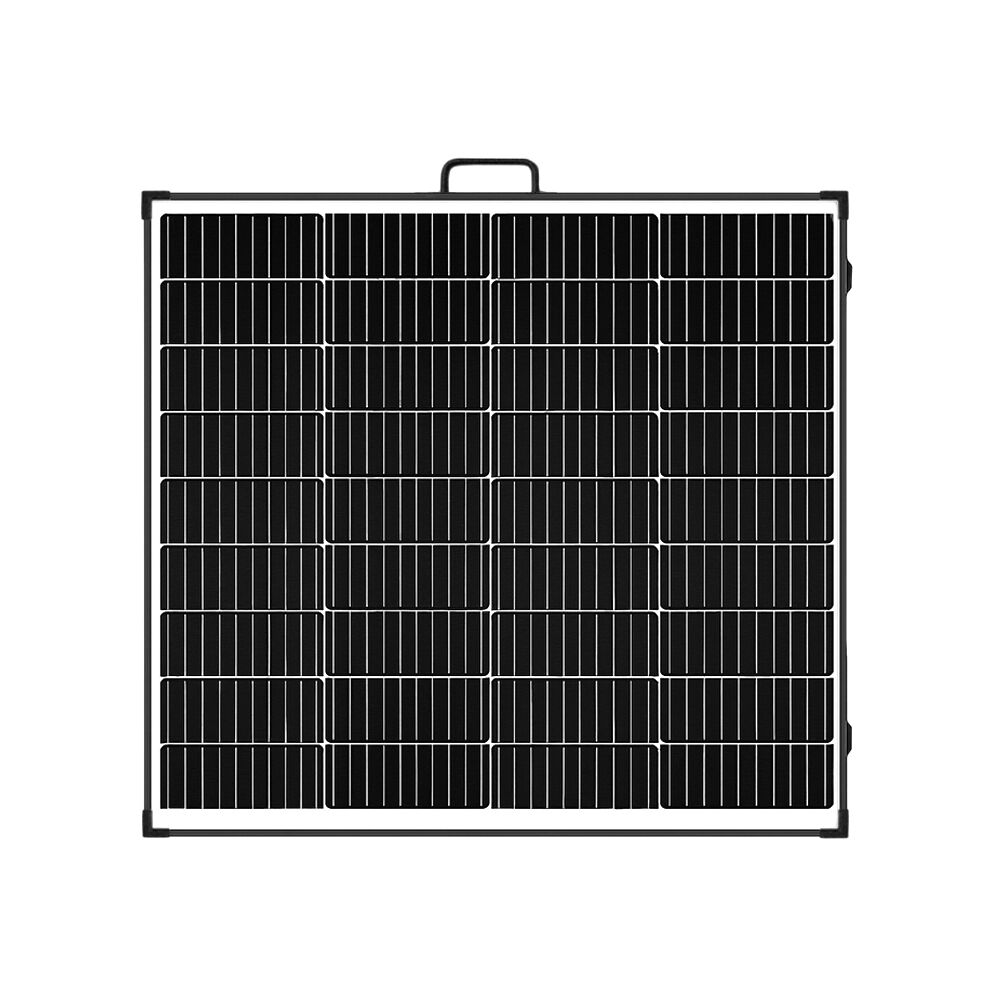

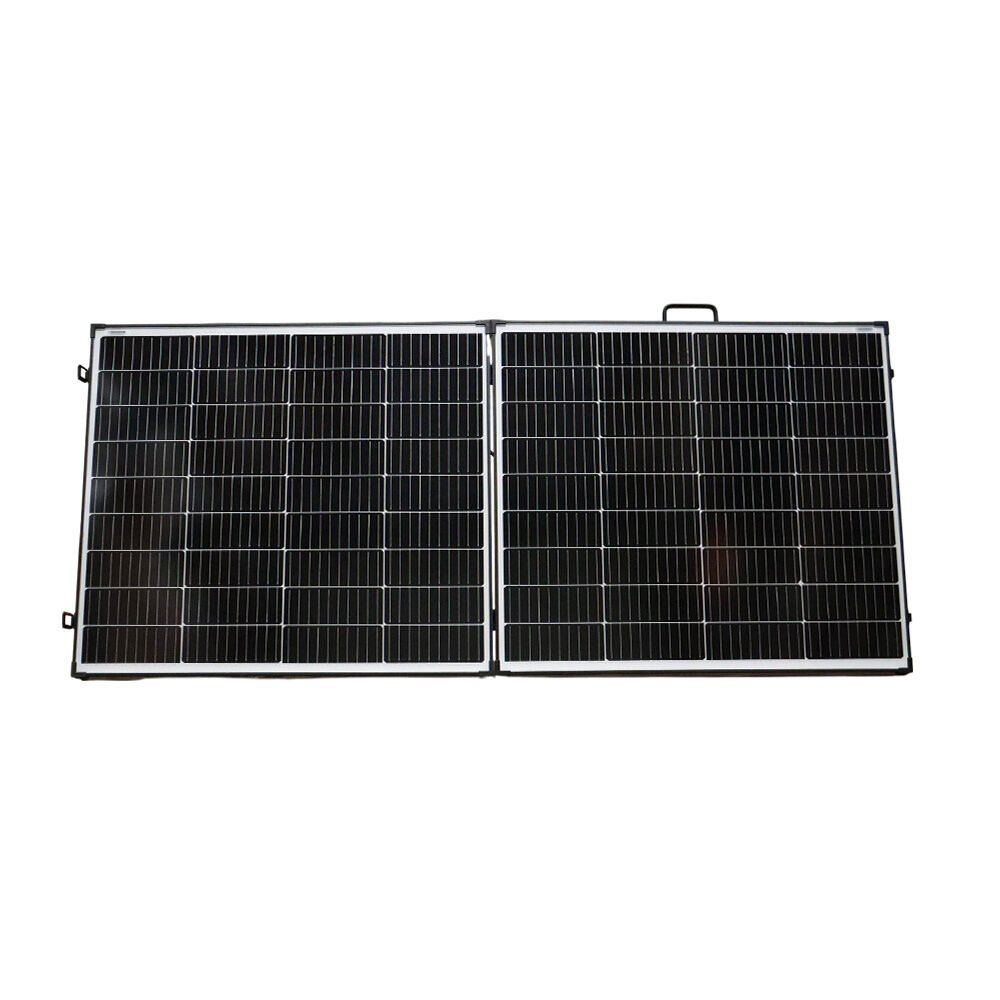

When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution. The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.
Easy Setup and Transport
Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.

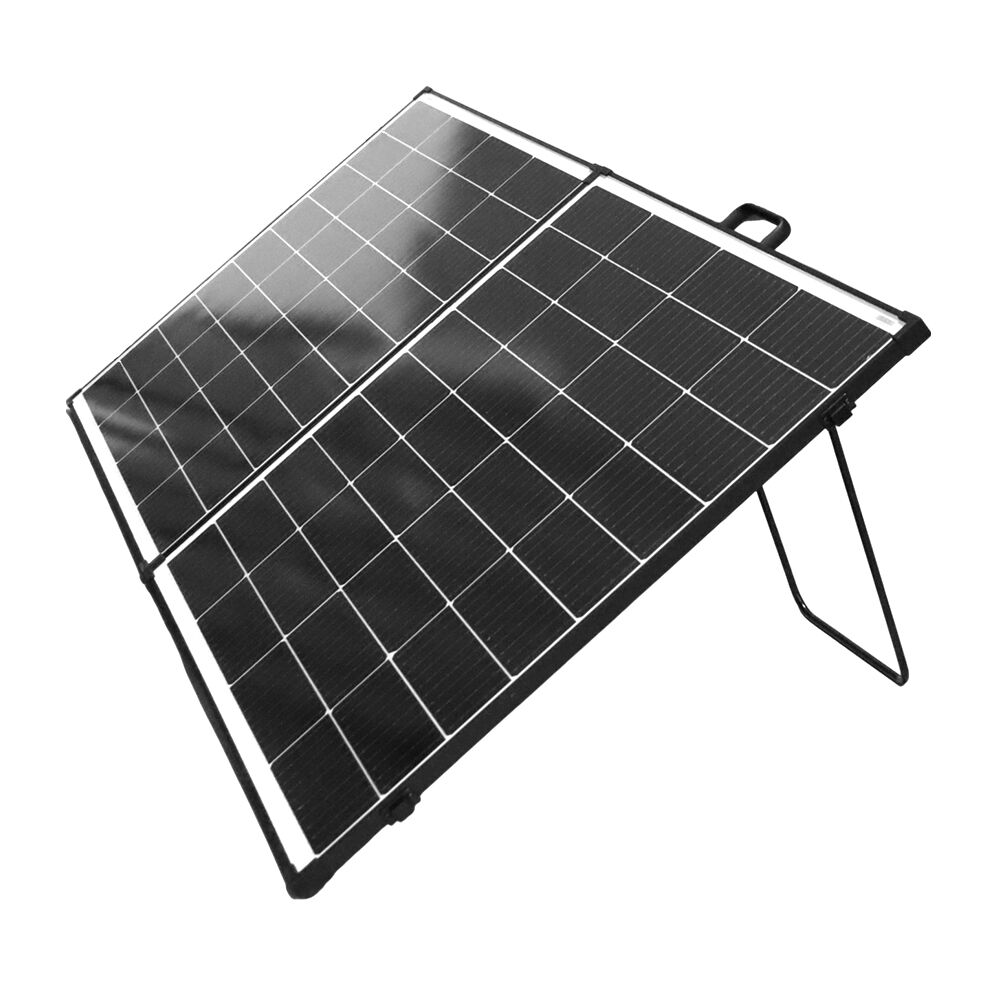

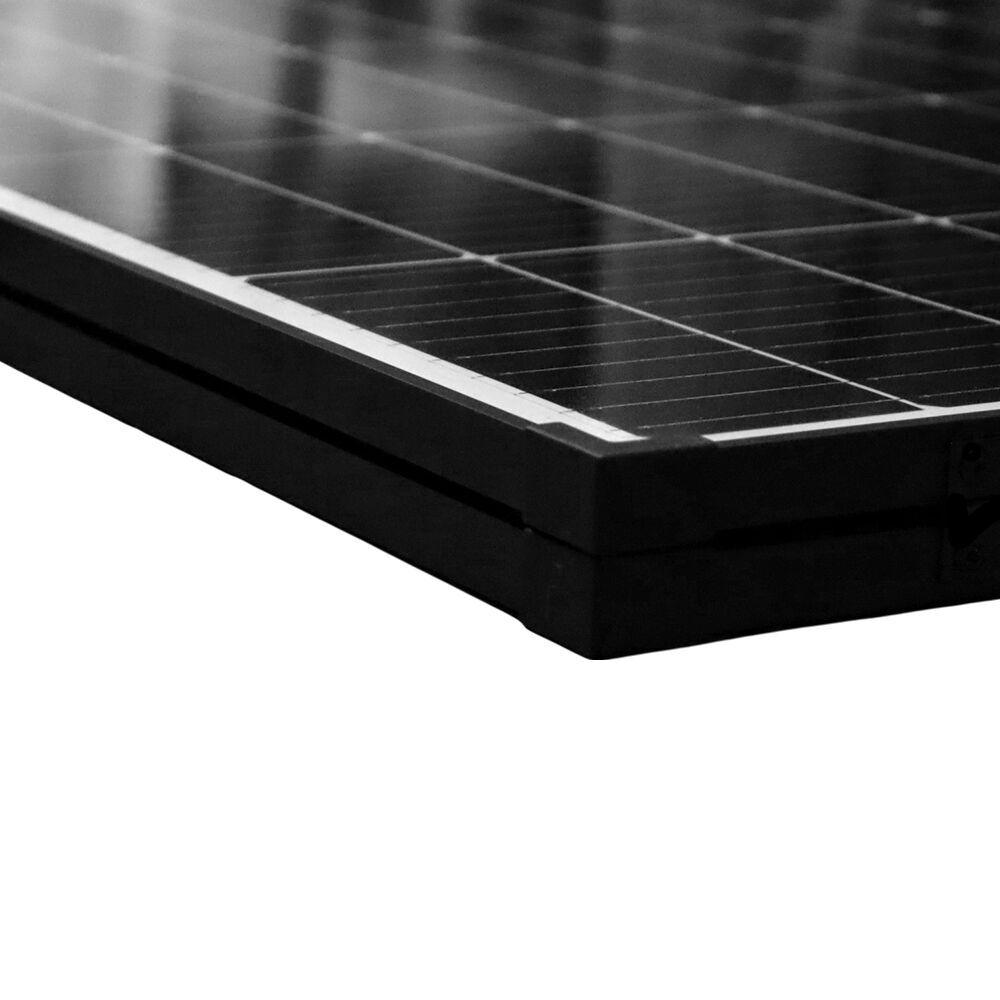

These modules include bumpers on the corners and fold-away legs,

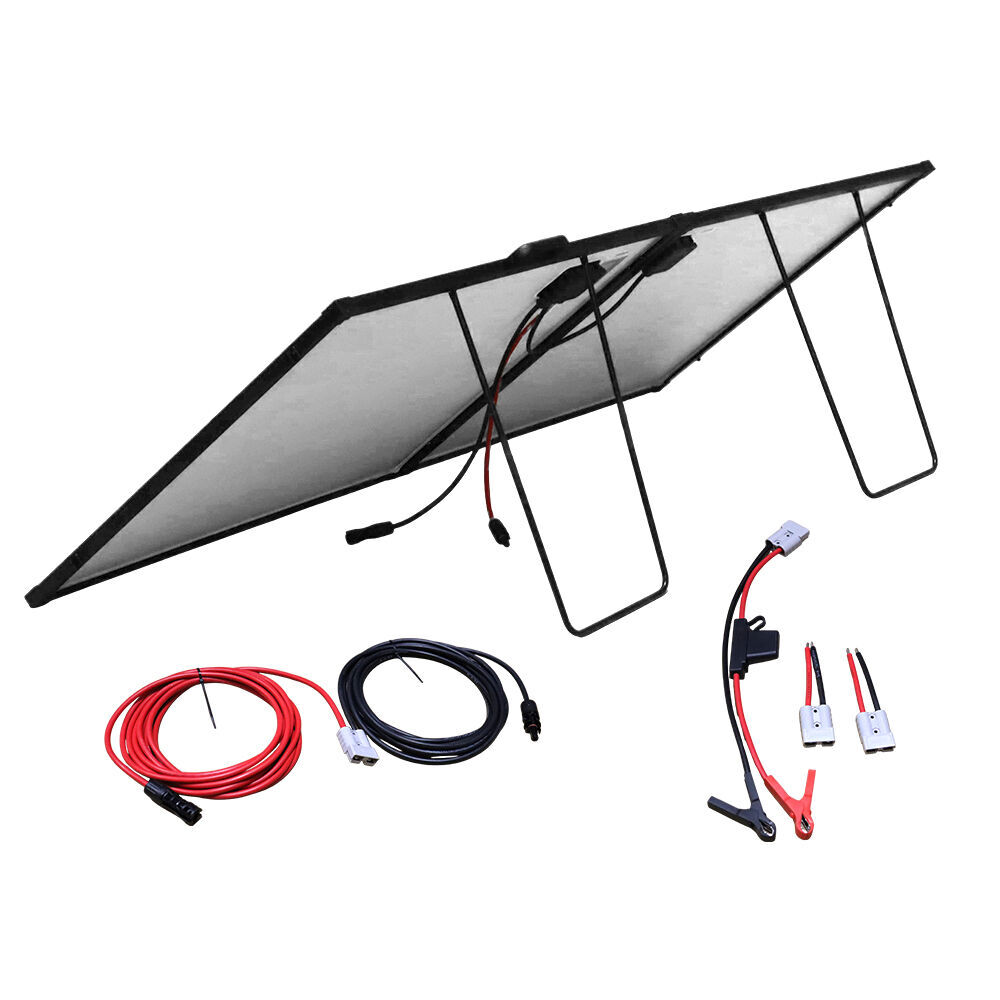

Premium Cable Set
Also included is an array of premium quality cables to suit any situation:
- 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
- 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
- Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)

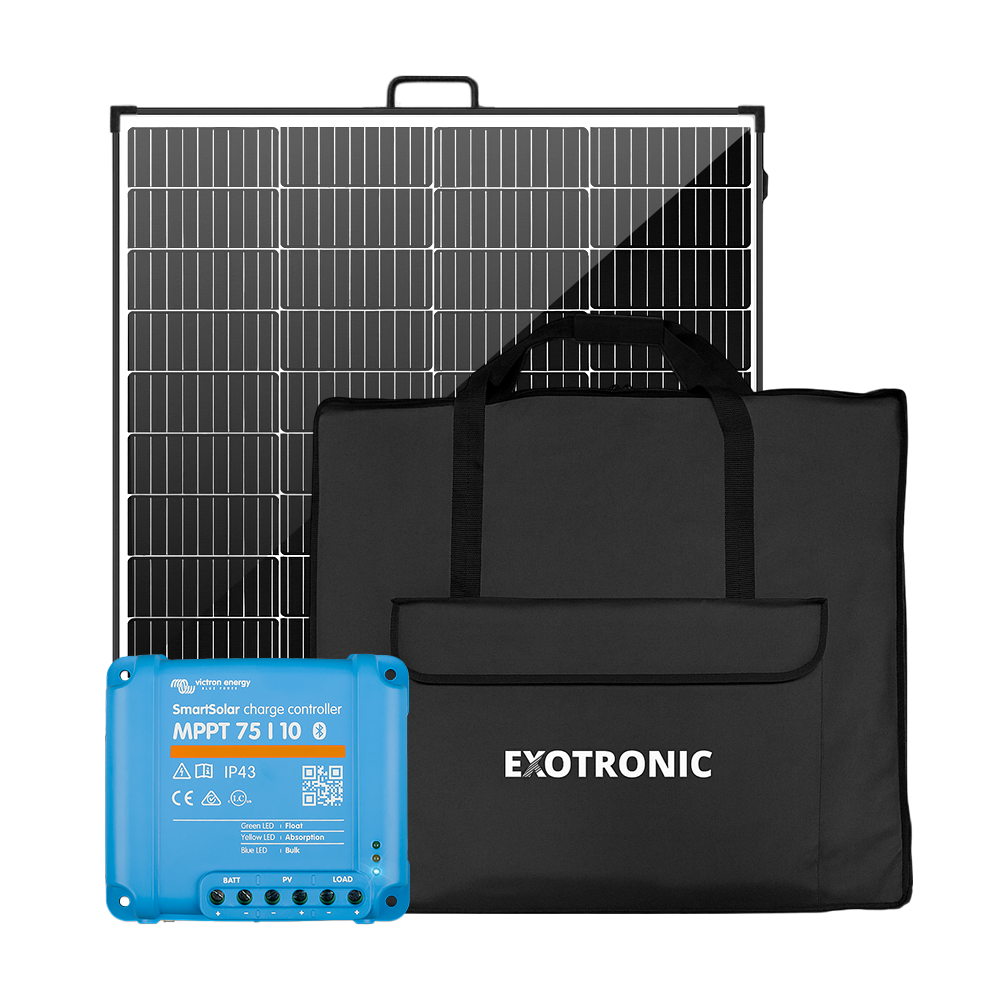

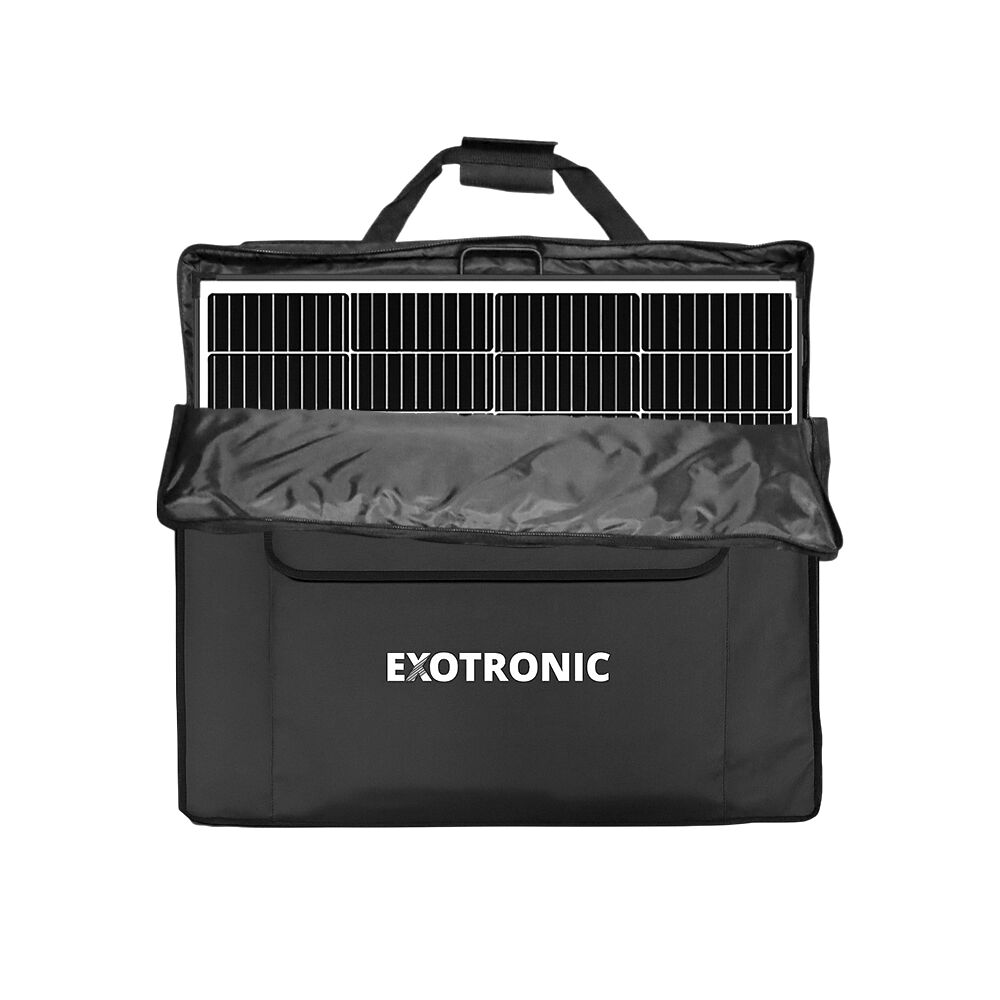

Protective Canvas Bag Included
The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.
High-Efficiency Solar Power
Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.
PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.
The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.
Victron SmartSolar 75/15 Bluetooth Solar Charge Controller
For best performance and safety of the solar controller, place the solar controller near your battery under cover, this reduces heat transfer from the MPPT to the solar panel and vice-versa.

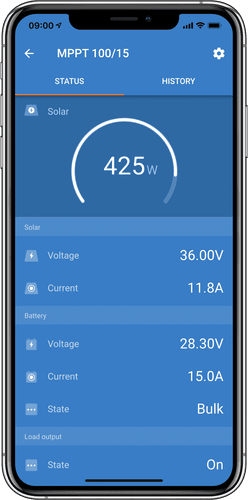

Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.
Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm
See the software section on our website for details
Day/night timing and light dimming option
See the software section on our website for details
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
(Exo-FP-200-24V-Vic)
Need help choosing a solar panel? Click this link to check our solar panel selector table!Foldable Solar Panel Specifications
| Module Specifications | ||||||||||
| Model | Power (W) | No. of Cells | Dimensions (mm) Folded | Dimensions (mm) Unfolded | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Module Efficiency (%) |
| Exo-FP-200-24V | 200 | 2x 36 (4x9) | 775x675x40 | 775x1350x19 | 11.2 | 39.6 | 5.06 | 48.2 | 5.25 | 19.3 |
| Temperature Ratings | |
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Voc | 0.05%/C |
| Maximum Ratings | |
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
| Mechanical Characteristics | |
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65/IP67 |
| Connectors | MC4 Compatible |
Victron SmartSolar 75/15 Bluetooth Solar Charge Controller Specifications
| SKU | Exo-FP-200-24V-Vic |
| MPN # | Exo-FP-200-24V-Vic |
Warranty Statement
Foldable Solar Panel
Exotronic warrants its foldable solar modules, including framing, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Accessories (Cables/Connectors, Canvas Bag)
Exotronic warranties its accessories, including cables, connectors, and the canvas bag, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Solar Charge Controller
Exotronic warrants its solar charge controllers to be free of defects in workmanship and materials for a period of 24 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Victron Energy SmartSolar 75/15 Bluetooth Solar Charge Controller Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
