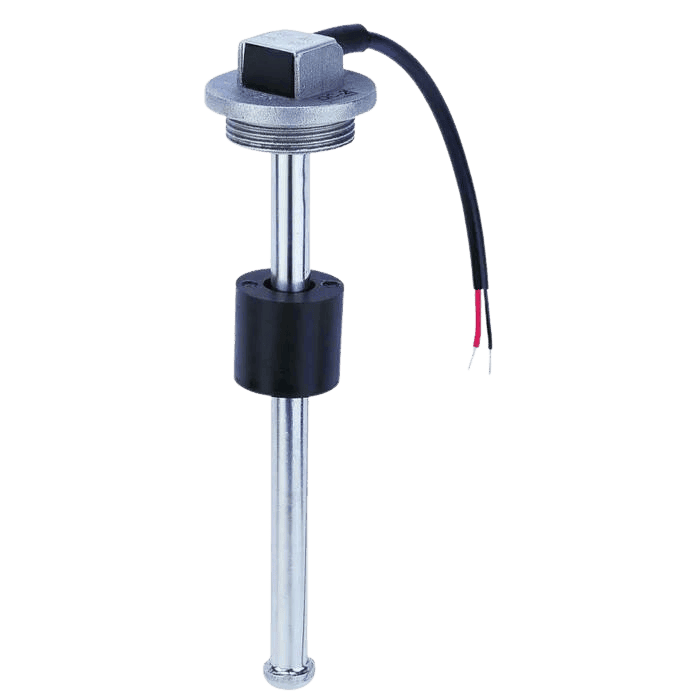

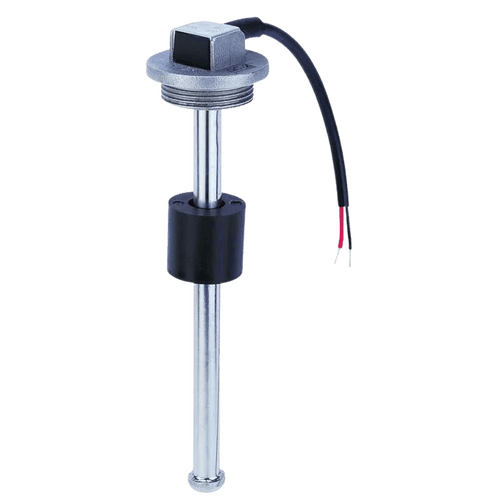

Enerdrive Tank Level Sender Sensor 375mm 1-1/4" BSP 240-33 ohms
The Enerdrive fuel & liquid gauge sender is designed to work with gauges using the 240-33Ohm resistance system. The sender uses a magnetic reed switch, which guarantees a steady output signal.
The small number of moving parts, and the solid stainless construction gives this sender a long working life, as well as making this fuel gauge sender anti-resistant and anti-explosion. This sender is rated for IP67, and is suitable for all applications.
Mounts via a 1 1/4? BSP pipe fitting and can be simply screwed into the top of a matching tank. The connection cable has a sealed entry into the top of the sender for water resistance. A 5 hole mounting flange adapter is available for thin wall tanks that are not suitable for screw threads.
|EN-TS-# Rod Style Senders||Description|
|Lengths||150 - 500mm (25mm Increments)|
|Wire Connection||Blue: Input/Common Negative
Black: Signal Output
|Housing Material||Stainless Steel 316|
|Mounting Position||Mounted in top of the Tank.|
|Mounting Type||1-1/4 BSP Thread.|
|Mounting Adapter Accessory (Sold Separately)||1 ¼" BSP thread to Dual 5 Hole Pattern Adapter.
Converts to SAE 5 hole or VDO 5 hole pattern for retro-fitting
