2B&S (32mm²) Black Single Core Marine Cable (Tinned) per Metre
2B&S (32mm²) Black Single Core Marine Cable (Tinned) per Metre
Black 190A Rated 32mm² Tinned Copper Cable for Marine & Dual Battery Systems
Key features: 32mm² (2 B&S) stranded tinned copper conductor, Corrosion-resistant marine grade construction, Durable black V90HT insulation.
Regular price
$14.90
Availability:
In Stock
View all products from Austech
Guaranteed Safe and Secure Checkout
99456
DESCRIPTION

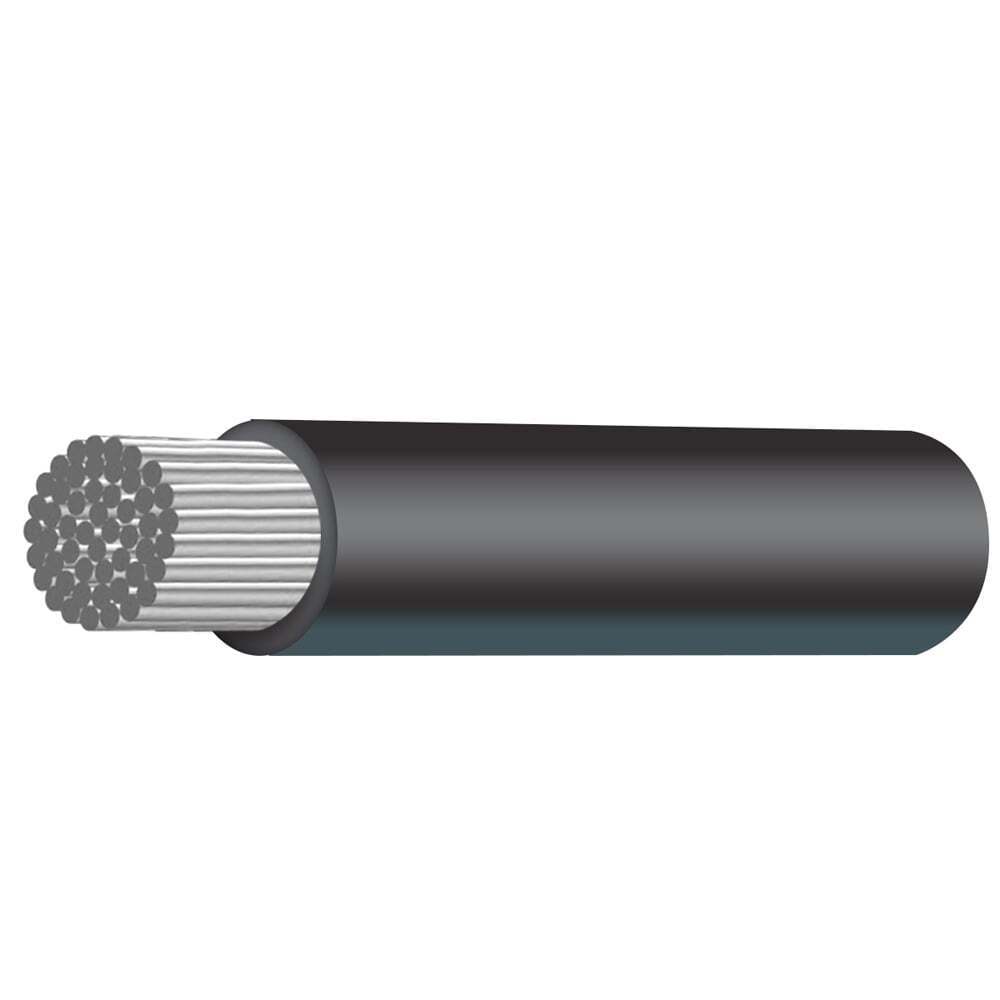

High-Performance 2B&S (32mm²) Tinned Copper Cabling for Marine and Automotive Systems
The Black 2B&S (32mm²) Tinned Copper Marine Cable is engineered to deliver uncompromising power transfer in the harshest environments. Designed specifically for marine vessels, 4WD dual battery setups, and off-grid power systems, this cable combines high-conductivity oxygen-free copper with durable insulation to ensure your electrical system performs reliably for years to come.
Unlike standard copper cabling that degrades rapidly when exposed to salt air and moisture, this premium Black 2B&S (32mm²) Tinned Copper Marine Cable features fully tinned conductors. This tin coating creates a robust barrier against oxidation and "black wire" corrosion, ensuring low resistance and consistent voltage delivery to critical components like inverters, winches, and start batteries.
Superior Current Handling and Heat Resistance
With a substantial 32mm² cross-sectional area (2 B&S), this cable is capable of handling high current loads up to 190A, making it the ideal choice for minimizing voltage drop over long runs. The conductor is encased in professional-grade V90HT insulation, which provides exceptional resistance to heat, abrasion, and chemicals found in engine bays and bilges.
*Note: The 190A current rating is based on single-core usage at 30°C ambient temperature; typical de-rating factors apply for bundled cables or higher operating temperatures.
Versatile Application: 12V, 24V, and 48V Systems
While frequently sought after for 12V automotive cable and marine applications, this cabling is rated for a maximum of 120V DC. This makes it perfectly suitable for modern 24V truck systems and 48V off-grid battery banks, ensuring safety and compliance across a wide range of DC voltages. Whether you are wiring a bow thruster, a DC-DC charger, or a solar regulator, this cable offers the flexibility and safety margin required for professional installations.
Key Features
- Oxygen-Free High Conductivity (OFHC) Copper: Ensures maximum electrical efficiency and minimal power loss.
- Tinned Conductor: Provides superior corrosion resistance essential for marine and coastal environments.
- V90HT Insulation: Rated for high temperatures and resistant to oil and flame.
- 190A Current Rating: heavy-duty capacity for high-draw appliances and charging systems.
- Multi-Voltage Suitability: Safe for 12V, 24V, and 48V DC applications (Rated to 120V DC).
Reliable Connection for Your Setup
Upgrade your power infrastructure with the Black 2B&S (32mm²) Tinned Copper Marine Cable. Whether fitting out a yacht or upgrading a camper trailer, this cable provides the durability and electrical integrity needed to power your adventures safely.
SPECIFICATIONS
Specifications
- Single core Insulation V90HT to AS/NZS 3191
- Conductor: Tinned Copper Conductor to AS/NZS 1125
- Insulation: V90HT to AS/NZS 3191
- Colour: Black
- Amp rating based on 100% duty cycle
- Amp ratings based on JASO D609:2001 single core at ambient temperature of 30C
- Not suitable for mains connection
- Voltage Rating AC 50V / DC 120V to AS/NZS 3000:2000
| Code | Industry Equivalent (B&S) | Number of Strands x Area (mm²) | Amp Rating at 30°C | Average Max D.C. Resistance at 20°C (Ω/m) | Nominal Insulation Thickness (mm) | Nominal O.D. (mm) | Nominal Mass (Kg/100mt) |
|---|---|---|---|---|---|---|---|
| MBS2 | 2 | 455/0.30 32.15 | 190 | 1.7 | 0.58 | 10.7 | 35.7 |
Features:
- OFHC (oxygen free high conductivity copper) is employed in audio and industrial electronic units.
- High electric and thermal conductivity. Since OFHC contains oxygen and impurities in very small quantities only, it shows excellent electric conductivity and thermal conductivity (Oxygen and impurities reduce the conductivity)
- Excellent hydrogen enbrittlement resistance (TPC) Tough pitch copper becomes very brittle when it is heated at higher then 600C under a reduction gas atmosphere including hydrogen gas. Since OFHC contains a very low oxygen content only, it does not show any brittleness
Please Note! Austech Wire & Cable Pty. Ldt. takes every precaution to ensure that the information in this publication is correct but accepts no liability of any kind and reserves the right to change any detail in this catalogue without notification. Austech Wire & Cable
| SKU: | Ty-MBS145503-BK |
| Model #: | MBS2B30 |
| MPN: | MBS2B30 |
