Victron 12/24V 15A SmartSolar MPPT 75/15 Bluetooth Solar Charge Controller

Bluetooth built-in for remote monitoring and control


Front view of Victron SmartSolar MPPT 75/15 charge controller showing labels and terminalsHighlights:Bluetooth Smart Built-in: Wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers,Status LEDs: Visual indicators for Bulk, Absorption, and Float charging stages,Screw Terminals: Secure connection points for 6mm² (AWG10) battery, PV, and load wiring,QR Code: Direct link to the product manual and technical support documentation,IP43 Protection: Environmental protection for electronic components with IP22 connection area.
Perspective view of Victron MPPT 75/15 showing green terminal blocks and yellow 20A blade fuseHigh-angle perspective highlighting the robust 6mm² screw terminals and a user-replaceable 20A blade fuse for circuit protection.Front-facing perspective view of the blue MPPT 75/15 enclosure and terminal coverSide perspective of the SmartSolar MPPT 75/15 showing casing design and mounting pointsClose-up of the connection terminal block and user-replaceable 20 amp fuse on a solar controllerDetailed view of the terminal block assembly, clearly showing the battery, PV, and load output connection points.Smartphone screen showing real-time solar harvest and battery status in VictronConnect appThe VictronConnect app provides wireless Bluetooth monitoring of real-time performance including solar wattage and battery charge state.Smartphone screen displaying 30-day historical energy yield in the VictronConnect appAccess comprehensive historical data for up to 46 days, including daily yield and battery voltage extremes via the Bluetooth interface.Technical specifications table for Victron SmartSolar MPPT 75/10 to 100/20 modelsKey features: Ultra-fast Maximum Power Point Tracking (MPPT), Automatic 12V or 24V battery voltage detection, Peak efficiency of 98% for minimal power loss, Multi-stage adaptive charging for healthy batteries, VE.Direct port for remote monitoring and integration, Short circuit and over temperature protection.Dimensional drawing for SmartSolar MPPT 75/10 and 75/15 showing 100x113x50mm measurements
Front view of Victron SmartSolar MPPT 75/15 charge controller showing labels and terminals
Victron 12/24V 15A SmartSolar MPPT 75/15 Bluetooth Solar Charge Controller
Perspective view of Victron MPPT 75/15 showing green terminal blocks and yellow 20A blade fuse

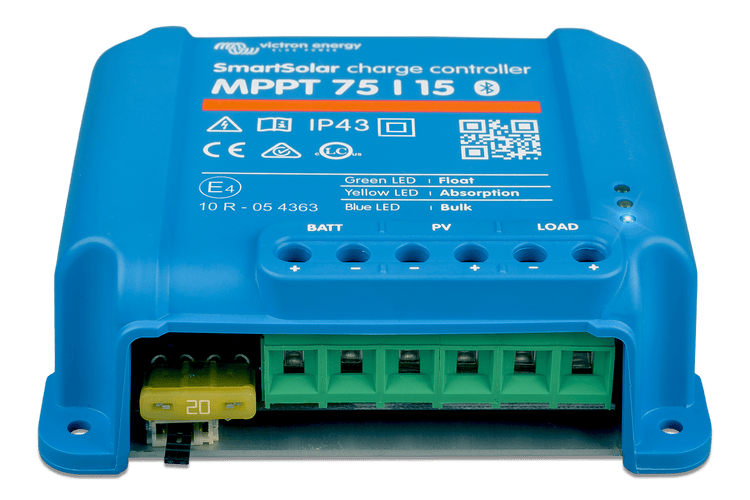

Front-facing perspective view of the blue MPPT 75/15 enclosure and terminal cover

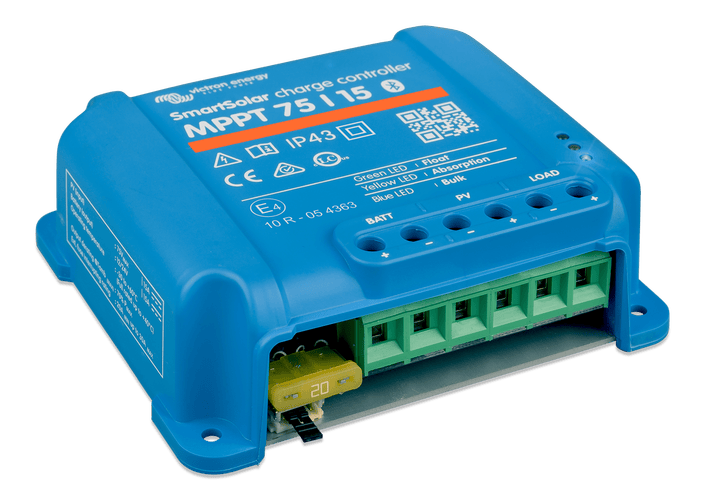

Side perspective of the SmartSolar MPPT 75/15 showing casing design and mounting points
Close-up of the connection terminal block and user-replaceable 20 amp fuse on a solar controller

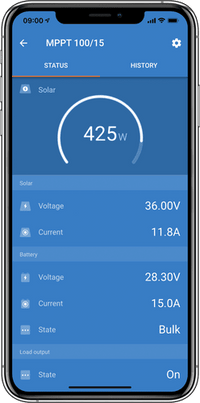

Smartphone screen showing real-time solar harvest and battery status in VictronConnect app

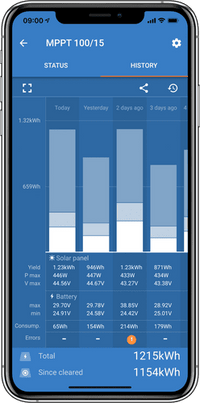

Smartphone screen displaying 30-day historical energy yield in the VictronConnect app
Technical specifications table for Victron SmartSolar MPPT 75/10 to 100/20 models
Dimensional drawing for SmartSolar MPPT 75/10 and 75/15 showing 100x113x50mm measurements
Regular price $86.63
$119.90
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

48
Front view of Victron SmartSolar MPPT 75/15 charge controller showing labels and terminals

Victron 12/24V 15A SmartSolar MPPT 75/15 Bluetooth Solar Charge Controller

DESCRIPTION

Victron 12/24V 15A SmartSolar MPPT 75/15 Bluetooth Solar Charge Controller

Maximize your solar installation's efficiency with the innovative Victron 12/24V 15A SmartSolar MPPT 75/15 Bluetooth Solar Charge Controller. Designed for optimal performance and ease of use, this controller harnesses advanced technology to ensure your solar system operates at its peak.

Bluetooth Smart: Simplified Solar Management

The integration of Bluetooth Smart technology in our SmartSolar Charge Controllers offers the convenience of wireless setup, monitoring, updating, and synchronization. This feature enables easy management of your solar system directly from your smartphone or tablet, enhancing your solar energy management experience.

VE.Direct: Wired Data Connection

VE.Direct provides a reliable wired data connection to Cerbo GX and other GX devices, PCs, or other compatible devices. This direct connection facilitates efficient data sharing and device integration, improving your solar system's overall performance.

Ultra-fast MPPT: Increased Energy Harvest

Utilize our ultra-fast Maximum Power Point Tracking (MPPT) technology to significantly boost your energy harvest—by up to 30% over PWM charge controllers and 10% over slower MPPT controllers. This feature is especially beneficial in conditions with cloudy skies and fluctuating light intensity, ensuring you capture the maximum amount of solar energy available.

Load Output: Intelligent Battery Protection

Connect all loads to the load output to prevent battery over-discharge. The intelligent load output feature disconnects the load when the battery voltage falls to a predetermined level, employing our smart battery management algorithm for optimal battery protection and operation.

Battery Life: Prolonged Battery Longevity

The Battery Life algorithm is a key feature of our solar charge controller, designed to recharge the battery efficiently and avoid harmful cycling between partially charged and fully discharged states. This approach ensures a near-full recharge approximately once every week, significantly extending your battery's lifespan.

Programmable Battery Charge Algorithm: Tailored to Your Needs

Our software allows for customization of the battery charge algorithm, providing the flexibility to tailor charging processes to your specific requirements. This customization ensures your solar system operates efficiently and aligns with your energy needs.

Day/Night Timing and Light Dimming

Explore additional functionalities such as day/night timing and light dimming options available through our software. These features offer enhanced control over your solar system, allowing for further optimization of energy usage.

Internal Temperature Sensor: Precise Charging

The inclusion of an internal temperature sensor ensures accurate charge compensation in response to temperature fluctuations. This sensor adjusts absorption and float charge voltages accordingly, guaranteeing efficient and accurate battery charging under varying environmental conditions.

Optional External Battery Voltage and Temperature Sensing

Enhance your system's monitoring capabilities with optional accessories like Smart Battery Sense or a BMV-712 Smart Battery Monitor. These devices communicate critical battery voltage and temperature information to your SmartSolar Charge Controllers via Bluetooth, optimizing your system's performance and reliability.

Advanced Charging Features

Adaptive 3-Stage Battery Charging

The 3-stage charging process, consisting of Bulk, Absorption, and Float stages, ensures efficient battery charging. This adaptive charging strategy adjusts the duration of the Absorption stage based on the battery's discharge level and maintains batteries at a safe voltage, thus optimizing battery health and ensuring they remain fully charged.

  • Bulk Stage: Delivers maximum charge current for rapid battery charging.
  • Absorption Stage: Modulates to a constant voltage, reducing current to prevent overcharging.
  • Float Stage: Maintains batteries at a lower voltage to preserve their charged state, particularly when solar power is not available at night.

Flexible Charge Algorithm and Equalization Charging

Customize your charging process with the VictronConnect App, selecting from 8 pre-set charge algorithms or creating a fully programmable charge algorithm. This flexibility ensures optimal charging efficiency tailored to your needs. Additionally, activate equalization charging for certain lead-acid batteries to balance cell voltages, further enhancing battery health and performance.

Choose the Victron 12/24V 15A SmartSolar MPPT 75/15 Bluetooth Solar Charge Controller for a highly efficient, user-friendly, and customizable solar charging solution, ensuring your solar system's maximum performance.

SPECIFICATIONS

Specifications

Solar Charge Controller MPPT 75/15
Battery voltage (auto select) 12/24 V
Rated charge current 15 A
Nominal PV power, 12 V 220 W
Nominal PV power, 24 V 440 W
Nominal PV power, 48 V n.a.
Max. PV short circuit current 15 A
Automatic load disconnect Yes
Max. PV open circuit voltage 75 V
Peak efficiency 98%
Self-consumption – load on 12 V: 19 mA 24 V: 16 mA
Self-consumption – load off 12 V: 10 mA 24 V: 8 mA
Charge voltage 'absorption' 14.4 V / 28.8 V (adj.)
Charge voltage 'float' 13.8 V / 27.6 V (adj.)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 15 A
Low voltage load disconnect 11.1 V / 22.2 V or 11.8 V / 23.6 V or Battery Life algorithm
Low voltage load reconnect 13.1 V / 26.2 V or 14 V / 28 V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Enclosure
Colour Blue (RAL 5012)
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.6 kg
Dimensions (h x w x d) 100 x 113 x 50 mm
Standards
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Stored Trends
Data stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Number of days trends data is stored 46

Note:

1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter, the minimum PV voltage is Vbat + 1 V.

2. A PV array with a higher short circuit current may damage the controller.


SKU: VIC-SCC075015060R
Barcode: 8719076040804
Model #: SCC075015060R
MPN: SCC075015060R

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
