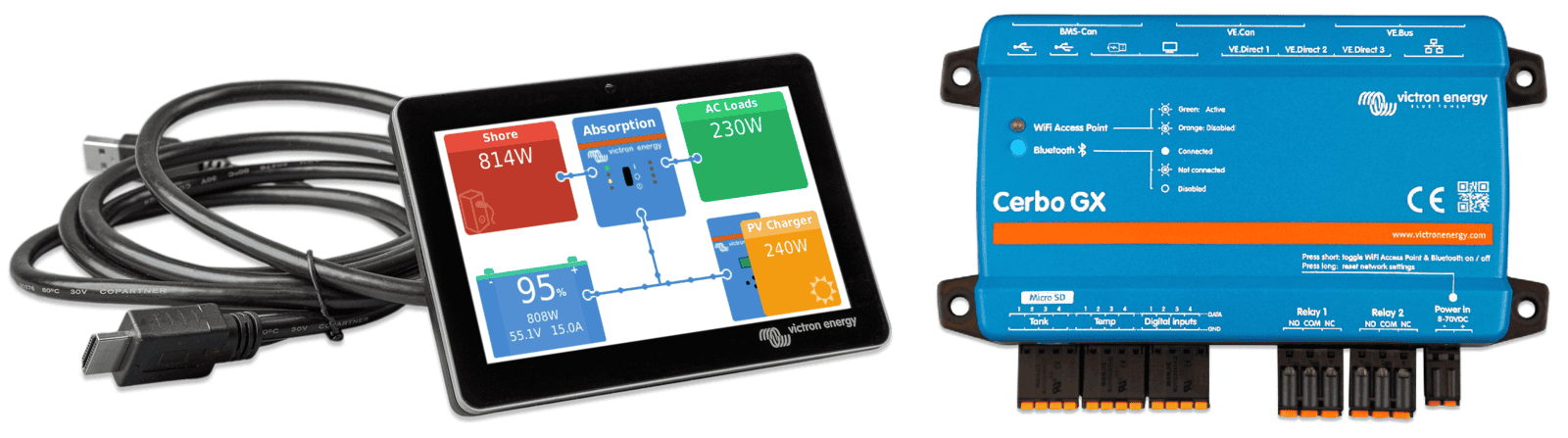

Victron Cerbo GX MK2 & GX Touch 70 Display Combo
Victron Cerbo GX MK2 & GX Touch 70 Display Combo
New GX device!
Key features: Wall or 35 mm DIN rail mounting capability, Micro SD card slot for local data storage, Wide 8-70V DC input voltage range, Integrated WiFi Access Point and Bluetooth connectivity, Multiple isolated communication ports including VE.Bus and VE.Direct.
Highlights:BMS-Can & VE.Can: Communication ports for managed batteries and CAN-bus enabled devices,VE.Direct Ports: Three separate isolated VE.Direct ports for MPPTs and battery monitors,Status LEDs: Visual indicators for WiFi Access Point and Bluetooth connection status,IO Terminal Inputs: Inputs for resistive tank levels, temperature sensors, and digital signals,Programmable Relays: Two programmable relays for alarms, generator start/stop, or pump control,Power Input: Main DC power input terminal accepting 8 to 70V DC.
The Victron GX Touch 70 is a 7-inch water-resistant touchscreen that provides an instant system overview and allows for intuitive configuration of the Cerbo GX MK2 via a single-cable connection.
Guaranteed Safe and Secure Checkout
0
DESCRIPTION

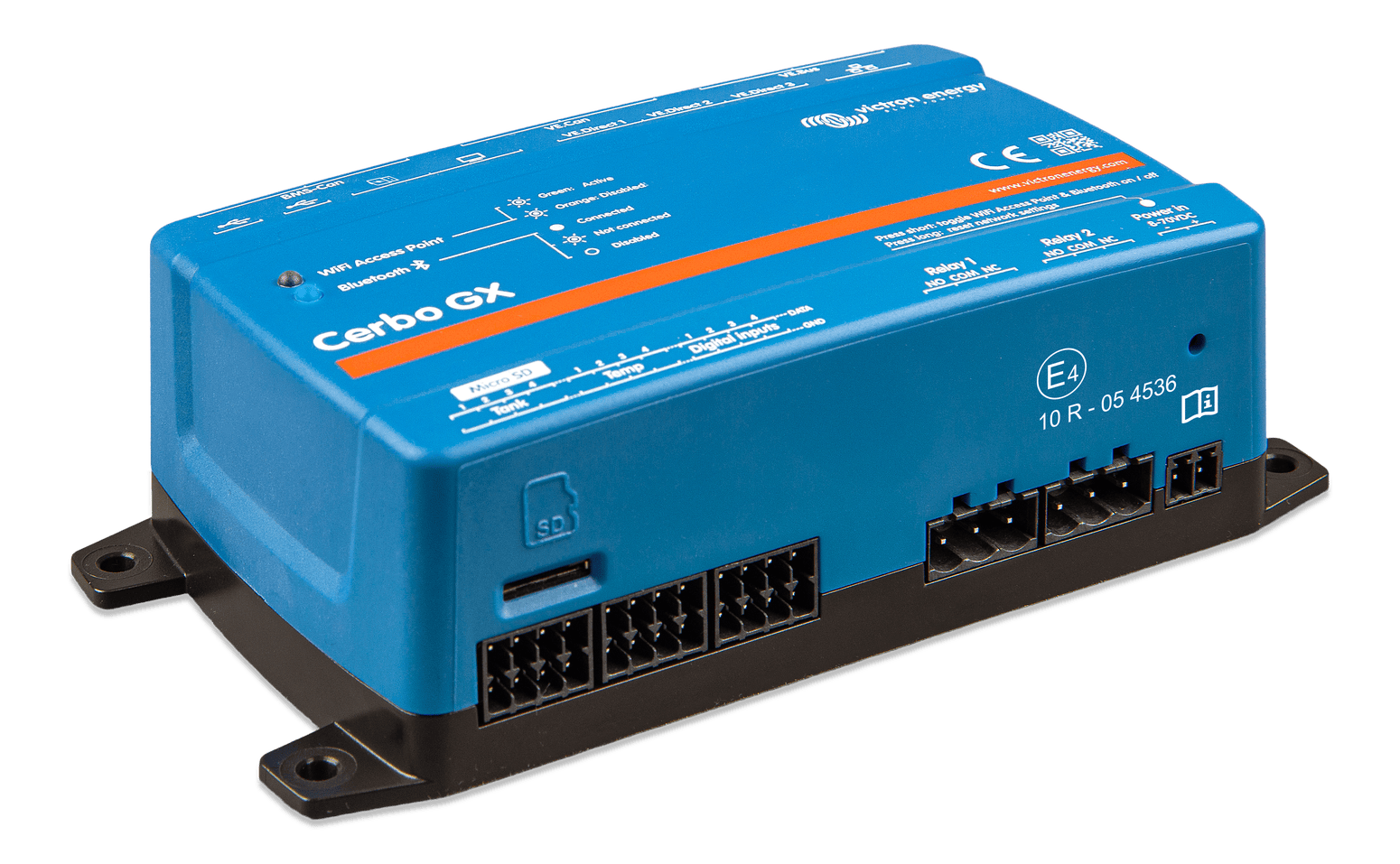

Victron Cerbo GX MK2: Power System Monitor
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.
Maximise your system performance
The Cerbo GX MK2 maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.
Expand your view
The new GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
Simple mounting and configuration
The Cerbo GX MK2 is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.
Outsmart any power challenge
The Cerbo GX MK2 serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles it keeps vital systems function flawlessly. But that’s just to name a few...
Victron GX Touch 70: The Essential 7" Display for System Monitoring and Control
Intuitive Touchscreen Interface for Cerbo GX: Upgrade your system's control and monitoring capabilities with the Victron GX Touch 70. This 7-inch touchscreen display offers the same detailed overview of your system as its smaller counterpart but with larger visuals for improved ease of use. Ideal for those who prefer or require bigger on-screen elements for clarity, it ensures quick and efficient adjustments and settings optimization. Perfectly integrating with the Cerbo GX, the GX Touch 70 maintains an unparalleled user experience in system management with enhanced visibility.
Effortless Installation and Sleek Design
The GX Touch 70 redefines installation convenience. Its bolt-on, top-mountable design means no complex cut-outs are necessary, making it ideal for clean and crisp dashboard setups. The super slim profile of the screen adds sophistication to your control panel. With just one cable connection, it simplifies the setup process, perfect for both professional installers and DIY enthusiasts.
Enhanced System Control with the Cerbo GX
As a companion to the Cerbo GX, the communication centre of your power system, the GX Touch 70 allows for complete control over your setup. Whether you're on-site or remote, you have the power to maximize system performance at your fingertips.
Seamless Integration with Cerbo GX for Superior Control
Experience enhanced system management with the Victron GX Touch 70, a dedicated 7" touchscreen display designed exclusively for use with the Cerbo GX. This display serves as a visual interface, offering you a clear and interactive overview of your system's status and performance. It allows you to monitor and adjust settings conveniently, ensuring your system operates at its best.
Though the GX Touch 70 itself does not have Bluetooth capability or direct access to the Victron Remote Management (VRM) portal, it works in tandem with the Cerbo GX to provide these functionalities. By connecting to the Cerbo GX, which is the hub of communication and connectivity, you can access a wide range of features including remote system management and data monitoring through the VRM portal, as well as connectivity options with the VictronConnect app when used with compatible devices.
The GX Touch 70 enhances the usability of your Cerbo GX, making it easier to interact with your system in real-time. Its intuitive interface simplifies the process of monitoring and adjusting your system, ensuring that you have all the critical information at your fingertips. With the GX Touch 70, managing your Victron energy system becomes more straightforward and efficient, providing a user-friendly gateway to advanced power solutions.
Protection Cover Included for Added Durability
Now included with the GX Touch 70 is a protection cover, ensuring your display remains safe from environmental elements, enhancing its durability and longevity.
Choose the Victron GX Touch 70 for a smarter, more connected, and efficient power management experience. Its combination of intuitive control, sleek design, and advanced connectivity options make it a pivotal addition to any Victron energy system.
SKU: VIC-Cerbo-MK2-Touch_70
Visit Victron's Official Victron Cerbo GX MK2 & GX Touch 70 Display Combo Webpage Here
SPECIFICATIONS
Specifications
| Cerbo GX | |
|---|---|
| Supply voltage | 8 – 70 VDC |
| Power draw without GX Touch | 2.8 W @ 12 V |
| Power draw with GX Touch | Backlight off: 3.8 W @ 12 V |
| Backlight at max: 4.8 W @ 12 V | |
| Mounting | Wall or DIN rail (35 mm) |
| Communication ports | |
| VE.Direct ports (always isolated) | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus (always isolated) | 2 paralleled RJ45 sockets |
| VE.Can | yes - non isolated |
| BMS-Can port | Yes |
| Bluetooth | Yes (4) |
| IO | |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs | 4 |
| Relays | 2 x NO/NC 30VDC:6A or 70VDC: 1A or 125VAC: 6A |
| Other | |
| Outer dimensions (h x w x d) | 78 x 154 x 48 mm |
| Operating temperature range | -20 to +50 °C |
| IP Rating | IP20 |
| Standards | |
| Safety | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
Notes:
- For more detailed information about the Cerbo GX and the GX Touch, please visit the Victron GX product range page at Victron live
- DIN rail mounting requires an additional accessory purchased separately - DIN35 Adapter.
- The listed maximum in the above table is the total of connected VE.Direct devices such as MPPT Solar Charge controllers. 'Total' means all directly connected devices plus the devices connected over USB. The limit is mostly bound by CPU processing power. Note that there is also a limit to the number of other types of devices, of which often multiple are connected: PV Inverters. Up to three or four three-phase inverters can typically be monitored on a Cerbo GX. Devices with a higher power CPU can monitor more.
- Bluetooth functionality is intended to be used to assist with initial connection and networking configuration. You cannot use Bluetooth to connect to other Victron products (e.g., SmartSolar charge controllers).
- In Cerbo GX hardware, there are two relays. Currently, Relay 1 can be used for programming as an alarm relay, generator start/stop, tank pump, temperature-controlled relay, or manual operation. Relay 2 is available for programming as a temperature-controlled relay or manual operation in the Relay menu of the GX (requires firmware 2.80 or higher).
| SKU: | VIC-Cerbo-MK2-Touch_70 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
