Scanstrut 12V ATMOS Integrated Air Pump Station
Scanstrut 12V ATMOS Integrated Air Pump Station
Waterproof 20 PSI Two-Stage Marine Inflator with Digital Display
Key features: Integrated 12V air pump station, High-brightness digital LCD display, Flush-mount design for seamless installation, Protective UV-resistant cover.

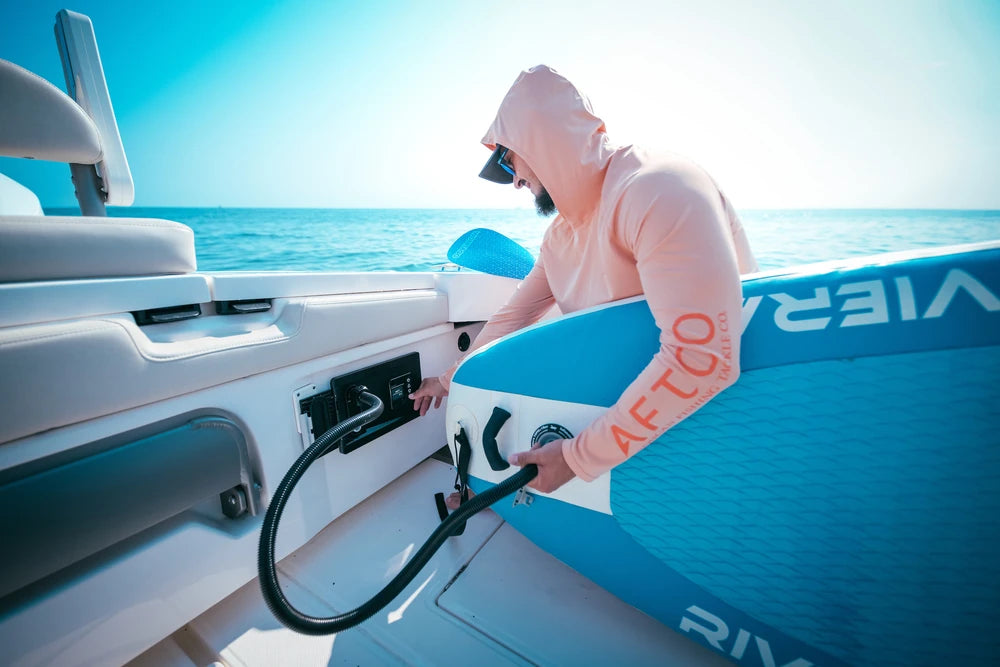

Highlights:Inflate Port: High-volume output port for inflating SUPs and towables,Deflate Port: High-volume suction port for quick deflation and storage,LCD Display: Real-time pressure readout with PSI and BAR options,Interface: Simple button control for power, pressure setting, and mode selection,Instruction Door: Protective door containing safety warnings and QR code manual.

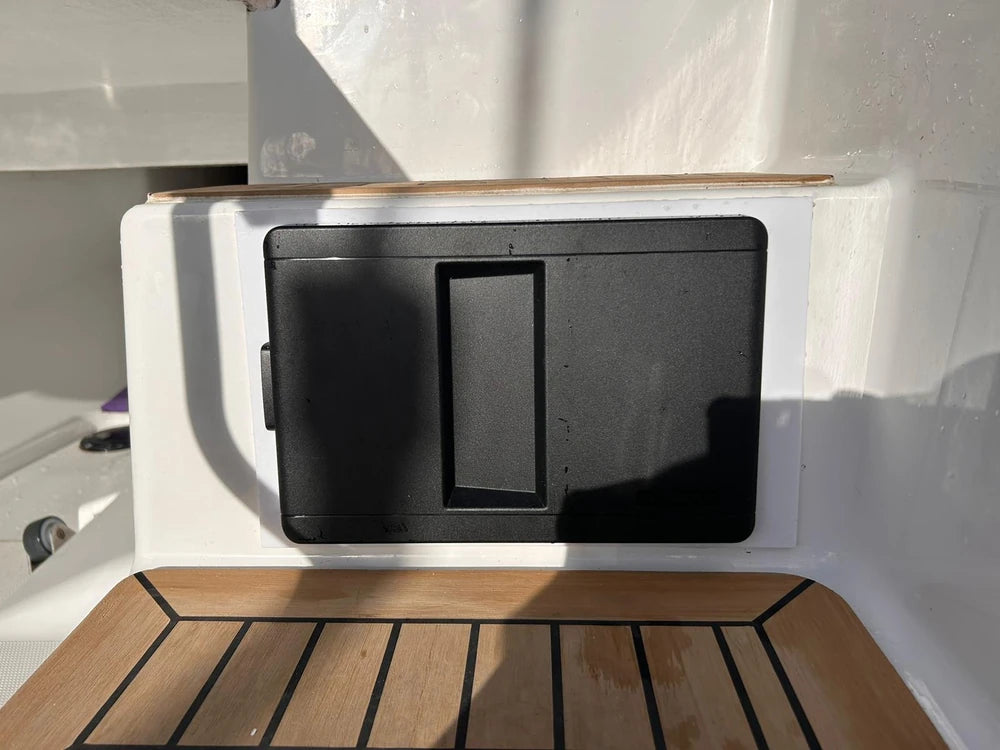

The Scanstrut ATMOS features a protective sun cover that shields the internal ports and display from UV rays and salt spray when the unit is not in use.

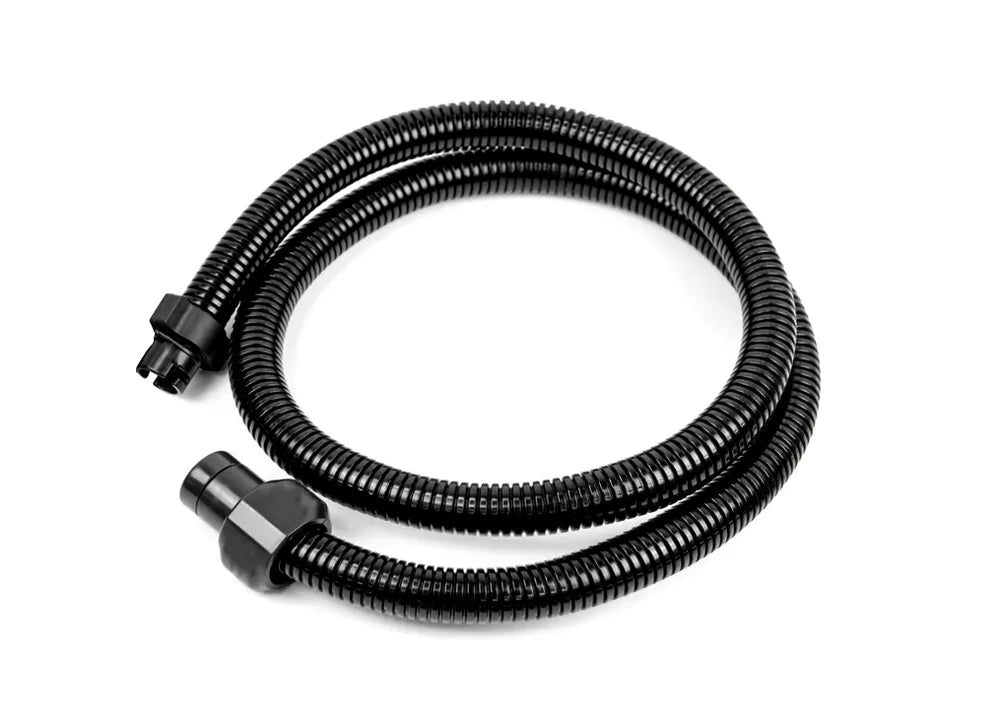

High-quality 2.5m UV-stable flexible air hose with durable bayonet connectors designed specifically for the ATMOS air station.





DESCRIPTION
Scanstrut ATMOS: Premium 12V Built-In Marine Air Station
Maximise your time on the water and eliminate the physical strain of manual inflation with the Scanstrut 12V ATMOS Integrated Air Pump Station. Designed specifically for the demanding marine environment, this highly efficient, flush-mounted air station is engineered to effortlessly inflate and deflate stand-up paddleboards (SUPs), towables, kayaks, and swim platforms. By replacing low-grade portable 12V plug-in pumps and exhaustive manual pumping, this system provides a permanent, professional-grade solution that integrates seamlessly into your boat or recreational vehicle.
Innovative Two-Stage Pumping Technology
At the core of this system is an advanced two-stage pump mechanism that delivers both high volume and high pressure to suit a wide variety of inflatable toys and utility platforms. The intelligent system automatically switches between stages to provide optimal airflow and pressure.
- Stage 1: High-Volume, Low-Pressure (HVLP) moves large volumes of air (up to 350 LPM) rapidly, making it perfect for the initial filling of large items like swim platforms and heavy-duty towables.
- Stage 2: High-Pressure, Low-Volume (HPLV) automatically takes over at 1.1 PSI, generating up to 20 PSI (1.37 Bar) to firm up smaller, high-pressure equipment such as modern drop-stitch paddleboards.
This automated transition ensures fast inflation times without overloading your electrical system. For example, a typical 10.6-foot SUP reaches 20 PSI in just six to eight minutes, while deflation takes only one minute.
Rugged, Waterproof, and Safe for Marine Use
Built to thrive in harsh Australian marine and coastal environments, this air station features an IPX6 waterproof rating for both the front and rear compartments, provided the protective door is closed. The internal printed circuit board (PCB) is fully encapsulated and conformal coated, offering superior resistance against moisture, salt spray, and dust. Furthermore, it is fully certified for Ignition Protection (ISO 8846 and SAE J1171), allowing safe installation in areas where fuel vapours may be present.
Intuitive Interface and Easy Installation

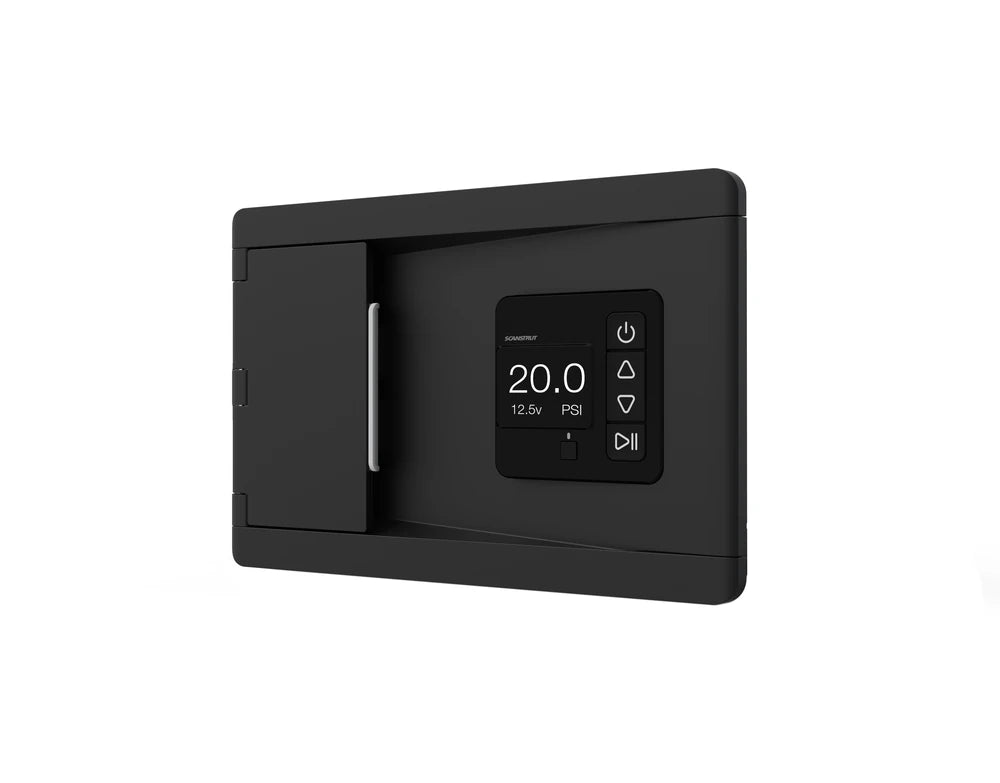

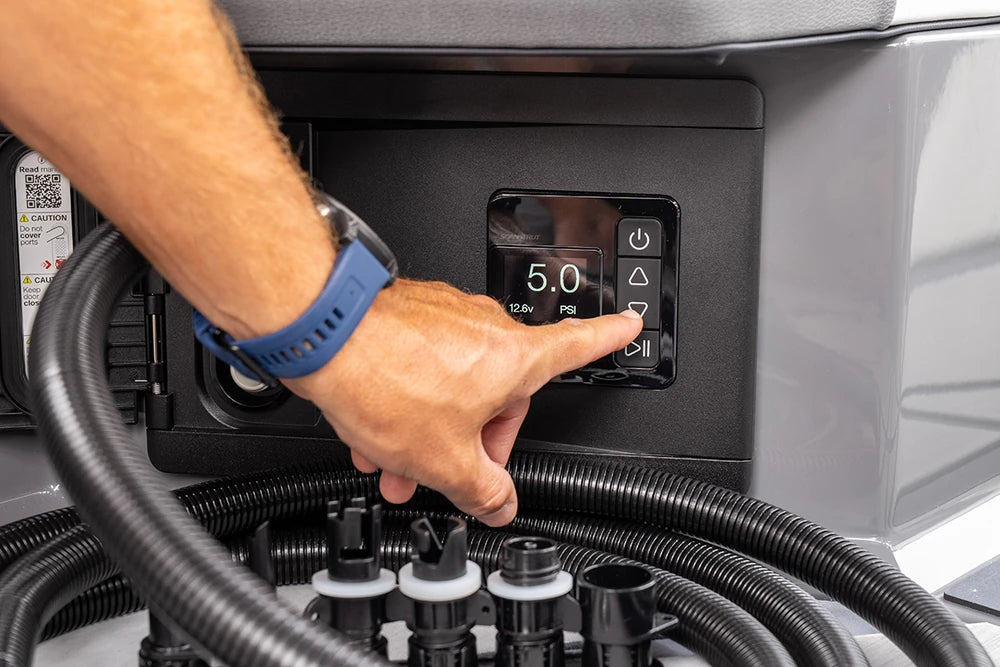

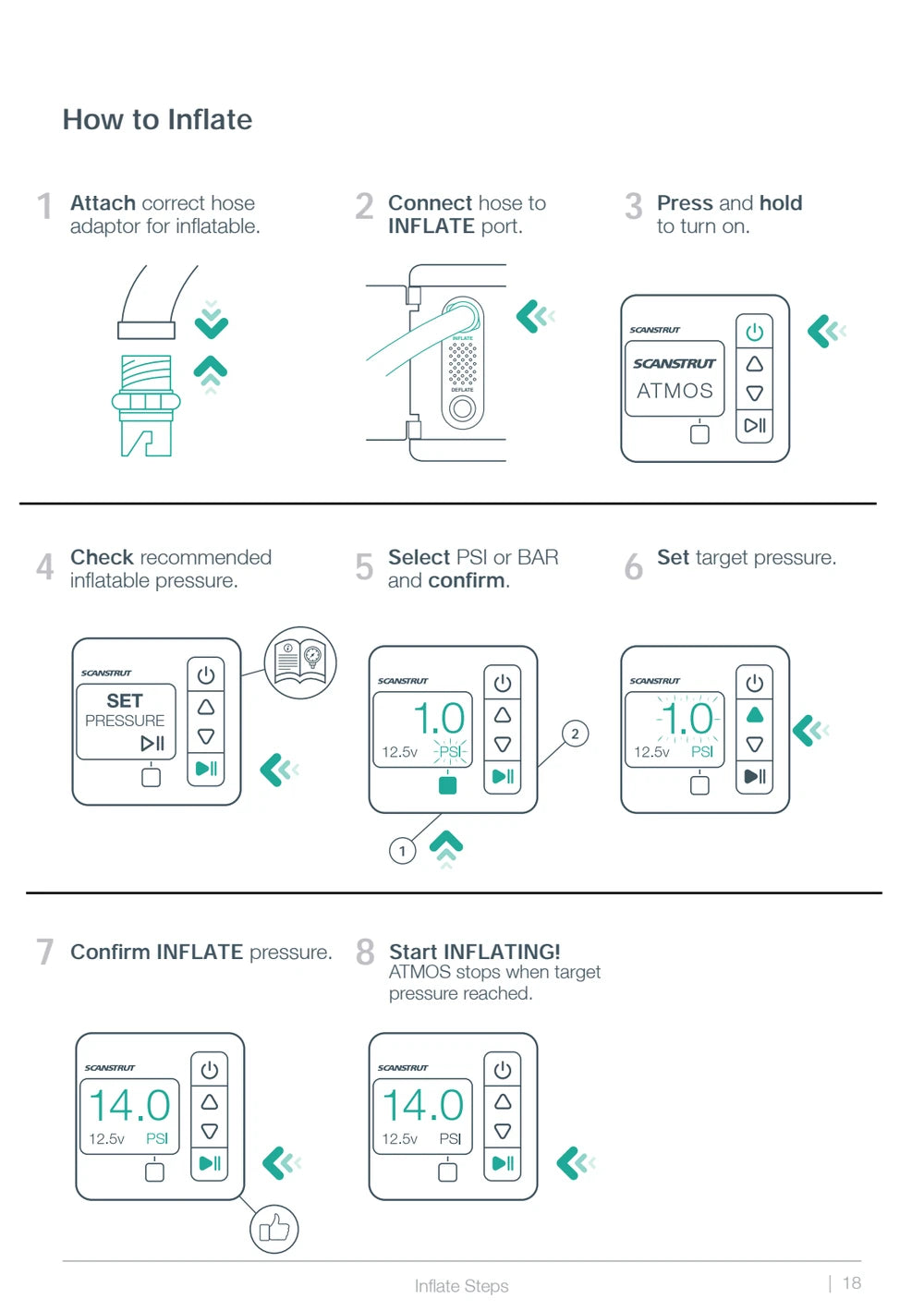

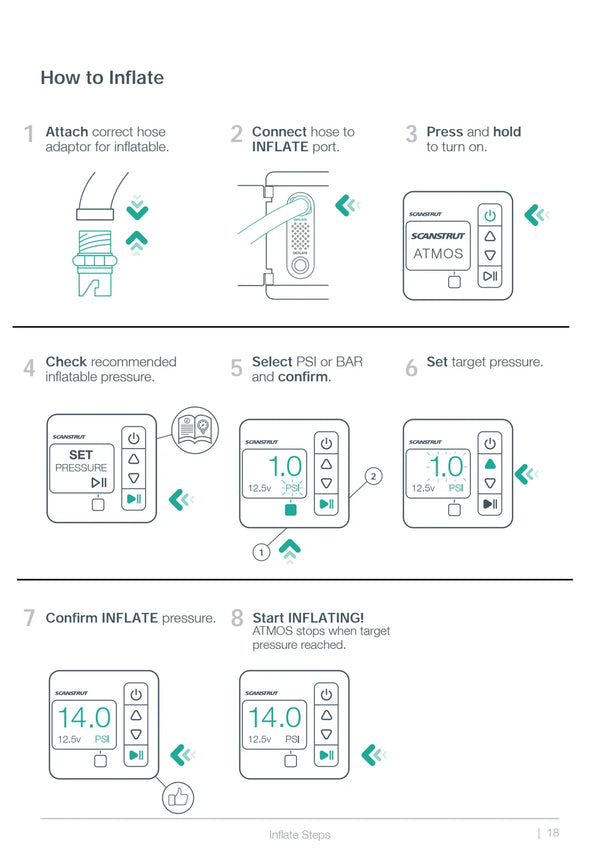

Operating the station is incredibly simple thanks to the high-brightness, full-colour LCD screen that remains legible even in direct sunlight. The display provides real-time pressure monitoring (selectable in PSI or Bar) alongside a live battery voltage readout. Tactile, soft-touch TPE buttons allow for easy adjustment even with wet hands.
Installation is straightforward. The compact footprint and shallow 110mm cavity depth requirement mean it can be mounted into seating bases, side consoles, or near the swim platform. It draws a maximum of 12A (140W), making it highly compatible with standard 12V battery systems without requiring excessive cable sizing.
Key Features and Specifications
- Maximum output: 20 PSI (1.37 Bar) with automatic shut-off at the target pressure

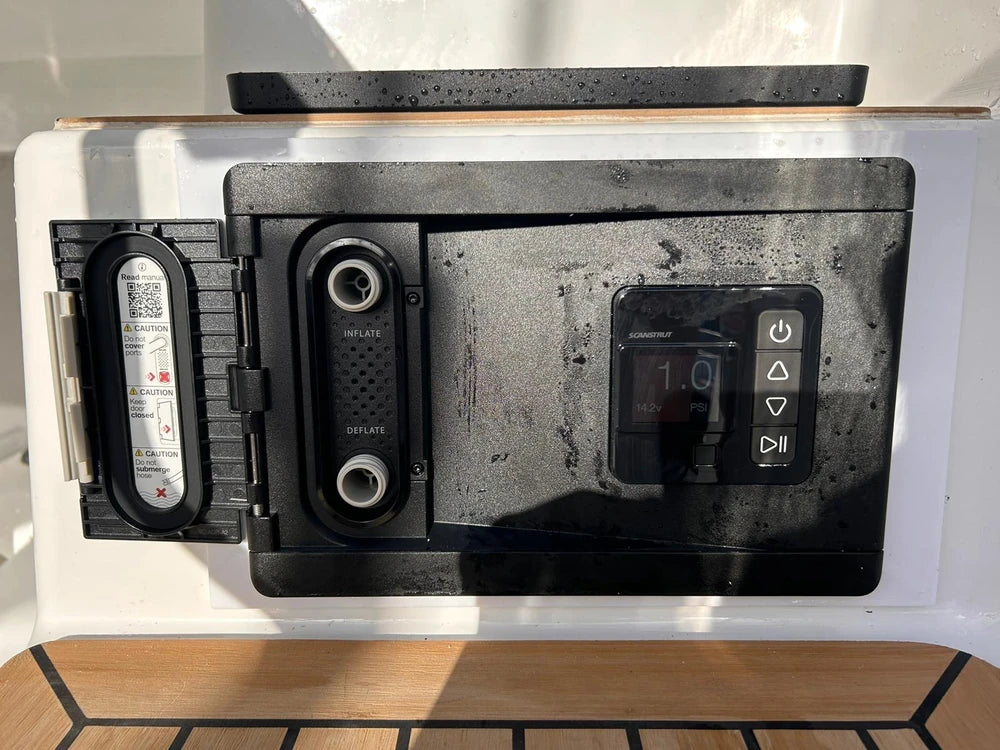

- Integrated ports: Dedicated inflate and deflate ports for rapid deployment and pack-down
- Comprehensive kit: Supplied with a heavy-duty 2.5m (8ft) flexible hose and 6 versatile valve connectors (including Boston, C7, and H3/HR)
- Thermal and electrical protection: Built-in safeguards against reverse polarity, short circuits, under-voltage, and overheating
- Low standby draw: Automatically powers down after 5 minutes of inactivity (0.1W max standby draw)
- UV protection: Includes a dedicated sun cover to protect the interface from UV degradation and dirt when not in active use
Ready for Effortless Inflation?
Stop wasting precious time and energy manually pumping up your water toys. Upgrade your vessel with a highly reliable, integrated inflation system that works at the push of a button. Order the Scanstrut 12V ATMOS Integrated Air Pump Station today to experience fast, professional-grade inflation on your next marine adventure.
SKU: SST-SC-AOB-A2

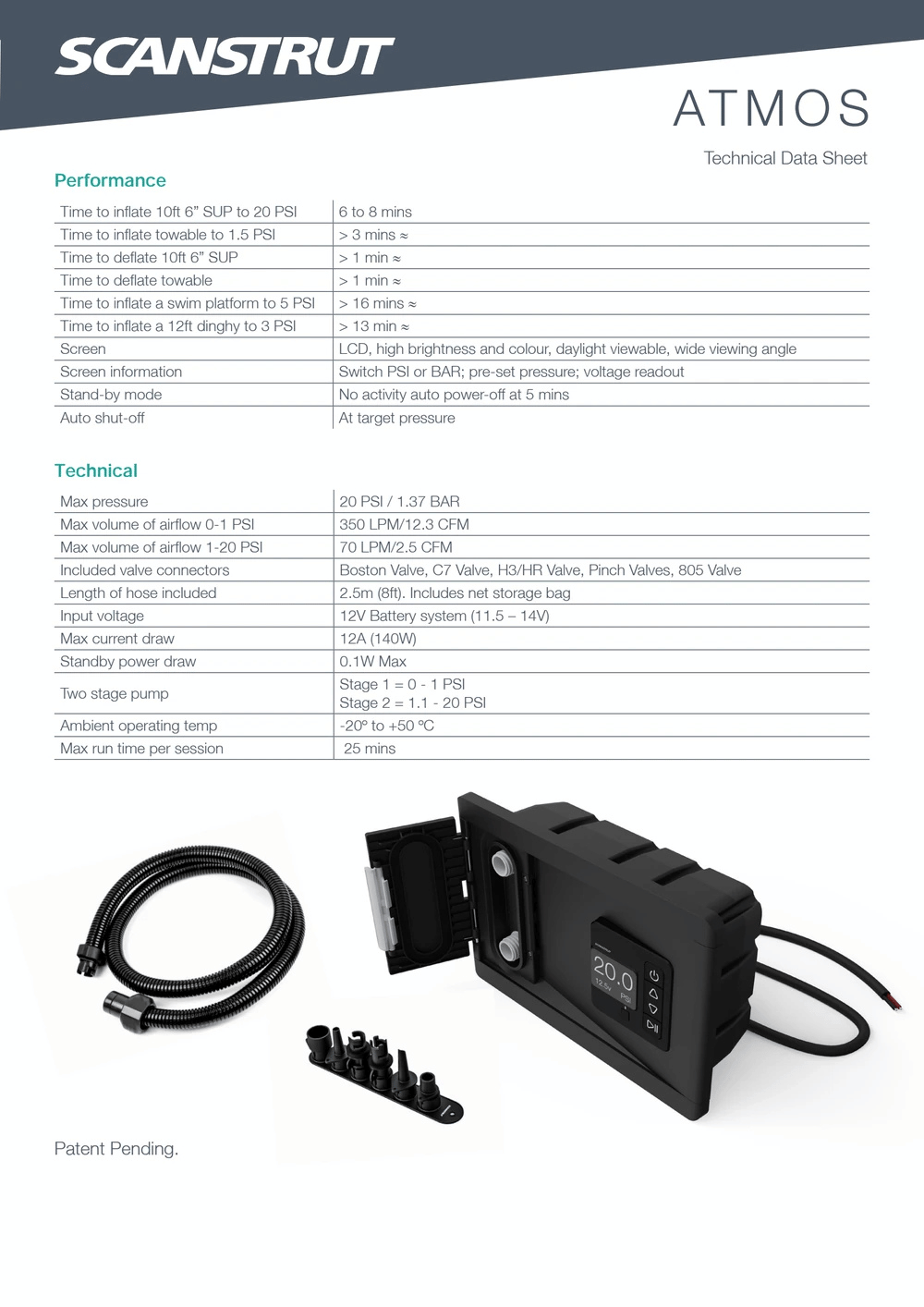

SPECIFICATIONS
Specifications
| Model | SC-AOB-A2 |
|---|---|
| Product | ATMOS - Brushless 12V Integrated Airstation |
| Max Pressure | 20 PSI / 1.37 BAR |
| Max Volume Of Airflow 0-1 PSI | 350 LPM/12.3 CFM |
| Max Volume Of Airflow 1-20 PSI | 70 LPM/2.5 CFM |
| Input Voltage | 12V Battery system (11.5 – 14.5V) |
| Max Current Draw | 12A (140W) |
| Standby Power Draw | 0.1W Max |
| Two Stage Pump | Stage 1 = 0 - 1 PSI Stage 2 = 1 - 20 PSI |
| Ambient Operating Temp | -20º to +50 ºC |
| Max Run Time Per Session | 25 mins |
| Max Noise Level (Unmounted) | 85 dB |
| Included Valve Connectors | Boston Valve, C7 Valve, H3/HR Valve, Pinch Valve, 805 Valve |
| Length Of Hose Included | 2.5 m (8 ft). Includes net storage bag |

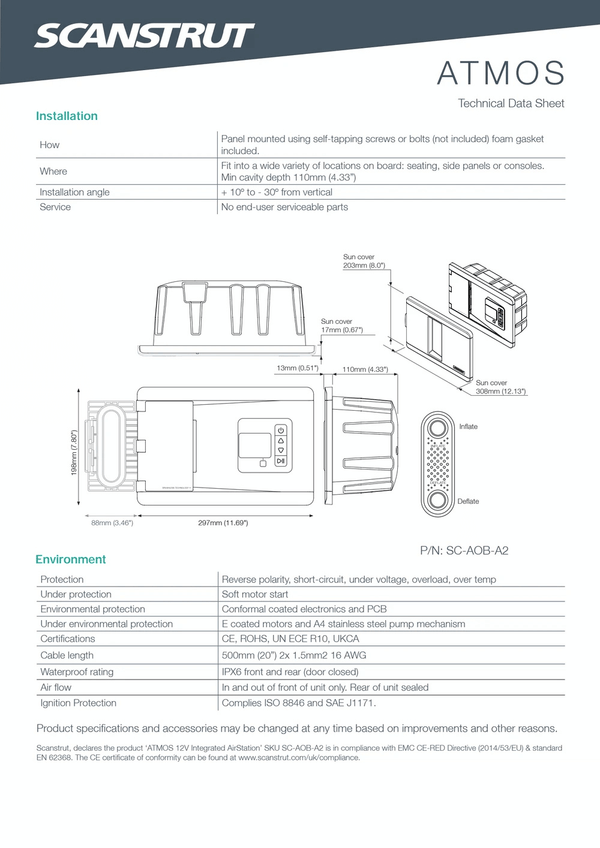

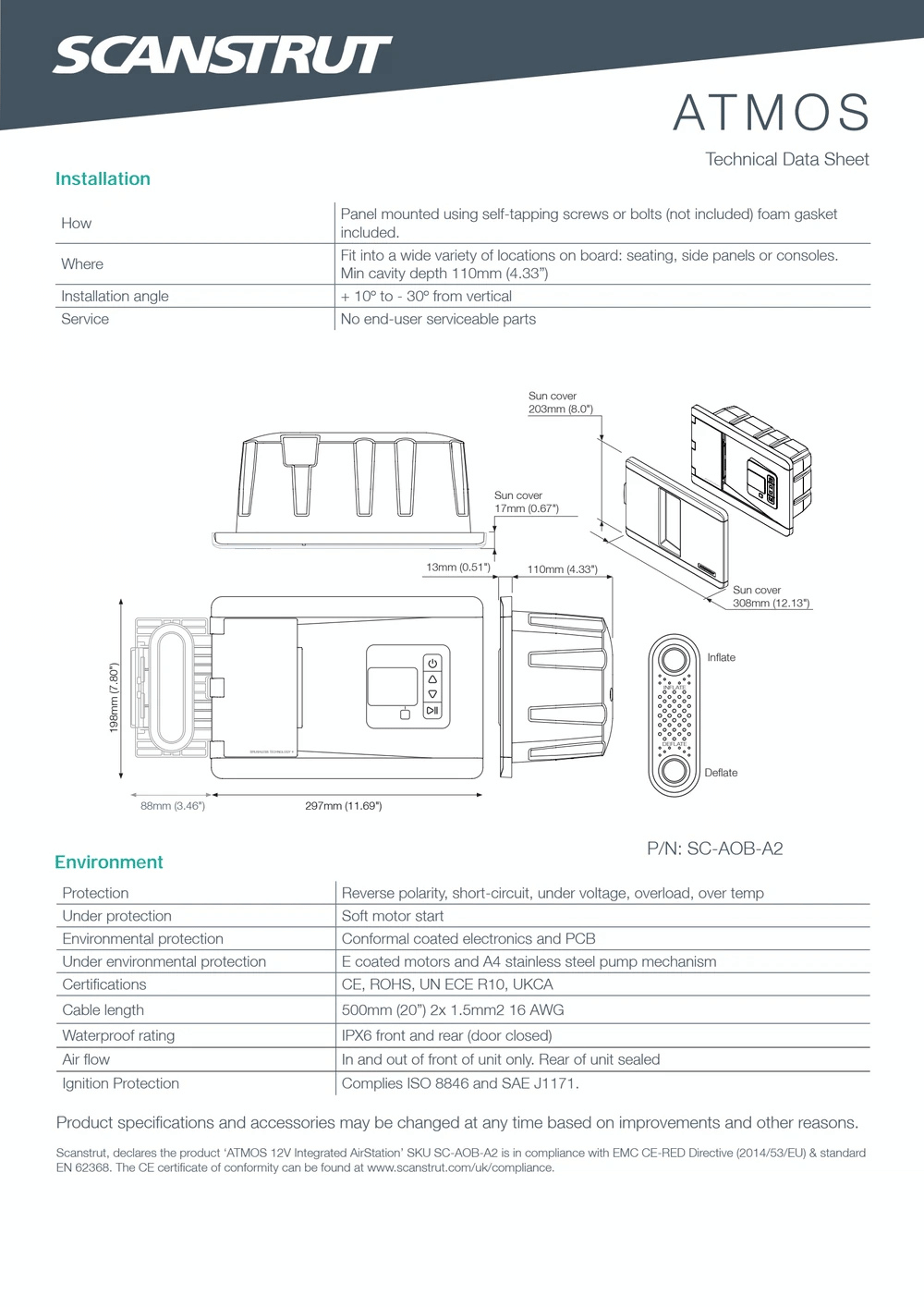

| Installation How? | Panel mounted using self-tapping screws. Or bolts (not included). |
| Installation Where? | Fit into a wide variety of locations on board: seating, side panels or consoles. Min cavity depth 110 mm (4.33") |
| Installation Angle? | + 10º to - 30º from vertical |
| Installation Service? | No end-user serviceable parts |
| Installation Ignition Protected? | Yes |
| Protection | Reverse polarity, short-circuit, under voltage, overload, over temp. |
| Environmental Protection | Conformal coated electronics and PCB |
| Certifications | CE, ROHS, UN ECE R10, UKCA |
| Cable Length | 500 mm (20") 2x 1.5 mm2 16 AWG |
| Waterproof Rating | IPX6 front and rear (door closed) |
| Air Flow | In and out of front of unit only. Rear of unit sealed |
| Screen | LCD, high brightness and colour, daylight viewable, wide viewing angle |
| Screen Information | PSI or BAR; pre-set pressure; voltage readout |
| Stand-by Mode | No activity auto power-off at 5 mins |
| Auto Shut-off | At target pressure |
| SKU: | SST-SC-AOB-A2 |
| Barcode: | 5060114798724 |
| Model #: | SC-AOB-A2 |
| MPN: | SC-AOB-A2 |
