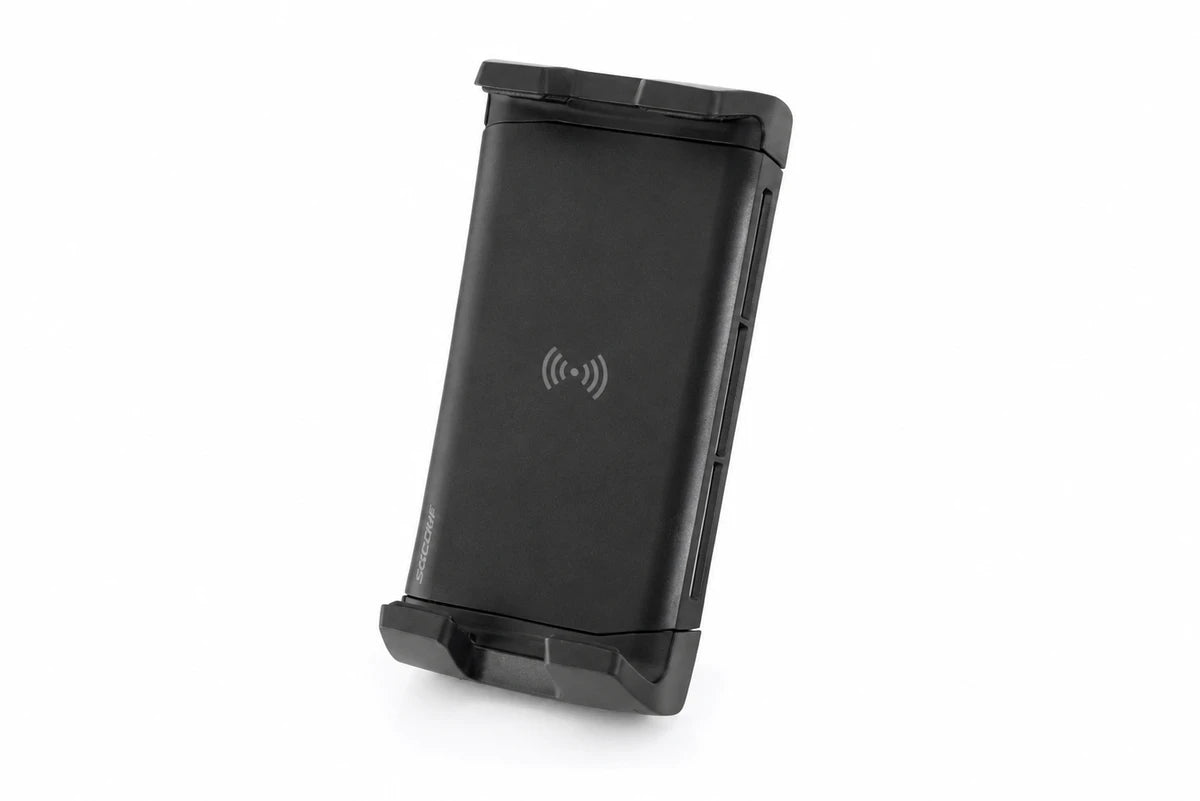

Scanstrut 12/24V 15W Wall-Mount Active Grip Waterproof Wireless Charger
Scanstrut 12/24V 15W Wall-Mount Active Grip Waterproof Wireless Charger
Experience seamless 15W, Qi-certified wireless charging in harsh marine and off-grid environments with a rugged, IPX6 waterproof wall-mounted active grip design.
Highlights:High-Grip Top Jaw: Spring-loaded top grip secures phone in high-vibration environments,Qi Wireless Charging: 15W Qi-certified wireless charging for compatible smartphones,Support Base: Rigid bottom support keeps phone aligned with charging coil,Adjustable Height: Internal sliding mechanism adjusts to fit various smartphone sizes.

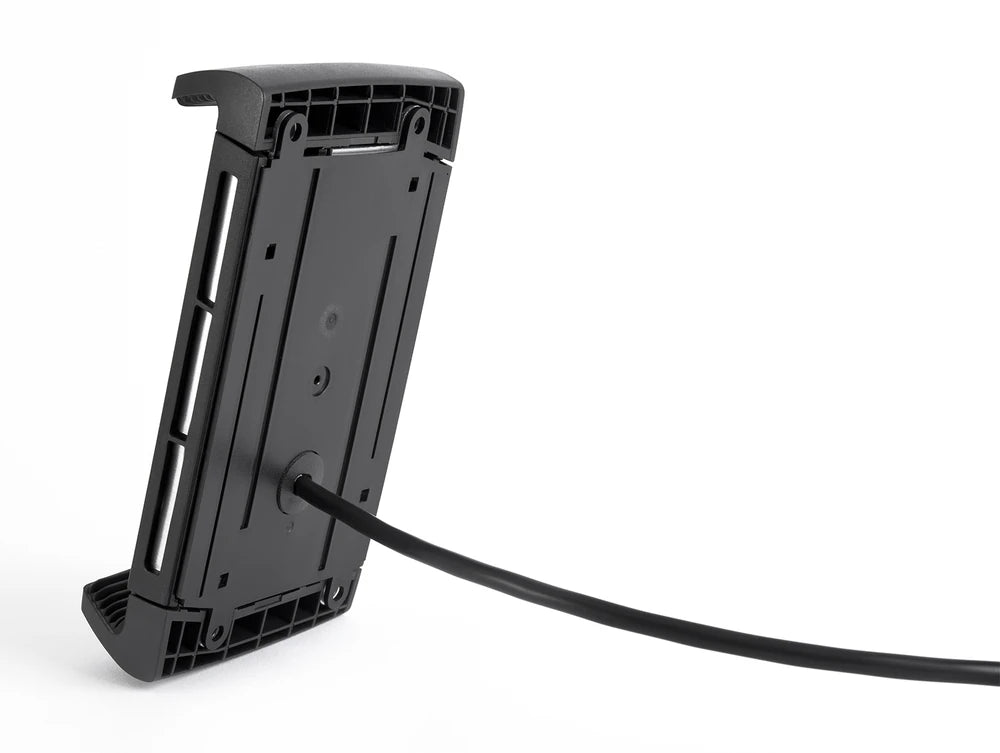

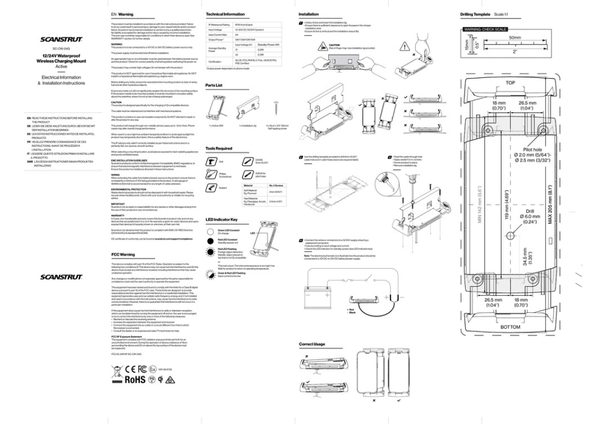

Rear mounting plate with integrated 12/24V power cable and pre-drilled holes for secure surface installation in marine or outdoor environments.




Key features: IPX6 waterproof rating for marine and outdoor use, Universal 10-30V DC input for 12V and 24V systems, Adjustable height fits phones from 120mm to 173mm, High-speed 15W Qi-certified wireless charging, Thermal management system to prevent overheating.

DESCRIPTION
Advanced 12/24V Waterproof Wireless Charging for Marine and Outdoor Applications
Keeping modern smartphones charged while exposed to the elements can be a constant challenge for boaters, off-grid travellers, and outdoor enthusiasts. The Scanstrut 12/24V 15W Wall-Mount Active Grip Waterproof Wireless Charger solves this problem by delivering a reliable, cable-free power source built specifically to withstand harsh environments. Engineered for Australian conditions, this charger removes the need for fragile plug-in cables, protecting your phone's delicate charging port from salt spray, dust, and moisture.
Engineered for 12V and 24V Systems
Integrating seamlessly into any standard 12V or 24V electrical setup, this unit accepts a wide input voltage range of 10-30V DC. This makes it an incredibly versatile addition to marine vessels, caravans, 4x4 canopies, and remote off-grid power systems. With an impressive 15W maximum output, this unit delivers ultra-fast charging speeds for the latest high-capacity smartphones, ensuring you regain battery life rapidly when you need it most. Furthermore, the system features an exceptionally low standby power draw, meaning it can remain permanently connected to your battery bank without causing unwanted depletion during long periods of storage.

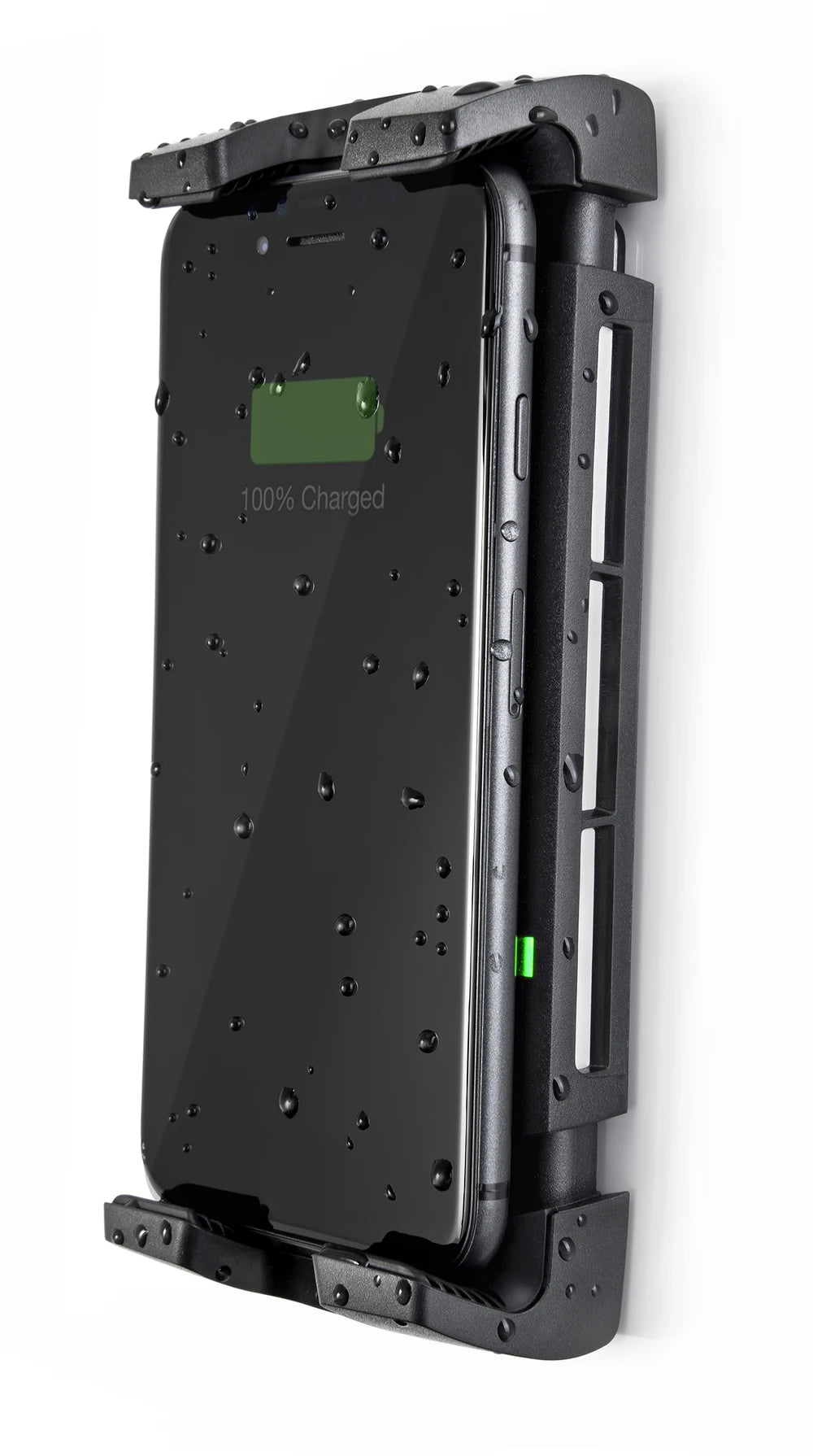

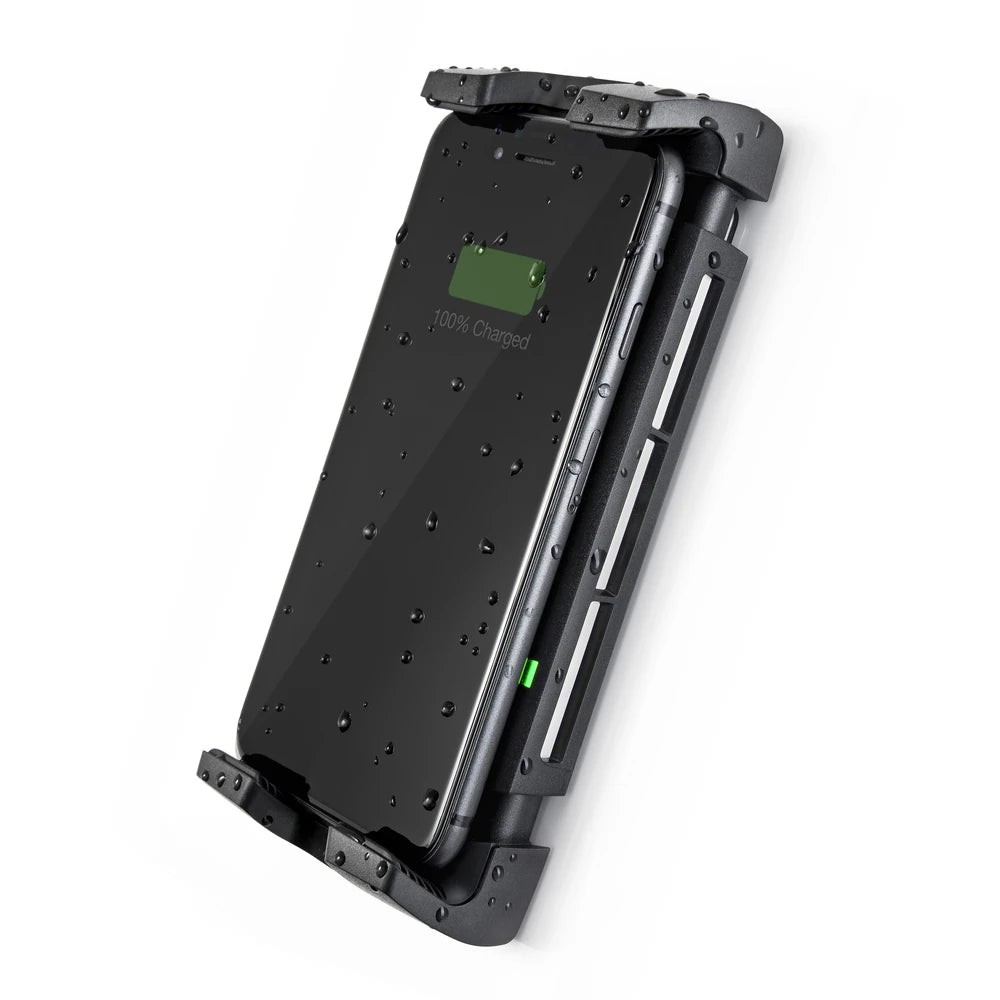

IPX6 Waterproofing and Rugged Durability
Traditional phone chargers are notoriously vulnerable to water ingress. This device achieves a strict IPX6 waterproof rating, offering high-level protection against heavy seas, rainstorms, and direct washdowns. The completely sealed components and UV-stable materials resist degradation from intense sunlight and corrosive coastal environments. By eliminating physical cable connections, it significantly reduces the risk of electrical faults and device damage caused by water and salt buildup.
Intelligent Qi-Certified Technology
Safety and compatibility are critical when installing permanent electrical accessories. As a fully Qi-certified product, it provides broad compatibility with major smartphone brands, charging efficiently even through non-metallic protective cases up to 3mm thick. Advanced built-in safety protocols include a foreign object detection system that immediately cuts power if items like keys or coins are placed on the charging zone. An integrated thermal management system prevents overheating in warm climates, ensuring a safe, stable charge cycle.
Purpose-Built Wall-Mount Active Grip Design
Every installation requires a specific approach to usability and space. The wall-mount active grip design of this charger ensures your device remains securely positioned exactly where you need it. The active spring-loaded grip firmly clamps the top and bottom of your phone, providing unshakeable security on vertical consoles during high-vibration journeys.
Key Features
- Compatible with both 12V and 24V DC systems (10-30V input range)
- IPX6 waterproof construction designed for marine and outdoor environments
- 15W Qi-certified wireless charging ensures safe compatibility with modern smartphones

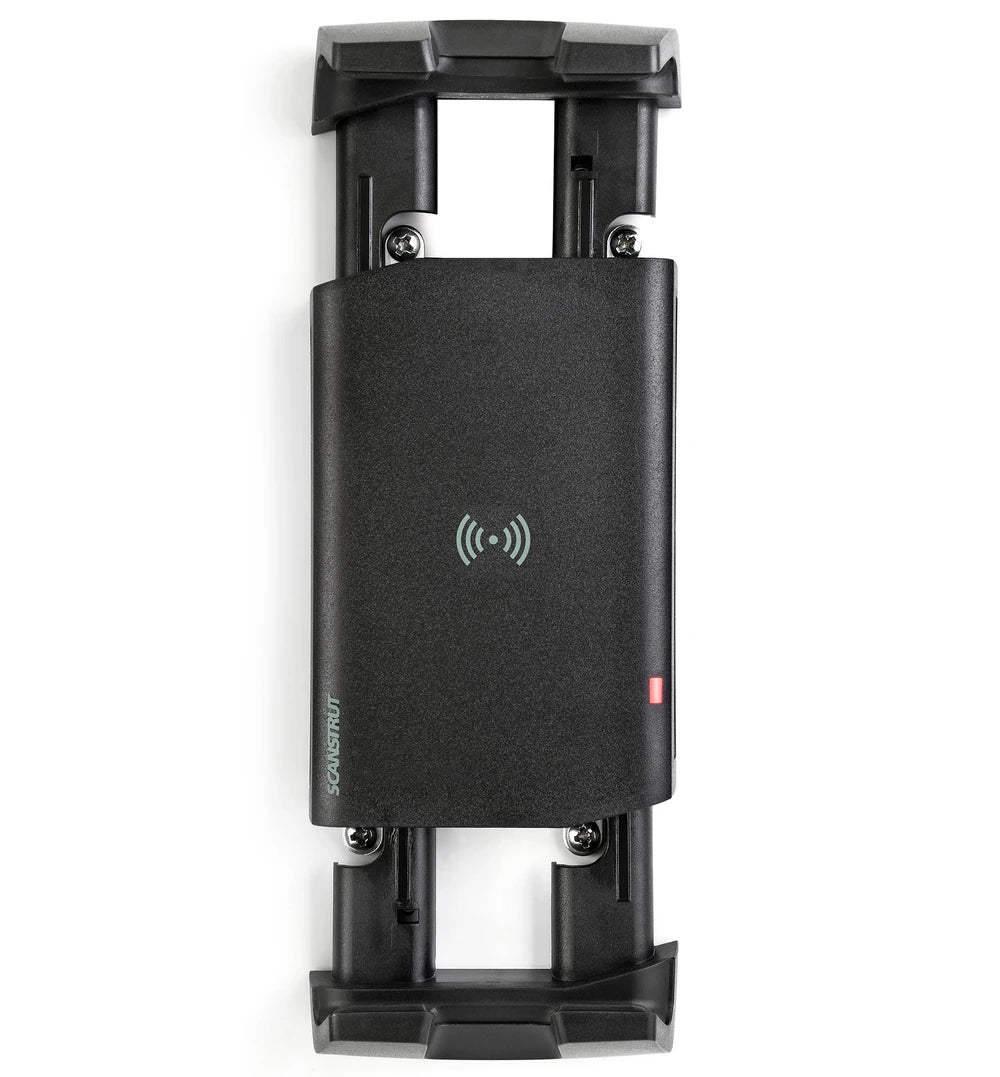

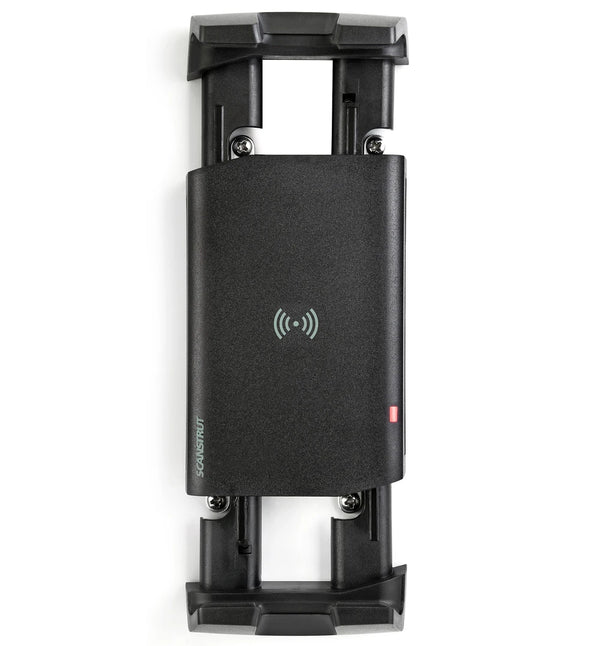

- Active spring-loaded vertical clamp fits phone sizes from 120mm to 173mm securely
- Built-in thermal management and foreign object detection for maximum safety
- Minimal standby power draw to protect your auxiliary battery banks
- Charges effectively through non-metallic phone cases up to 3mm thick
Upgrade Your On-Board Power Today
Reliable communication and navigation rely on a fully charged device. Equip your vessel or vehicle with the Scanstrut 12/24V 15W Wall-Mount Active Grip Waterproof Wireless Charger and experience seamless, weather-resistant power delivery wherever your next adventure takes you. Order today to enhance your setup with premium marine-grade technology.
SKU: SST-SC-CW-04G

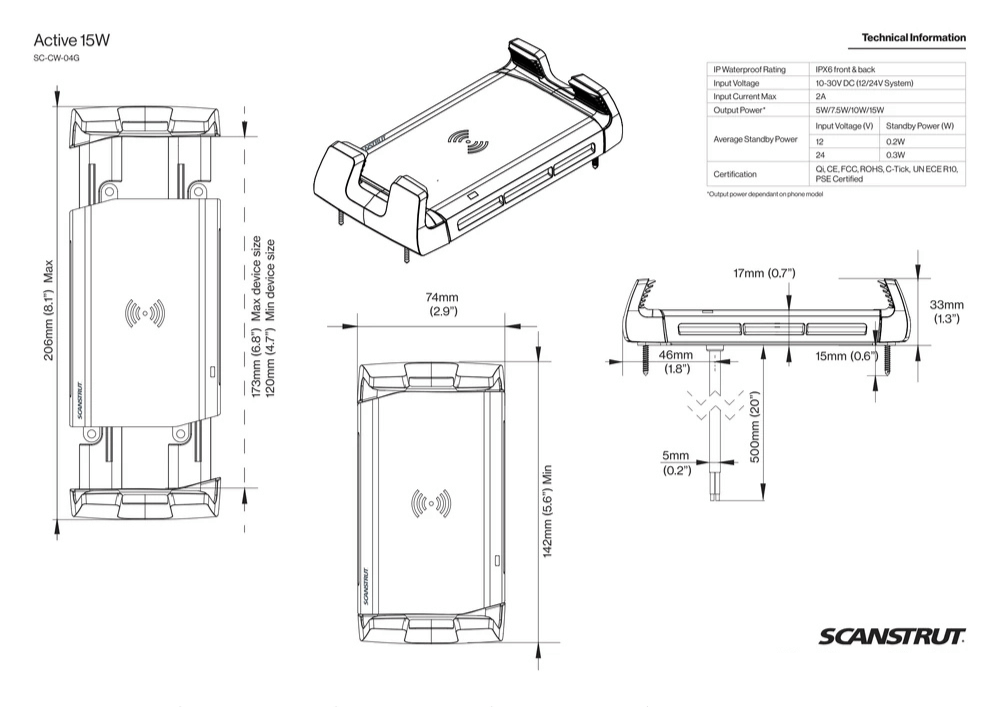

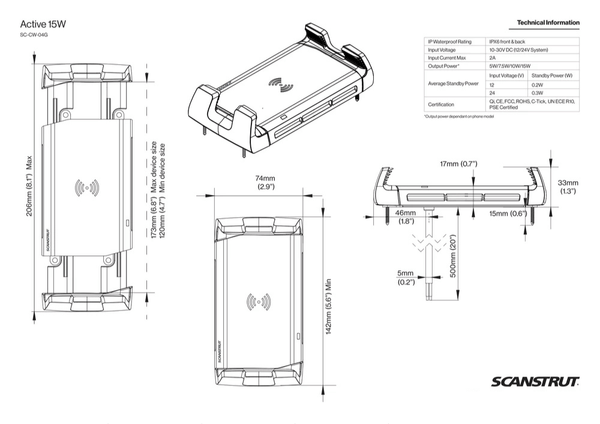

SPECIFICATIONS
Specifications
| Model | SC-CW-04G |
|---|---|
| Product | Active 15W |
| IP Waterproof Rating | IPX6 front & back |
| Input Voltage | 10-30 V DC (12/24 V System) |
| Input Current Max | 2 A |
| Output Power | 5 W/7.5 W/10 W/15 W |
| Average Standby Power At 12 V | 0.2 W |
| Average Standby Power At 24 V | 0.3 W |
| Certification | Qi, CE, FCC, ROHS, C-Tick, UN ECE R10, PSE Certified |
| SKU: | SST-SC-CW-04G |
| Barcode: | 5060114799615 |
| Model #: | SC-CW-04G |
| MPN: | SC-CW-04G |
