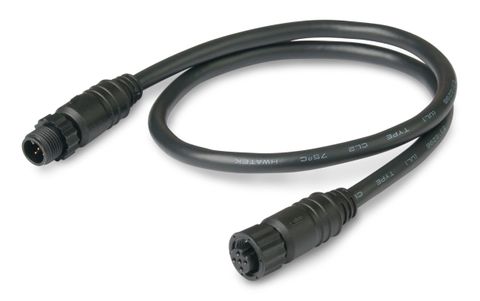

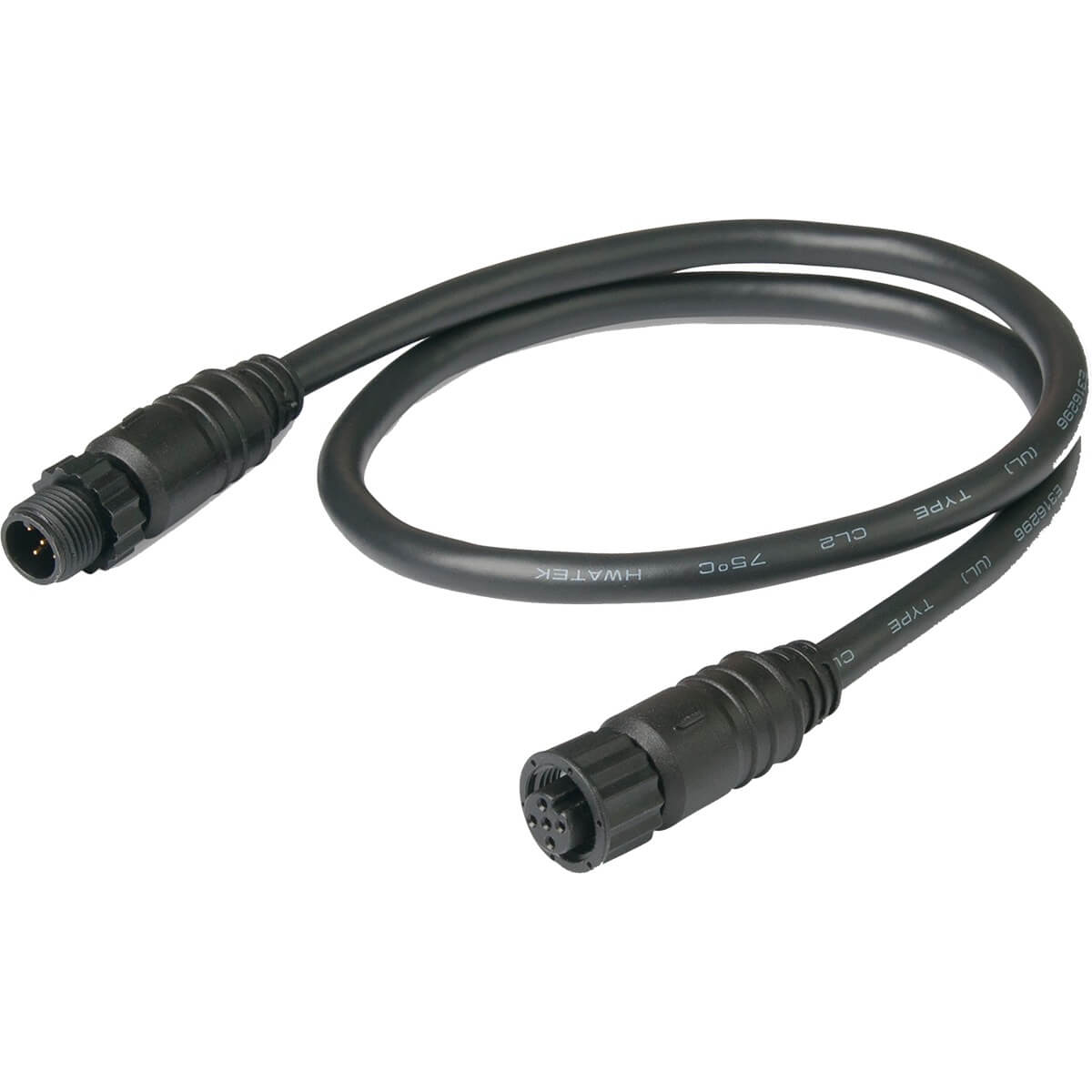

CZone NMEA 2000 5m Drop Cable

Reliable Data and Power Transmission for Marine & RV Networks

The CZone NMEA 2000 5m Drop Cable provides a critical link between your primary network backbone and individual peripheral devices. Designed for demanding marine and off-grid recreational vehicle installations, this five-metre drop cable simultaneously carries both network power and high-speed CAN bus data. Whether you are integrating a new CZone digital switching interface, connecting a multi-function display (MFD), or adding tank level sensors, this cable ensures seamless communication across your vessel or vehicle.

Built to strict NMEA 2000 standards, this cable features standardised 5-pin Micro-C connectors, making it universally compatible with CZone modules and other NMEA 2000 certified electronics from major marine brands. The 5m length offers substantial routing flexibility, allowing installers to reach helm stations, flybridges, or remote equipment lockers while staying within the standard NMEA 2000 maximum single drop length specification of 6 metres.

Engineered for Harsh Environments

Marine bilges, engine bays, and caravan underbodies subject electrical components to constant vibration, moisture, and thermal stress. Unlike inferior alternatives that suffer from brittle jackets or loose pins, the CZone NMEA 2000 drop cable is constructed with a durable, UL-certified black outer jacket rated up to 75°C. This high-temperature tolerance and flexible profile allow the cable to be routed safely through tight conduits and warm enclosures without degrading.

To further reduce the risk of intermittent data loss or network dropouts, each end is fitted with rugged, overmoulded strain relief boots. These boots protect the internal terminations from mechanical tension during cable pulls and shield the connection points against salt mist and moisture ingress once mated to a T-piece or device port.

Key Features & Technical Advantages

• Standardised 5-Pin Micro-C Connectors: Equipped with one male and one female Micro-C plug for direct, plug-and-play connection between an NMEA 2000 T-connector and your chosen device.
• Dual Power and Data Delivery: Combines shielded data pairs for interference-free CAN bus communication with dedicated power conductors to energise network-powered sensors and displays.
• 75°C Rated UL-Certified Jacket: Offers high resistance to heat, abrasion, and chemical exposure in marine and automotive environments.
• Overmoulded Strain Relief: Prevents wire fatigue and pin damage caused by hull slamming, engine vibration, or tight bend radii.
• Generous 5-Metre Length: Provides ample reach for complex helm layouts or distant locker installations without requiring additional extension couplers.

Versatile System Integration

A stable NMEA 2000 network relies on consistent impedance and quality shielding throughout the entire system. Using certified CZone cabling minimises voltage drop and signal reflection, protecting your critical navigation and digital switching systems from communication faults. Common applications include:

• Connecting CZone Output Interfaces (OI), Switch Control Interfaces (SCI), or touchscreens to the main network backbone
• Linking chartplotters, autopilots, GPS antennas, and marine audio head units
• Integrating smart battery monitors, inverters, and DC-DC chargers into a unified monitoring display in 12V and 24V off-grid caravans

Expand Your Network with Confidence

Ensure your digital switching and marine electronics communicate without interruption. Add the CZone NMEA 2000 5m Drop Cable to your installation kit today for a clean, compliant, and durable network expansion.
