CZone Through Bulkhead Adaptor

Waterproof Network Transitions and Removable Interface Connections

The CZone Through Bulkhead Adaptor is an essential digital switching accessory designed to maintain the structural and environmental integrity of your vessel or vehicle. When installing a comprehensive CZone network or an NMEA 2000 backbone, routing cables between isolated compartments often presents a challenge. This purpose-built interface adaptor allows installers to seamlessly transition a network backbone through a waterproof bulkhead without compromising the watertight seal of the barrier.

In addition to permanent bulkhead transitions, this component serves as a reliable terminal point for temporary or removable equipment. Whether you are connecting a diagnostic laptop via a computer interface for system configuration or integrating seasonal marine electronics, this adaptor provides an accessible, panel-mounted connection point that protects the core wiring harness behind the dash or wall.

Engineered for Harsh Marine and Mobile Environments

Standard cable routing methods often involve drilling oversized holes to accommodate pre-moulded network plugs, followed by applying large amounts of marine sealant. This practice not only looks unprofessional but also introduces a high risk of moisture ingress, cable chafe, and eventual failure of the compartment seal. Using an authentic CZone interface adaptor eliminates these installation hazards.

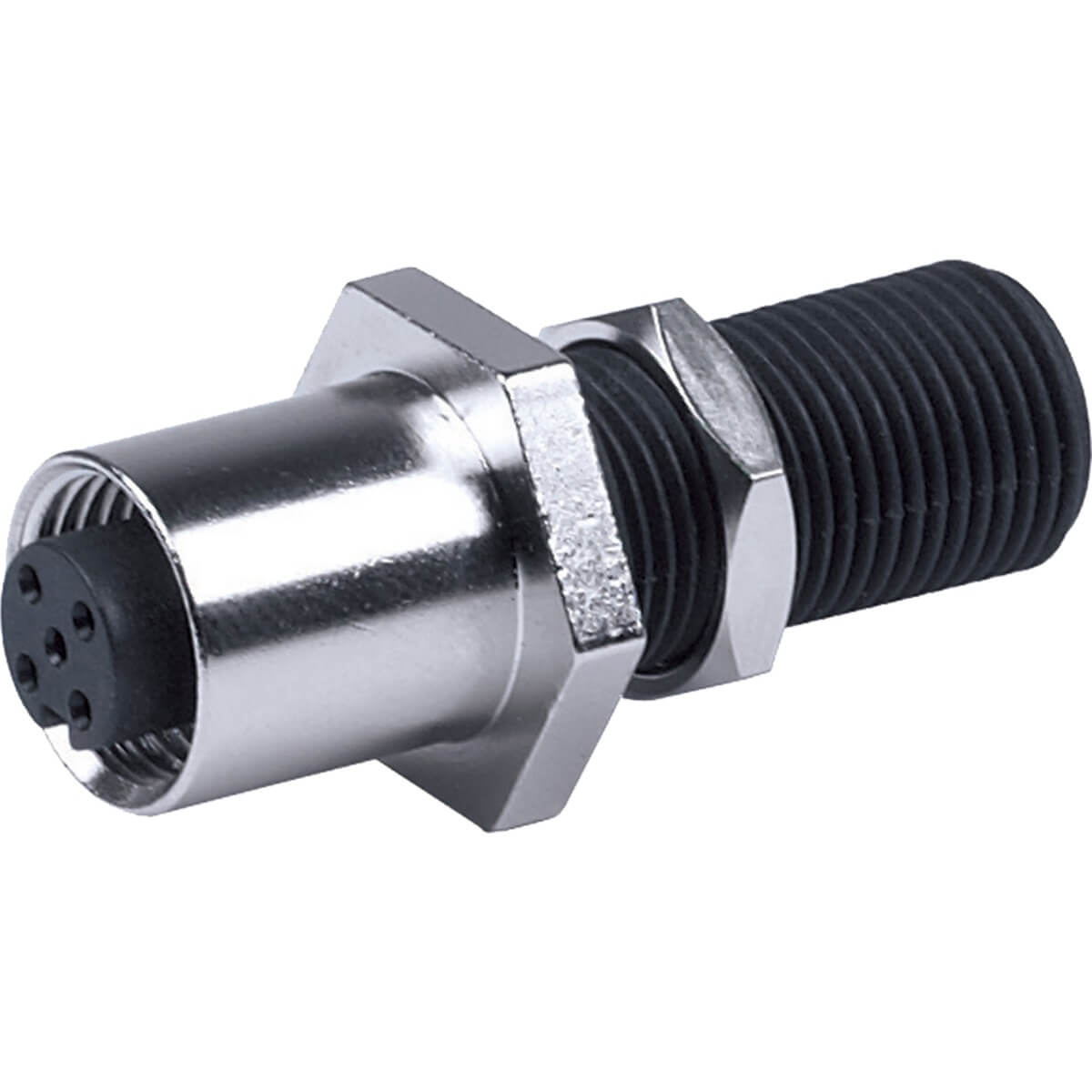

Featuring a durable threaded body, an integrated hexagonal mounting flange, and an adjustable locking nut, the adaptor secures firmly to varying panel and bulkhead thicknesses. Once installed, it provides a rigid, vibration-resistant mechanical pass-through that prevents stress on the internal backbone cables.

• 5-Pin Interface: Features a precision 5-pin female connector compatible with standard CZone and NMEA 2000 backbone cabling.
• Waterproof Integrity: Engineered specifically to maintain compartment sealing when transitioning network lines through waterproof bulkheads.
• Versatile Mounting: Equipped with a fixed hexagonal shoulder and adjustable locking nut to accommodate a wide range of panel thicknesses in marine and RV builds.
• Serviceability: Creates a convenient, flush-mounted access port for connecting removable diagnostic tools, computer interfaces, or auxiliary displays.
• Strain Relief: Isolates cable tension to each side of the bulkhead, reducing the risk of conductor fatigue caused by vessel movement or vehicle vibration.

Applications in Digital Switching Systems

Modern 12V and 24V electrical systems in boats, caravans, and specialist commercial vehicles rely heavily on uninterrupted data communication. By utilising dedicated bulkhead hardware, electrical installers can sectionalise the network architecture. If a cable on one side of a bulkhead is damaged, it can be replaced independently without having to pull an entirely new backbone through tight conduits or compromise cured sealant across multiple compartments.

This component is particularly valuable in helm stations, engine room dividers, external utility lockers, and caravan battery compartments where dust and water resistance are critical to system longevity.

Upgrade Your Network Installation

Ensure your digital switching installation meets professional marine and automotive standards. Add the CZone Through Bulkhead Adaptor to your system build today for a clean, watertight, and serviceable network architecture.
