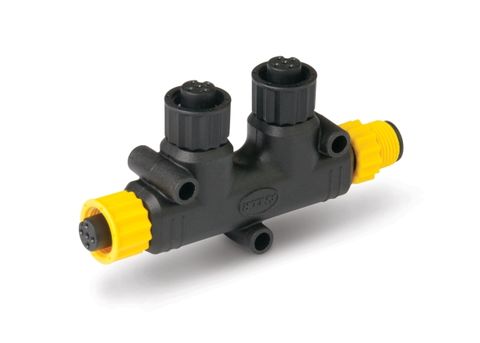

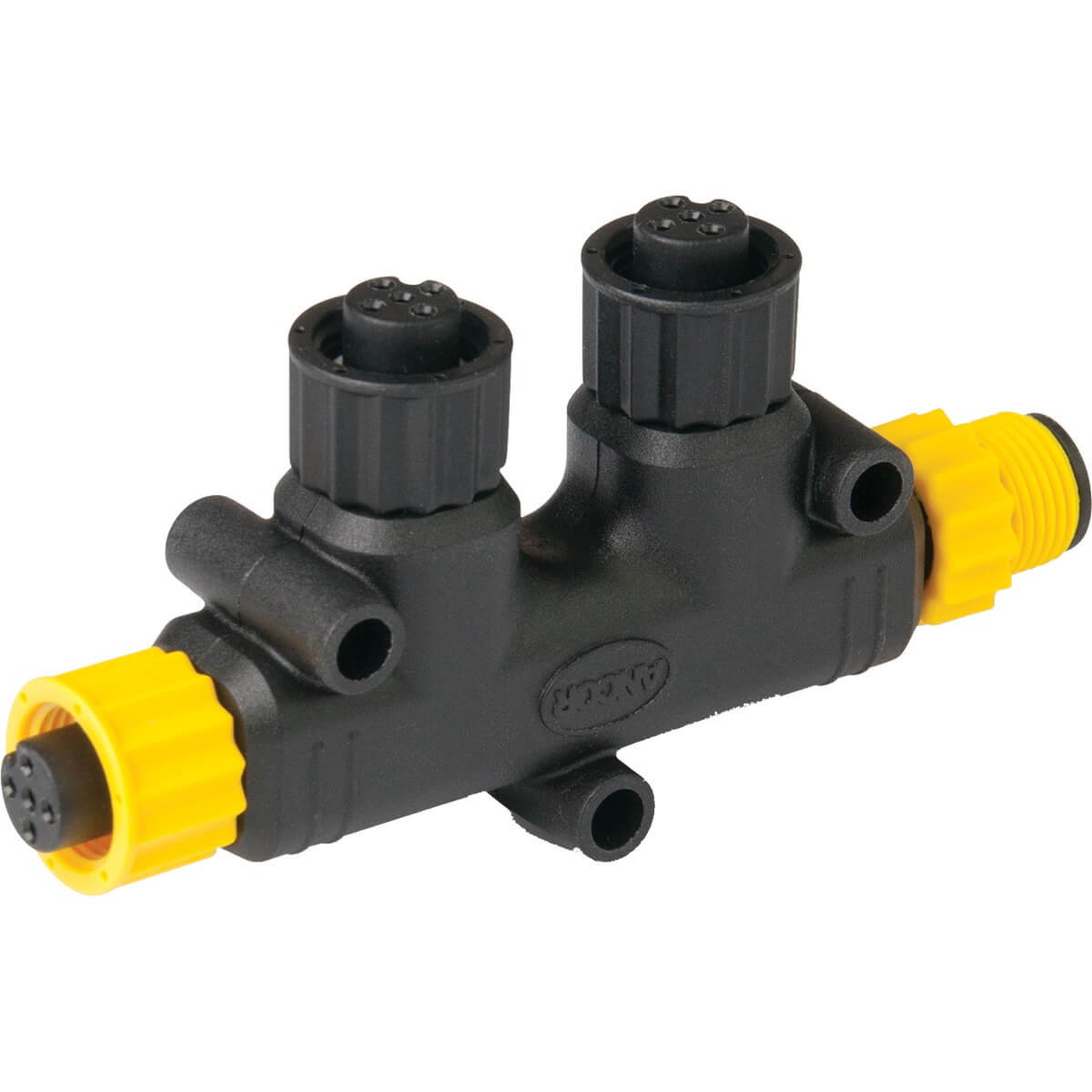

CZone NMEA 2000 2-Way Tee Connector

Expand Your Network Architecture with Dual Drop Port Connectivity

Building a reliable digital switching and monitoring system requires robust, space-efficient network components. The CZone NMEA 2000 2-Way Tee Connector is designed to streamline your installation by providing two drop cable connection points within a single compact unit. Engineered for both complex marine vessels and advanced off-grid recreational vehicles, this connector allows system integrators to branch two separate devices off the main NMEA 2000 backbone simultaneously.

In traditional network setups, adding multiple sensors, displays, or CZone control interfaces involves daisy-chaining several single tee connectors together. While functional, stringing multiple single tees in a row increases the total length of the backbone assembly, making it difficult to fit inside tight console spaces, behind crowded dashboards, or within compact electrical enclosures. Furthermore, every additional connection point introduces potential voltage drop and mechanical stress on the backbone. By consolidating two drop ports into one rigid housing, this 2-way tee reduces connection joints, minimises physical stress on the wiring harness, and saves valuable mounting space.

Engineered for Harsh Marine and Mobile Environments

Electrical systems in boats, caravans, and 4x4s are constantly subjected to vibration, moisture, and temperature fluctuations. Inferior, non-standard connectors can suffer from pin corrosion or loosening collars over time, leading to intermittent data loss or complete network dropouts. CZone components are built to strict industry standards to mitigate these risks. The connector features high-visibility yellow locking collars on the backbone ports, ensuring positive engagement and straightforward visual identification during complex wiring runs. An integrated mounting point allows the unit to be fastened directly to a bulkhead or mounting board, preventing the weight of the attached drop cables from pulling or twisting the backbone.

Key Features and Benefits

• Dual 5-Pin Female Drop Ports: Connects two individual NMEA 2000 devices or CZone modules to the network backbone from a single location.
• Space-Saving Footprint: Consolidates network branching to fit neatly inside restricted spaces, electrical cabinets, and helm stations.
• Standard Micro-C Interface: Utilises standard 5-pin male and female backbone connections for seamless plug-and-play compatibility with existing NMEA 2000 networks.
• Secure Bulkhead Mounting: Features a moulded-in mounting hole to securely anchor the tee connector, reducing vibration transfer and cable strain.
• High-Visibility Locking Collars: Distinct yellow threaded collars provide a secure mechanical lock and clear differentiation between backbone and drop lines.
• Reduced Failure Points: Eliminates the intermediate mating joint required when linking two single tees, improving overall signal integrity and system reliability.

Versatile System Integration

Whether you are fitting out a new marine vessel with CZone digital switching, adding tank level senders and battery monitors to an off-grid caravan, or expanding an existing helm layout with secondary multifunction displays, this 2-way tee offers a clean, professional routing solution. Because it adheres to universal NMEA 2000 Micro-C connection standards, it integrates effortlessly with CZone network cabling as well as third-party marine electronics.

Upgrade Your NMEA 2000 Installation

Ensure your data and control network remains organised, secure, and resilient against vibration. Add the CZone NMEA 2000 2-Way Tee Connector to your system build today for a cleaner, more reliable backbone installation.
