GEN3 Double Pole Single Module RCBO 20Amp Safety Switch/Circuit Breaker Combo
GEN3 Double Pole Single Module RCBO 20Amp Safety Switch/Circuit Breaker Combo
20 Amp 4.5kA A Type
Key features: 20A current rating with C-curve tripping characteristic, 30mA residual current protection for personnel safety, 4.5kA breaking capacity rating, Integrated test button for safety verification.

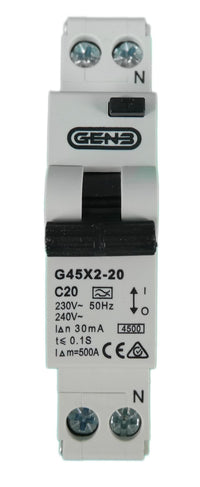

Highlights:Test Button: Integrated button for periodic safety testing,Toggle Switch: Manual reset and isolation lever,Specifications: C20 rating, 240V AC and 30mA sensitivity details,Bottom Terminals: Screw terminals for Neutral and Line connections.
Regular price
$39.90
Availability:
In Stock
Guaranteed Safe and Secure Checkout
3
DESCRIPTION
- GEN3
- Product Code -G45X2-20
- Single Module 20 Amp 4.5kA Double Pole Mini RCBO Safety Switch Circuit Breaker
- True Double Pole Disconnection in a Single Module RCBO
- Disconnects Active & Neutral conductors on Both Fault Current Condition and Overload.
- Don't be Deceived by Advertisements for Double Pole Safety Switches that do not comply with the above for Caravan RV Motorhome use
- One module only 18mm Wide - More Room for Wiring
- AS/NZS 61009.1 Compliant
- Top and Bottom Line or Load Wiring
- Two Year Warranty
- Colour -Grey
SKU: RCBO1-G45X2-20
SPECIFICATIONS
| SKU: | RCBO1-G45X2-20 |
| Model #: | RCBO1-G45X2-20 |
| MPN: | RCBO1-G45X2-20 |
