Victron 500A Smart Shunt (SmartShunt) IP65 Bluetooth Battery Monitor
Victron 500A Smart Shunt (SmartShunt) IP65 Bluetooth Battery Monitor
Bluetooth Battery Monitor - No Display

DESCRIPTION
500A SmartShunt IP65: Your Advanced, Display-Free Water Resistant Battery Monitor
The SmartShunt IP65 redefines battery monitoring by using your smartphone as a display, offering a sleek, all-in-one solution that's perfect for any setup requiring minimal wiring.

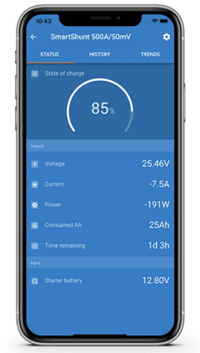

Connect effortlessly with the VictronConnect app via Bluetooth to access real-time battery parameters like state of charge and time to go, as well as historical insights. For a permanent installation, the SmartShunt IP65 can integrate with a GX device using a VE.Direct cable. This makes it an alternative to traditional BMV battery monitors when the BMV display is not needed, especially in streamlined systems.
Key Features of the SmartShunt IP65
The SmartShunt IP65 isn't just robust and user-friendly—it's a comprehensive battery management system that's water-resistant and versatile. It comes with built-in Bluetooth for wireless communication, a VE.Direct port for data transfer, and an auxiliary connection for secondary battery monitoring or temperature sensing.
Comparing SmartShunt IP65 and BMV712 Battery Monitor
While the SmartShunt IP65 shares many features with the BMV712, there are some key differences:
- No visual or audible alarms; notifications are provided through the VictronConnect app or GX device.
- Lacks a programmable relay for automated system controls.
- Boasts a waterproof design, suitable for demanding environments.
- The shunt is built into the battery monitoring unit for a simplified setup.
Choose the SmartShunt IP65 for its innovative design, ease of use, and seamless integration into a variety of applications, from marine settings to off-grid solar systems.
SPECIFICATIONS

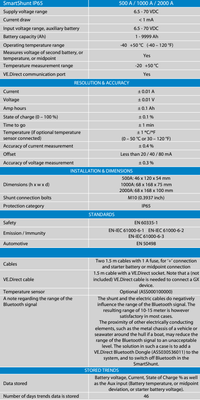

Specifications
| SmartShunt IP65 | 500 A |
| Supply voltage range | 6.5 - 70 VDC |
| Current draw | < 1 mA |
| Input voltage range, auxiliary battery | 6.5 - 70 VDC |
| Battery capacity (Ah) | 1 - 9999 Ah |
| Operating temperature range | -40 to +50 °C (-40 – 120 °F) |

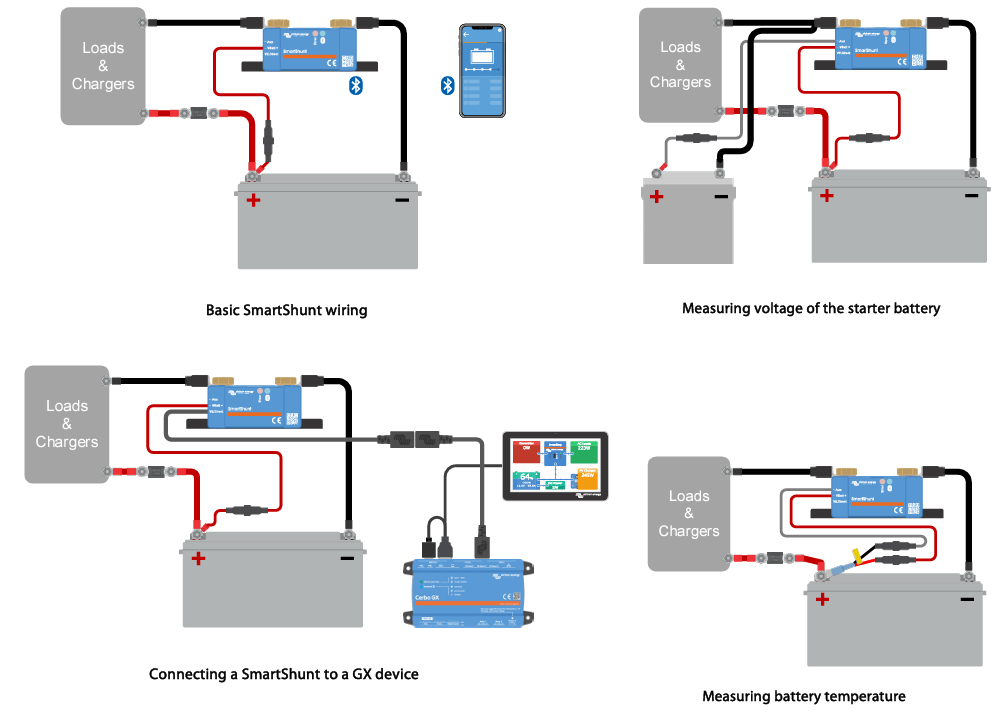

| Measures voltage of second battery, or temperature, or midpoint | Yes |
| Temperature measurement range | -20 to +50 °C |
| VE.Direct communication port | Yes |
| Resolution and Accuracy | |
| Current | ± 0.01 A |
| Voltage | ± 0.01 V |
| Amp hours | ± 0.1 Ah |
| State of charge (0 – 100 %) | ± 0.1 % |
| Time to go | ± 1 min |
| Temperature (if optional temperature sensor connected) | ± 1 °C/°F |
| (0 – 50 °C or 30 – 120 °F) | |
| Accuracy of current measurement | ± 0.4 % |
| Offset | Less than 20 mA |
| Accuracy of voltage measurement | ± 0.3 % |
| Installations and Dimensions | |

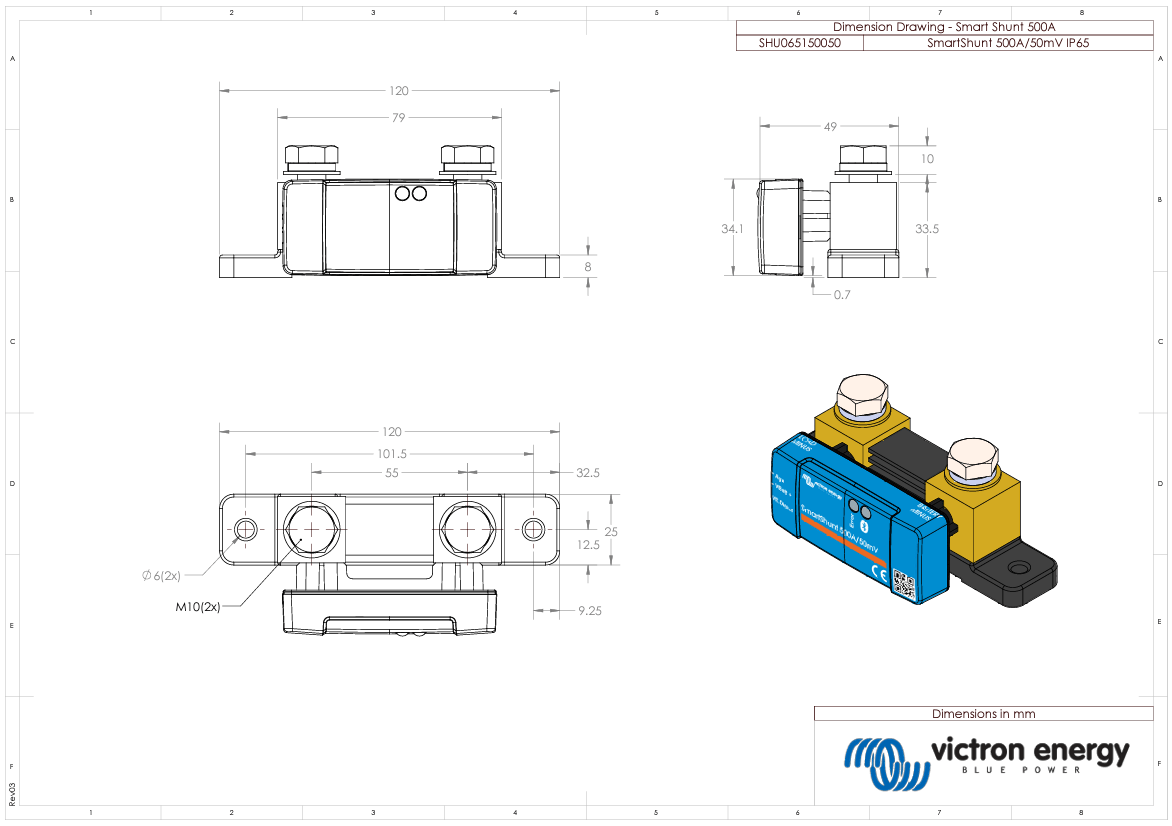

| Dimensions (h x w x d) | 46 x 120 x 54 mm |
| Shunt connection bolts | M10 (0.3937 inch) |
| Protection category | IP65 |
| Standards | |
| Safety | EN 60335-1 |
| Emission / Immunity | EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| Automotive | EN 50498 |
| Inputs | |

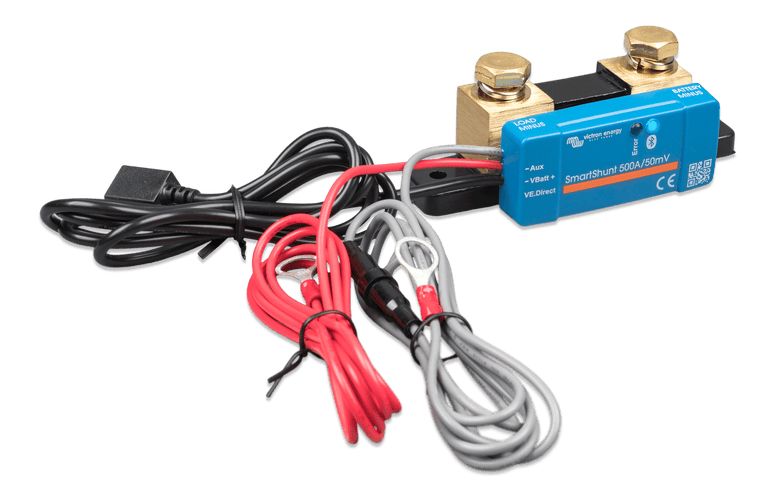

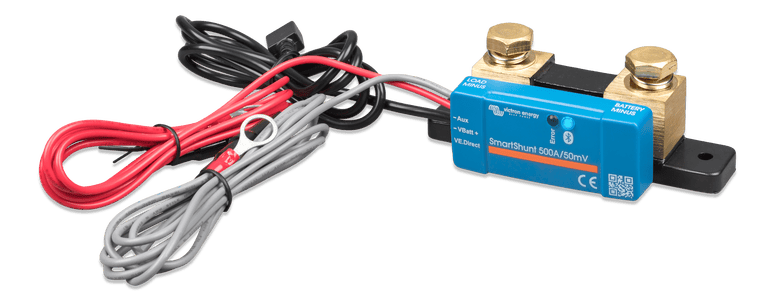

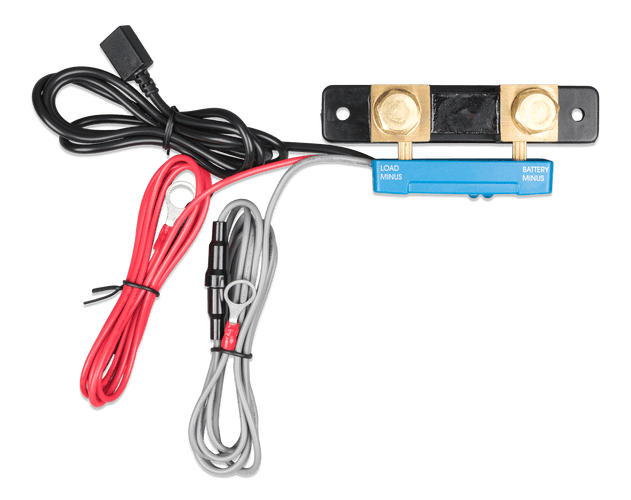

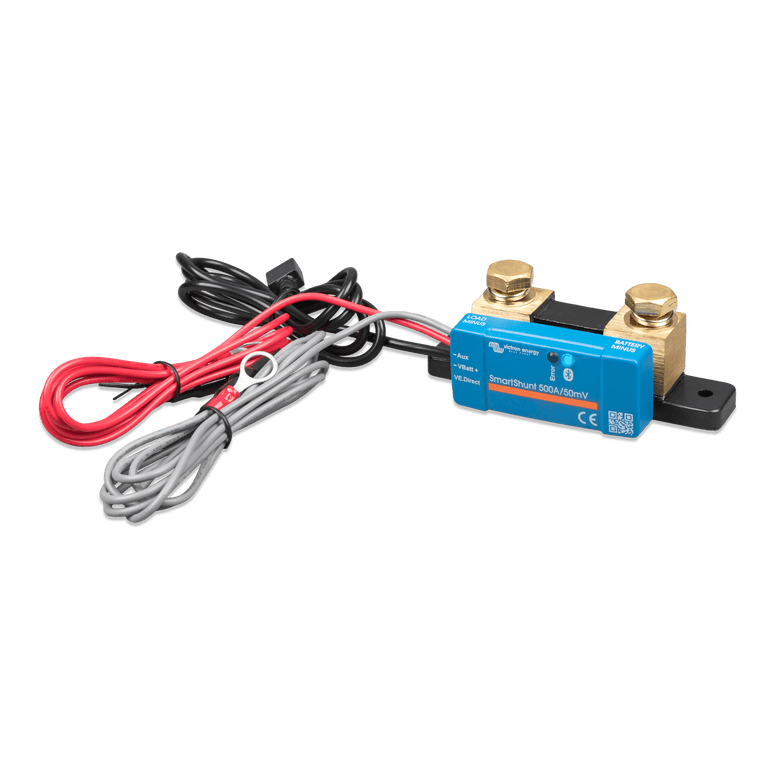

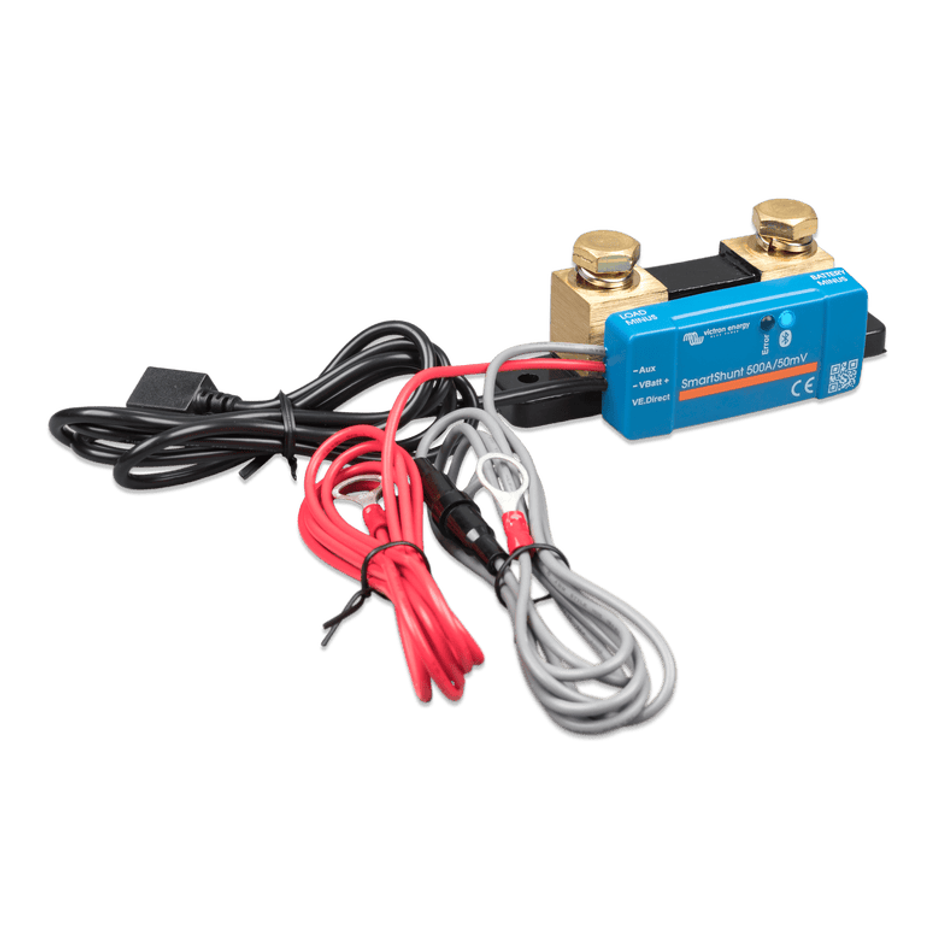

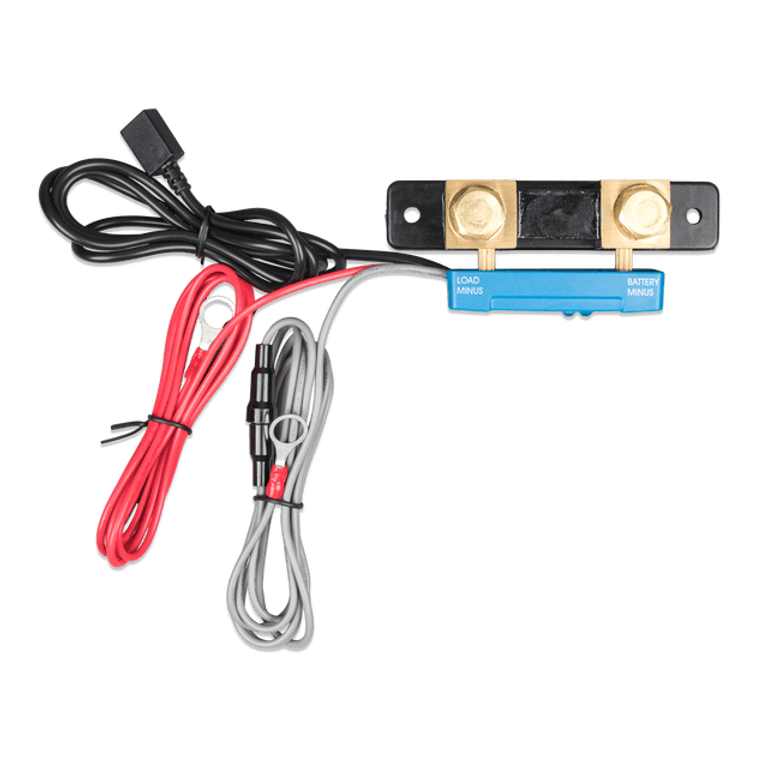

| Cables | Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection |
| VE.Direct cable | 1.5 m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device. |
| Temperature sensor | Optional (ASS000100000) |
| A note regarding the range of the Bluetooth signal | The shunt and the electric cables do negatively influence the range of the Bluetooth signal. The resulting range of 10-15 meter is however satisfactory in most cases. The proximity of other electrically conducting elements, such as the metal chassis of a vehicle or seawater around the hull if a boat, may reduce the range of the Bluetooth signal to an unacceptable level. The solution in such a case is to add a VE.Direct Bluetooth Dongle (ASS030536011) to the system, and to switch off Bluetooth in the SmartShunt. |
| Stored Trends | |
| Data stored | Battery voltage, Current, State of Charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage). |
| Number of days trends data is stored | 46 |
| SKU: | VIC-SHU065150050 |
| Barcode: | 8719076057895 |
| Model #: | SHU065150050 |
| MPN: | SHU065150050 |
