Victron 12V to 12V Orion-Tr Smart 12/12-30A Non-isolated DC-DC Charger

12V In, 12V Out


Blue Victron Orion-Tr Smart 12/12-30A non-isolated DC-DC charger front viewHighlights:Bluetooth Connectivity: Built-in Bluetooth for wireless setup and monitoring via the VictronConnect app,30A Output capacity: Delivers 360W (30A) of continuous power for efficient auxiliary battery charging,DC Screw Terminals: Large screw terminals supporting cable cross-sections up to 16mm²,Configurable Status LED: On/off status and error indicator light for quick visual diagnostics,Non-Isolated Design: Compact and efficient charger sharing a common ground between input and output.
Warning sign about 12V input and output voltage restrictions for the Orion chargerImportant compatibility notice stating this model requires 12V input and 12V output. Use with 24V starter or house batteries will cause irreparable damage to the unit.Technical specifications table for the Victron Orion-Tr Smart range of chargersSystem diagram showing the charger connected between a vehicle alternator and auxiliary batteryTypical installation diagram showing integration with an engine alternator, starter battery, and auxiliary house battery with smart Bluetooth monitoring.Dimensional drawing of the Orion-Tr Smart charger showing 130x186x80mm measurementsAngled view showing the large black heat sink and terminal connections of the 30A chargerKey features: Adjustable output voltage range (10-15V), Adaptive 3-stage charging algorithm, Large aluminium heat sink for passive cooling, Remote on-off connector for external control, IP43 ingress protection rating.Front perspective of the Victron charger showing remote port and DC terminalsSide view highlighting the cooling fin design for heat dissipation

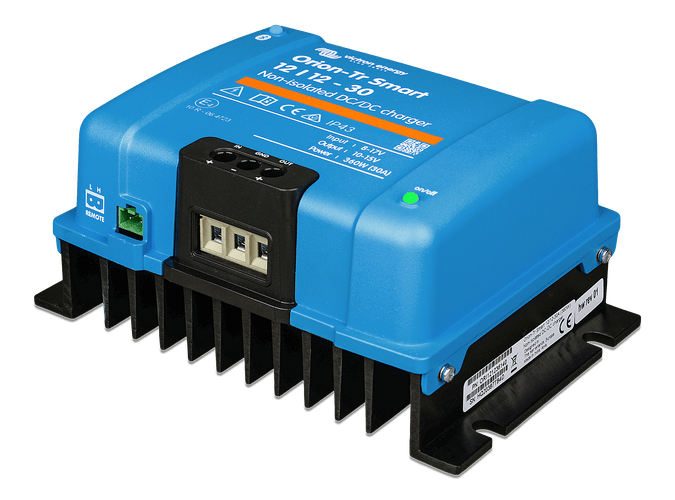

Blue Victron Orion-Tr Smart 12/12-30A non-isolated DC-DC charger front view
Victron 12V to 12V Orion-Tr Smart 12/12-30A Non-isolated DC-DC Charger
Warning sign about 12V input and output voltage restrictions for the Orion charger

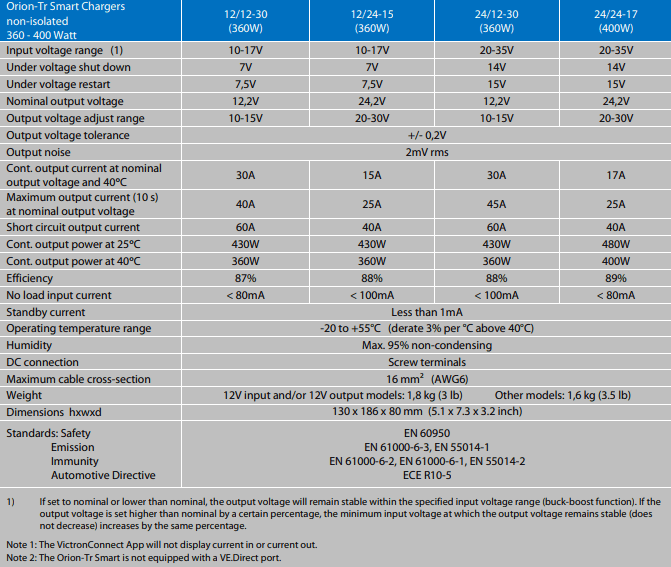

Technical specifications table for the Victron Orion-Tr Smart range of chargers
System diagram showing the charger connected between a vehicle alternator and auxiliary battery

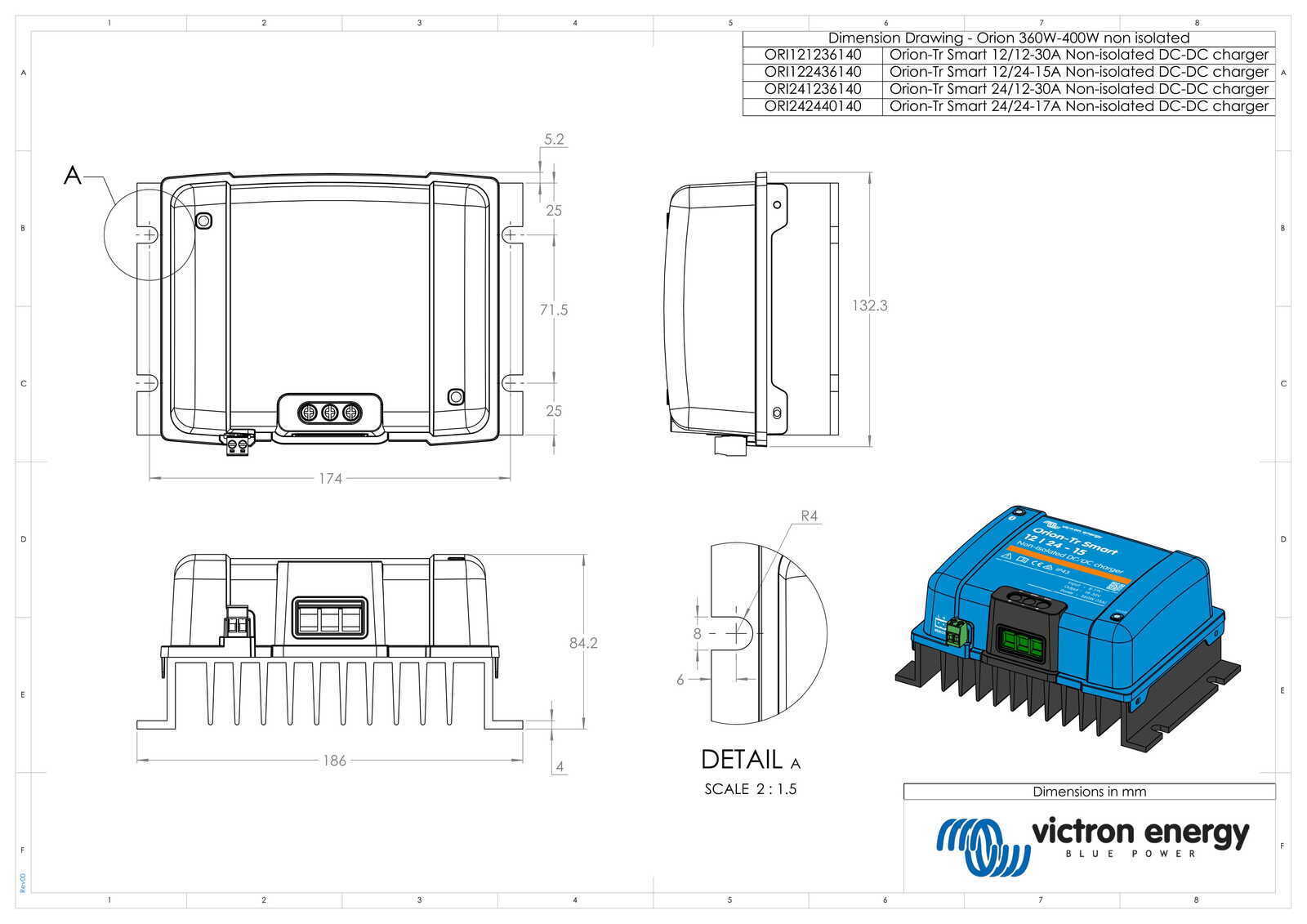

Dimensional drawing of the Orion-Tr Smart charger showing 130x186x80mm measurements
Angled view showing the large black heat sink and terminal connections of the 30A charger

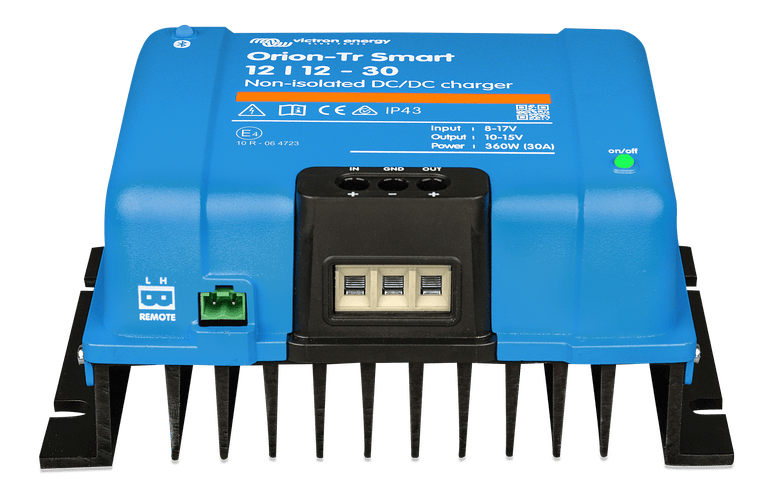

Front perspective of the Victron charger showing remote port and DC terminals
Side view highlighting the cooling fin design for heat dissipation
Regular price $278.54
$405.90
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

8
Blue Victron Orion-Tr Smart 12/12-30A non-isolated DC-DC charger front view

Victron 12V to 12V Orion-Tr Smart 12/12-30A Non-isolated DC-DC Charger

DESCRIPTION

Smart Power Solution: Orion-Tr 12/12-30A Non-Isolated DC-DC Charger

WARNING: This unit is specifically designed for 12V to 12V charging systems. Using it with other voltage systems may cause irreversible damage.

The Victron Orion-Tr Smart Non-Isolated DC-DC Charger is your go-to for reliable, efficient, and smart charging. It's perfect for keeping your vehicle's battery, RV, marine, or off-grid storage system in peak condition, ensuring you have power when you need it most.

Effortless Connectivity with Bluetooth Smart

Stay in control and customize your charger settings with the convenience of Bluetooth technology. Use any Bluetooth-enabled smartphone or tablet to keep track of your charger's performance and make adjustments on the fly. With the latest software updates at your fingertips, your charger will always be up-to-date.

Customizable Charging for Every Need

  • Adaptable charge settings allow you to tailor the charging process to your specific battery type and needs, whether you're looking to optimize battery life or need a quick boost.
  • Compatibility with modern smart alternators makes this charger an ideal choice for newer vehicles, ensuring seamless integration and charging.

Intelligent Charging with a 3-Stage Algorithm

  • The Orion Smart charger's bulk, absorption, and float stages adapt to your battery's needs, offering a fast charge when empty and preventing overcharging when full.
  • The fixed output voltage mode is also available for devices that need a constant power supply.

Remote Control Options

With the ability to connect a remote switch or relay, you have the flexibility to control the charger from afar, making it convenient for hard-to-reach installations or for integrating into complex systems.

Expandable Power for Larger Systems

Need more power? You can safely connect multiple units in parallel for increased current output, making it a scalable solution for larger energy demands.

Protection Against the Elements

With an IP43 protection rating when installed with the screw terminals facing downwards, the charger is protected against ingress of objects and spraying water, ensuring durability in various installation environments.

No-Hassle Installation

The user-friendly screw terminals mean no special tools are needed, simplifying the installation process. It’s a straightforward setup that’s as easy as it is robust.

Stay Safe with Built-In Features

Integrated safety features, including a non-replaceable input fuse and high-temperature protection, ensure your system is safeguarded against potential electrical issues.

Whether you're powering an off-grid DC installation, hitting the road in your RV, or sailing the seas, the Victron Orion-Tr Smart Charger delivers the power you need with the intelligence and safety you can trust.

SPECIFICATIONS

Specifications

Orion-Tr Smart Chargers Non-isolated 12/12-30 (360W)
Input voltage range (1) 10-17V
Under voltage shut down 7V
Under voltage restart 7.5V
Nominal output voltage 12.2V
Output voltage adjust range 10-15V
Output voltage tolerance +/- 0.2V
Output noise 2mV rms
Cont. output current at nominal output voltage and 40°C  30A
Maximum output current (10 s) at nominal output voltage 40A
Short circuit output current 60A
Cont. output power at 25°C 430W
Cont. output power at 40°C 360W
Efficiency 87%
No load input current < 80mA
Standby current Less than 1mA
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
Humidity Max. 95% non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² (AWG6)
Weight 1.8 kg (3 lb)
Dimensions h x w x d 130 x 186 x 80 mm (5.1 x 7.3 x 3.2inch)
Standards
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive ECE R10-5

1) If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.

Note:

1: The VictronConnect App will not display current in or current out.

2: The Orion-Tr Smart is not equipped with a VE.Direct port.


SKU: VIC-ORI121236140
Barcode: 8719076048954
Model #: ORI121236140
MPN: ORI121236140

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
