Victron 12V to 24V Orion 12/24-10A Non-Isolated IP20 DC-DC Converter
Victron 12V to 24V Orion 12/24-10A Non-Isolated IP20 DC-DC Converter
High Power
Highlights:Model Identifier: Orion 12/24-10 switchmode DC-DC converter and battery charger,Current Ratings: Provides 10A continuous load and 20A maximum load capacity,Input Specification: Supports an input voltage range of 9-18V DC,Output Specification: Adjustable output voltage range between 20-30V DC,DC Connections: Four 6.3 mm Faston tabs for positive and negative input/output.

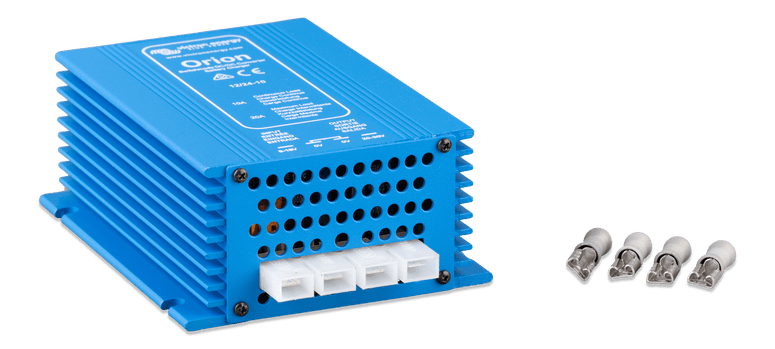

Key features: 95% high-efficiency power conversion, IP20 rated blue aluminium chassis, Passive convection cooling with integrated fins, Includes four 6.3 mm Faston terminal connectors.
Front-facing view showing the four 6.3 mm Faston tabs for DC connections and a perforated metal fascia for passive thermal ventilation.



DESCRIPTION
Victron 12V to 24V Orion 12/24-10A Non-Isolated IP20 DC-DC Converter
Powerful and Versatile DC-DC Converter
The Victron Orion 12V to 24V DC-DC Converter is the ideal solution for efficiently converting 12V DC power to 24V DC. This robust converter ensures reliable power delivery for various applications, including marine, RV, off-grid, industrial, and tiny home systems. With its advanced features and ease of use, it's a must-have for anyone looking to optimize their power setup.
Key Features
Efficient Charging and Power Conversion
- Dual Purpose: This versatile device doubles as a battery charger, making it perfect for charging a 12V starter or accessory battery within a 24V system.
- Adjustable Output: Customize the output to meet your specific power requirements, ensuring optimal performance for your devices and batteries.
Scalable and Flexible
- Parallel Connection: Need more power? Up to five units can be connected in parallel to increase the output current, providing flexibility and scalability for your growing power needs.
- Easy Installation: The converter is designed for straightforward installation, with four Insulated Fastons Female Crimp 6.3mm included in the delivery for quick and secure connections.
Applications
- Marine: Ensure your boat's electronic systems run smoothly and reliably.
- RV: Power your recreational vehicle's appliances and accessories efficiently.
- Off-grid: Ideal for off-grid power systems, providing consistent and reliable power conversion.
- Industrial: Suitable for industrial applications requiring dependable DC-DC conversion.
Why Choose the Victron 12V to 24V Orion Converter?
This DC-DC converter is built to deliver reliable and efficient power conversion, whether you're out on the water, on the road, or living off the grid. Its versatility as both a power converter and battery charger makes it a valuable addition to any power system.
Upgrade Your Power System Today
Upgrade your power system now with the Victron 12V to 24V Orion 12/24-10A DC-DC Converter and experience enhanced efficiency and reliability. Perfect for marine, RV, off-grid, industrial, and tiny home applications. Order today and take the first step towards a more powerful and reliable power solution!

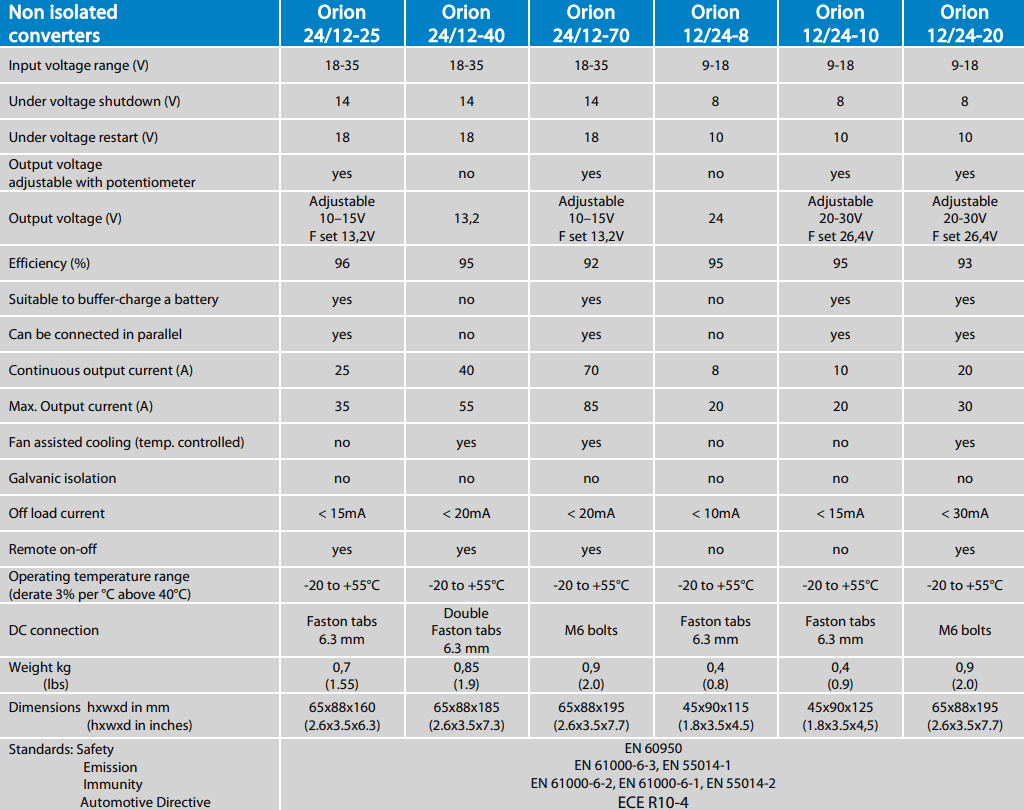

SPECIFICATIONS
Specifications
| Model | Orion 12/24-10 |
| Input voltage range (V) | 9-18 |
| Under voltage shutdown (V) | 8 |
| Under voltage restart (V) | 10 |
| Output voltage adjustable with potentiometer | yes |
| Output voltage (V) | Adjustable 20-30V F set 26.4V |
| Efficiency (%) | 95 |
| Suitable to buffer-charge a battery | yes |
| Can be connected in parallel | yes |
| Continuous output current (A) | 10 |
| Max. Output current (A) | 20 |
| Fan assisted cooling (temp. controlled) | no |
| Galvanic isolation | no |
| Off load current | < 15mA |
| Remote on-off | no |
| Operating temperature range (derate 3% per °C above 40°C) | -20 to +55°C |
| DC connection | Faston tabs 6.3 mm |
| Weight kg (lbs) | 0.4 (0.9) |
| Dimensions hxwxd in mm (hxwxd in inches) | 45x90x125 (1.8x3.5x4.9) |
| Standards: Safety Emission Immunity Automotive Directive | EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4 |
| SKU: | VIC-ORI122410020 |
| Barcode: | 8719076022749 |
| Model #: | ORI122410020 |
| MPN: | ORI122410020 |
