Victron Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz
Victron Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz

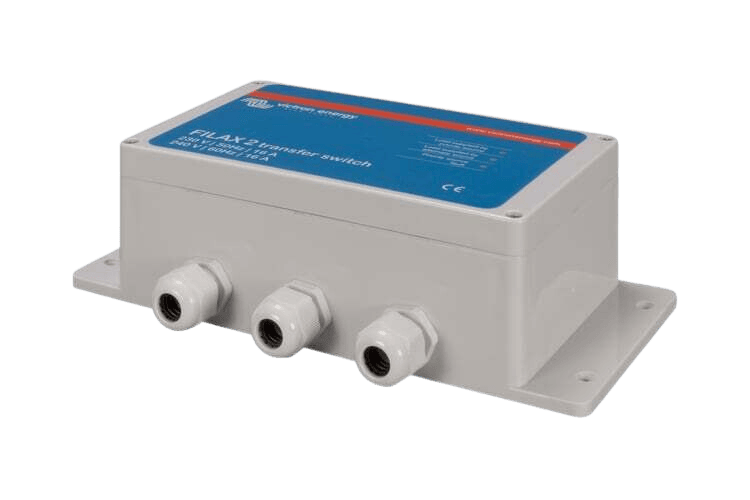

Highlights:Status LEDs: LED indicators for priority source, alternate source, and priority source fault,Electrical Ratings: Rated for 230V/50Hz and 240V/60Hz at 16 Amps,Cable Glands: Three IP65 rated cable entry points for secure electrical connections,Mounting Flanges: Pre-drilled side flanges for secure surface mounting.

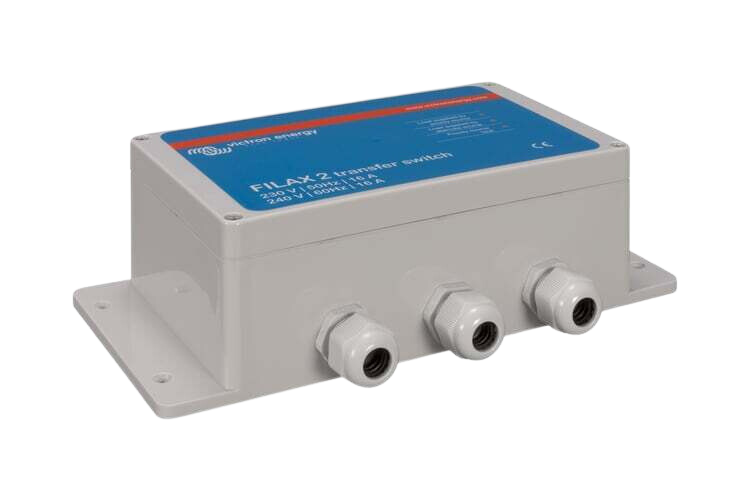

Key features: 255mm total width including mounting flanges, 200mm enclosure body width, 120mm total height including cable glands, 75mm enclosure depth.
Key features: Phase, Neutral, and Earth terminals for all source inputs, Dedicated Priority and Alternate source input blocks, Configurable wire bridges for loads under 850W, Single output block for load connection.
Key features: Maximum load transfer time of 16ms, IP65 protection category rating, Operating temperature range from -20 to +50 degrees Celsius, Enclosure material: ABS RAL7035.
DESCRIPTION
Filax 2: the ultra-fast transfer switch
The Filax has been designed to switch critical or sensitive loads, such as computers, industrial controls or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds sensitive loads will continue to operate without disruption. The Filax is not intended to supply high power household equipment like washing machines, or electric motors.
Open transition transfer
The Filax is an open transition (break before make) transfer switch. The maximum load transfer time is 16ms. The load is normally supplied by the priority source, and is transferred to the alternate source if:
- The voltage of the priority source drops below the threshold value.
- The frequency of the priority source drops below the low frequency threshold value, or increases beyond the high frequency threshold value.
Reverse transfer from the alternate source to the priority source is initiated when the priority source has operated within the voltage and frequency reverse switching limits during 30s.

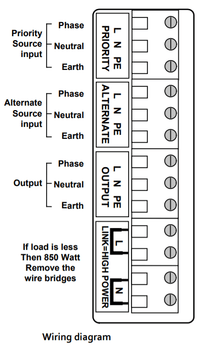

Installation • Install the Filax in a dry, well-ventilated area. • The input cables from the generator/mains, the inverter and the output cables to the appliances should be connected according to the wiring diagram. • If a load of less than 850 Watts is connected, then the wire bridges should be removed. • The frequency (50Hz or 60Hz) is set with a jumper. 50Hz no jumper placed. 60Hz jumper placed (see photo) If the jumper is not set for the frequency the voltage switching threshold levels will be incorrect. • Both inputs must be protected against current levels higher than 16 amps. • The front of the casing is attached using the four supplied screws. • The Filax is now ready for use.
SPECIFICATIONS
| SKU: | VIC-SDFI0000000 |
| Barcode: | 8719076025672 |
| Model #: | SDFI0000000 |
| MPN: | SDFI0000000 |
