Victron 12/24V 50A Buck-Boost DC-DC Converter

Highly Programmable

RRP $1,269.40
SAVE $242.95 (19%)
Due in Soon
Victron logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Victron 12/24V 50A Buck-Boost DC-DC Converter, to the majority of areas. Check your shipping details on the cart page for more information.

You may also need:

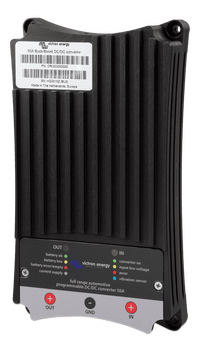

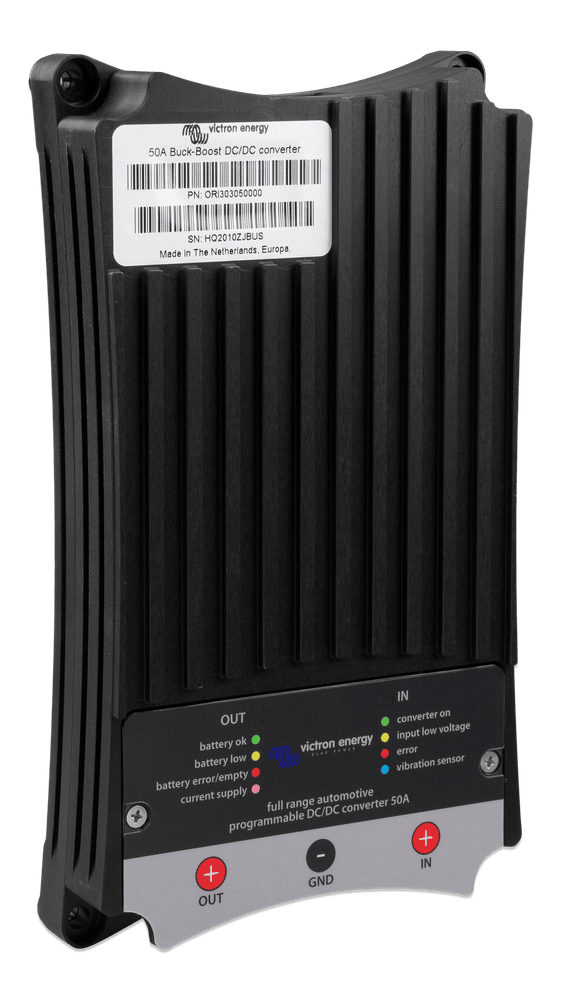

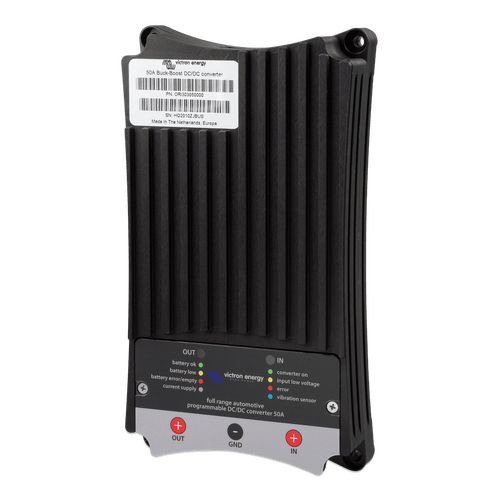

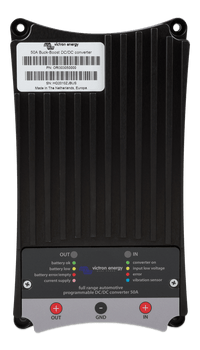

Victron 12/24V 50A Buck-Boost DC-DC Converter

Efficient Charging for Service Batteries in Vehicles with Smart Alternators

The Victron 12/24V 50A Buck-Boost DC-DC Converter is designed to provide efficient charging for a 12V or 24V service battery in vehicles equipped with smart alternators, including those with Euro 5 and Euro 6 engines featuring regenerative braking. This advanced converter ensures your auxiliary battery receives a consistent charge by managing both high and low voltage scenarios, eliminating potential issues common in smart alternators.

Key Features

Versatile Compatibility

  • Supports Multiple Systems: The converter is suitable for 12V, 24V, and 12/24V systems, allowing you to charge a 12V or 24V auxiliary battery from a 12V or 24V alternator and starter battery.
  • Pre-set Charge Voltage: Ensures stable charging by regulating high voltages (e.g., Mercedes: 15.4V) and low voltages.

Intelligent Design

  • Engine Running Detection: This built-in system prevents deep discharge of the vehicle's starting battery by detecting when the engine is running. Alternatively, the converter can be activated via programmable inputs (D+, CAN bus, or (+)15 connection).
  • Fully Programmable: Easily program the converter using a simple and user-friendly PC application (USB type A male to USB type B male cable required).

Performance and Safety

  • Charge Current and Input Current Limiter: The output current is regulated by the maximum charge current setting, input current setting, and the converter's maximum operating temperature limit.
  • Status Indication LEDs: Clear visual indicators for input and output status ensure optimal operation and troubleshooting.


Ideal for various applications including:

  • Trucks, Buses, and RVs: Maintain your service batteries efficiently while traveling.
  • Marine: Reliable power management for boats with smart alternators.
  • Off-Grid and Industrial: Perfect for remote power systems and industrial equipment.

Upgrade Your Power System

Ensure your vehicle's auxiliary battery is always charged and ready with the Victron 12/24V 50A Buck-Boost DC-DC Converter. Optimize your power management and prevent battery issues with this versatile and intelligent converter.

Order yours today and experience seamless battery charging in your vehicle!

Visit Victron Energy's Official Buck Boost DC-DC Converter For More Details


Model 50A
Input voltage range 10-30V
Under voltage threshold 10V
Output voltage range 10-30V
Maximum charge current 12V: 50A
24V: 25A
Power consumption
Converter off, LEDs off (power save mode) 7 mA
On/off input (pin 1, purple wire)
'On' threshold voltage > 2V
Maximum input voltage 30V
Output pin 1 and pin 2
Output voltage if activated Vinput = Vin
Maximum current (per pin) Iinput = 1A
Operating temperature range -25 to +60°C
Ambient temperature Max current: up to 60°C
Weight 1.4kg
Dimensions 213 x 120 x 30mm
SKU Vic-ORI303050000
Barcode # 8719076023128
MPN # ORI303050000

About Victron Energy Markets


The automotive market comprises a broad range of applications requiring a reliable power supply. In vehicles such as fire engines, ambulances and police cars a human life may depend on an autonomous system. So it is vital that all systems function flawlessly. Victron Energy offers you such an answer. We are proud to offer you our modern translation for freedom and independence. Energy. Anytime. Anywhere.

Read Victron's Automotive Brochure

Off-Grid and Backup

The presence of a functional electricity grid is not always as obvious as it would seem to be. An insufficient infrastructure is often the cause for an unreliable grid. Things become even more difficult when there is no grid at all. And yet you are in need of a reliable electricity supply. A local and properly functioning system is the only answer at this point. Victron Energy offers you such an answer. We are proud to offer you our modern translation for freedom and independence. Energy, Anytime, Anywhere

Read Victron's Off-Grid and Backup Brochure


Whether you’re going on a short fishing trip or planning to sail across the ocean, you’ll need reliable power to enjoy your adventure to the fullest. But at Victron we believe reliability isn’t enough. We believe in Optimal Energy instead. In our view, a boat needs an intelligent power grid that adapts to any challenges you may encounter. With unparalleled reliability, without effort and at great value for money. That’s what we call Optimal Energy.

Read Victron's Marine Brochure

Energy Storage

As more solar and wind power comes on line, it becomes increasingly difficult and expensive, to ensure stability of the grid. Intermediate energy storage is therefore rapidly becoming an essential tool to keep power fluctuations on the grid within manageable limits. Moreover, as feed-in tariffs are decreasing, the business case for a home energy storage system that increases self-consumption becomes more solid every day. Intermediate energy storage increases self-consumption of harvested solar and/or wind power. The natural next step is 100% self-consumption and independence from the grid.

Read Victron's Off-Grid and Backup Brochure

Read the Victron Wiring Guide - Wiring Unlimited

Download the VictronConnect App Here

Helpful Victron Videos

Did You Know - Choosing the right MPPT for your solar by using our calculator

Choosing the right MPPT for your solar by using the Victron calculator

How to not blow up your Alternator when charging a Lithium Battery with a DC-DC Charger

Victrons guide on when to use a DCDC Battery Charger

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
