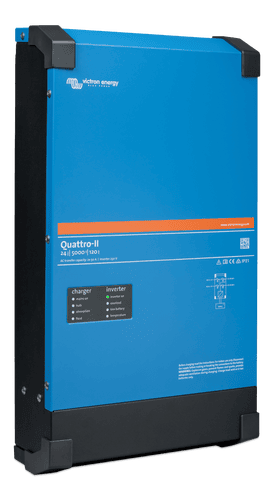

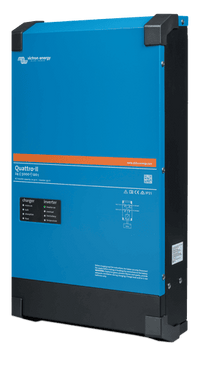

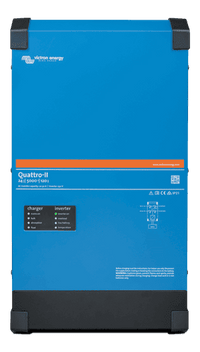

Victron 24V 5000VA Quattro-II 24/5000/120-50/50 Inverter/Charger
Victron 24V 5000VA Quattro-II 24/5000/120-50/50 Inverter/Charger
Two AC inputs with integrated transfer switch
Key features: 5000VA continuous power output at 25°C, Integrated 120A high-current battery charger, Dual AC inputs with 50A automatic transfer switch, PowerControl and PowerAssist capability, Steel RAL 5012 blue enclosure with IP21 rating.

Highlights:AC Outputs: Dual 13mm2 screw terminal AC outputs for prioritised load management,AC Inputs: Dual AC inputs for seamless switching between grid and generator power,VE.Bus Communication: RJ45 ports for parallel, three-phase, and remote monitoring integration,Battery Terminals: Heavy-duty M8 terminal bolts for secure high-current DC connections,Auxiliary Relay: Programmable relay for generator start/stop or system alarm functions.
Bottom panel view highlighting the secure cable entry glands and manual three-position rocker switch for off, on, and charger-only modes.



DESCRIPTION
Victron Quattro-II 24/5000/120-50/50 Inverter/Charger: Powering Off-Grid Vehicle Systems
Elevate the energy efficiency and reliability of your large vehicle's 24V system with the Victron Quattro-II 24/5000/120-50/50, an innovative inverter/charger designed for off-grid buses, trucks, and recreational vehicles. This advanced solution integrates seamlessly with generators and solar panels, offering unparalleled support for off-grid living and travel.
Dual AC Inputs for Reliable Power Connectivity
The Quattro-II enhances your mobile or stationary setup with the flexibility to connect to two independent AC sources. Whether drawing power from the public grid, a generator, or both, the Quattro-II's intelligent system ensures a continuous power supply by automatically switching to the active source, perfect for vehicles that transition between remote and urban environments.
Seamless Power with Two AC Outputs
With its no-break functionality, the Quattro-II guarantees an immediate transfer of power to your vehicle's essential systems in less than 20 milliseconds during an outage, ensuring no disruption to sensitive equipment. The secondary AC output activates only when external AC power is available, ideal for appliances that shouldn't drain the battery, enhancing energy conservation on the go.
Expand Your Power Capabilities in Parallel
For vehicles requiring substantial power, the Quattro-II's capability to operate in parallel with up to six units means you can significantly increase your output power and charging capacity. This feature is essential for large off-grid vehicles or mobile operations needing robust energy solutions.
Advanced Power Management Features
- Split Phase & Three Phase Options: Tailor your energy setup with split phase or three-phase operation, accommodating a variety of electrical systems and enhancing your vehicle's power distribution.
- PowerControl & PowerAssist: These technologies optimize your generator or shore power usage, preventing overloads by intelligently managing power consumption and boosting your power supply with battery power during peak demand times.

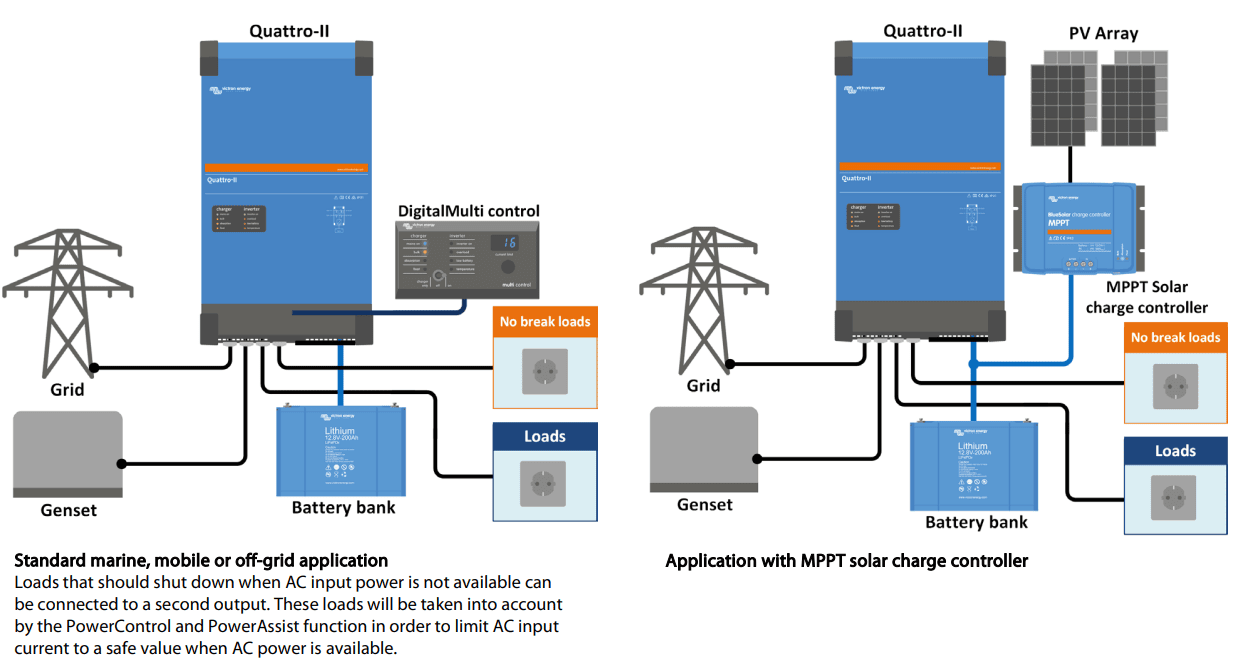

- Solar Compatibility for Uninterrupted Energy: Ideal for off-grid systems, the Quattro-II works seamlessly with PV and alternative energy sources, ensuring you have AC power even during grid failures.
Effortless System Configuration and Monitoring
Configure your system with ease using VE.Bus Quick Configure and VE.Bus System Configurator software. On-site and remote monitoring options, including the Color Control GX and smartphone connectivity, offer you full control over your energy system, wherever your travels take you.
Designed for Off-Grid Buses and Trucks:
This Victron inverter/charger is specifically tailored for large vehicles operating in off-grid conditions, ensuring reliable, efficient power management for buses, trucks, and RVs. Its robust design and advanced features make it an essential component for any serious off-grid vehicle setup.
SPECIFICATIONS

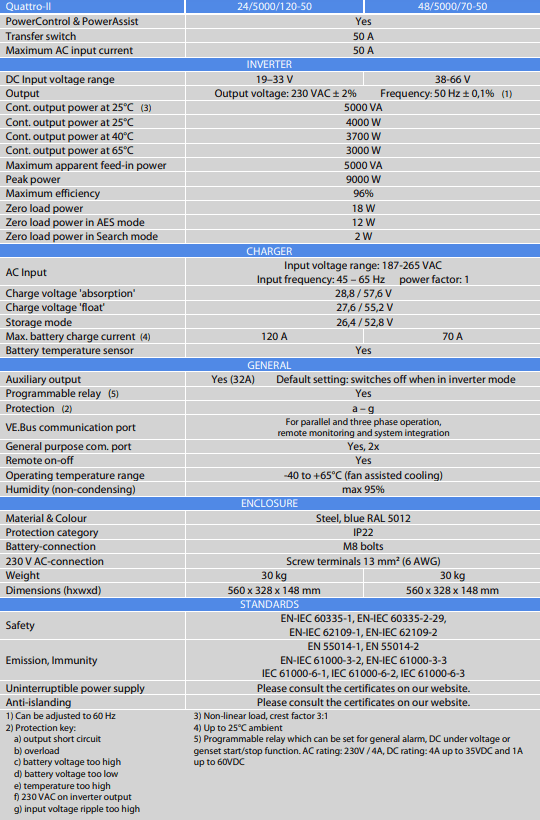

Specifications
| Quattro-II | 24/5000/120-50 |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50 A |
| Maximum AC input current | 50 A |
| Inverter | |
| DC Input voltage range | 19–33 V |
| Output | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1% (1) |
| Cont. output power at 25°C (3) | 5000 VA |
| Cont. output power at 25°C | 4000 W |
| Cont. output power at 40°C | 3700 W |
| Cont. output power at 65°C | 3000 W |
| Maximum apparent feed-in power | 5000 VA |
| Peak power | 9000 W |
| Maximum efficiency | 96% |
| Zero load power | 18 W |
| Zero load power in AES mode | 12 W |
| Zero load power in Search mode | 2 W |
| Charger | |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz power factor: 1 |
| Charge voltage 'absorption' | 28.8 V |
| Charge voltage 'float' | 27.6 V |
| Storage mode | 26.4 V |
| Max. battery charge current (4) | 120 A |
| Battery temperature sensor | Yes |
| General | |
| Auxiliary output | Yes (32A) Default setting: switches off when in inverter mode |
| Programmable relay (5) | Yes |
| Protection (2) | a – g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) | max 95% |
| Enclosure | |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP21 |
| Battery-connection | M8 bolts |
| 230 V AC-connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 31 kg |

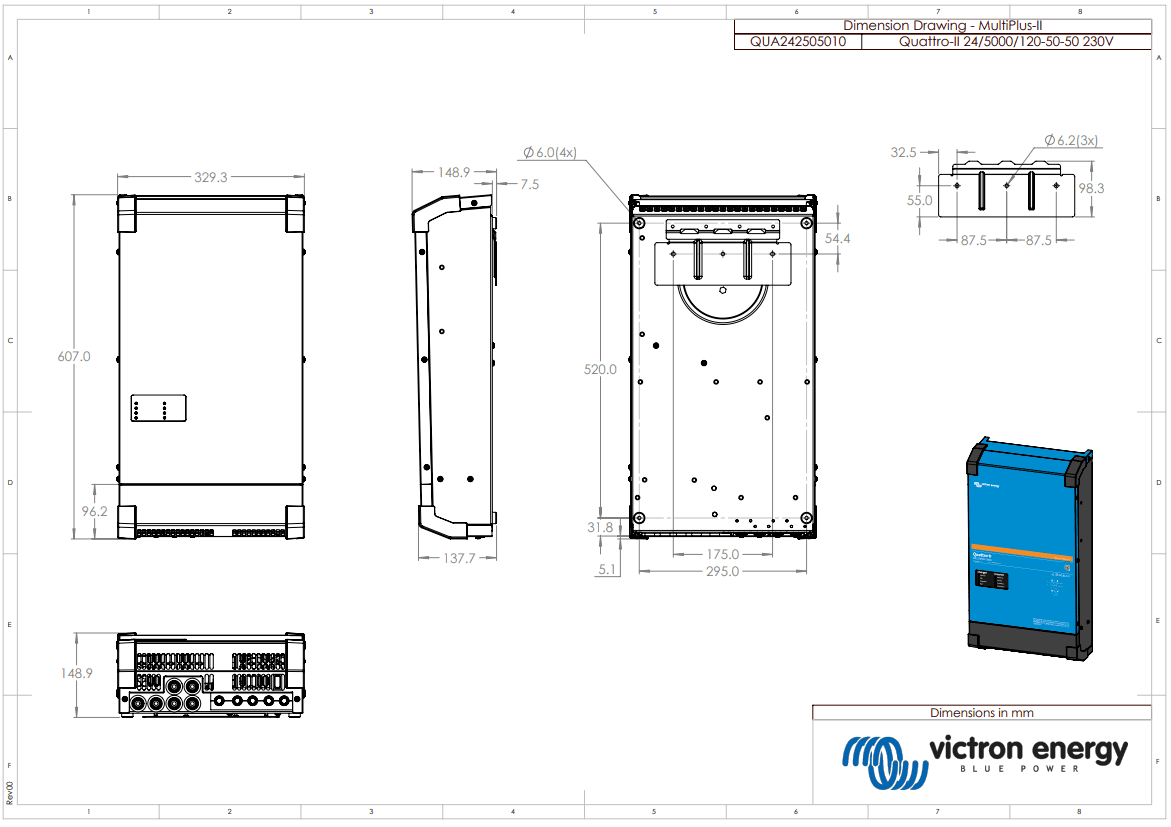

| Dimensions (hxwxd) | 607 x 329 x 149 mm |
| Standards | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Uninterruptible power supply | Please consult the certificates on our website. |
| Anti-islanding | Please consult the certificates on our website. |
1) Can be adjusted to 60 Hz 3) Non-linear load, crest factor 3:1 2) Protection key: 4) Up to 25°C ambient a) output short circuit 5) Programmable relay which can be set for general alarm, DC under voltage or b) overload genset start/stop function. AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A c) battery voltage too high up to 60VDC d) battery voltage too low e) temperature too high f) 230 VAC on inverter output g) input voltage ripple too high
| SKU: | VIC-QUA242505010 |
| Barcode: | 8719076052920 |
| Model #: | QUA242505010 |
| MPN: | QUA242505010 |
