Victron 12V 22Ah AGM Deep Cycle Battery


Victron 12V 22Ah AGM deep cycle battery with screw terminals and detailed specification labelHighlights:Negative Terminal: Left-side M5 bolt-and-nut terminal for negative connection,Positive Terminal: Right-side M5 bolt-and-nut terminal for positive connection,Carry Handle Recess: Integrated ergonomic grip for easy transport of the 5.8kg unit,Capacity Rating: 22Ah rating at 20-hour discharge rate for deep cycle use,VRLA Technology: Valve Regulated Lead Acid technology for maintenance-free operation.Top-down view of Victron AGM battery showing positive and negative screw terminals and polarity markingsTechnical drawing showing physical dimensions and terminal detail of the 12V 22Ah batteryTechnical specification drawing providing exact measurements: 181mm length, 77mm width, and 167mm total height, including terminal bolt configuration.Specification table for Victron AGM battery range detailing weight, size, and cycle lifeKey features: 400 cycles at 80% discharge depth, 600 cycles at 50% discharge depth, 1500 cycles at 30% discharge depth, Low self-discharge flat plate AGM technology, 7 to 10 year float design life at 20 degrees Celsius.Charging voltage table for Victron AGM and Gel batteries showing absorption and float levelsCharging parameter summary for Victron AGM batteries, specifying normal cycle absorption between 14.2V and 14.6V and float service at 13.5V to 13.8V.

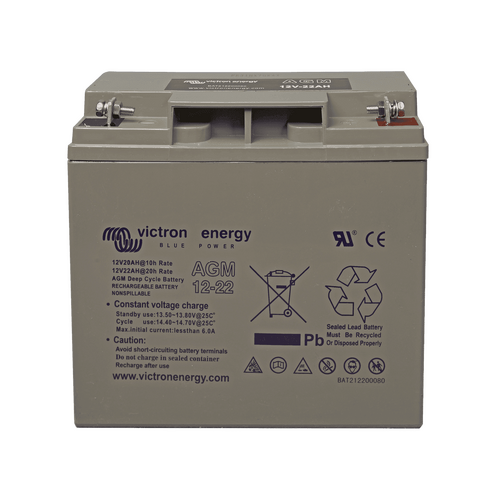

Victron 12V 22Ah AGM deep cycle battery with screw terminals and detailed specification label

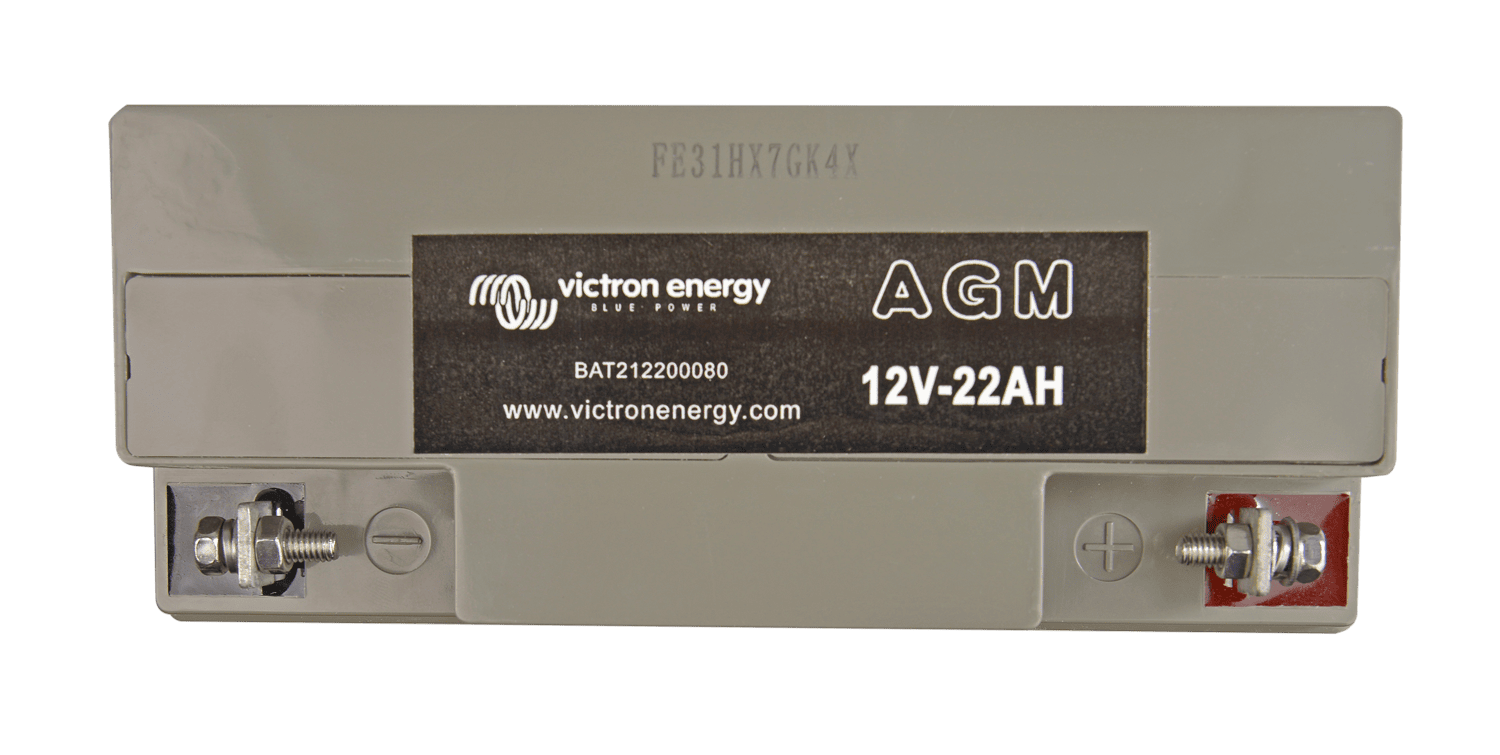

Top-down view of Victron AGM battery showing positive and negative screw terminals and polarity markings

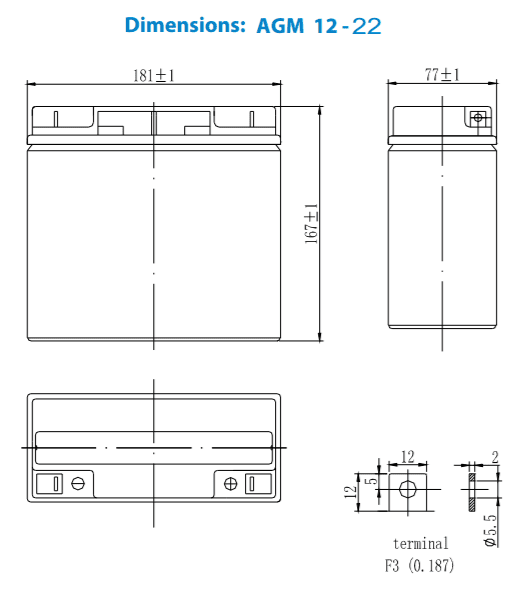

Technical drawing showing physical dimensions and terminal detail of the 12V 22Ah battery
Specification table for Victron AGM battery range detailing weight, size, and cycle life
Charging voltage table for Victron AGM and Gel batteries showing absorption and float levels
Regular price $101.45
$106.70
/
Availability: Special Order
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Victron 12V 22Ah AGM deep cycle battery with screw terminals and detailed specification label

Victron 12V 22Ah AGM Deep Cycle Battery

DESCRIPTION

Victron 12V 22Ah AGM Deep Cycle Battery with VRLA Technology

Compact and Reliable AGM Deep Cycle Power Solution

The Victron 12V 22Ah AGM Deep Cycle Battery is a compact, high-quality energy storage solution designed for applications where reliability, safety, and maintenance free operation are essential. Built with proven VRLA technology, this sealed lead acid battery is completely maintenance free for life, making it ideal for smaller power systems that still demand consistent deep cycle performance.

Sealed VRLA AGM Technology for Safe Operation

VRLA, or Valve Regulated Lead Acid technology, ensures the battery is fully sealed, with gas only vented through safety valves in the event of overcharging or internal failure. The AGM construction uses Absorbent Glass Mat separators that immobilise the electrolyte within glass-fibre mats, allowing efficient power delivery and safe installation in enclosed spaces. Compared to gel batteries, AGM batteries are better suited to short-duration, high-current demands.

Key Benefits of the Victron 12V 22Ah AGM Battery

  • Maintenance free sealed AGM deep cycle battery with VRLA safety design
  • Low self-discharge of less than 2% per month at 20°C for extended storage
  • Excellent recovery after deep or prolonged discharge for a battery of its size

Optimised Discharge Characteristics for Small Systems

The rated capacity of this 12V 22Ah AGM deep cycle battery is based on a 20-hour discharge rate, ensuring predictable performance in real-world conditions. As discharge current increases, effective capacity decreases, particularly with constant power loads such as inverters. Correct sizing is therefore essential when used in compact caravan, RV, marine, or off-grid power systems.

Designed for Long Service Life

Thanks to the use of lead calcium grids and high-purity materials, Victron VRLA batteries can be stored for long periods without recharging when kept in cool conditions. While repeated deep discharge will affect all lead acid batteries, the Victron 12V 22Ah AGM battery is engineered to deliver dependable cycle life in applications such as backup power, security systems, monitoring equipment, and portable energy storage.

Compatible with Advanced Victron Charging Algorithms

This AGM deep cycle battery is fully compatible with Victron’s adaptive 4-step charging technology. This intelligent charging method controls bulk, absorption, float, and storage stages to reduce gassing, prevent overcharging, and minimise corrosion of the positive plates. Proper charging is especially important for maximising lifespan in small off-grid solar systems and standby power applications.

Ideal Applications Across Multiple Use Cases

The Victron 12V 22Ah AGM Deep Cycle Battery is well suited for caravan and RV accessories, marine electronics, off-grid solar control systems, industrial backup circuits, UPS systems, alarm panels, and compact energy storage in tiny homes. Its sealed design allows flexible mounting and safe operation in confined environments.

Upgrade your system now with the Victron 12V 22Ah AGM Deep Cycle Battery and enjoy reliable, maintenance free power for caravan, RV, marine, off-grid, industrial, and tiny home applications.

SPECIFICATIONS

SKU: VIC-BAT212200084
Barcode: 8719076036944
Model #: BAT212200084
MPN: BAT212200084

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
