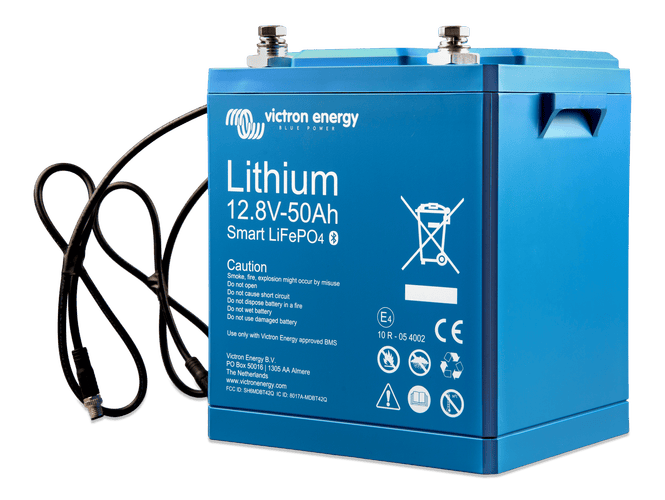

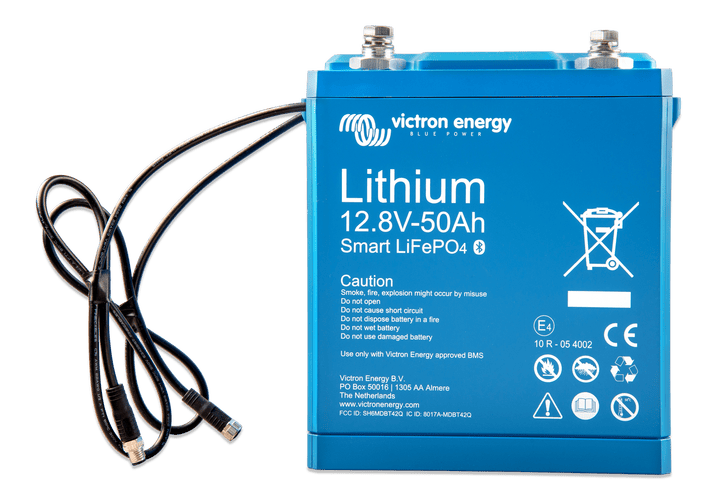

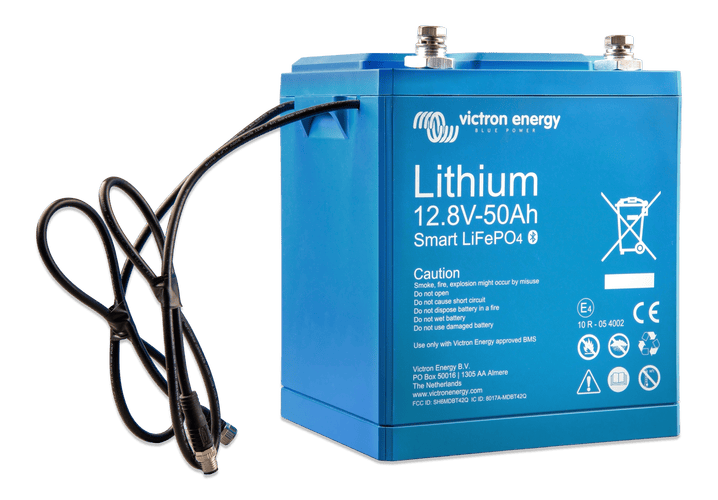

Victron 12V 50Ah Smart LiFePO4 Lithium Battery
Victron 12V 50Ah Smart LiFePO4 Lithium Battery
Requires external Victron BMS such as VE.Bus BMS/miniBMS

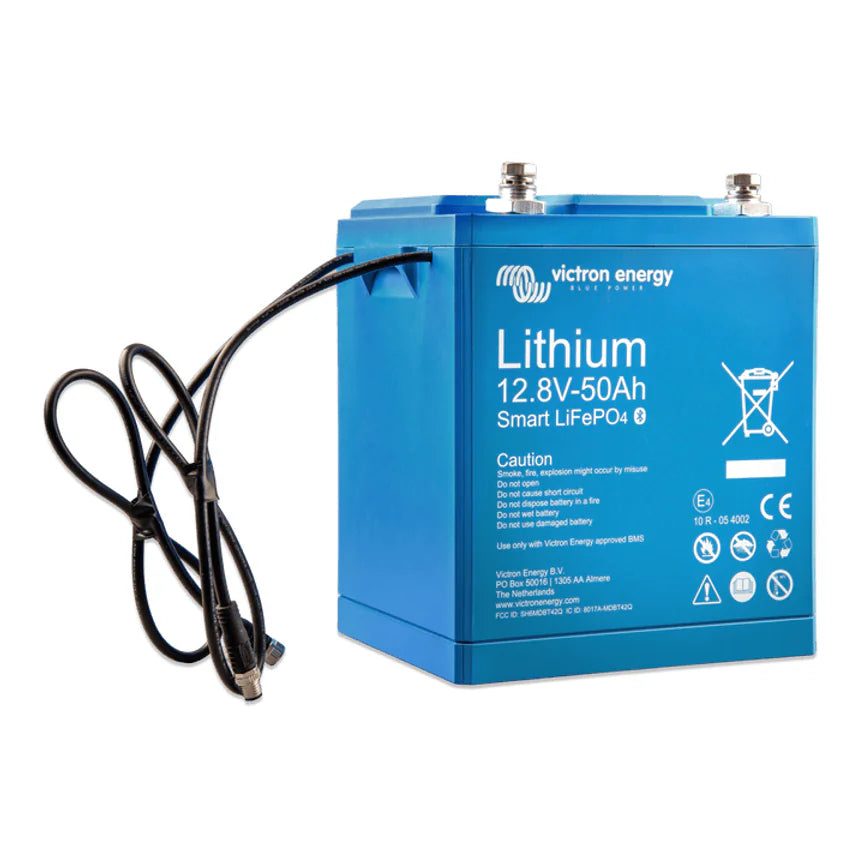

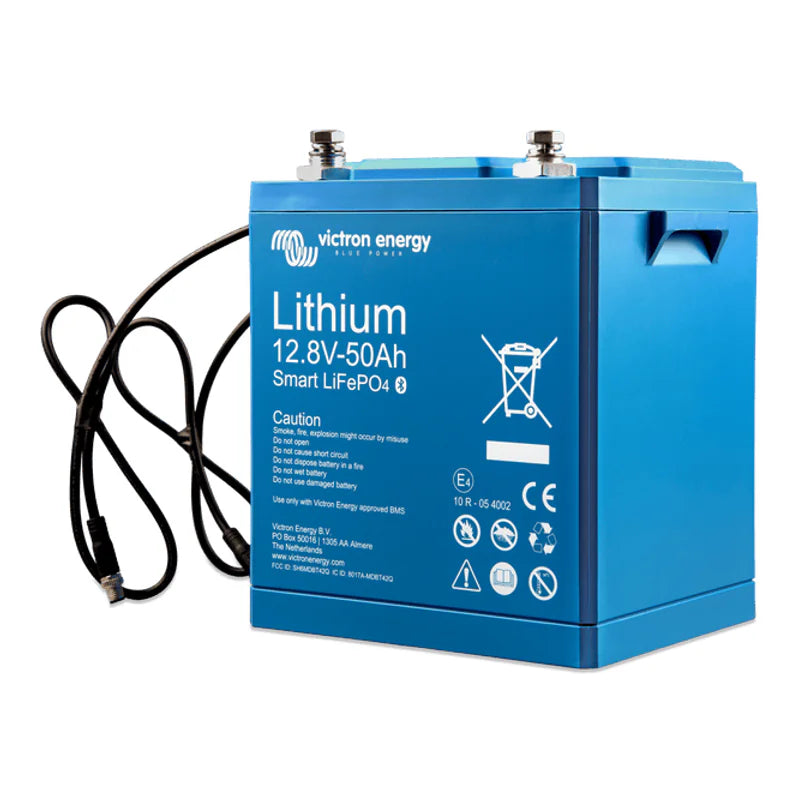

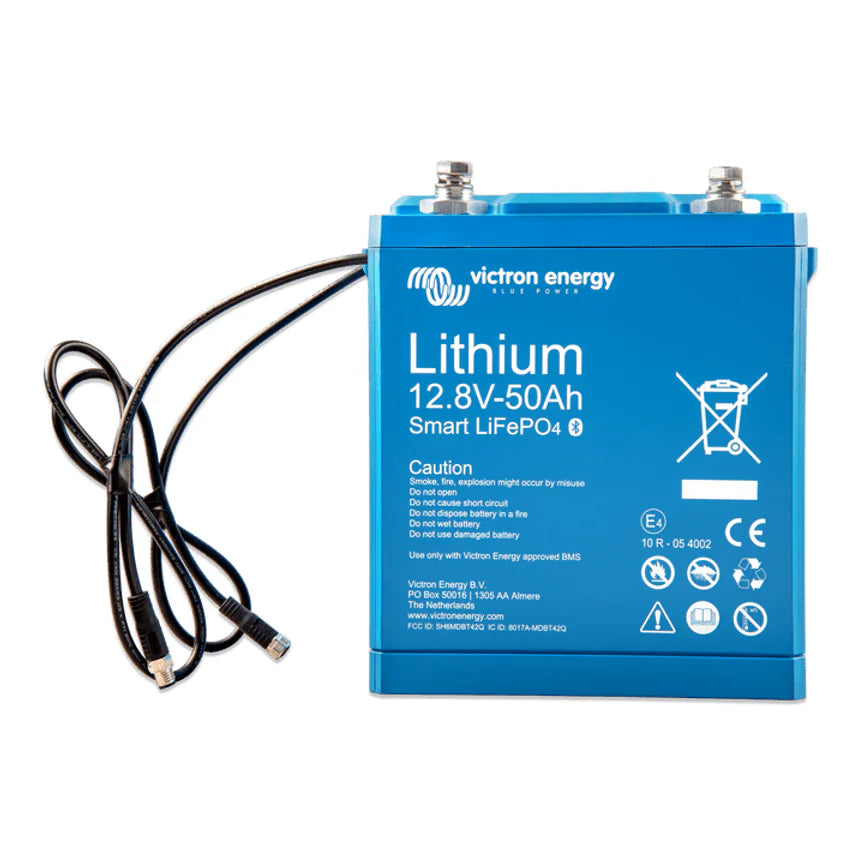

Highlights:M8 Threaded Terminals: High-current M8 threaded inserts for secure power connections,BMS Cables: 50cm cables with M8 circular connectors for external BMS integration,Smart Bluetooth: Integrated Bluetooth for wireless monitoring via the VictronConnect app,LiFePO4 Chemistry: Safe Lithium Iron Phosphate technology with high cycle life,IP22 Enclosure: Durable blue protective casing with IP22 ingress protection rating.

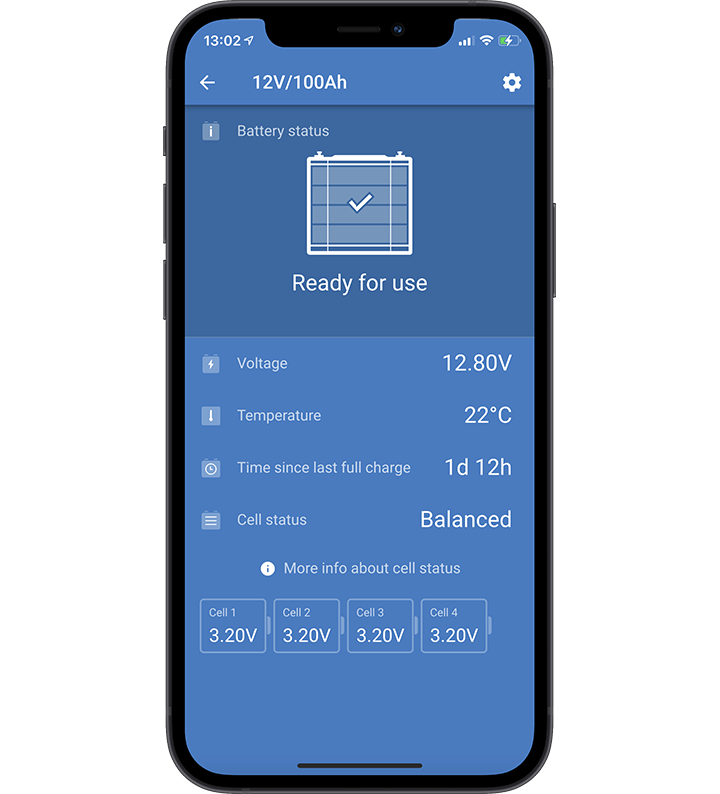

Monitor battery performance in real-time with the VictronConnect app, displaying individual cell voltages, battery temperature, and status.
Key features: Up to 5000 cycles at 50% depth of discharge, Operating temperature range from -20°C to +50°C, Integrated cell balancing and Bluetooth monitoring, Flexible mounting options including side orientation, Lightweight 7kg construction for 50Ah model.

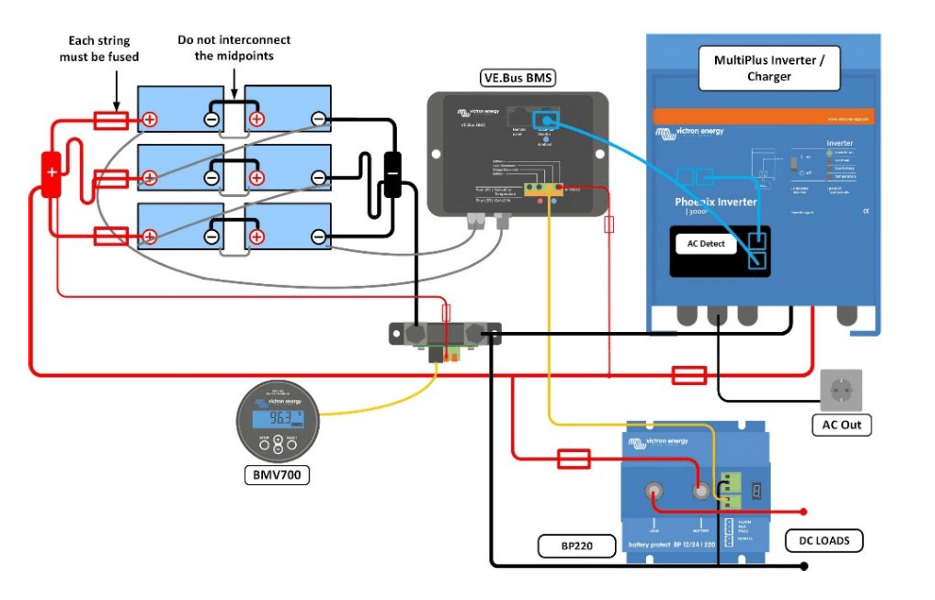

Technical system diagram showing 12V lithium batteries connected in series-parallel to a VE.Bus BMS, battery monitor, and MultiPlus inverter/charger.
Detailed dimensional drawing showing the battery measurements of 199mm height, 188mm width, and 147mm depth with M8 terminal locations.
DESCRIPTION
Victron 12V 50Ah Smart LiFePO4 Lithium Battery - High-Efficiency Energy Storage
Important Note - Requires one of these BMS':
- VE.Bus BMS V2– recommended for systems with our inverter/chargers such as MultiPluses and Quattros.
- smallBMS – recommended for use in small systems without intending on using a Victron Inverter/charger.
- Lynx Smart BMS M8 or Lynx Smart BMS M10 – recommended for use in large systems or those wanting the most feature rich and simple solution.
Discover the future of power storage with the Victron 12V 50Ah Smart LiFePO4 Lithium Battery, a leap forward in battery technology for the eco-conscious consumer. Victron Energy, a trusted name in efficient energy solutions, brings you the Lithium Iron Phosphate (LiFePO4) battery range, available in 12.8V and 25.6V across various capacities for diverse applications.
Features:
- With integrated cell balancing
- Can be parallel and series connected
- Bluetooth app available to monitor cell voltage and temperature
Unparalleled Versatility:
- Expandable Energy Storage: Connect these batteries in series, parallel, or series/parallel configurations to build a robust battery bank tailored to your system's needs, with options for 12V, 24V, or 48V system voltages.
- Substantial Capacity: Create an extensive energy reserve with up to 20 batteries in one system, achieving a remarkable 84 kWh storage in a 12V setup and up to 102 kWh in 24V and 48V configurations.
Advanced Chemistry for Demanding Environments:
- Lithium-Iron-Phosphate Excellence: The LFP battery is designed to withstand demanding conditions without the sulfation issues that plague lead-acid batteries, ensuring longevity and consistent performance.
- Partial Charge Benefits: Unlike lead-acid batteries, the Victron LFP battery's service life improves with partial charges, making it the superior choice for long-term efficiency and reliability.
Cutting-Edge Efficiency:
- Superior Round-Trip Energy Efficiency: Enjoy a remarkable 92% energy efficiency with a full discharge and recharge cycle, outperforming the average lead-acid battery's 80% efficiency.
- Space and Weight Savings: Achieve the same power with 70% less space and weight compared to traditional batteries, a critical advantage for mobile and off-grid applications.
Smart Monitoring with Bluetooth:
- Real-Time Data: With integrated Bluetooth, monitor cell voltages, temperature, and alarm status directly through the VictronConnect App without needing to physically connect to the battery.
- Troubleshooting Simplified: Quickly identify and address any potential issues with cell imbalances or other concerns, ensuring your system's optimal performance.
Connects to a Victron Robust Battery Management System (BMS):
- Proactive Protection: The BMS provides pre-alarms for low voltage and shuts down the load to prevent damage, ensuring your battery's health and safety.
- Optimized Charging: It also regulates the charging process to protect against overvoltage and temperature extremes, detailed in the comprehensive BMS datasheets.
With the Victron 12V 50Ah Smart LiFePO4 Lithium Battery, power your world with confidence, knowing you have the pinnacle of battery innovation designed for peak performance and longevity. Whether for solar, wind, or mobile applications, this battery delivers the efficiency, durability, and smart technology you need to stay powered up in any situation.
SKU: VIC-BAT512050610
Visit Victron's Official Victron 12V 50Ah Smart LiFePO4 Lithium Battery Webpage Here
SPECIFICATIONS

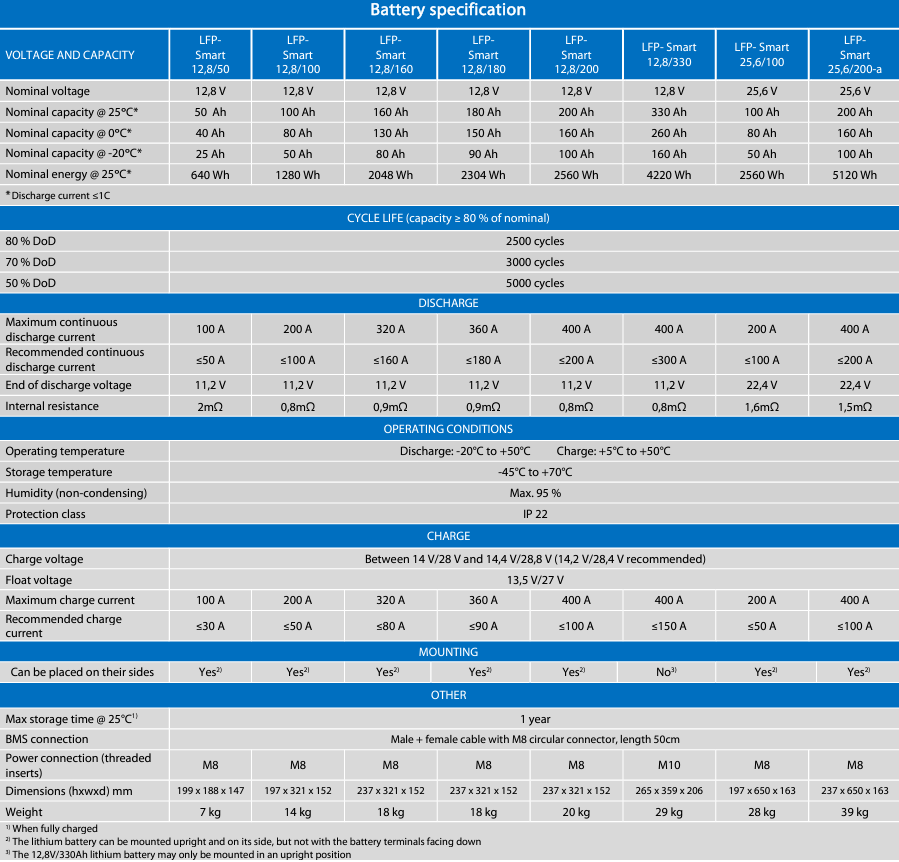

Specifications
| Voltage and Capacity | LFP-Smart 12V 50Ah |
| Nominal voltage | 12.8 V |
| Nominal capacity @ 25°C* | 50 Ah |
| Nominal capacity @ 0°C* | 40 Ah |
| Nominal capacity @ -20°C* | 25 Ah |
| Nominal energy @ 25°C* | 640 Wh |
| *Discharge current ≤1C | |
| Cycle Life (capacity ≥ 80 % of nominal) | |
| 80 % DoD | 2500 cycles |
| 70 % DoD | 3000 cycles |
| 50 % DoD | 5000 cycles |
| Discharge | |
| Maximum continuous discharge current | 100 A |
| Recommended continuous discharge current | ≤50 A |
| End of discharge voltage | 11.2 V |
| Internal resistance | 2mΩ |
| Operating Conditions | |
| Operating temperature | Discharge: -20°C to +50°C Charge: +5°C to +50°C |
| Storage temperature | -45°C to +70°C |
| Humidity (non-condensing) | Max. 95 % |
| Protection class | IP 22 |
| Charge | |
| Charge voltage | Between 14 V and 14.4 V (14.2 V recommended) |
| Float voltage | 13.5 V |
| Maximum charge current | 100 A |
| Recommended charge current | ≤30 A |
| Mounting | |
| Can be placed on their sides | Yes^{2)} |
| Other | |
| Max storage time @ 25°C^{1)} | 1 year |
| BMS connection | Male + female cable with M8 circular connector, length 50cm |
| Power connection (threaded inserts) | M8 |
| Dimensions (hxwxd) mm | 199 x 188 x 147 |
| Weight | 7 kg |
| ^{1)} When fully charged ^{2)} The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down ^{3)} The 12,8V/330Ah lithium battery may only be mounted in an upright position | |
| SKU: | VIC-BAT512050610 |
| Barcode: | 8719076051633 |
| Model #: | BAT512050610 |
| MPN: | BAT512050610 |
